4K HDMI Extender Over CAT6/7 RJ45 4K@30Hz Up To 130 Ft & 1080p Up To 230 Ft (EX-230PRO)

Name: 4K HDMI Extender Over CAT6/7 RJ45 4K@30Hz Up To 130 Ft & 1080p Up To 230 Ft (EX-230PRO)
Brand: OREI.COM
SKU: EX-230PRO
Price: 55.99 USD
Availability: OutOfStock

$55.99

Shipping calculated at checkout.

SKU: EX-230PRO

4K@30Hz up to 130 feet
Supports Bi-directional IR signal transmission
EDID passthrough

Overnight shipping:

Two days shipping:

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

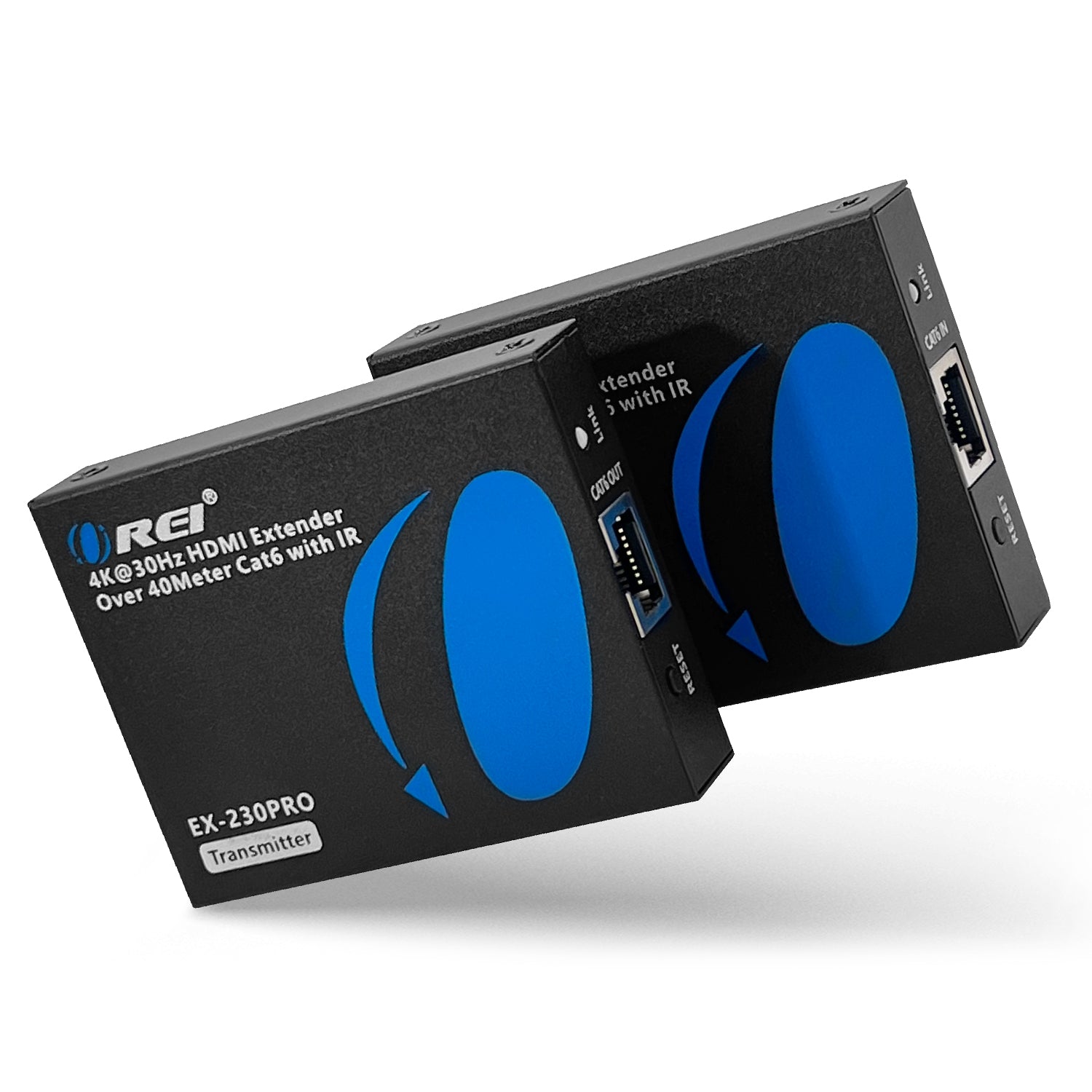

OREI EX-230PRO 4K HDMI Extender up to 230Ft

Key Features:

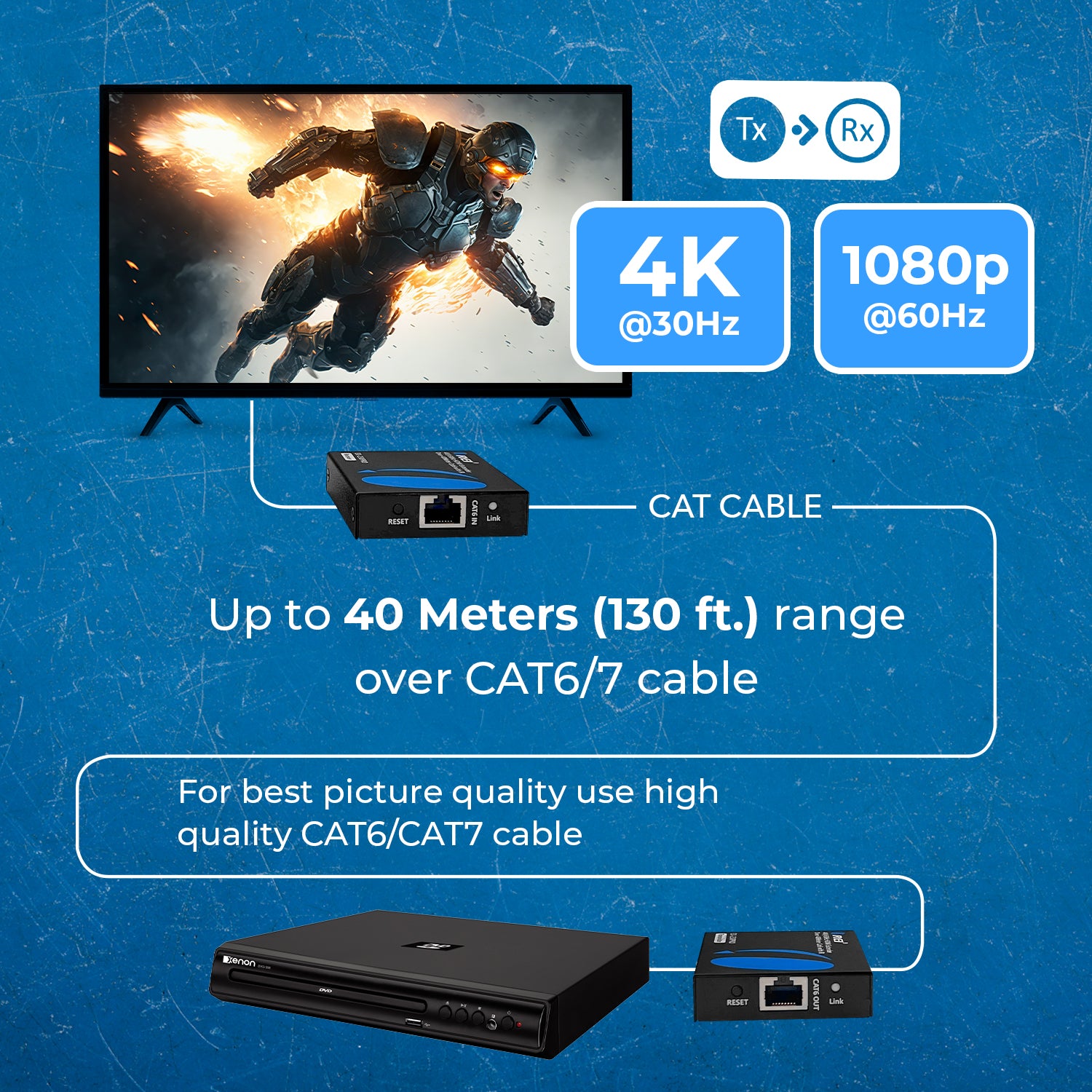

230 Feet 4K HDMI Extender - It can transmit HDMI signal 4K@30Hz for up to 130 Feet and Full HD 1080p Signal up to 230 Feet with CAT6/7 LAN Cable
Local Loop Out - Let's you connect one display at the transmitter end and you will also get one display at the receiver end
Zero Loss - Supports 480i@60Hz, 480p@60Hz, 576i@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4K@30Hz
Audio Formats up to PCM, LPCM, DTS HD, DTS Audio
Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players, Sky HD box, satellite box, Android box
We recommend high quality shielded CAT6/7 cable for maximum picture quality
More simple and convenient
No driver required
Just plug and play setup

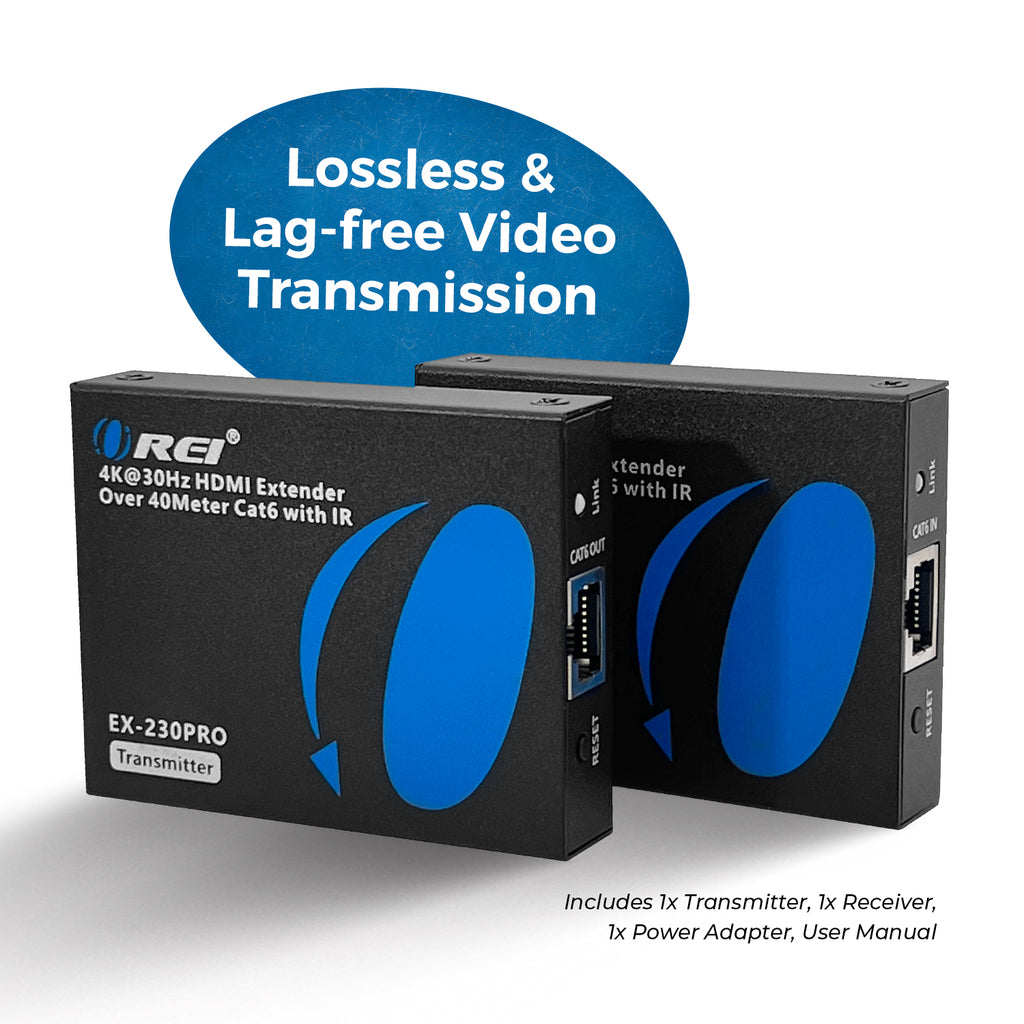

The OREI EX-230PRO 4K HDMI Extender allows you to transmit HDMI audio/video signals over CAT6/7 cable with zero latency along with maintaining original audio/video quality.

This HDMI Over Ethernet 4K extender can transmit an HDMI 1080p signal up to 70 Meters (230FT) using CAT5e/6. Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players.

Compact, durable, and easy to set up and operate. Ideal for homes, businesses, test bench facilities, data centers, and help desks.

You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.

HDMI Loop-out - Connect HDMI display to the transmitter for output to local display at the source.

EDID Copy - It can automatically recognize the display device parameter and display it.

IR control - enables the source device to recognize remote commands from the remote display.

AUDIO AND VIDEO

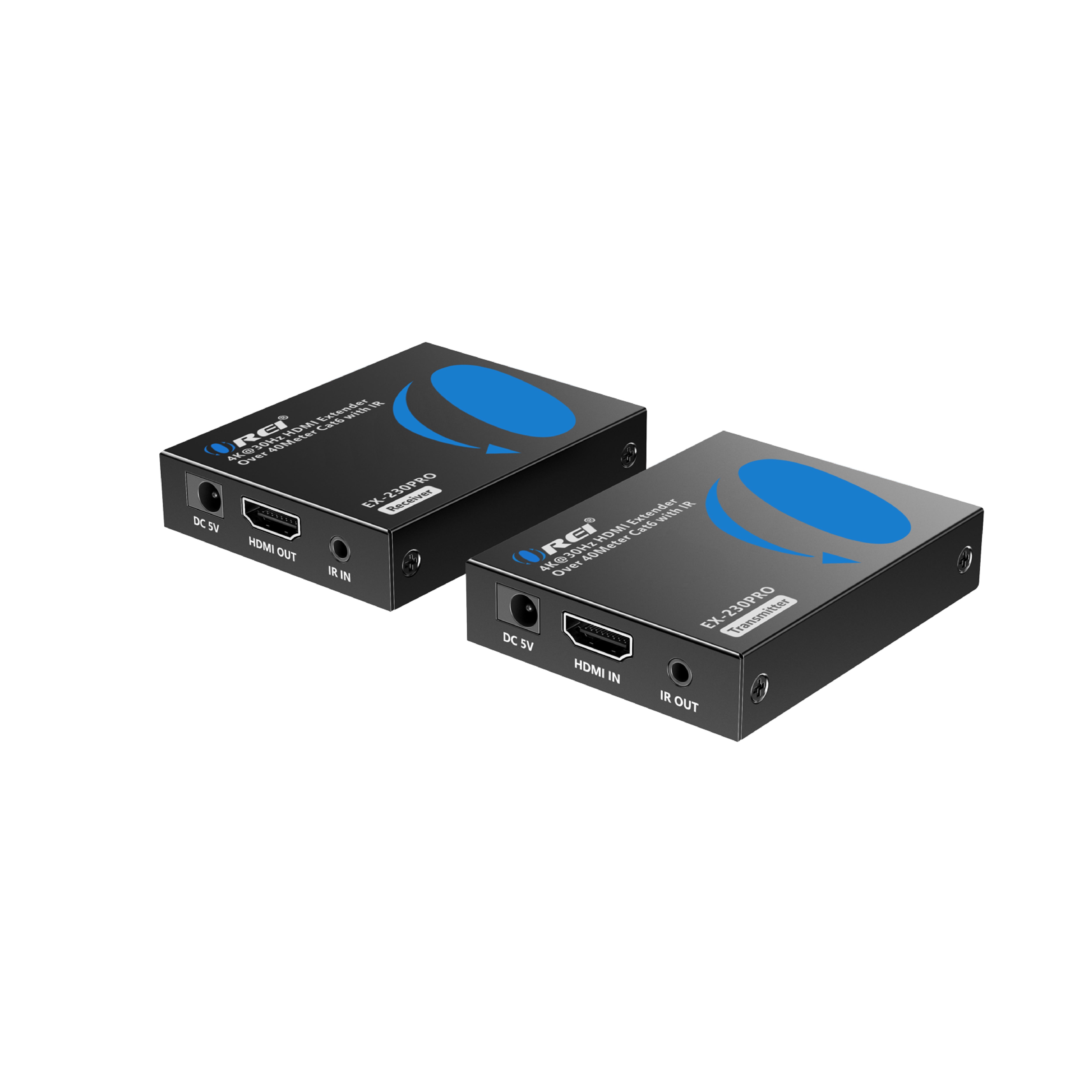

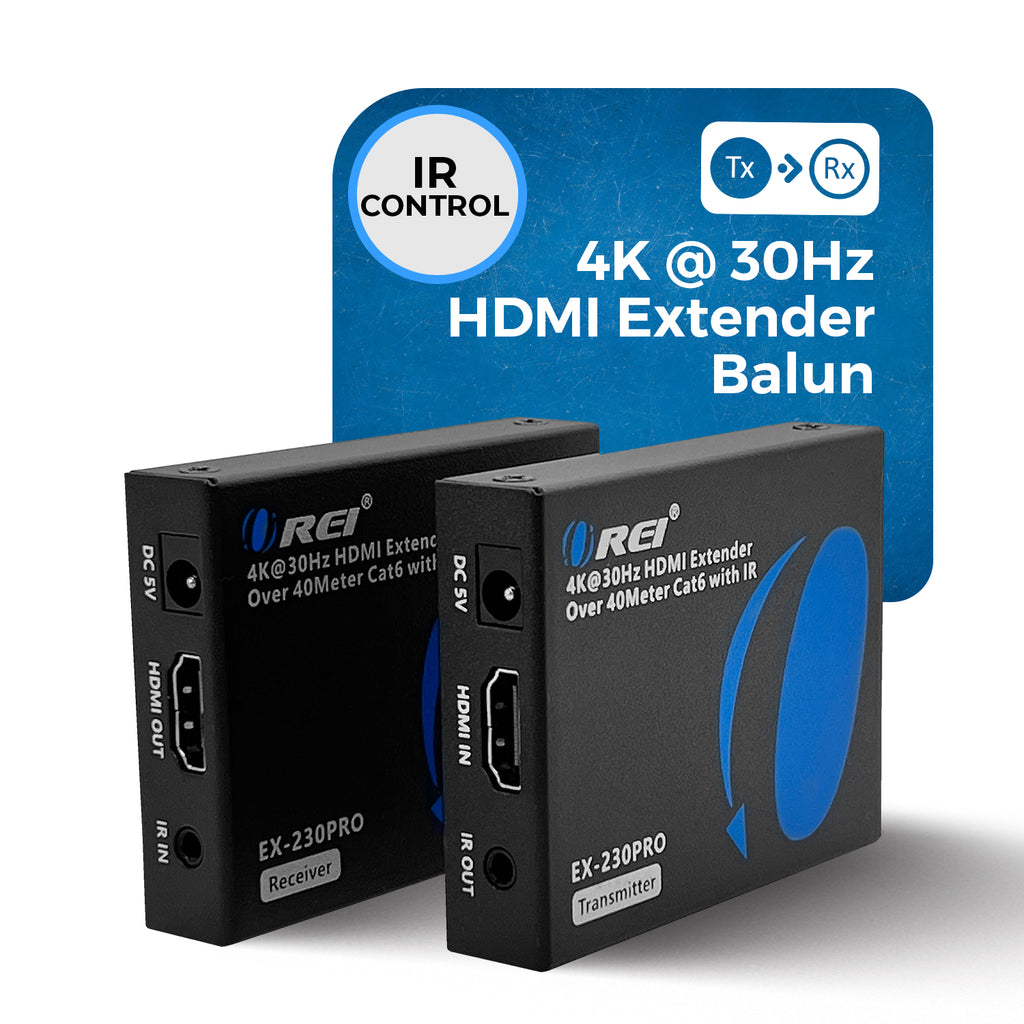

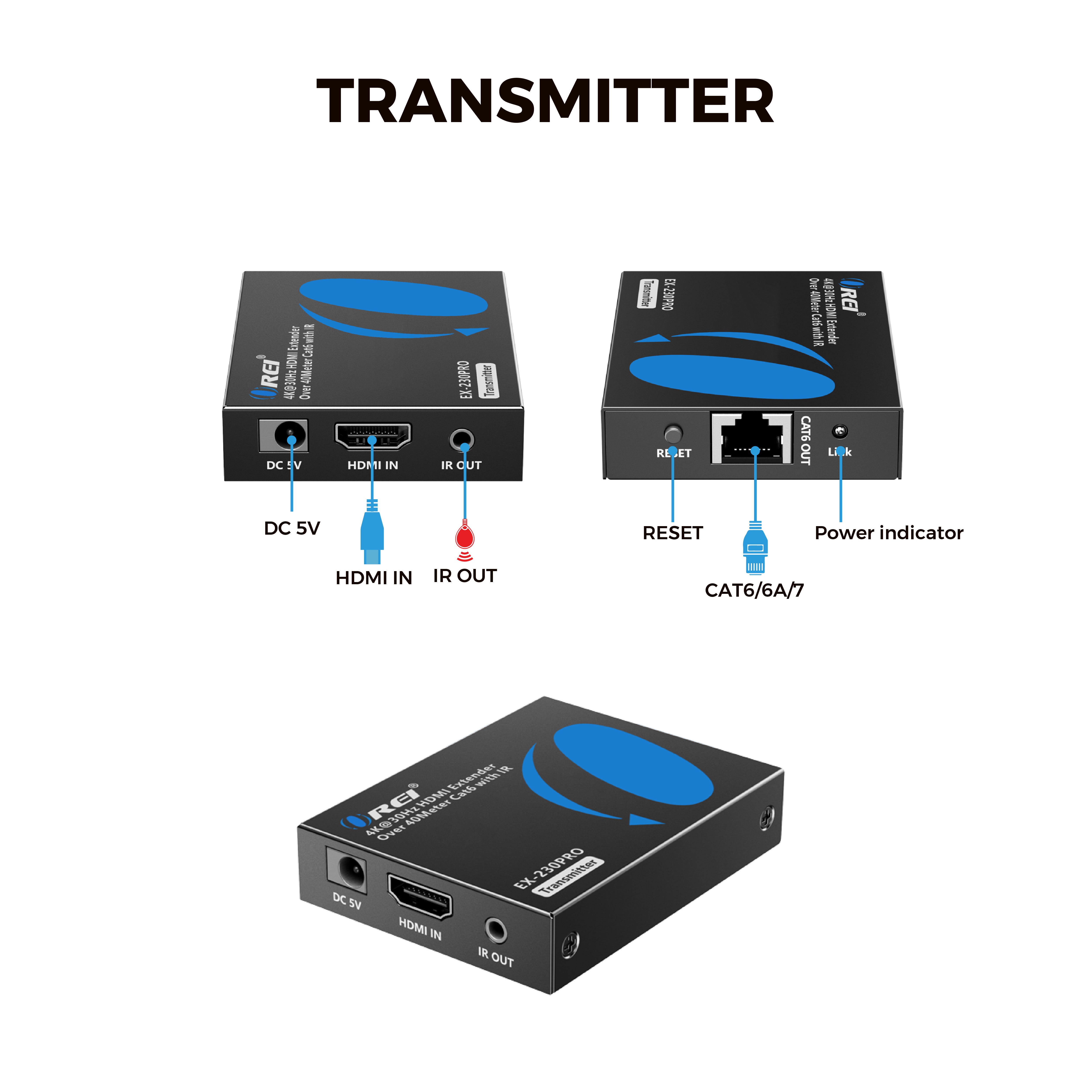

Transmitter:	INPUT PORTS:	1x HDMI Type A
		1 x IR IN
	OUTPUT PORTS:	1x HDMI Type A
		1 x IR OUT
		1 x CAT OUT
Receiver:	INPUT PORTS:	1x IR IN
		1x CAT IN
	OUTPUT PORTS:	1x HDMI Type A
		1x IR OUT

COMPLIANCES & PROTOCOLS

HDCP Compliance:	HDCP 1.4
HDMI Compliance:	HDMI 1.4

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	131 Feet
1080p@60Hz:	230 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 4K@30Hz
Color Space:	4:4:4
Color Depth:	10bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Bi-directional IR
Downscaler Function:
Over Network/IP Function:	NOT OVER IP Extender / Point to Point extender
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO OUTPUT

HDMI Audio Formats:

PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH

SIGNALS

TMDS Signals:	0.7~1.2Vp-p
DDC Signals:	5Vp-p(TTL)

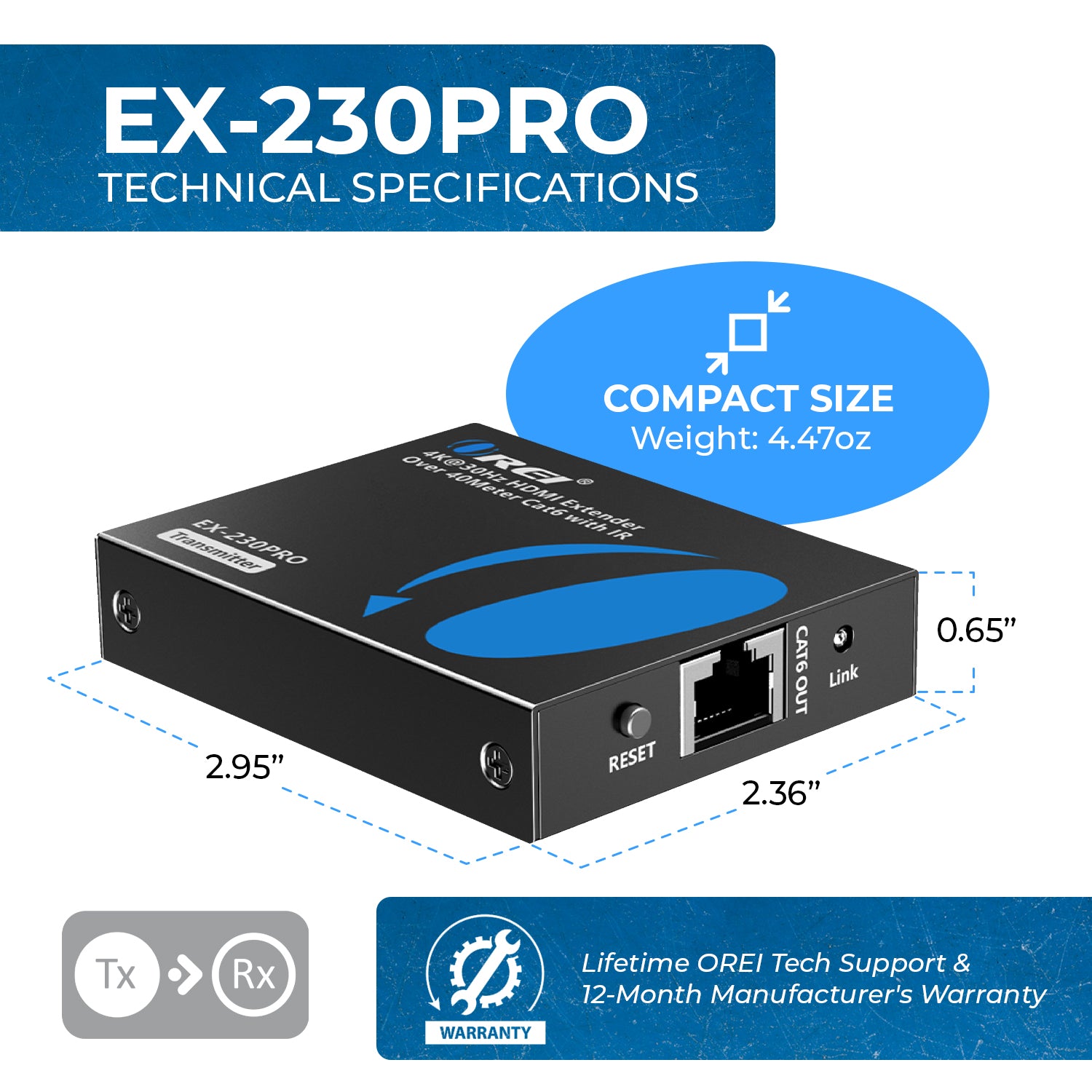

DIMENSIONS & WEIGHT

Height:	18mm
Width:	80mm
Depth:	75mm
Weight:	Trasmitter:	160g
	Receiver:	160g

PROTECTION

Operation Temperature:	-20～60℃
Storage temperature:	-30~70 °C
Relative Humidity:	0~90%RH
ESD Protection:	Implementation of the standard: IEC61000-4-2 1a Contact discharge level 2 (4KV) 1b Air discharge level 3 (8KV)

RJ-45 CONNECTOR Type

Sinking type

POWER

Power Consumption (Max):	Transmitter:	2.5W
	Receiver:	2.5W
Power Supply:	DC5V/500mA

PHYSICAL PROPERTIES

Color:	Black
Material:	Aluminum alloy material + crystal panel
Treatment process:	Grit blast

PACKAGE CONTENTS

1x HDMI Transmitter

1 x HDMI Receiver

1x IR Receiver Cable

1x IR Blaster Cable

2x DC5V/500mA Power Adapter

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

EX-230PRO User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

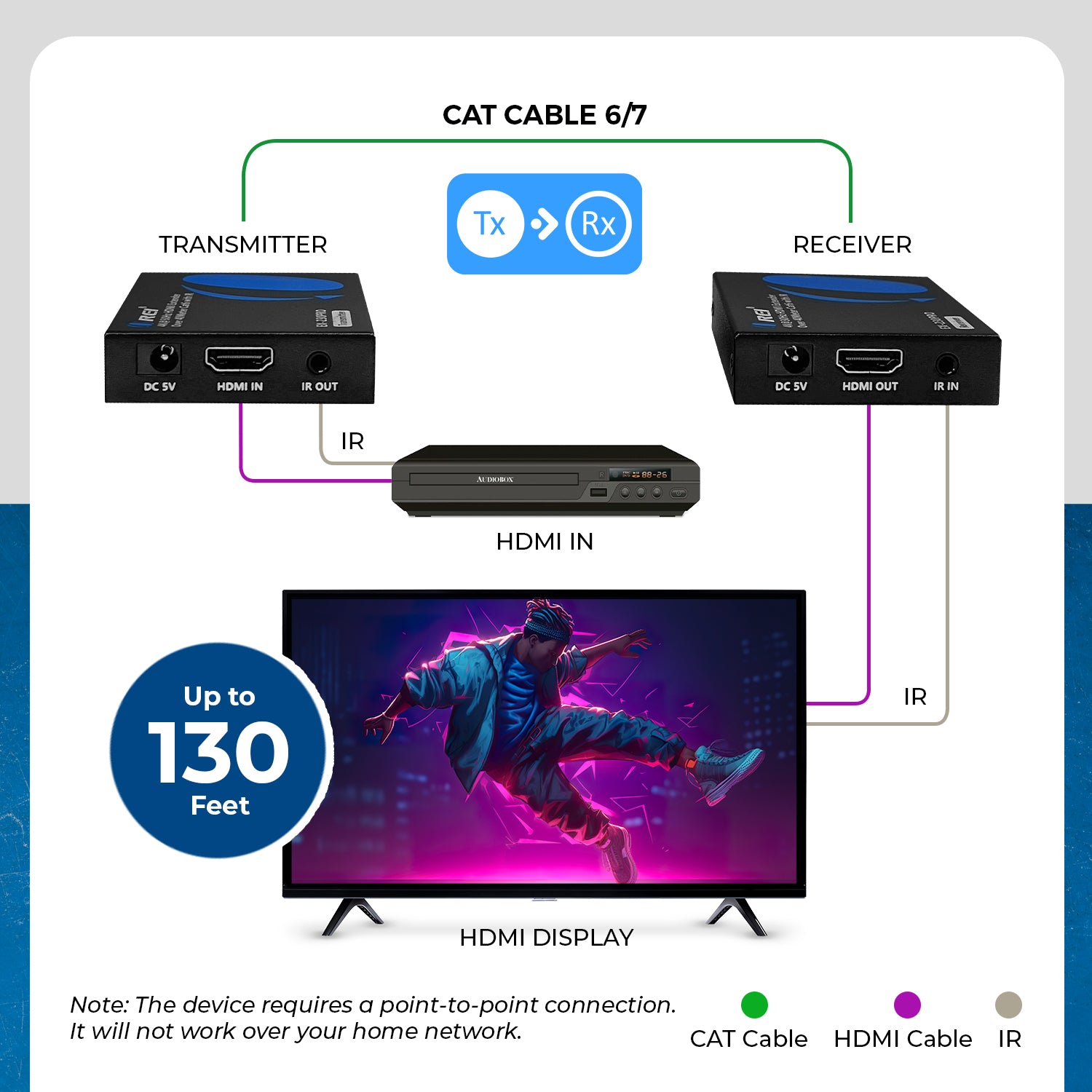

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
