4K HDBaseT HDMI™ Extender (Loop) - 230ft (cat6)-EX-230UHD
- Loop output
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Bi-directional IR control
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Extend 4K HDMI up to 230 Feet over CAT6 with PoC
Transmit full 4K2K@60Hz (YUV444) signals with 10-bit HDR pass-through up to 230 feet (70 meters) over standard CAT6 cable. This powerful HDMI over Ethernet extender supports HDMI 2.0b (18Gbps), HDCP 2.2, and DVI, ensuring seamless compatibility with modern video sources, displays, and content protection standards.
2. Uncompromised Video & Audio Performance
Enjoy ultra-high-definition visuals with rich color depth and clarity. The extender supports HDMI High Bit Rate (HBR) audio pass-through, delivering immersive multi-channel audio for premium AV setups. CEC bypass allows control of connected HDMI devices via your TV remote, streamlining operation.
3. Simplified Installation with Single Power Supply
Powered by PoC (Power over Cable) technology, only one 24V@1A adapter is required at either end. With power consumption under 10W, it’s ideal for efficient and clutter-free installations in home theaters, classrooms, and boardrooms.
4. Full System Control via IR & RS-232
Control devices remotely using bidirectional IR (20–60kHz) and RS-232 signal pass-through, enabling full communication between source and display—even across long distances. It’s the perfect choice for professional AV, HDMI over CAT6, and HDBaseT extension applications.

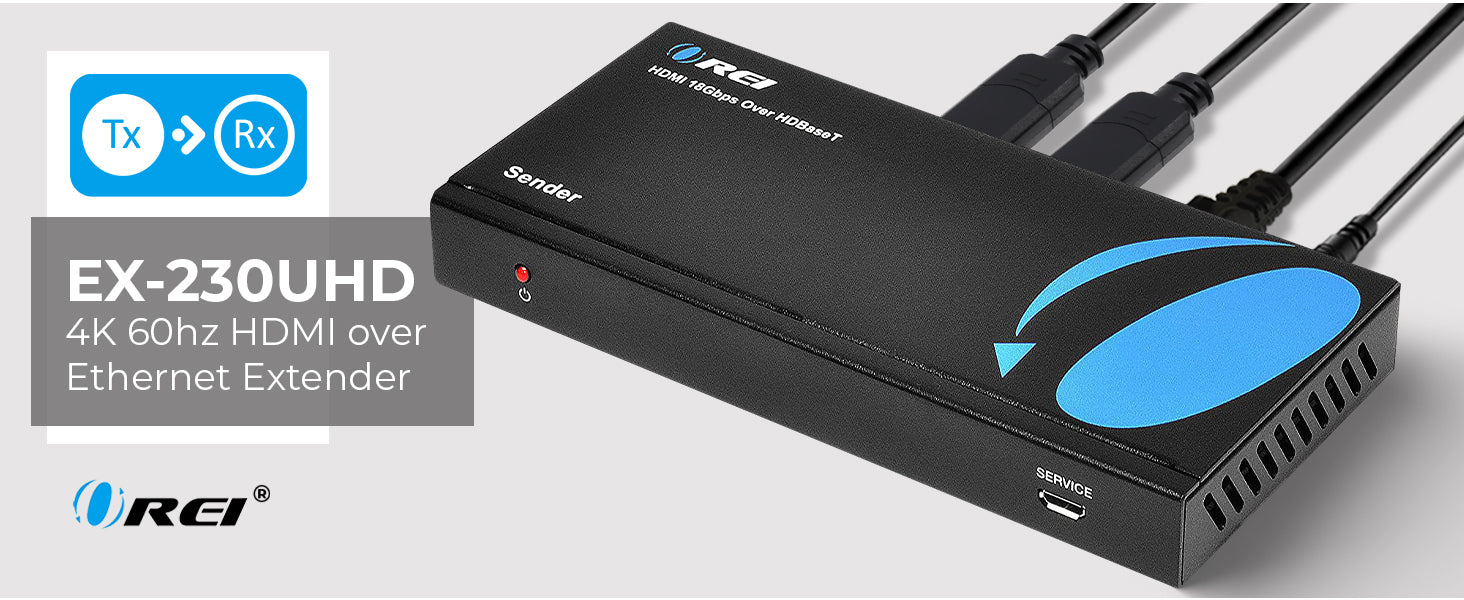

OREI EX-230UHD: 4K HDBaseT HDMI Extender over Cat6/7 up to 230 feet - Bi-directional IR, RS-232, & PoC
Key Features:
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- 18Gbps video bandwidth
- Signal transmission up to 230 feet at 1080P@60Hz over a CAT 6/7 cable
- HDR pass-through
- Audio pass-through for formats like LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- HDMI loop output to connect a display near the source
- Bi-directional IR control
- CEC support
- PoC functionality; requires only one power adapter either end
- RS-233 pass-through
- Easy to operate

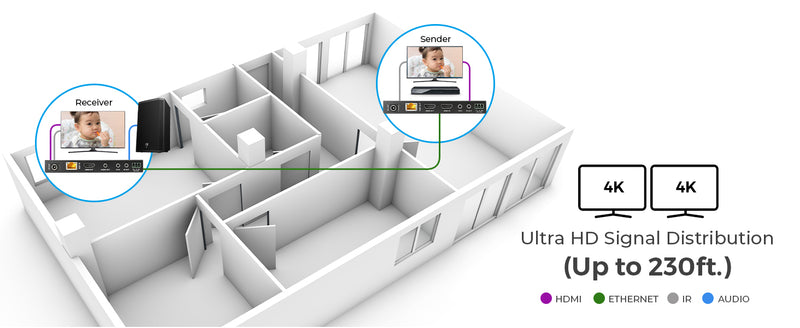

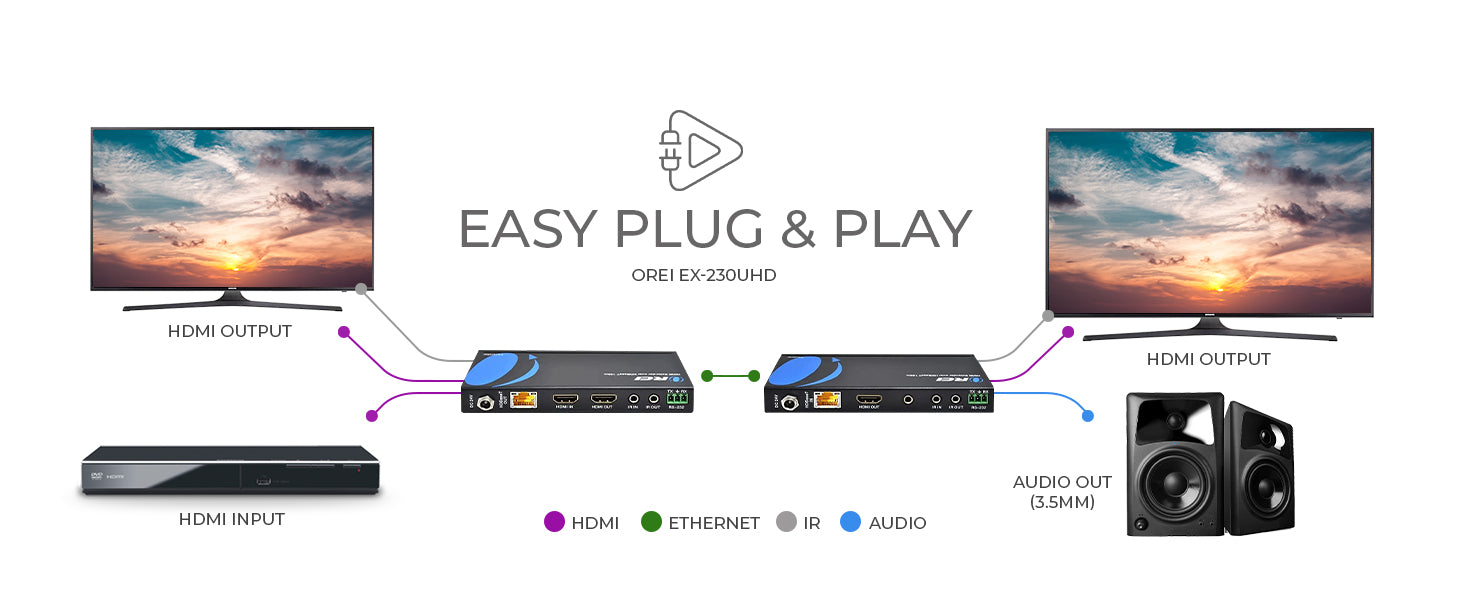

The EX-230UHD is an HDMI extender that transmits media signals to a display up to 230 feet away. Supporting video resolutions up to 4K@60Hz and 2K@60Hz, it is HDMI 2.0b and HDCP 2.2 compliant. It supports 18Gbps video bandwidth. It can extend media signals to one display up to 230 feet at 1080p@60Hz and up to 131 feet at 4K@60Hz using a CAT 6/7 cable. The transmitter includes an HDMI loop output, allowing you to connect a display next to the source. The EX-230UHD also features bi-directional IR functionality, RS-232 pass-through, and Power over Cable (PoC) technology, which means the entire setup requires only one power adapter. It is ideal for both residential and commercial setups.
EX-230UHD User Manual Download
EX-230UHD Specifications Sheet
