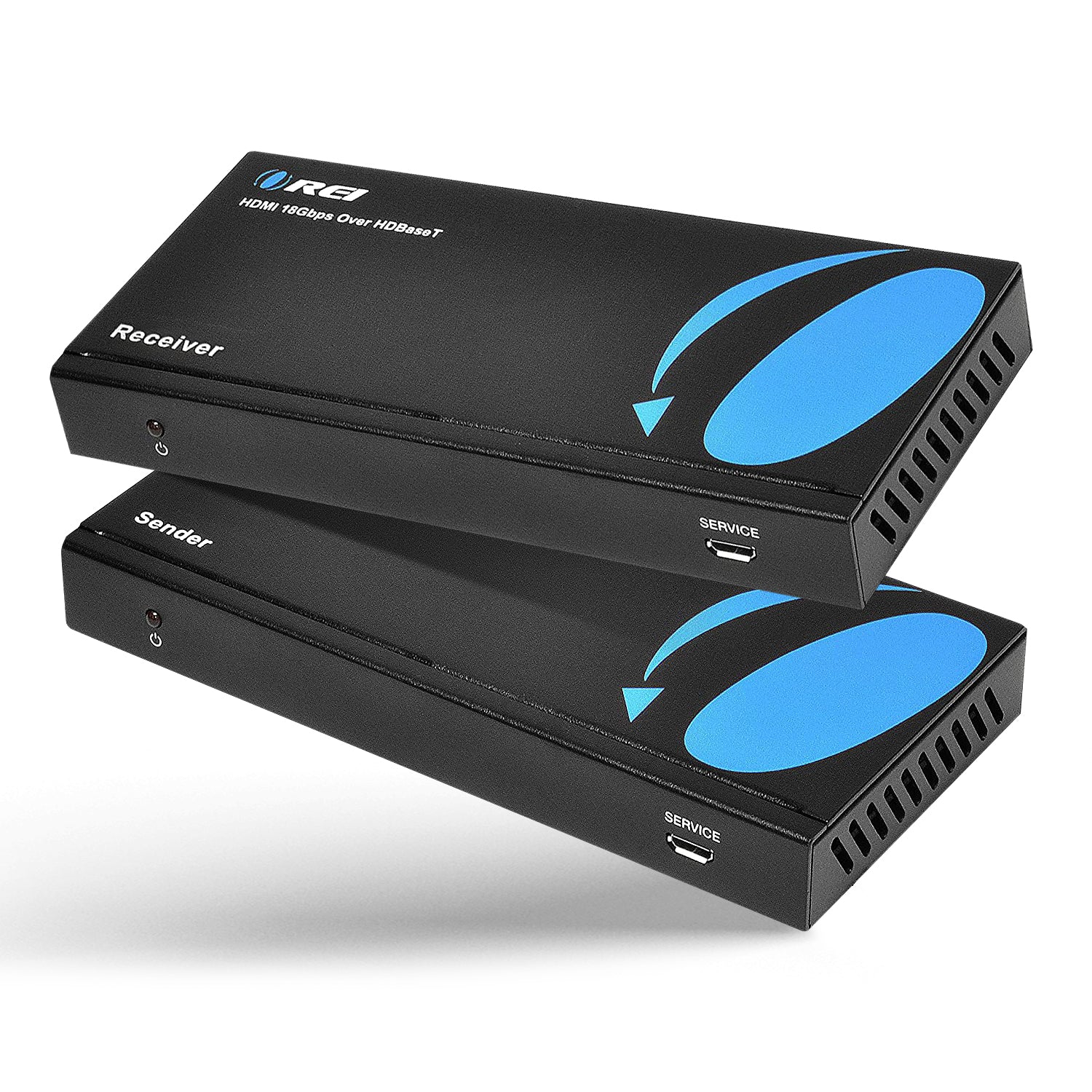

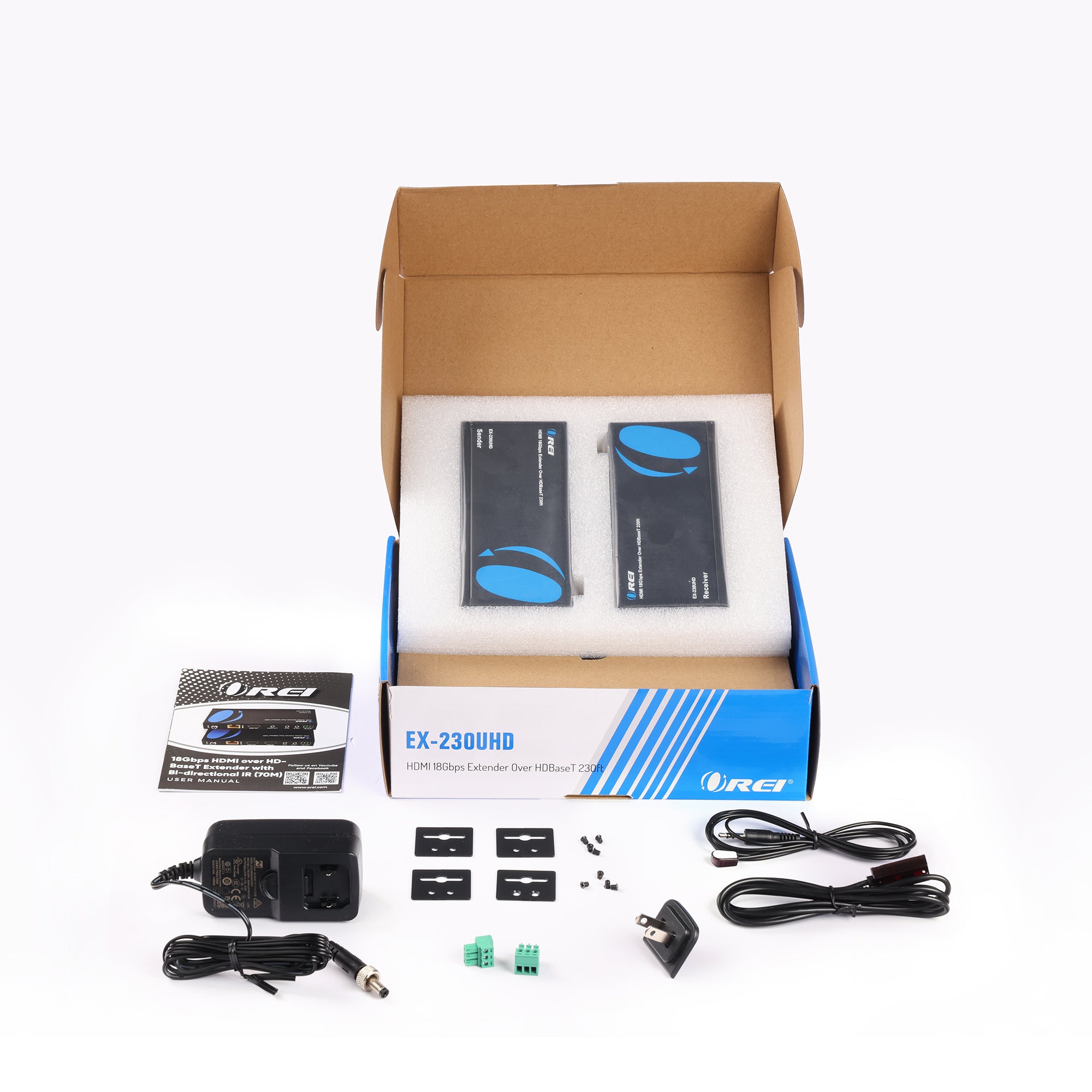

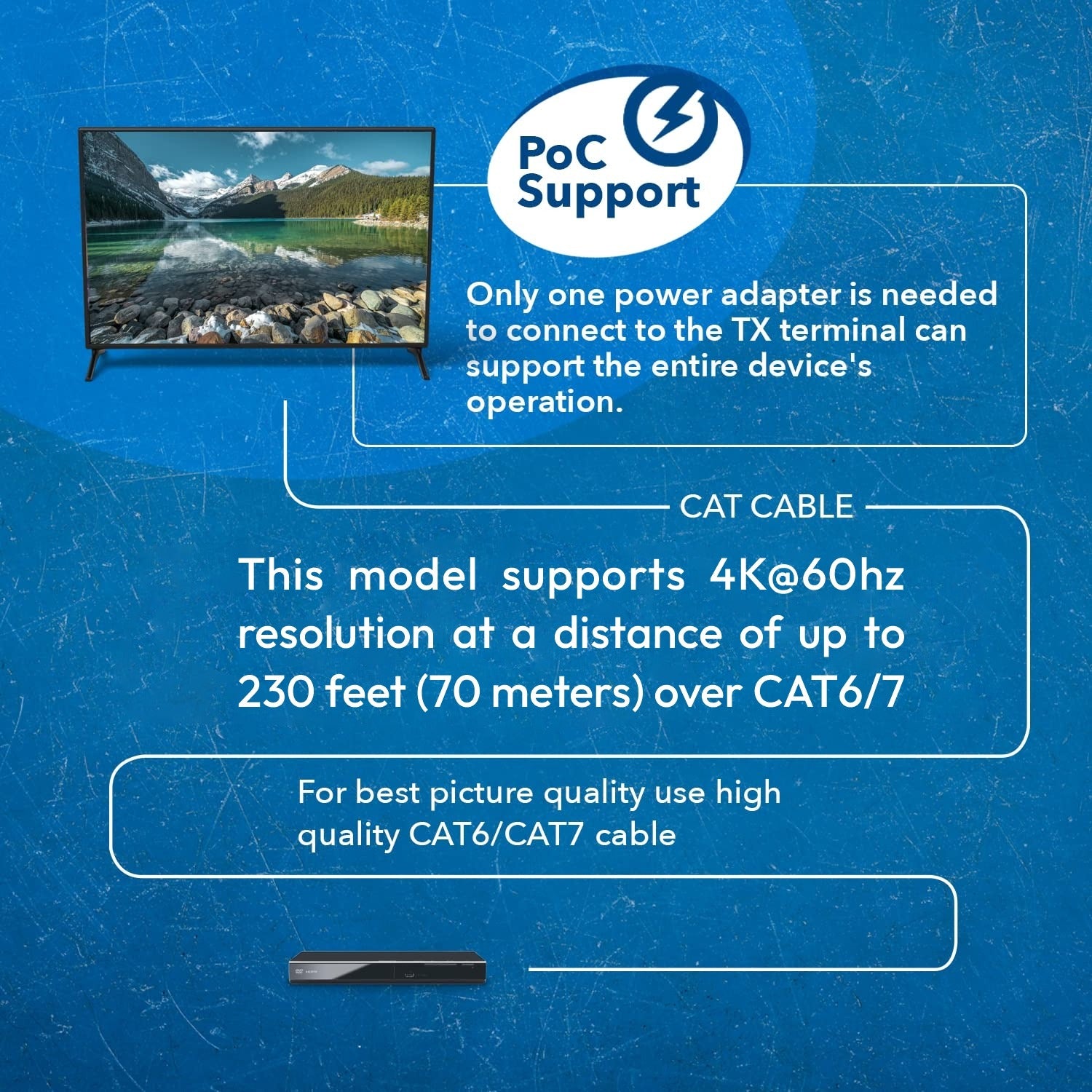

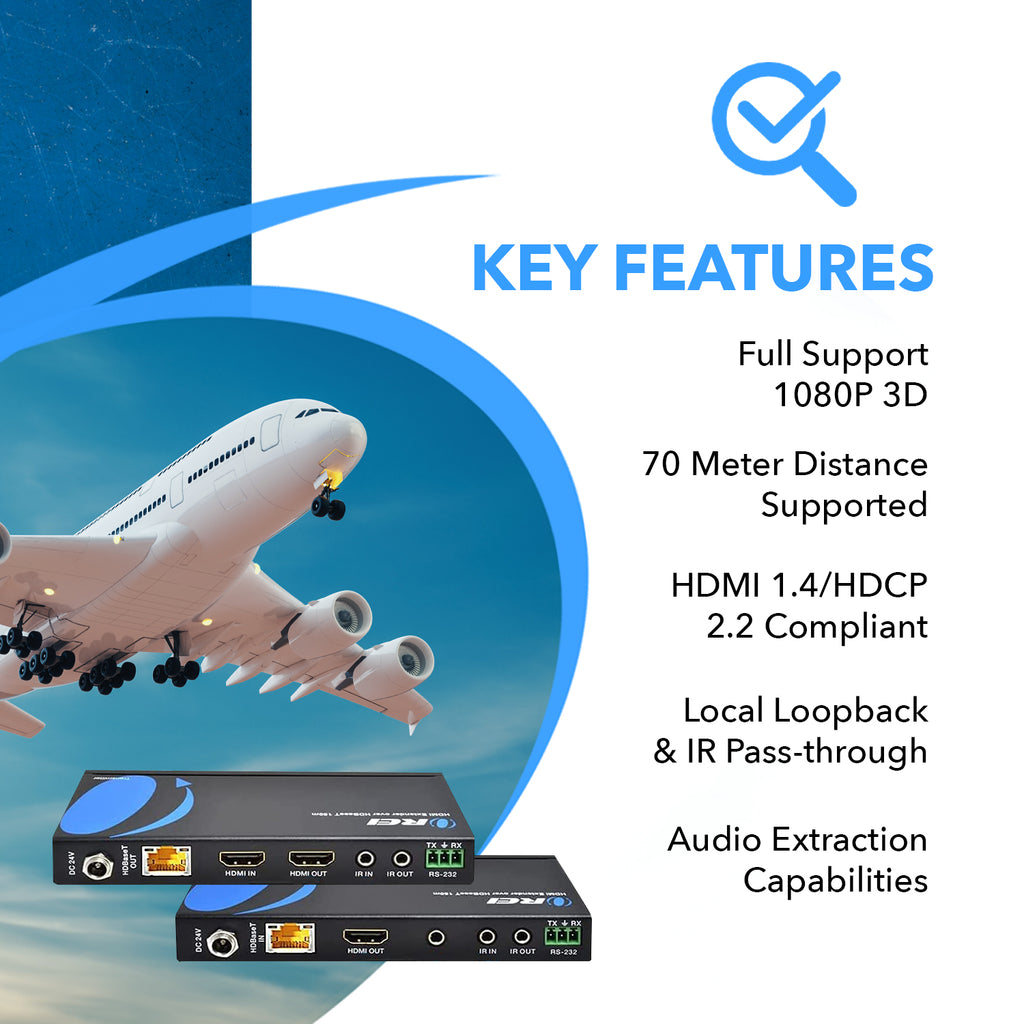

Transmission distance reaches up to 230 Feet under the video format of 1080P and 4K up to 130 Feet's. Power Over Cable powered by Rx or TX. HDCP2.2/1.4 Compliant. Full HD support: 1080pat60Hzat48b/pixels, 3D and 4Kx2K. ESD protection inside. Transfer Bidirectional Infrared control signal together with the HDMI signal. RS232 Port for firmware update or RS232 control signal transmission. Mounting option is included. This unit requires only one power adapter to work

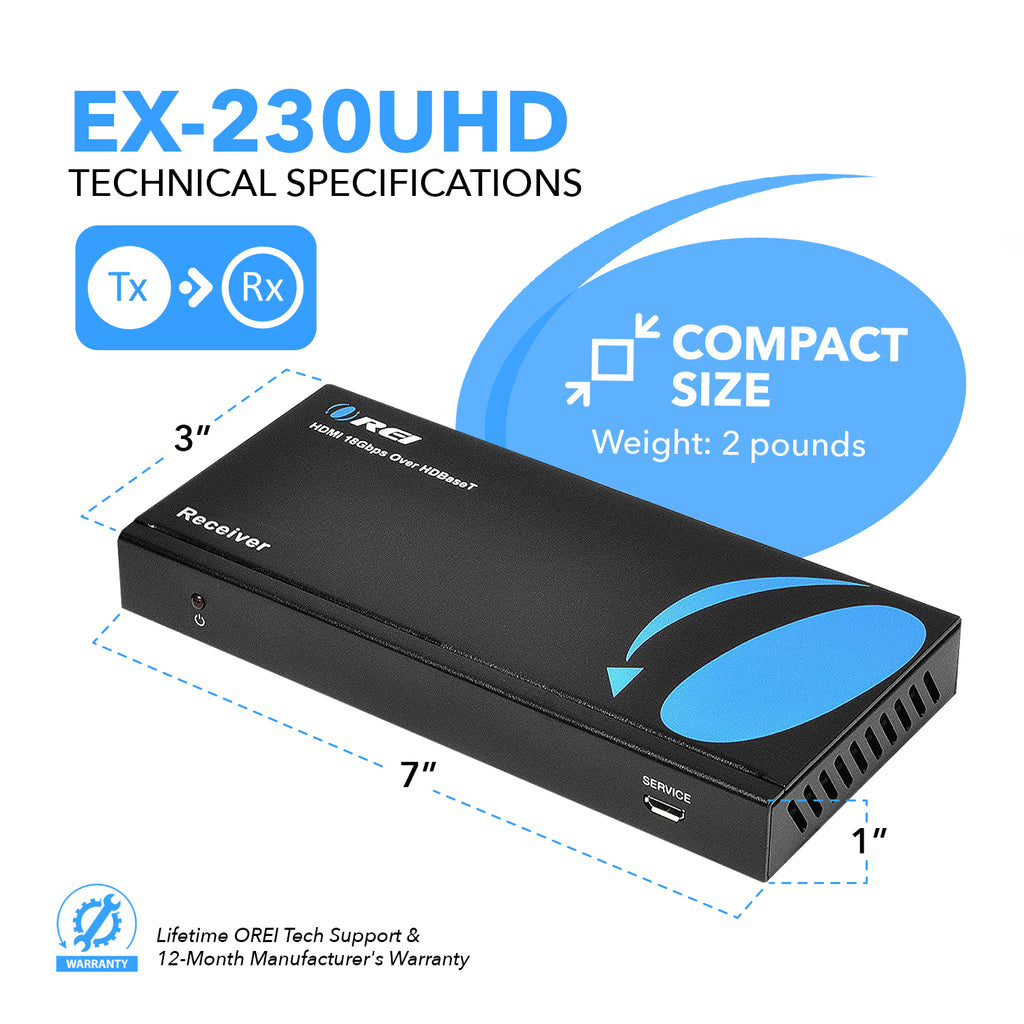

AUDIO AND VIDEO

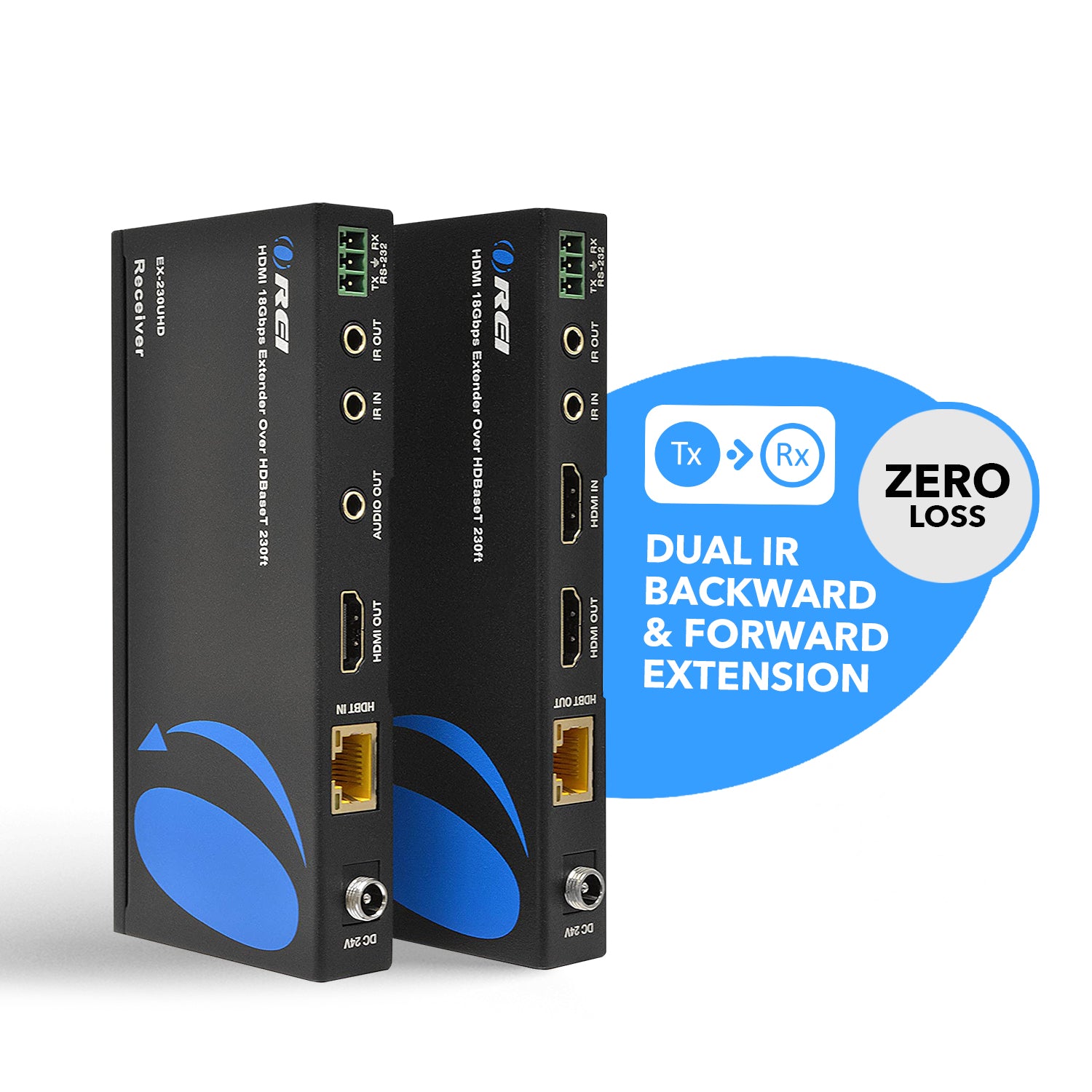

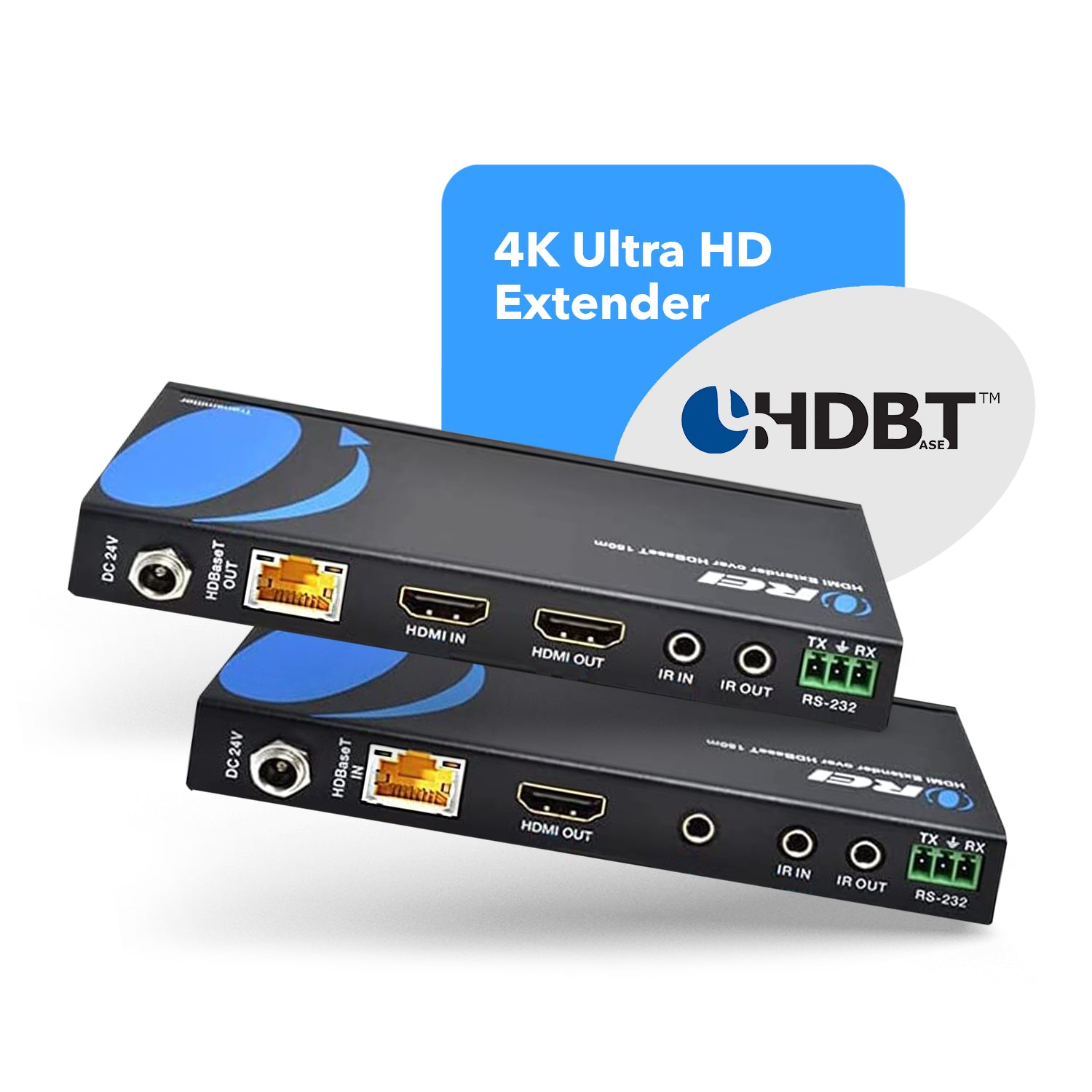

Transmitter:
INPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR INPUT [3.5mm Stereo Mini-jack]
1x RS232 [Phoenix jack]
1x Service [Mini-USB jack]
OUTPUT PORTS:
1x HDBaseT Out [RJ45]
1x IR OUTPUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT PORTS:
1x HDBaseT In [RJ45]
1x IR INPUT [3.5mm Stereo Mini-jack]
1x RS232 [Phoenix jack]
1x Service [Mini-USB jack]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR INPUT [3.5mm Stereo Mini-jack]
COMPLIANCES
HDMI Compliance:
HDMI 2.0b
HDCP Compliance:
HDCP 2.2 and HDCP 1.4
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30Hz:
130 Feet
1080p@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@50/60Hz(YUV4:4:4), 4K@30Hz, 1080p@120Hz, and 1080p 3D@60Hz
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:
10-bit, 12-bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.

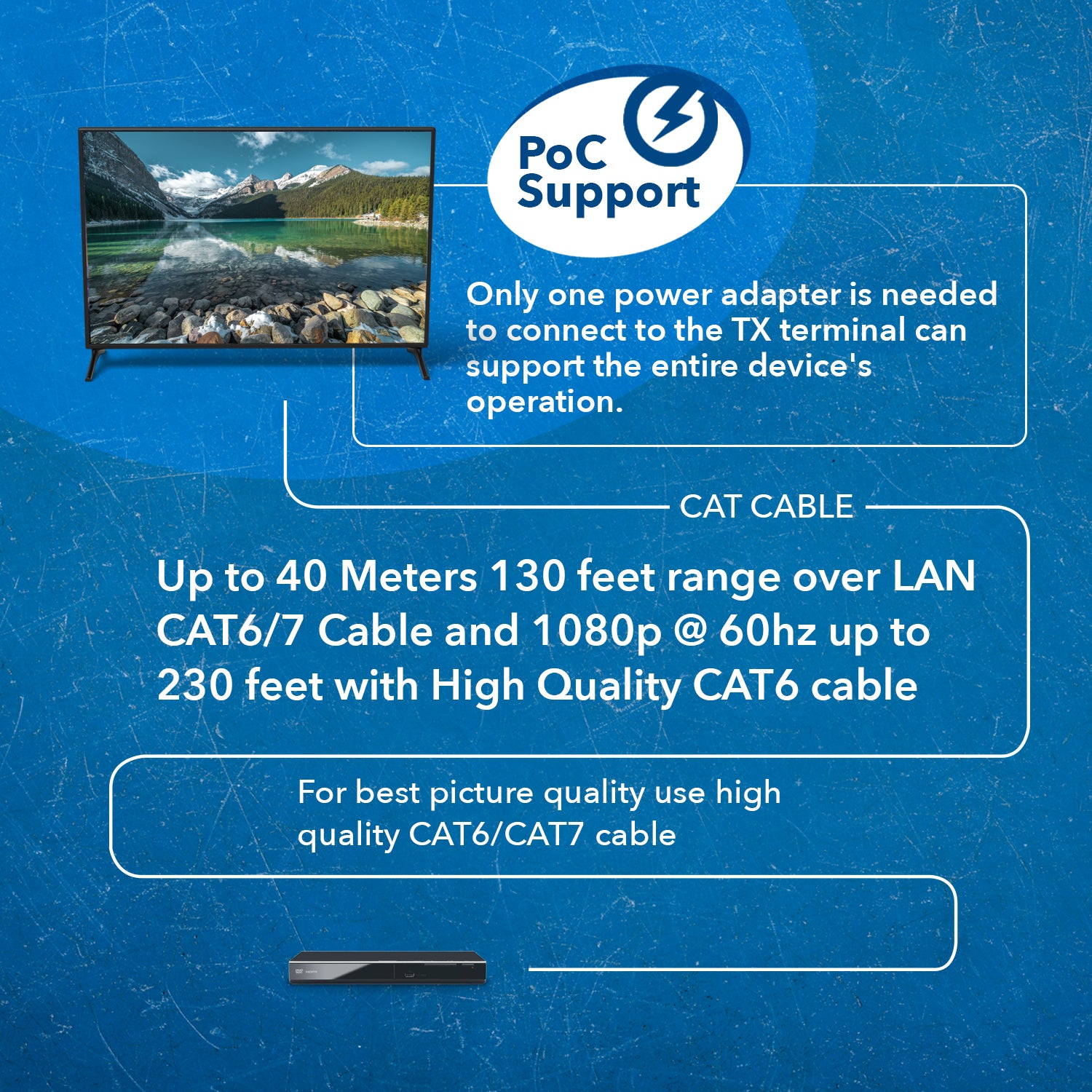

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

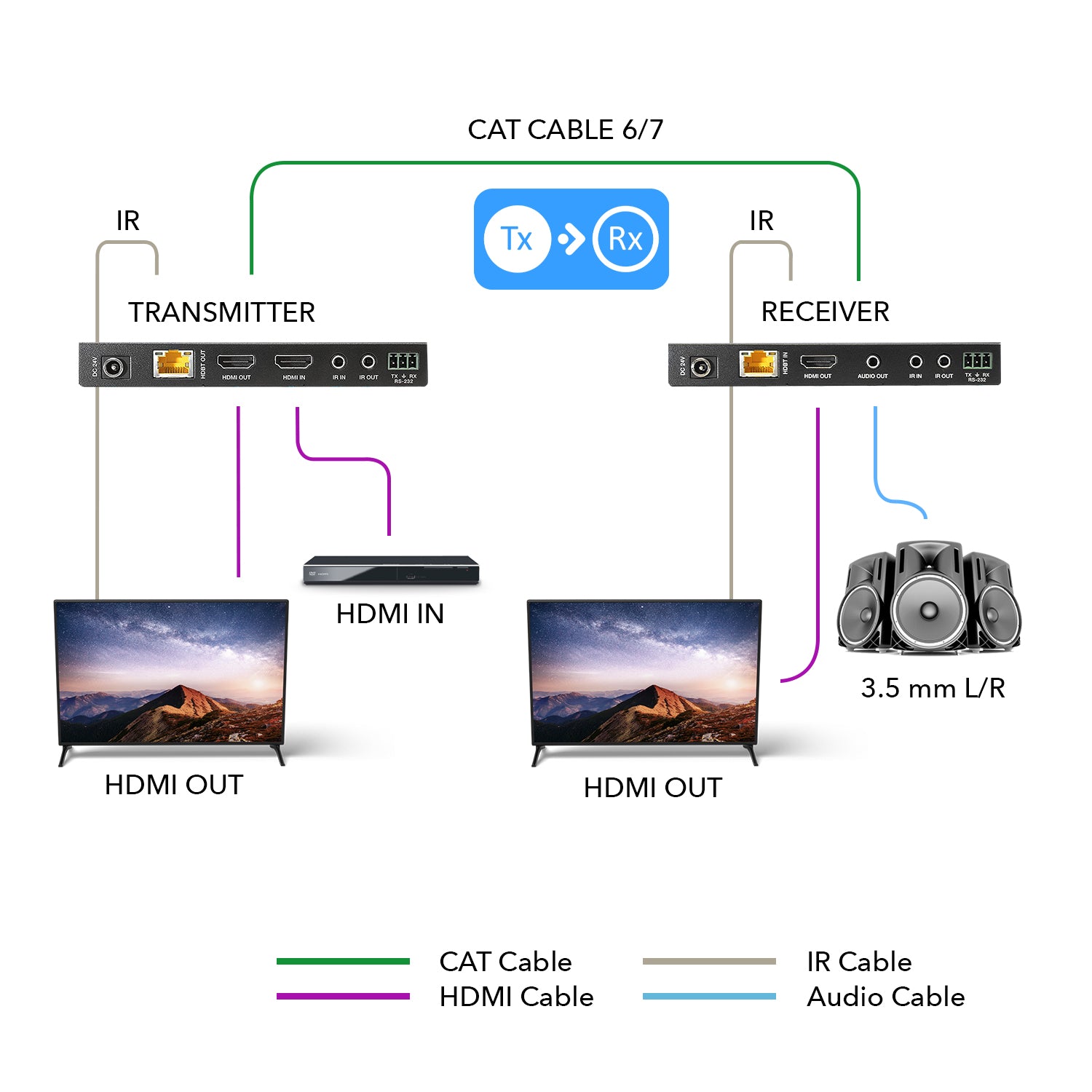

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
EX-230UHD User Manual Download
