4K HDBaseT 4x4 HDMI™ Extender Matrix (Loop) - 230ft (cat6)-UHD44-EX230-K

$899.99 USD
SKU: UHD44-EX230-K
  • Supports 4K@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2 up to 230 feet
  • Supports 3D frame sequential video format up to 1080p@60Hz
  • Supports PoC function
Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in USA
Free shipping in USA
Product Image
View details
video

1. Flexible 4x4 HDMI Matrix Switching with HDBaseT Extension

The UHD44-EX230-K is a professional-grade 4x4 HDMI HDBaseT matrix switch designed to distribute four HDMI inputs independently to four HDBaseT outputs, along with four local HDMI loop outputs for nearby displays. This setup enables simultaneous multi-display configurations, perfect for commercial AV environments where flexible source routing is essential. The system supports uncompressed HDMI signal extension over shielded CAT5e/6/7 cables up to 230 feet (70 meters) with zero latency using advanced HDBaseT technology and Power over Ethernet (PoE), requiring just a single power adapter at the transmitter.

2. Ultra HD Video and Audio Performance

Supporting full Ultra HD video resolutions up to 4K @ 60/50Hz (12-bit YUV 4:2:0) and 4K @ 30Hz (24-bit), the matrix switch ensures vibrant and true-to-life image quality. It also supports HD resolutions including 1080p/i, 720p, 576p/i, and 480p/i, offering versatile compatibility for a broad range of sources and displays. The unit is fully HDCP 2.2 compliant, guaranteeing secure transmission of protected content. For audio, it supports major formats such as LPCM, DTS HD, and Dolby TrueHD, with digital coaxial and analog L/R outputs on each channel for flexible external sound integration.

3. Advanced Control and Compatibility Features

This matrix switch includes robust control options with TCP/IP and RS-232 protocols for smooth integration with existing control systems. The bi-directional IR support allows for convenient remote control of sources and displays from different locations. Additionally, advanced EDID management lets users copy EDID information from connected HDMI displays or choose from pre-programmed profiles to ensure optimal compatibility and handshake between devices.

4. Complete System Package for Simplified Installation

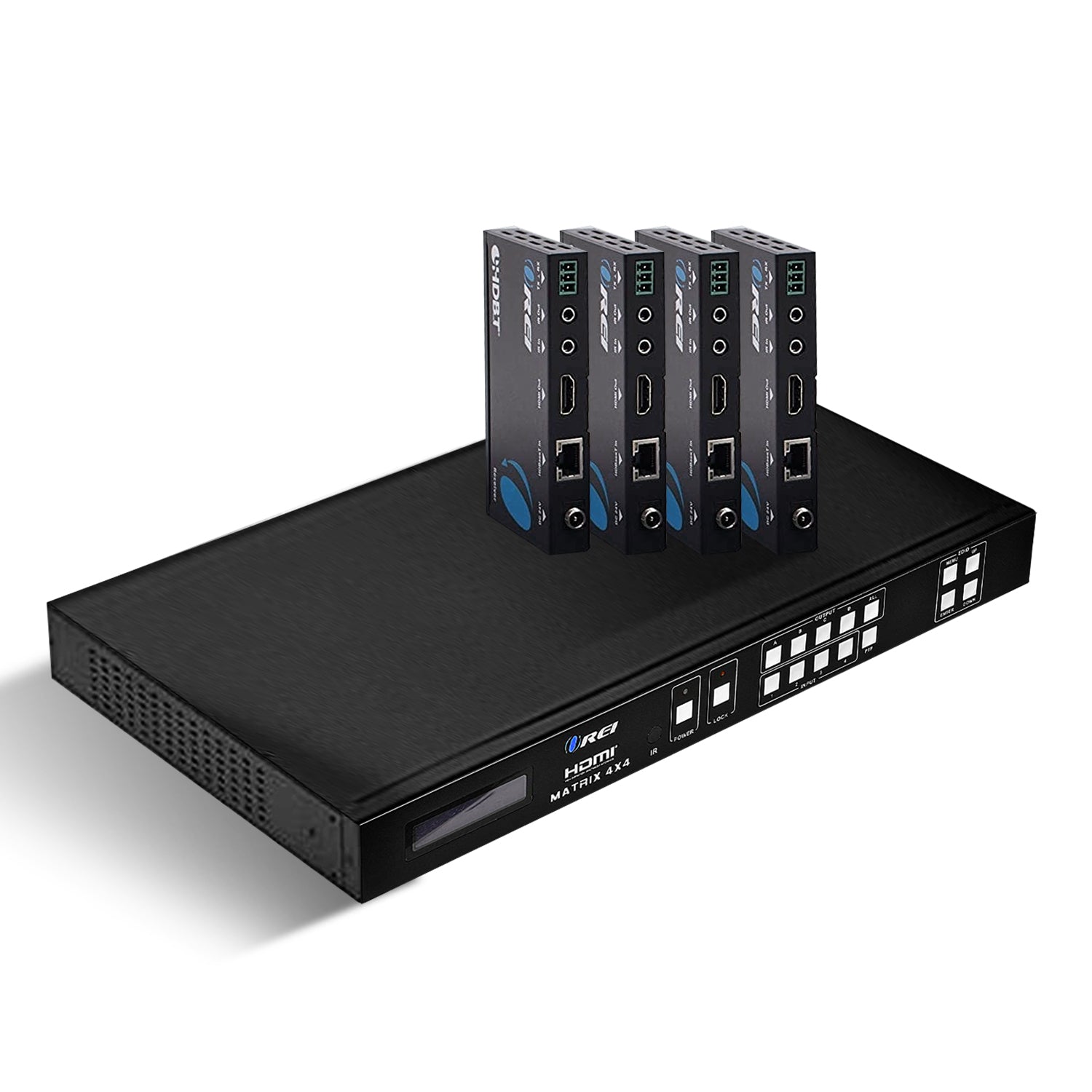

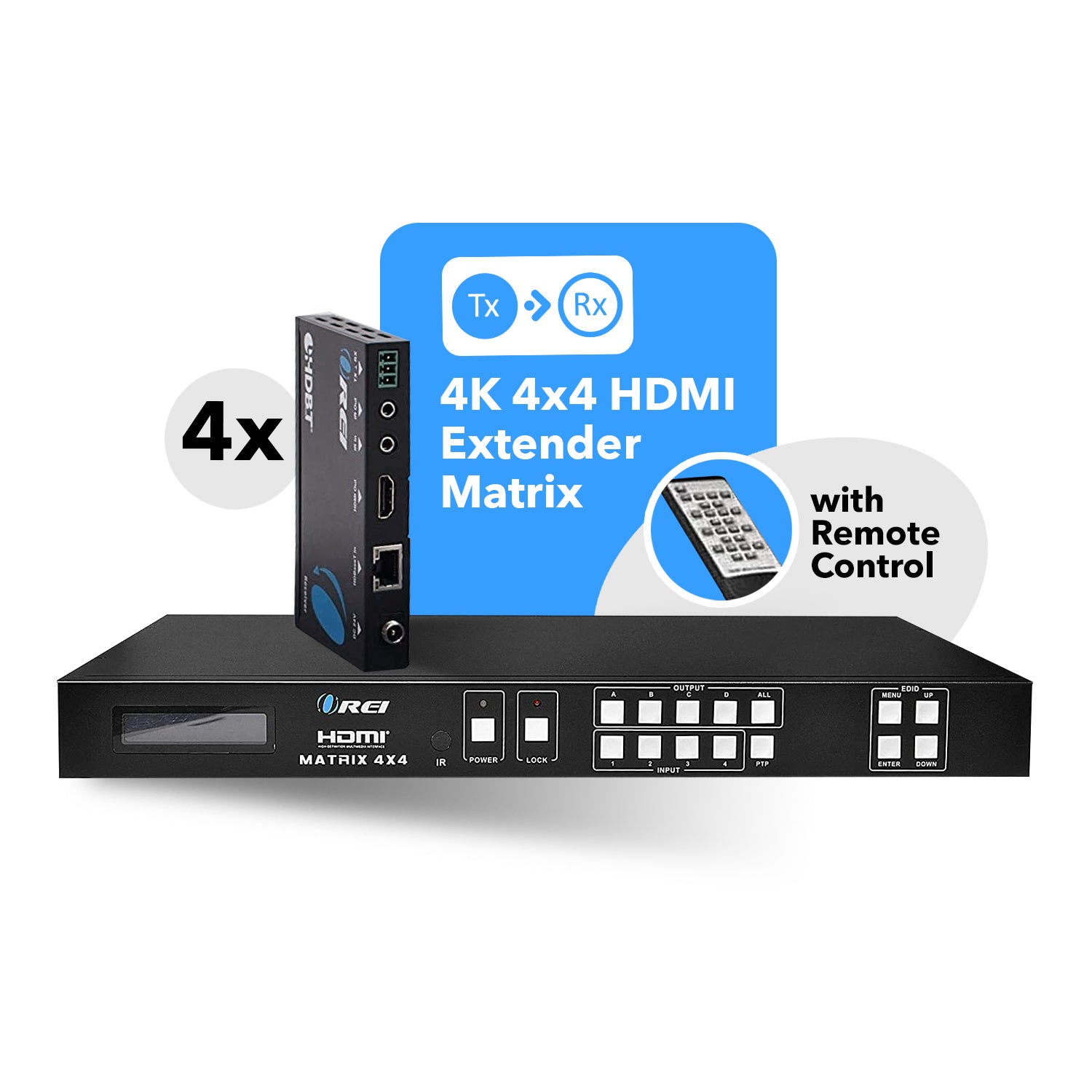

The UHD44-EX230-K comes as a comprehensive kit including one HDMI Extender Matrix Transmitter, four HDMI Receivers, a power adapter, five IR kits, one dedicated HDMI matrix remote, ten mounting ears, and an RS-232 cable, along with a detailed manual. Its single power adapter operation simplifies installation and reduces clutter, making it an ideal solution for professional AV setups requiring reliable, high-quality, and long-distance HDMI signal distribution with remote control capabilities.

OREI UHD44-EX230-K: 4x4 HDMI Matrix Extender

Key Features:

  • 4X4 Matrix - 4 HDMI inputs & 4 HDBaseT outputs extends over CAT5e/6/7 LAN Cable up to 230 feet, plus 4 additional HDMI loop out to connect additional displays near the transmitter or HDMI source via HDMI cable. Perfect professional distribution solution to connect 4K Blu-ray players, game consoles, media players, satellite receivers, PCs, laptops and other HDMI sources
  • Full Ultra HD Support - 4K @ 60/50Hz @ 12 bit YUV 4:2:0, 4K @ 30Hz 24 bit, 1080p/i @ 60/50Hz, 720p @ 60/50Hz, 576p/i @ 60/50Hz, 480p/i @ 60/50Hz; Supports all Audio formats: Such as LPCM, DTS HD, and Dolby trueHD. HDCP 2.2 Compliant
  • HDBaseT Technology - Uncompressed signal for zero latency and lossless transmission with high quality CAT5e/6/ STP shielded lan cable. Supports POE - Power Over Cable function so you’ll only need to use power adapter on the transmitter (sender) end and connect the receivers directly with HDMI cables

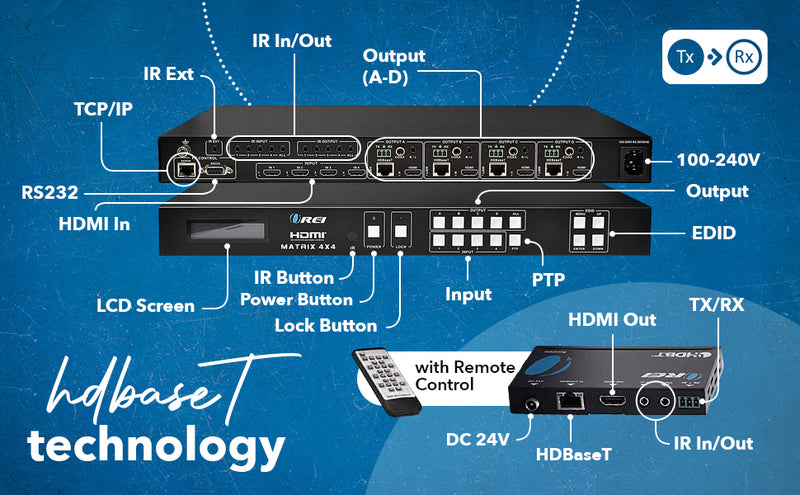

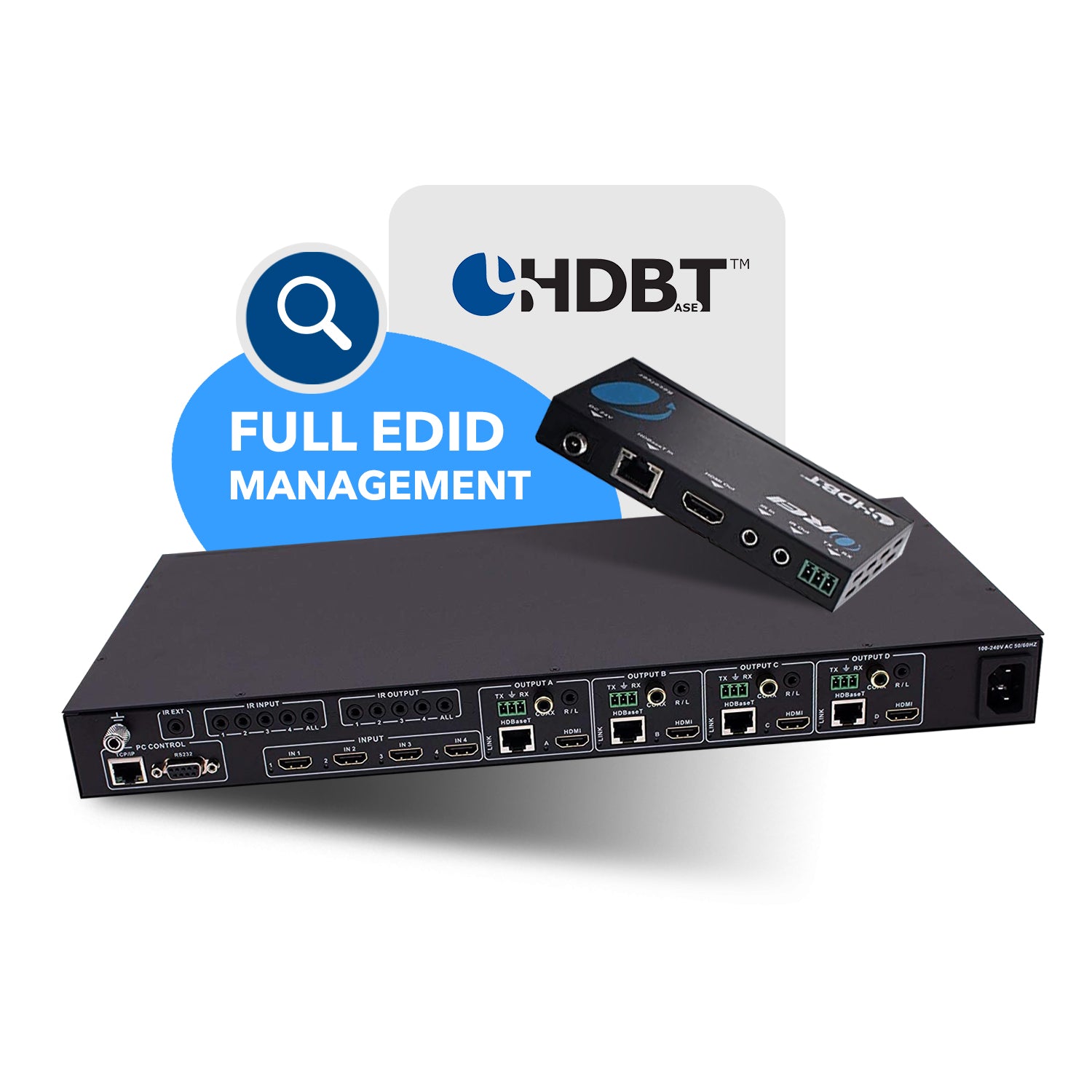

  • Full Matrix function with additional HDMI loop-out Mode: Local 4 HDMI displays along with 4 HDBaseT extended remote displays. Easily control which HDMI source is viewed at which of the displays. EDID Management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix. TCP IP and RS-232 Control. Bi-directional IR Support, Coaxial Digital Audio Out & L/R 3.mm Audio output
  • Full OREI Support & 1 Year Warranty; Product Includes: Instructions Manual, 1x HDMI Extender Matrix Transmitter, 4x HDMI Receivers, 1x Power Adapter, 5x IR-Kit, 1x HDMI Matrix Remote, 10x Mounting Ears, 1x RS-232 Cable
  • This unit requires only one power adapter to work

Few sample applications:

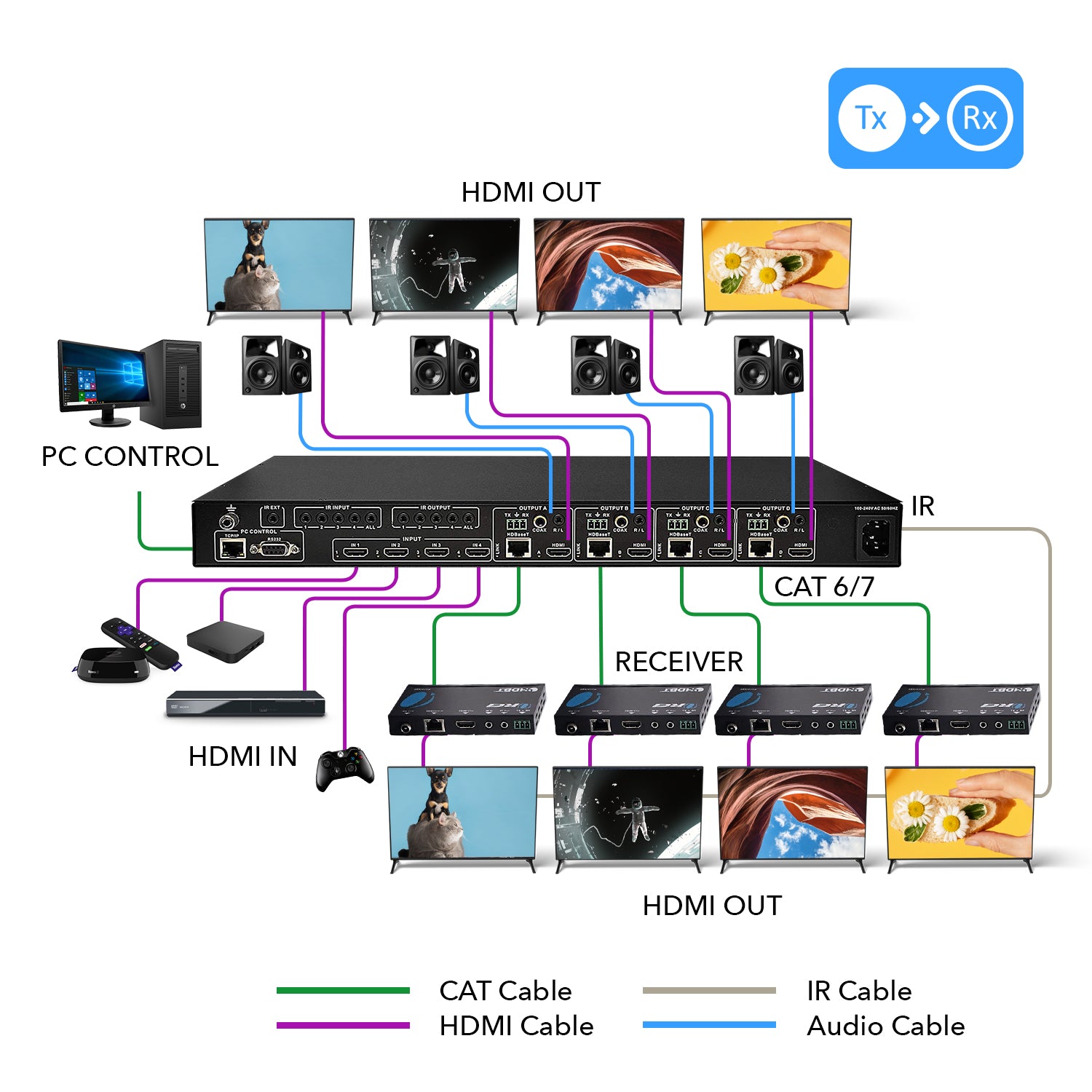

The OREI UHD44-EX230-K HDMI HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to up to four displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a HDBaseT output over a cat5e/cat6 cable which attaches to an additional receiver that converts the output to HDMI.

This matrix switch supports the transmission of video (resolutions up to 4K @ 60Hz YUV 4:2:0) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The extended connection over lan cable can be up to 230 ft for multi-room connectivity for each of the receivers. It also supports bi-directional IR control to send IR signals from the displays to the source or from the source to the displays. RS-232 command prompt control and TCP/IP control to send commands using a PC. It also features Digital coaxial audio output and analog L/R 3.5mm output for each of the four outputs. Full EDID management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix.

This is a great solution for multimedia setup in an environment with multiple displays such as conference rooms, sports bars, schools, news network rooms and more.
