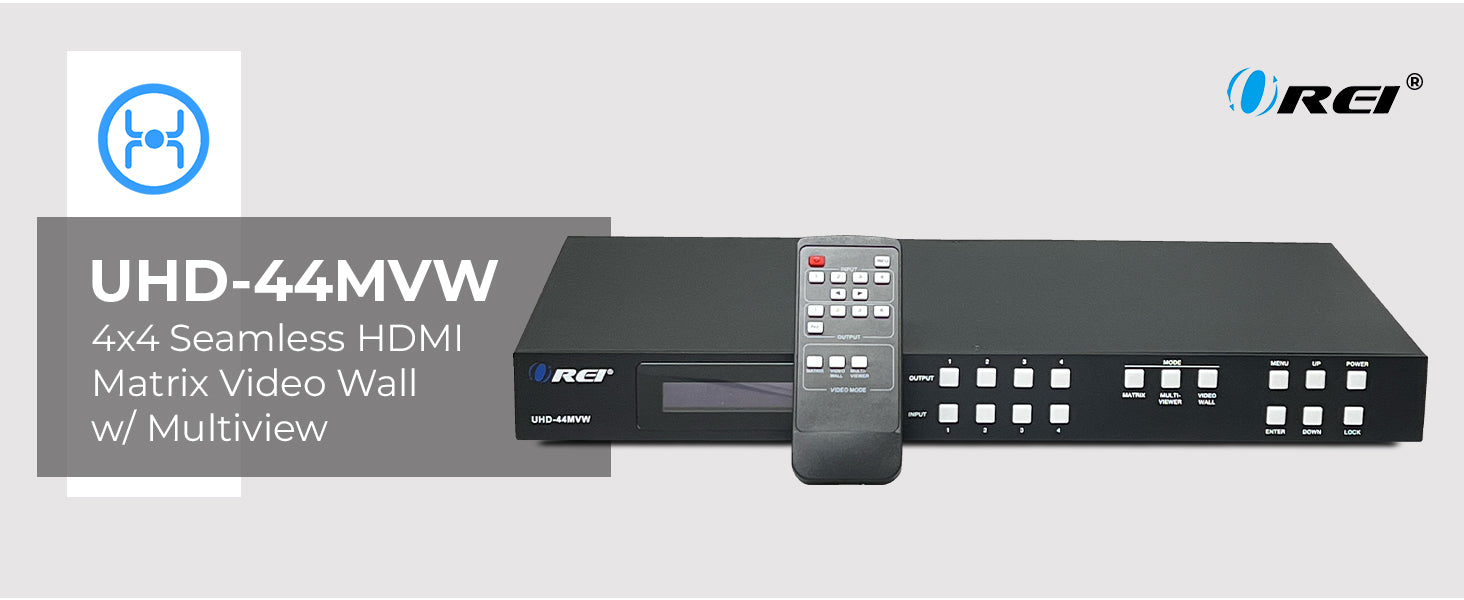

4K@60hz 4x4 HDMI™ Matrix w/ Video Wall (Seamless, Audio Extract, MultiView)-UHD-44MVW

$799.00 USD $999.99
SKU: UHD-44MVW

  • 4K 4x4 HDMI Matrix With Video Wall controller and Multiview functionality.
  • 9 Video wall modes & 12 Multiview modes
  • IR Matrixing & CEC

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in USA
Free shipping in USA
Product Image
View details
video

Flexible 4x4 Matrix with Multiview and Video Wall Functions

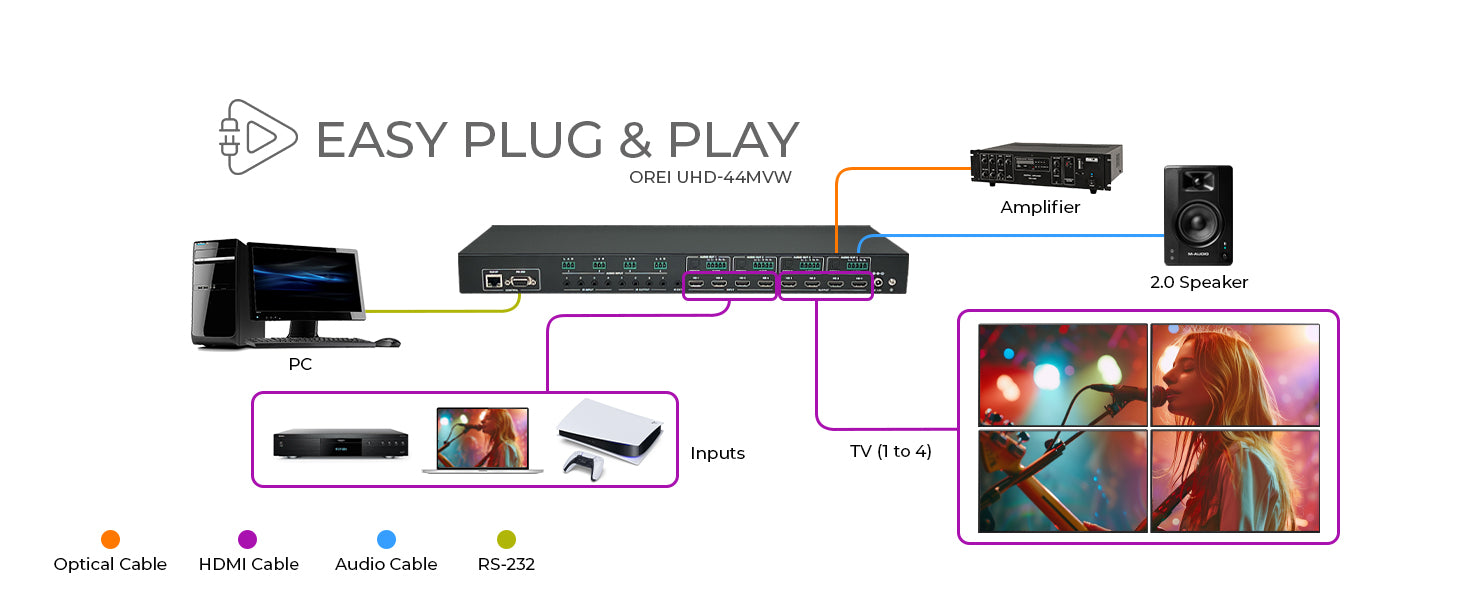

The UHD-44MVW combines the power of a 4x4 HDMI matrix with advanced Multiview and video wall capabilities—offering a complete AV control solution in one compact unit. Effortlessly route any of four HDMI sources to four displays, or transform multiple screens into a unified 4x4 video wall. Ideal for control rooms, collaborative workspaces, or high-end digital signage, it adapts to any setup with ease.

Ultra HD 4K Video with Professional-Grade Clarity

Supporting up to 4K@60Hz 4:4:4 resolution and 18Gbps bandwidth, this HDMI 4K matrix ensures uncompressed, ultra-clear video across all outputs. Whether you're showcasing dynamic content or monitoring multiple feeds in real time, the UHD-44MVW delivers flawless performance—making it a reliable choice for any HDMI video wall controller.

Customizable Layouts with Multiview and Wall Modes

Choose from 12 Multiview display modes or 9 configurable video wall layouts to tailor your viewing experience. Whether you need a side-by-side comparison, quad-view, or a large-scale video wall controller 4x4 configuration, the system adjusts to your needs in seconds. It's the perfect balance of flexibility and control for professional-grade video monitoring or multi-source broadcasting.

Advanced Audio & Control Integration

With CEC control, EDID management, and IR matrixing, the UHD-44MVW streamlines source-device communication and command control. Extract audio via optical or analog L/R outputs, and enjoy full support for premium audio formats like Dolby TrueHD and DTS-HD Master Audio. Manage it all using the front panel, IR remote, RS-232, or intuitive WebGUI—making this video matrix 4x4 ideal for integrators and AV pros alike.

OREI UHD-44MVW: 4K@60Hz HDMI Matrix, Multiviewer, Video wall Controller with Audio Extraction, CEC and IR Matrix

Key Features:

  • HDMI 2.0 & HDCP 2.2 Compliant – Ensures full compatibility with modern 4K sources and protected content.

  • 4K@60Hz Resolution Support – Delivers ultra-clear video with 18Gbps bandwidth and 4:4:4 chroma sampling.

  • Matrix, Multiview & Video Wall Modes – Supports independent source routing, multiview display on a single screen, or video wall configurations.

  • 12 Multiview Modes & 9 Video Wall Layouts – Offers flexible layouts for control rooms, digital signage, and monitoring applications.

  • Image Mirror (Flip) Support – Supports horizontal and vertical image mirroring in Matrix, Multiview, and Video Wall modes. Screen rotation (90°/180°) is not supported.

  • CEC Control & EDID Management – Simplifies device communication and ensures proper source-to-display compatibility.

  • Versatile Control Options – Control via front panel buttons, IR remote, RS-232, or WebGUI.

  • Advanced Audio Support – Supports LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio.

  • Audio Extraction & IR Matrixing – Optical SPDIF and analog L/R outputs allow flexible audio routing with IR control support.

The UHD-44MVW is a powerful 4x4 HDMI Matrix Switcher with integrated Multiview and Video Wall functionality, designed for professional AV environments requiring flexibility and high performance. Supporting resolutions up to 4K@60Hz 4:4:4 with an 18Gbps bandwidth, it delivers sharp and reliable video across all connected displays.

Users can choose from 12 Multiview layouts to display multiple sources on a single screen, or 9 Video Wall configurations to split one source across multiple displays. The unit supports horizontal and vertical image mirror (flip) functions in all operating modes to assist with display alignment. Screen rotation (90° or 180°) is not supported.

With CEC pass-through, EDID management, robust audio extraction options, and multiple control methods including WebGUI and RS-232, the UHD-44MVW is well suited for control rooms, broadcast environments, retail signage, and advanced residential AV systems.

Note:
Mirror (flip) and rotation are different features.
Mirror flips the image horizontally or vertically.
Rotation turns the image 90° or 180°.
