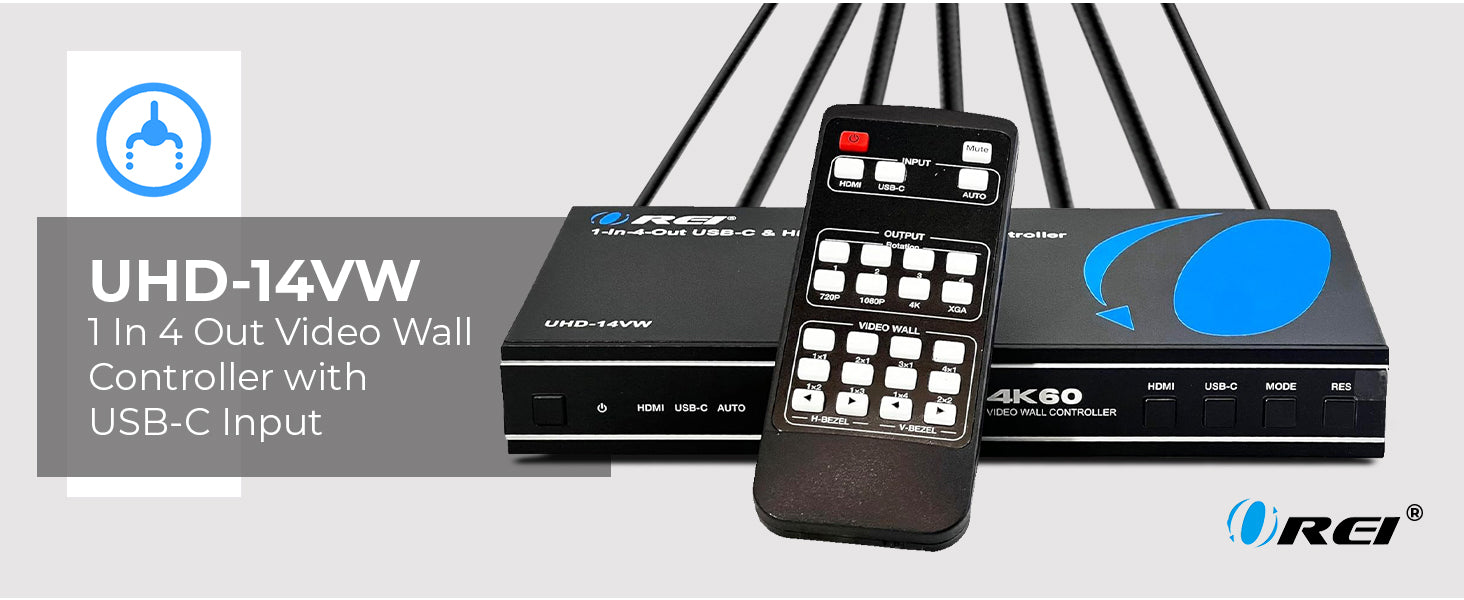

4K 1-In-4-Out USB-C & HDMI™ Video Wall Controller (Audio Extract)-UHD-14VW
-
1x4 Video wall controller
-
Resolutions up to 4K@60Hz
-
Features 180-degree rotation, bezel management
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

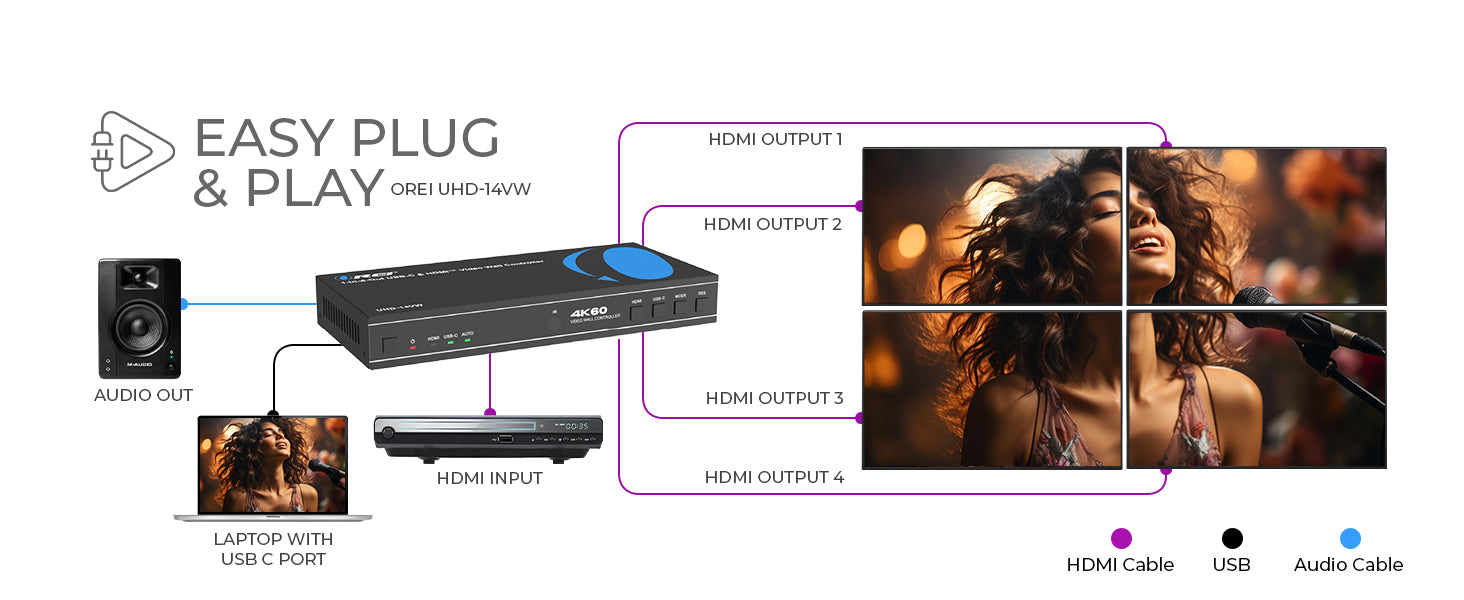

1. Create Stunning 4K Video Walls
The UHD-14VW 1x4 Video Wall Controller is the perfect solution for distributing a single video source across four displays in brilliant 4K resolution. Supporting video resolutions up to 4K@60Hz, this device ensures that your video wall delivers crisp, vibrant visuals with unparalleled clarity. Whether you're setting up a 4K video wall for retail, conference rooms, or immersive home displays, this controller guarantees top-tier performance for all connected screens.
2. Flexible Video Wall Configurations
With support for 8 different video wall modes, including the popular 2x2 video wall controller layout, the UHD-14VW offers exceptional flexibility. Choose from configurations such as 1x4, 4x1, and many more to tailor your video wall to your needs. The controller also includes a 180° image rotation feature and bezel compensation, ensuring that the displays align seamlessly for a professional, polished look.
3. Versatile Input and Audio Extraction
This video wall processor supports both HDMI and USB-C inputs, making it compatible with a wide range of modern media sources, including laptops, streaming devices, and Blu-ray players. The UHD-14VW also offers audio extraction via Optical and 3.5mm stereo outputs, providing you with flexible options for routing sound to external audio systems. Whether you're using it for an HDMI video wall or a more complex 4K video wall, this controller ensures that both video and audio are handled with precision.
4. Effortless Setup and Control
With its plug-and-play design, the UHD-14VW requires no software or drivers, making installation quick and easy. For convenient operation, you can control the unit via the front panel buttons, included IR remote, or RS-232 commands. Whether you're configuring a video wall 2x2 for a conference room or a multi-display setup for an event, this intuitive controller makes setup and control simple and efficient.
UHD-14VW: HDMI 2x2 Video Wall Controller with UBS-C input
Key Features:
-
HDMI 2.0, HDCP 2.2 & DP 1.2a compliant
-
USB-C Input for wider compatibility
-
Video resolutions up to 4K@60Hz
-
Audio extraction through Optical and L/R outputs
-
8 different Video wall modes
-
Features 180-degree image rotation
-
Bezel adjustment and EDID management
-
Control via included remote, RS-232, or front panel
-
Plug & Play setup
The UHD-14VW 1-In-4-Out Video Wall Controller is designed to take a single input and distribute it across 4 displays. The device features an HDMI and a USB-C input to connect to your media source. It supports resolutions up to 4K@60Hz 4:4:4. The device can take a media source and spread it across 4 displays creating a 2x2 Video wall. The device also features various other video wall modes such as 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, and 1x4. It also includes an Optical and a 3.5MM output for audio extraction. It can be controlled easily via the buttons on the front, the included remote or RS-232 commands.
UHD-14VW User Manual Download
