4K@60hz 8x8 HDMI™ Matrix w/ Video Wall (Seamless)-UHDS-808VW

$1,449.00 USD
SKU: UHDS-808VW

  • 8x8 Matrix Switch with Video wall
  • Video resolutions up to 4K@60Hz and 2K@60Hz
  • 180 degree rotation

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in USA
Free shipping in USA
Product Image
View details
video

Flexible Matrix Switching with Built-In Video Wall Control

The UHDS-808VW functions as both a high-performance HDMI matrix 8x8 switcher and a powerful video wall controller, distributing up to eight HDMI sources across eight displays. With multiple layout options like 4x2, 2x2 TV wall, or 8x1, it adapts easily to control rooms, signage systems, or multi-screen presentations. Its seamless switching ensures smooth transitions without blackouts or signal lag.

Stunning 4K Visuals with High-Speed Bandwidth

Supporting up to 4K@60Hz video resolution and an 18Gbps video bandwidth, this unit delivers ultra-clear, vibrant visuals with fluid motion. Whether you're building a 4K video wall or managing multiple 1080p displays, the UHDS-808VW maintains flawless output quality across all connected screens. It's ideal for commercial AV installations that demand performance without compromise.

Advanced Audio Integration and Control

Extract audio from any HDMI source with optical and 5-pin Phoenix analog outputs, or manage sound routing directly through the WebGUI. With support for premium audio formats including Dolby TrueHD, DTS HD Master Audio, and LPCM, the unit offers advanced integration with external audio systems. It's a comprehensive solution for installations that require both video wall matrix control and flexible sound distribution.

Pro-Grade Features for Seamless Operation

Equipped with EDID management, bezel adjustment, and 180° image rotation, the UHDS-808VW ensures precise image alignment across irregular or mirrored display setups. Its power-off memory recalls your last configuration on reboot, while CEC control via WebGUI makes centralized operation effortless. This compact yet powerful unit is perfect for any matrix HDMI 2x2, HDMI matrix 4x2, or full-scale 8x8 deployment.

UHDS-808VW: 4K@60Hz 4x2 Seamless Matrix with Video Wall

Key Features:

  • HDMI 2.0 & HDCP 2.2 Compliant – Supports modern 4K sources and protected content for professional AV installations.

  • Video Resolutions up to 4K@60Hz – Delivers ultra-clear visuals with smooth motion and high detail.

  • 18Gbps Video Bandwidth – Ensures stable, high-speed signal transmission for uncompromised performance.

  • Seamless Switching – Enables instant source switching without blackout or signal delay.

  • Optical & 5-Pin Phoenix Analog Audio Outputs – Allows flexible audio extraction to external sound systems.

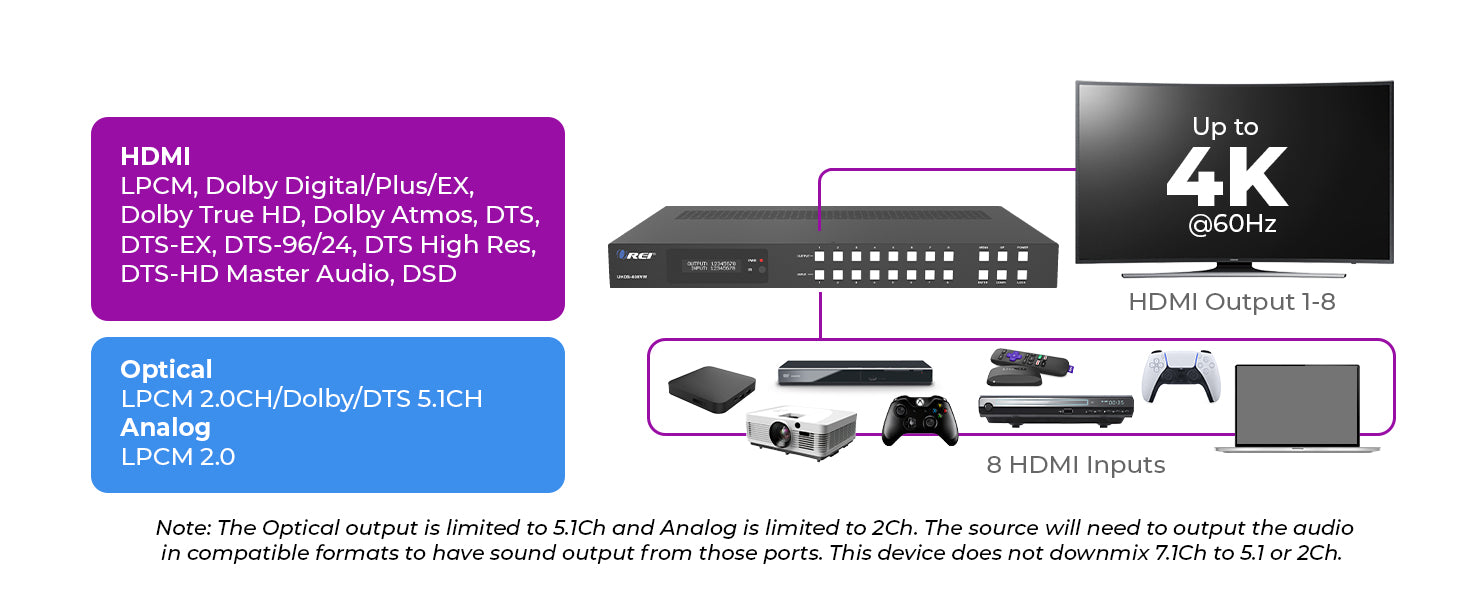

  • Audio Format Support – Compatible with LPCM, Dolby Digital Plus, Dolby TrueHD, DTS High Resolution, and DTS-HD Master Audio.

  • Video Wall Control – Supports multiple layouts including 4x2, 2x2, 8x1, and other common configurations.

  • Image Mirror (Flip) Support – Supports horizontal and vertical image mirroring. Screen rotation (90°/180°) is not supported.

  • Mode-Specific Mirror Support – Image mirror is supported in Matrix and Video Wall modes. Mirror is not available in Multi-View mode.

  • Bezel Adjustment & EDID Management – Ensures accurate image alignment and reliable device communication.

  • Power-Off Memory – Automatically restores previous settings after reboot.

  • CEC Control via WebGUI – Enables centralized control through a browser-based interface.

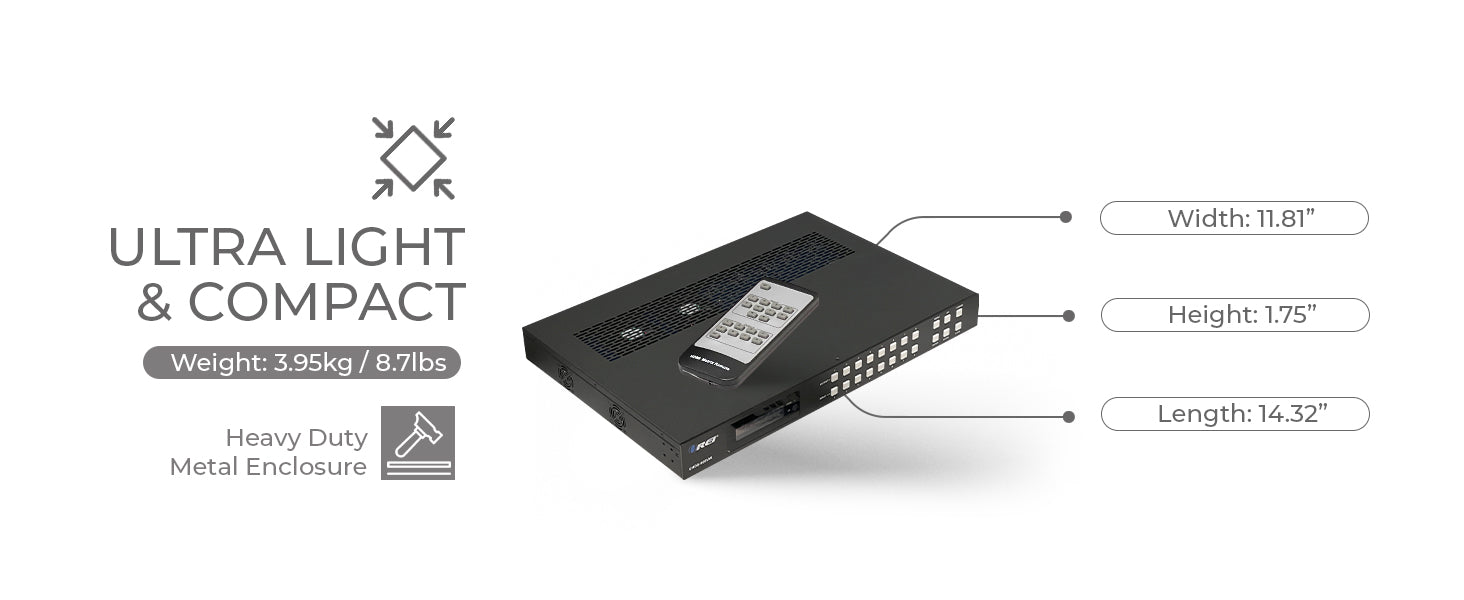

  • Compact Design – Ideal for commercial video walls, control rooms, and digital signage applications.

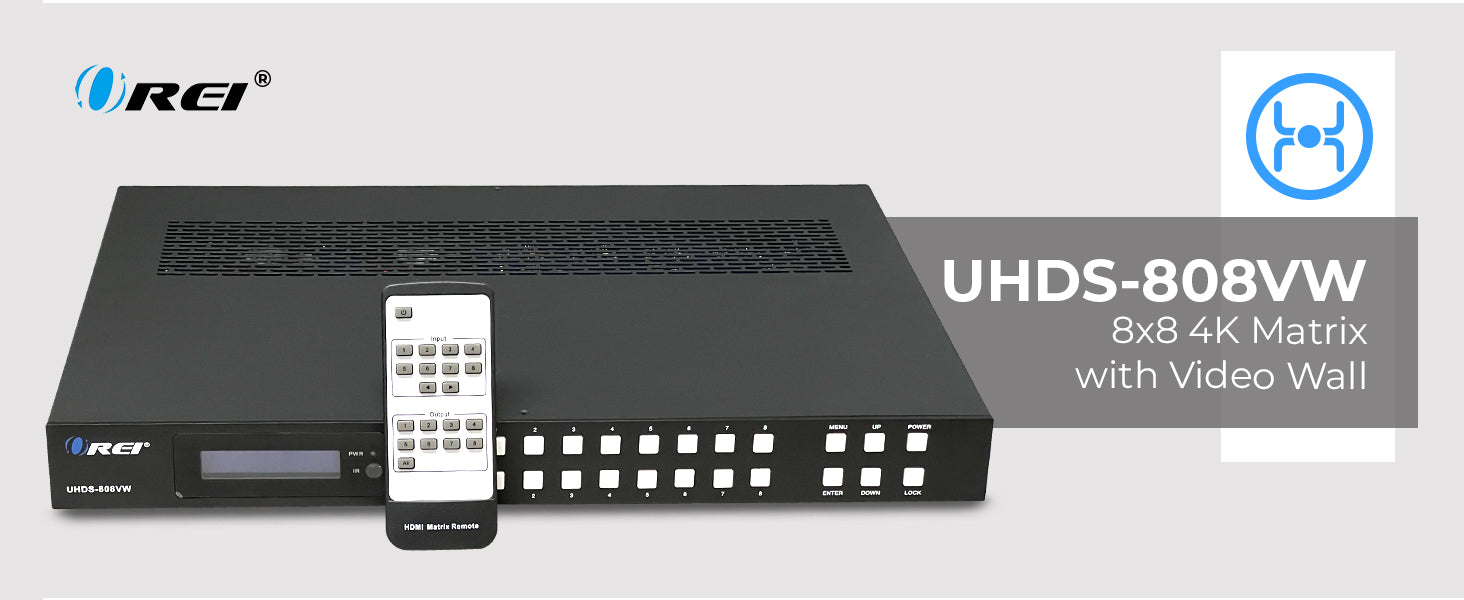

The UHDS-808VW is an 8x8 HDMI Matrix and Video Wall Processor designed to distribute up to eight HDMI sources across eight displays with professional-grade reliability. Fully compliant with HDMI 2.0 and HDCP 2.2 standards, it supports video resolutions up to 4K@60Hz with an 18Gbps bandwidth for high-quality signal delivery.

The unit supports seamless switching and advanced audio extraction through Optical and 5-pin Phoenix analog outputs, with compatibility for LPCM, Dolby Digital Plus, Dolby TrueHD, DTS High Resolution, and DTS-HD Master Audio. Multiple video wall layouts such as 4x2, 2x2, and 8x1 are supported.

The UHDS-808VW provides horizontal and vertical image mirror (flip) functions for display alignment in Matrix and Video Wall modes. Screen rotation (90° or 180°) is not supported, and mirror functionality is not available in Multi-View mode.

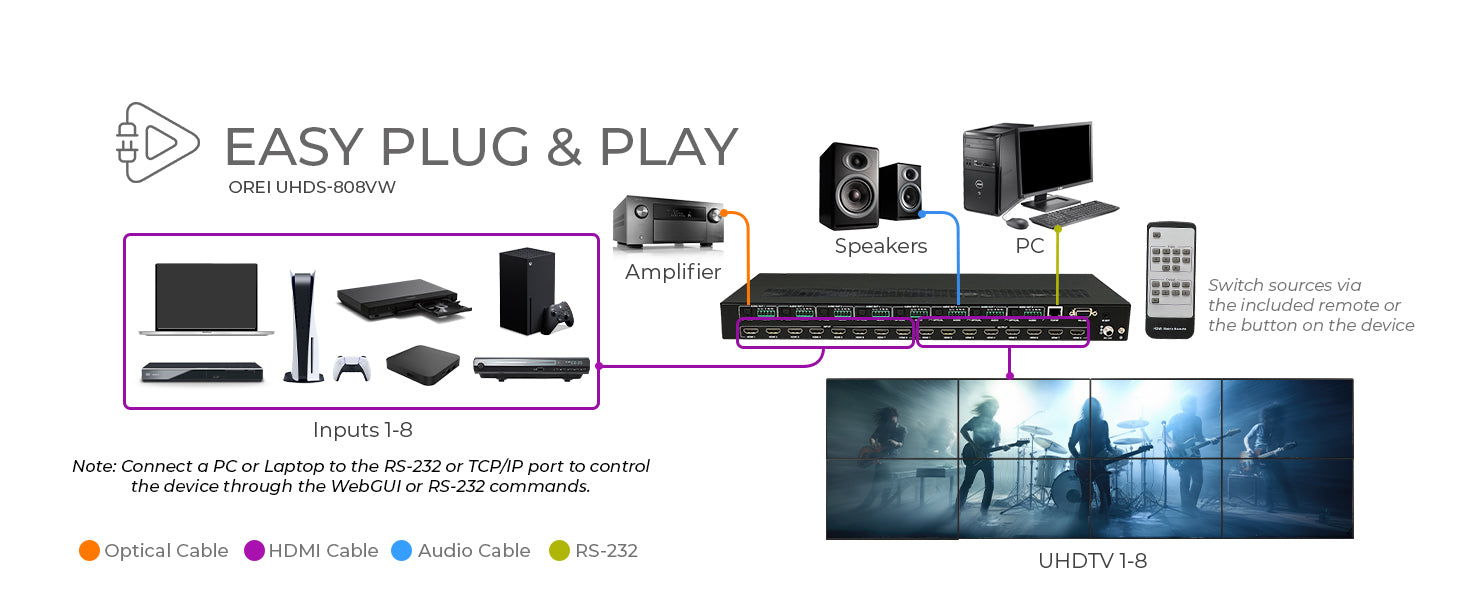

With WebGUI control, RS-232, LAN, power-off memory, and EDID management, this unit is designed for professional AV environments requiring stable performance and precise configuration.
