17% off

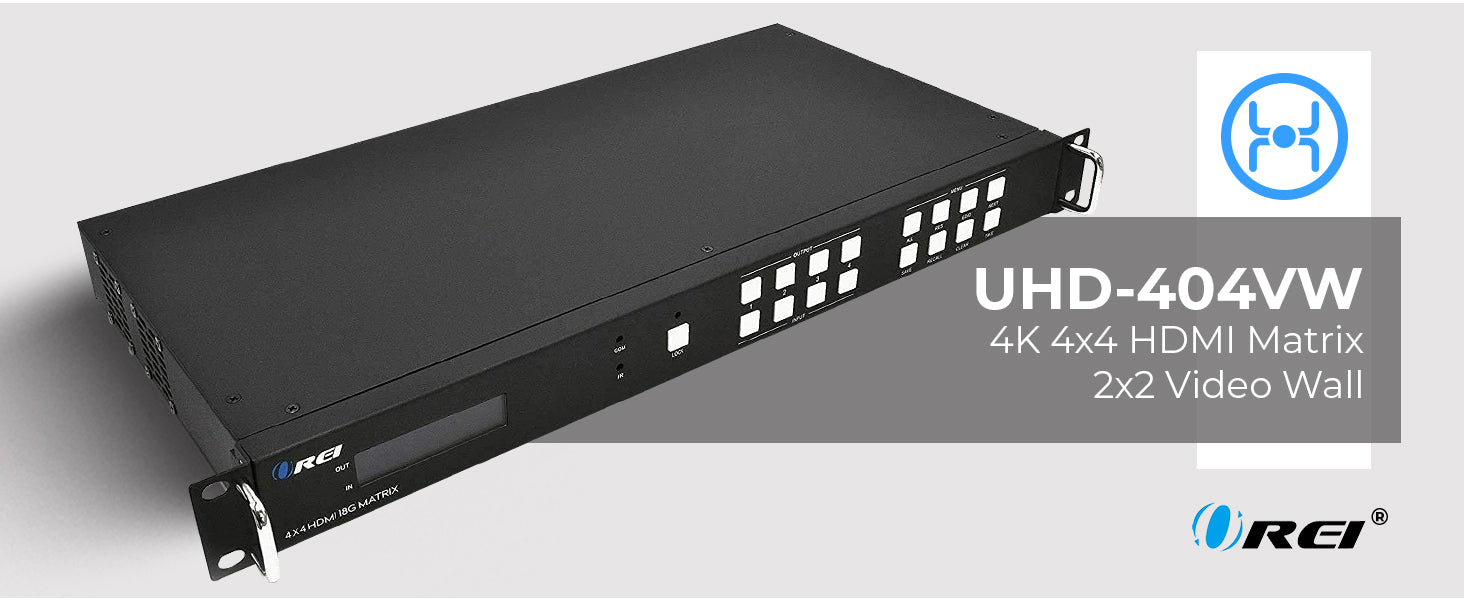

4K@60hz 4x4 HDMI™ Matrix w/ Video Wall (Seamless, Audio Extract)-UHD-404VW

$999.99 USD $1,199.99
SKU: UHD-404VW

  • 2x2 Video wall controller

  • Video resolutions up to 4K@60Hz and 2k@60Hz

  • IR matrixing and audio matrixing

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in USA
Free shipping in USA
Product Image
View details
video

1. Professional-Grade Video Distribution

The 4x4 Seamless UHD HDMI Matrix Switcher delivers flawless 4K@60Hz 4:4:4 video to up to four displays simultaneously. With HDMI 2.0 & HDCP 2.2 compliance and 18Gbps bandwidth, it ensures premium image clarity and smooth performance across all connected devices—perfect for command centers, control rooms, or commercial AV installations.

2. Zero-Latency Switching & Video Wall Functionality

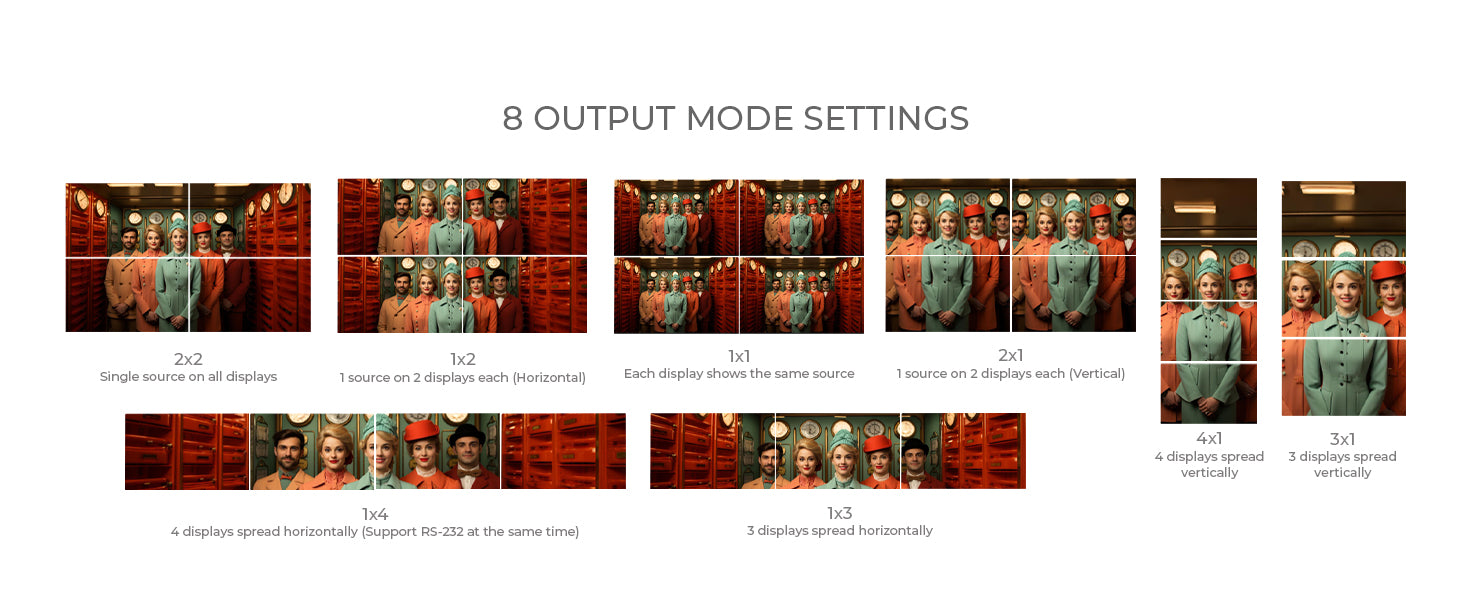

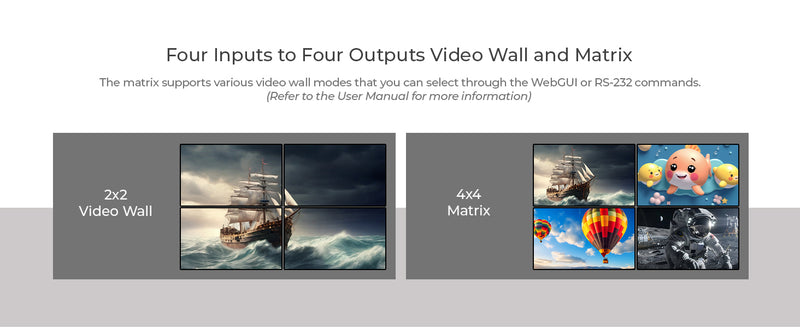

Experience instant source switching with no screen blackout. Built-in video wall support lets you tile multiple displays into a single large canvas—ideal for digital signage, retail displays, and large-scale presentations where timing and precision matter.

3. Integrated Audio and IR Matrix Capabilities

Route audio and IR signals independently from video using the built-in audio matrix and IR switching system. The switcher supports external L/R analog audio insertion into HDMI outputs, giving installers flexible audio management for conferencing systems or mixed AV environments.

4. Smart Control & EDID Customization

Control the matrix via front panel, RS-232, or TCP/IP (LAN), with support for CEC pass-through for unified control of HDMI devices. Advanced EDID management ensures stable signal communication between devices, reducing handshake issues and optimizing resolution compatibility.

UHD-404VW: 4x4 Matrix with Video Wall controller

Key Features:

  • HDMI 2.0 & HDCP 2.2 Compliant – Ensures broad compatibility with modern UHD devices.
  • 18Gbps Video Bandwidth – Supports full 4K60Hz 4:4:4 signal for pristine video quality.
  • Rich Color Space Support – Handles RGB, YCbCr 4:4:4, and 4:2:2 formats with high fidelity.
  • Seamless Switching & Video Wall Support – Instant input switching and multi-display tiling for professional applications.
  • CEC Management Enabled – Control connected devices with a single remote or central command.
  • Integrated Audio Matrix & IR Matrix – Independently route audio and IR signals across the matrix.
  • External L/R Audio Insertion – Mix external analog audio into HDMI output streams.
  • Advanced EDID Management – Customize and stabilize device communication.
  • Versatile Control Options – Operate via front panel, RS-232, or TCP/IP (LAN 10/100M) interface.

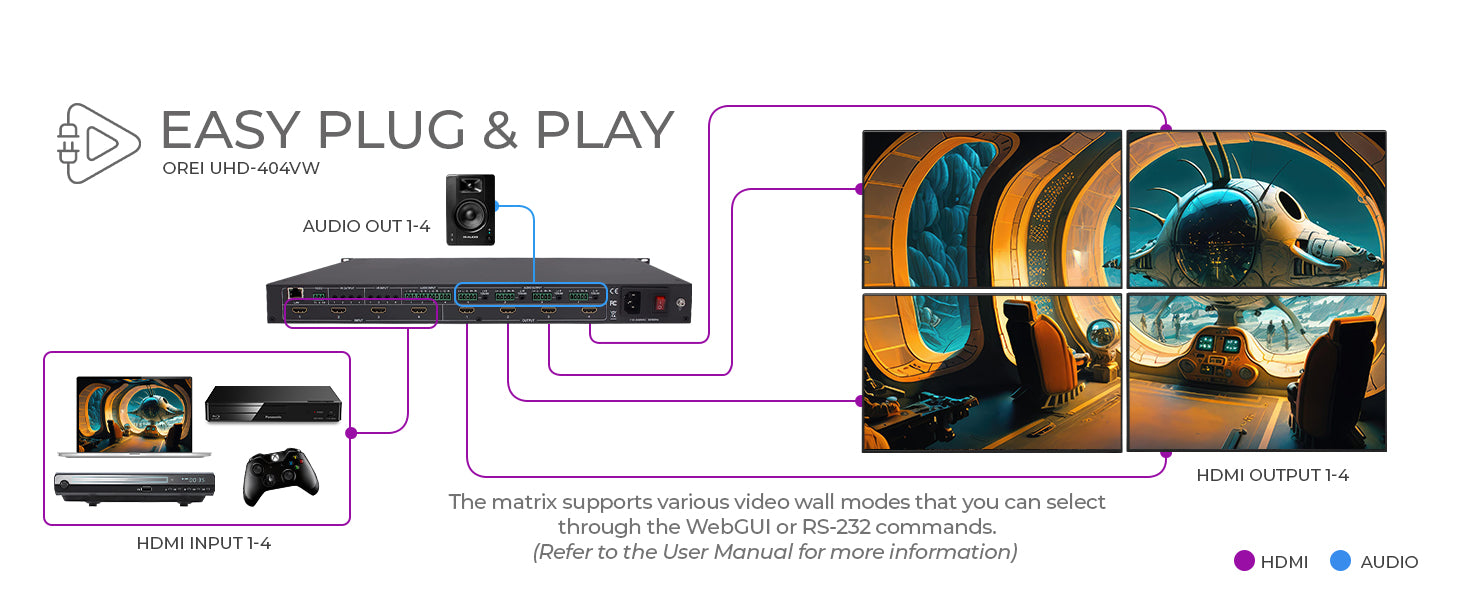

The 18Gbps 4x4 Seamless UHD Matrix Switcher allows you to route any of four HDMI sources to any of four HDMI displays with uncompressed 4K@60Hz 4:4:4 video quality. Designed for high-performance AV systems, this matrix switcher features seamless switching with zero latency, video wall functionality, and full support for IR and audio matrix routing.

It also supports CEC pass-through, allowing centralized control over connected HDMI devices. External L/R audio input insertion, EDID customization, and multiple control interfaces (RS-232, LAN, front panel) make it ideal for command centers, conference rooms, digital signage, and AV integration projects.

This is a robust, flexible solution that offers total control over video and audio routing, ideal for both commercial and high-end residential installations.
