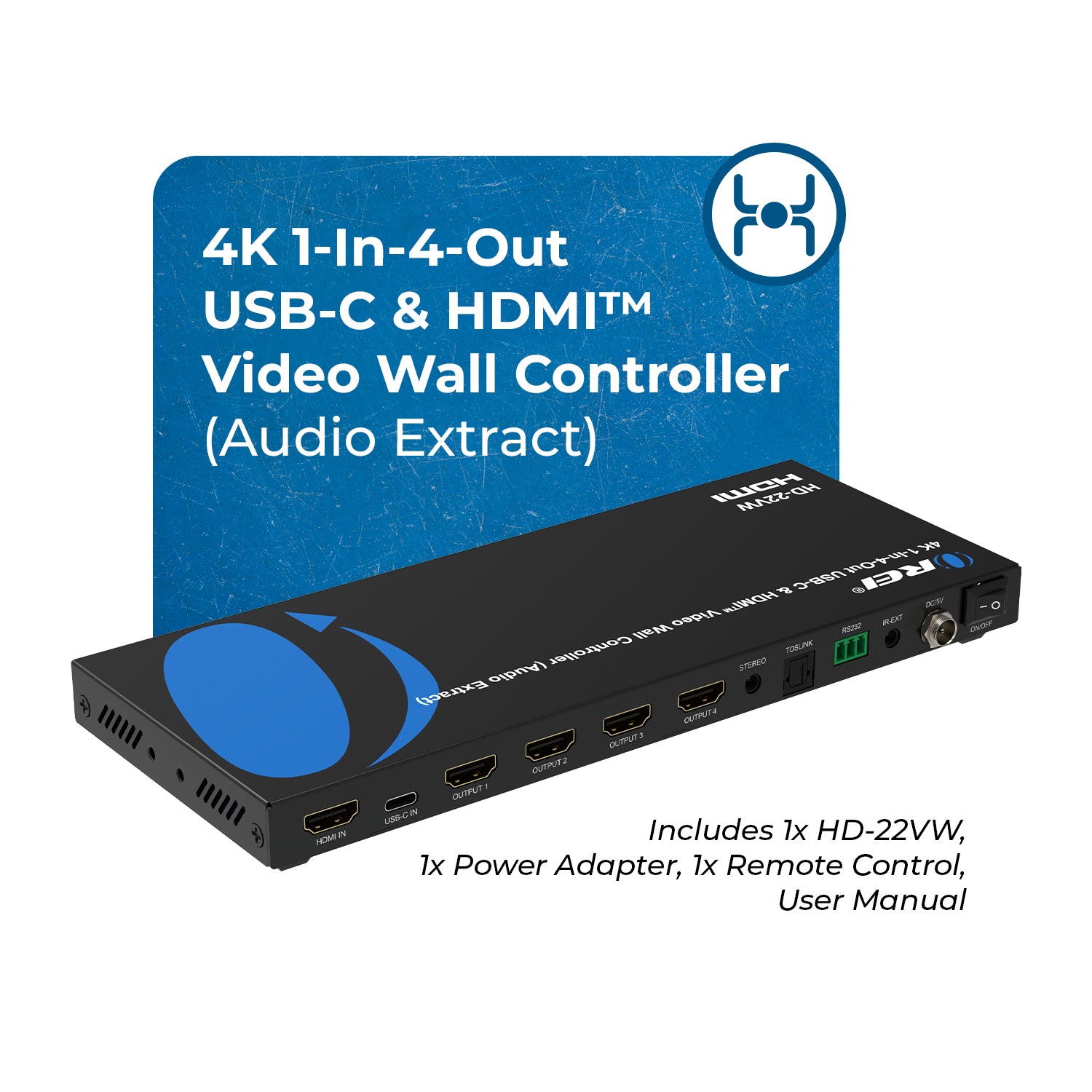

4K 1-In-4-Out USB-C & HDMI™ Video Wall Controller (Audio Extract)-HD-22VW
-
2x2 Video wall controller
-
Resolutions up to 4K
-
Features 180-degree rotation in 2x2 mode
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

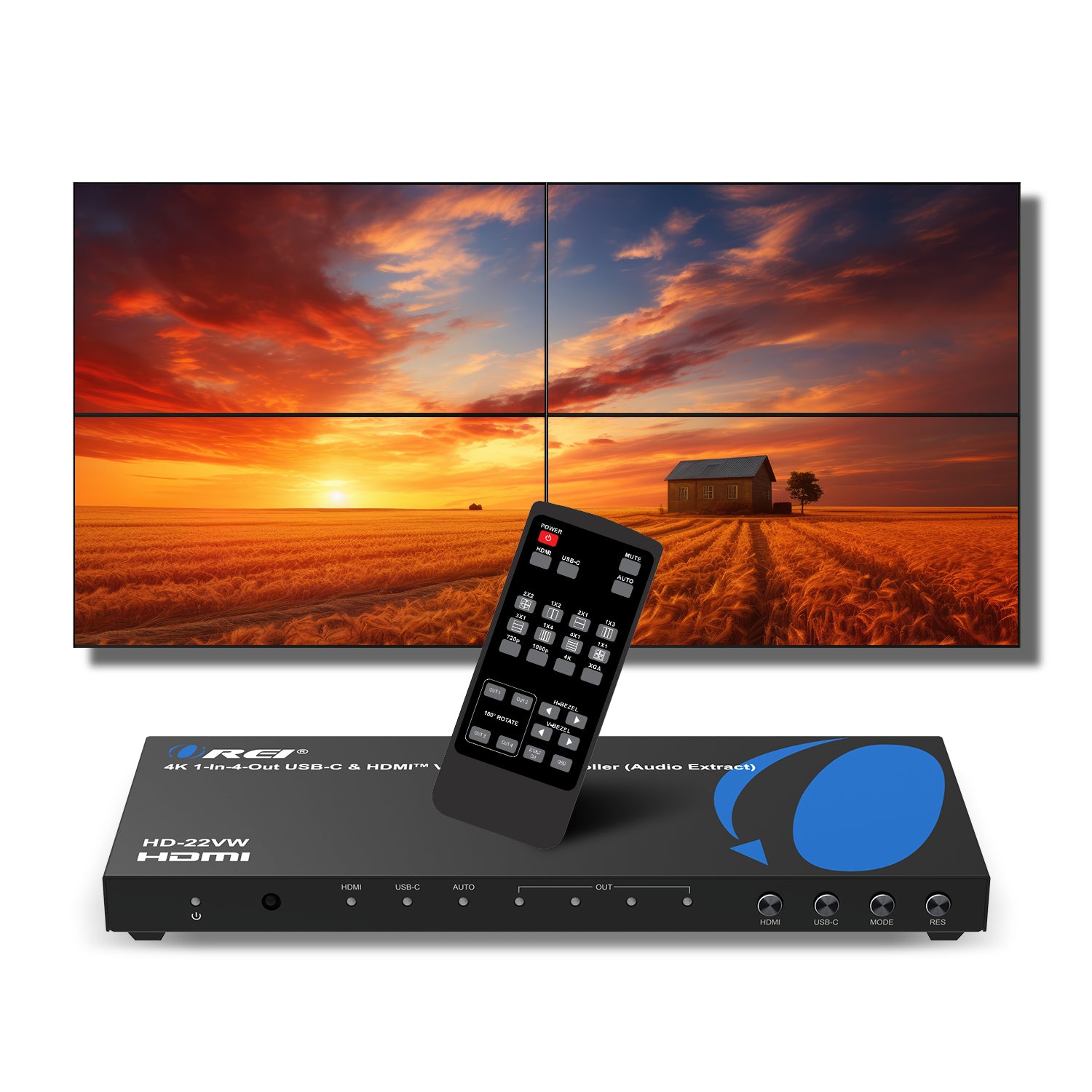

Seamless 4K Video Wall Experience
This 4K video wall controller allows you to distribute a single HDMI or USB-C input across up to four screens, providing ultra-clear 4K@60Hz video. Whether you’re building a 2x2 video wall or using the controller for a 1x4 or 4x1 layout, this device ensures that your video wall displays high-definition, synchronized content across all panels. With its robust 18Gbps video bandwidth, it delivers smooth performance even for large-scale video wall setups.
Flexible Input and Audio Extraction Options

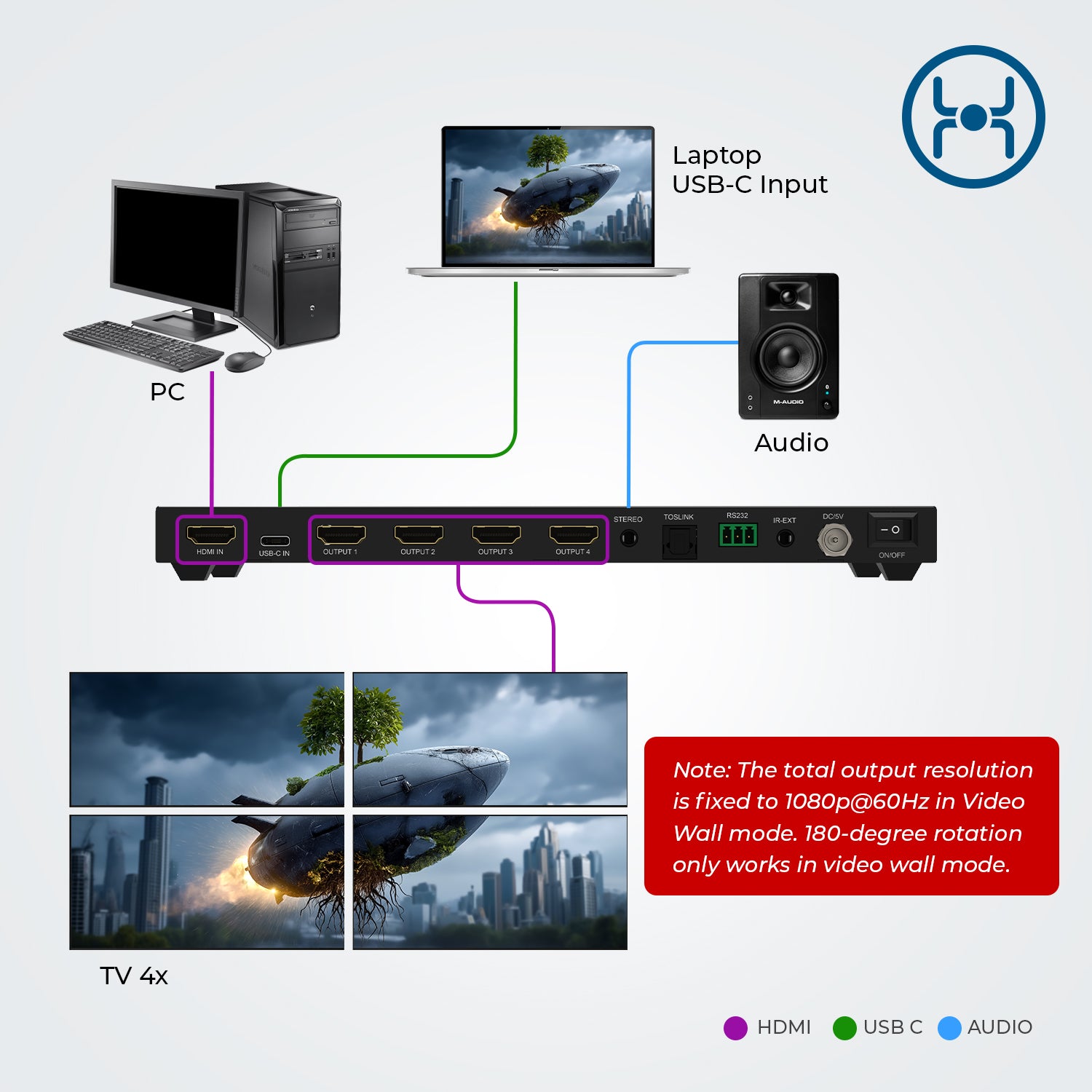

The HD-22VW offers versatile input options, supporting both HDMI and USB-C connections. This makes it ideal for a variety of devices, including laptops, Blu-ray players, and streaming devices. Additionally, it provides audio extraction through Optical (SPDIF) and analog L/R outputs, offering flexible audio routing to external sound systems. Whether you're setting up for a 4K video wall in a retail store or control room, this controller has you covered for both video and audio needs.
Advanced Video Wall Configurations

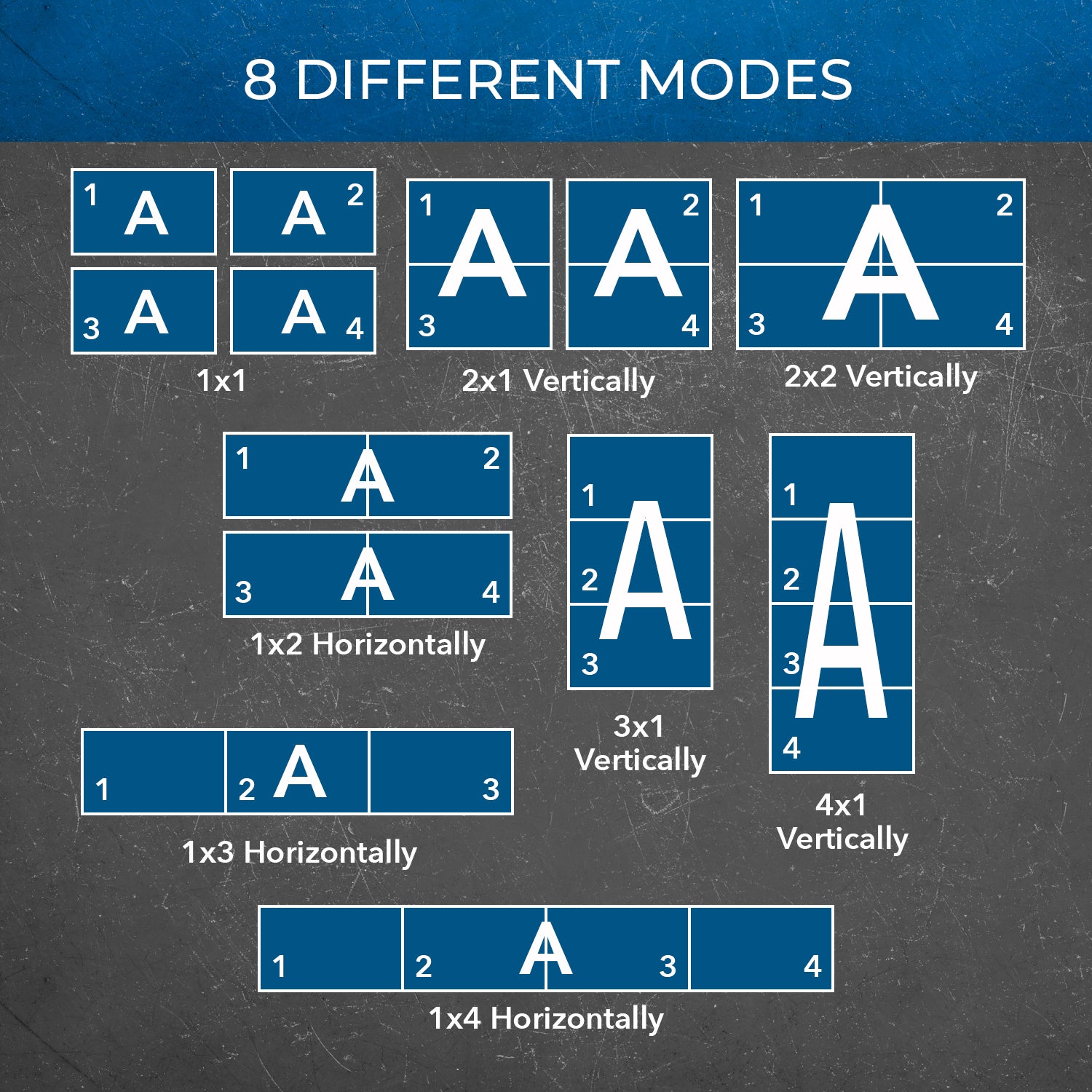

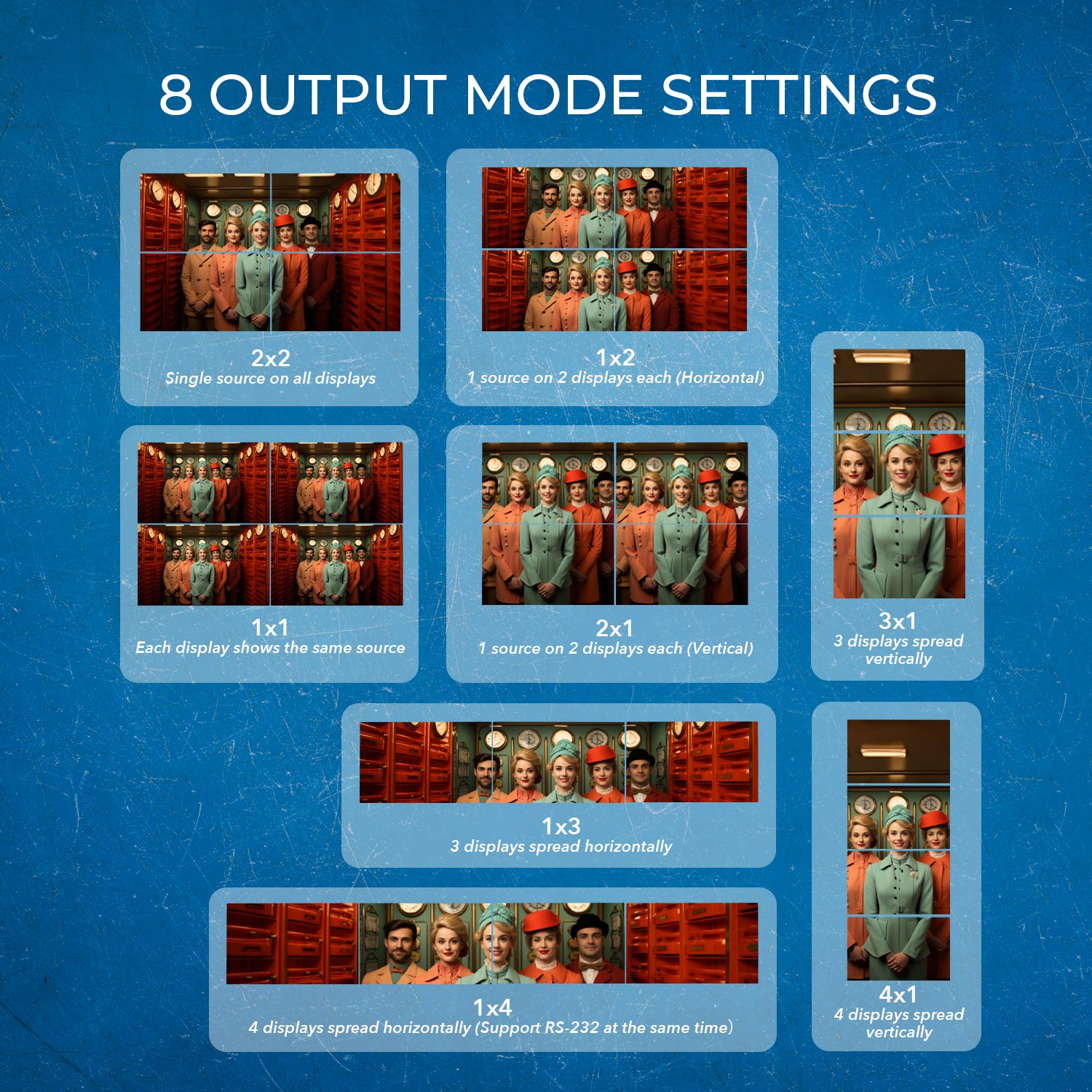

With support for 8 different video wall modes, including the popular 2x2 video wall controller layout, the HD-22VW gives you the flexibility to create stunning visuals in any configuration. Whether you’re designing a 2x2 HDMI video wall controller setup or customizing your video wall for unique display requirements, this device can easily accommodate various installations. The 180° image rotation feature and bezel compensation ensure that your layout is perfectly aligned, providing a clean, professional finish.
Easy Control and Plug-and-Play Setup

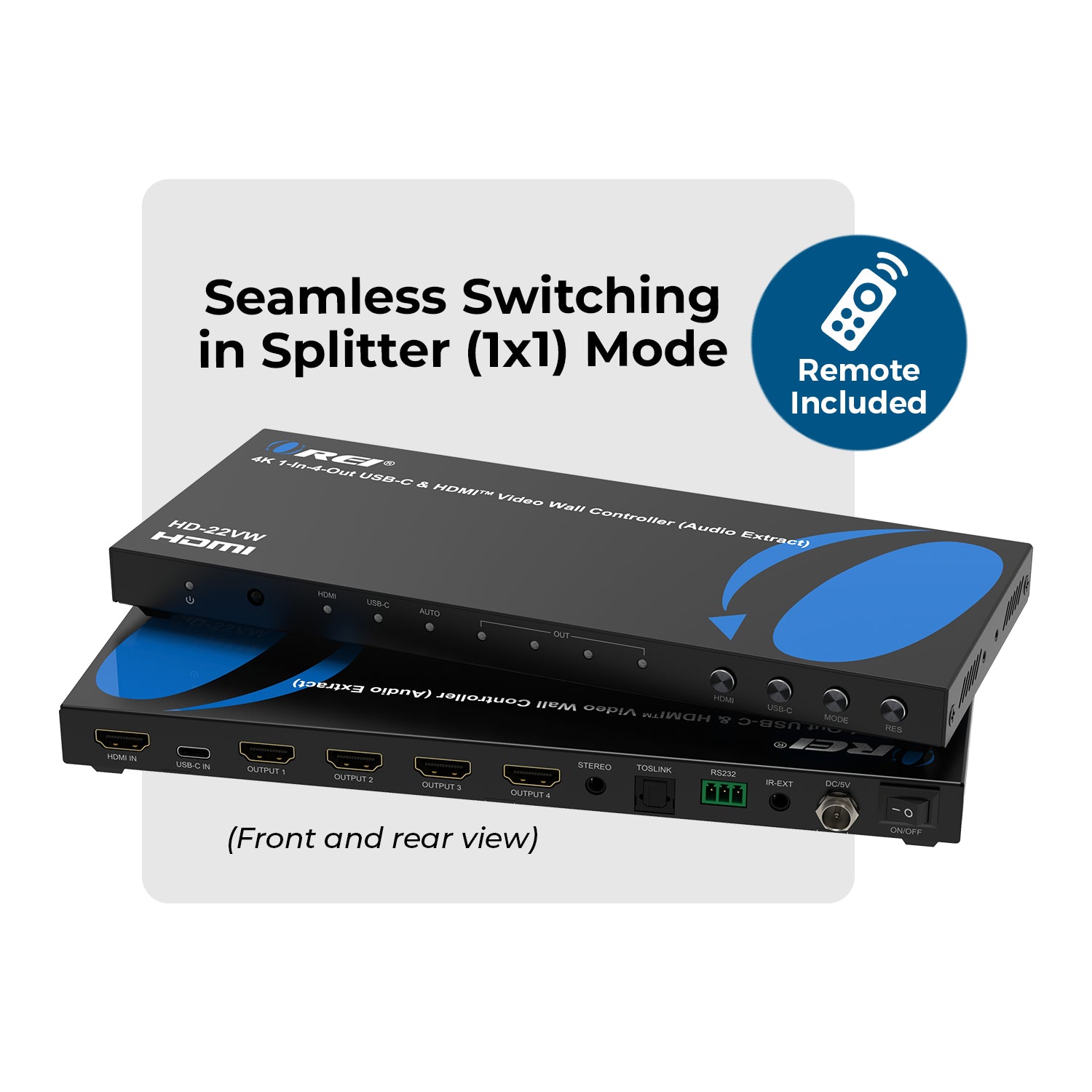

Thanks to its intuitive design, the HD-22VW offers multiple control options via IR remote, RS-232 commands, or front-panel buttons. Setup is a breeze with its plug-and-play functionality, eliminating the need for complex configurations. Whether you're deploying a 4K video wall controller 2x2 in a conference room or for a live event, this controller ensures quick and easy installation. Its compact and durable form factor makes it perfect for retail displays, professional signage setups, and other commercial applications.

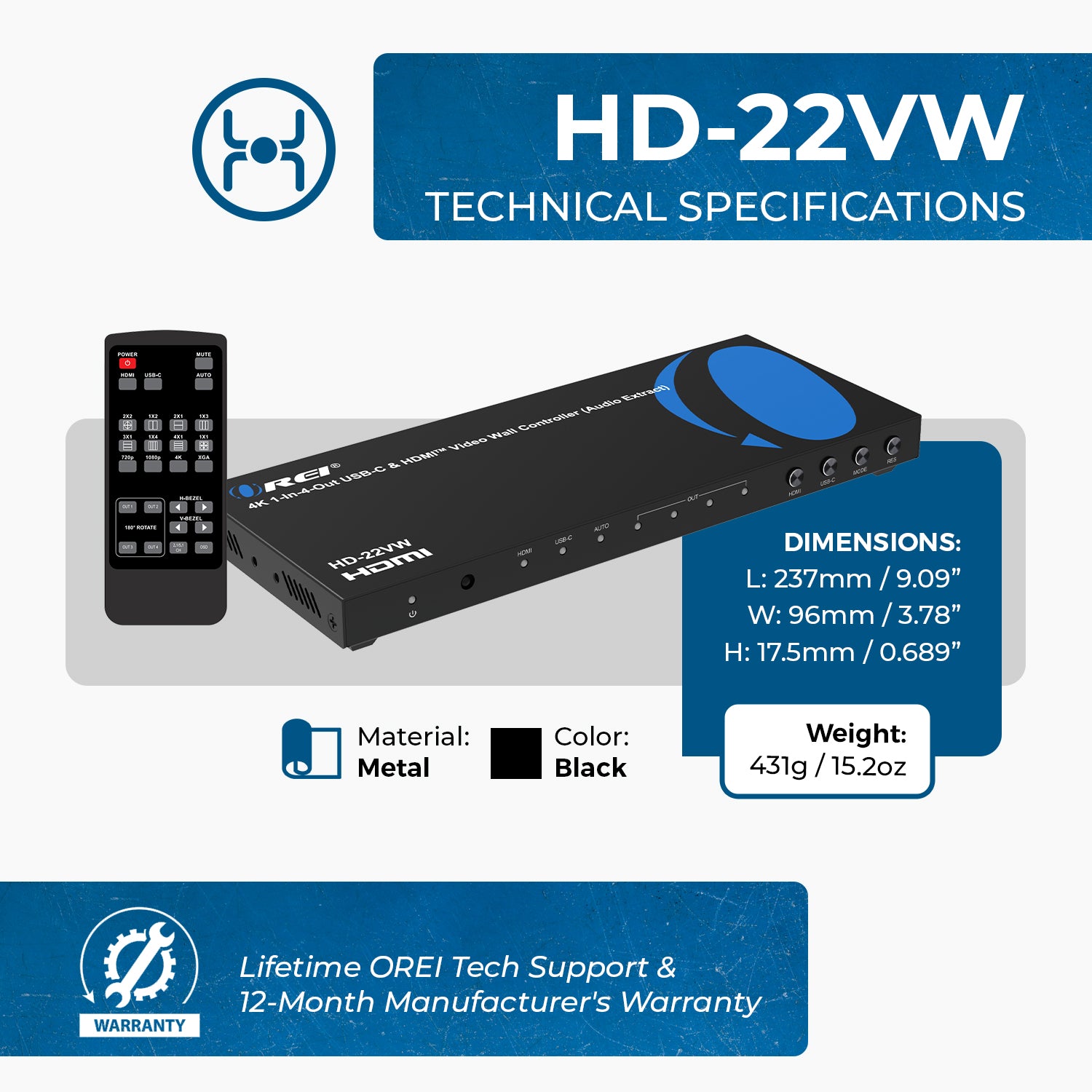

OREI HD-22VW: 4K 2x2 Video Wall Controller
Key Features:
- HDMI 2.0 & HDCP 2.2 compliant
- Video input resolutions up to 4K@60Hz and output up to 1080p@60Hz
- 18Gbps video bandwidth
- Optical and 3.5mm audio outputs for audio extraction
- Power-off memory function to retain the previous setup
- 180-degree image rotation for bezel minimization
- Horizontal and vertical bezel adjustment
- LPCM / AC3 / DTS audio format support
- RS-232 control for advanced configuration (cable not included)
The OREI HD-22VW is a 2x2 video wall controller designed to create professional multi-screen displays for home and commercial environments. It is HDMI 2.0 and HDCP 2.2 compliant, supporting input resolutions up to 4K@60Hz and output resolutions up to 1080p@60Hz with 18Gbps bandwidth for reliable signal performance.
The unit features optical and 3.5mm audio outputs with support for LPCM, AC3, and DTS formats, allowing flexible audio extraction. A built-in power-off memory function ensures your last configuration is retained after shutdown.
Basic video wall layouts and switching can be controlled using the front panel buttons or the included IR remote. Advanced functions such as image rotation require RS-232 control via computer software. The HD-22VW uses a 3-pin RS-232 connector, and the RS-232 control cable is not included.
Its compact form factor makes it suitable for retail displays, control rooms, digital signage, and multi-screen installations where precise display control is required.
