4K 2x2 Video Wall Controller Seamless HDMI Processor Upto 4K@60hz (UHD-202VW)

  • $189.00
  • Availability: In Stock
  • SKU: UHD-202VW

  • 2x2 Video wall controller
  • Multiple Display Modes: 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1
  • Audio Formats: PCM 2.0

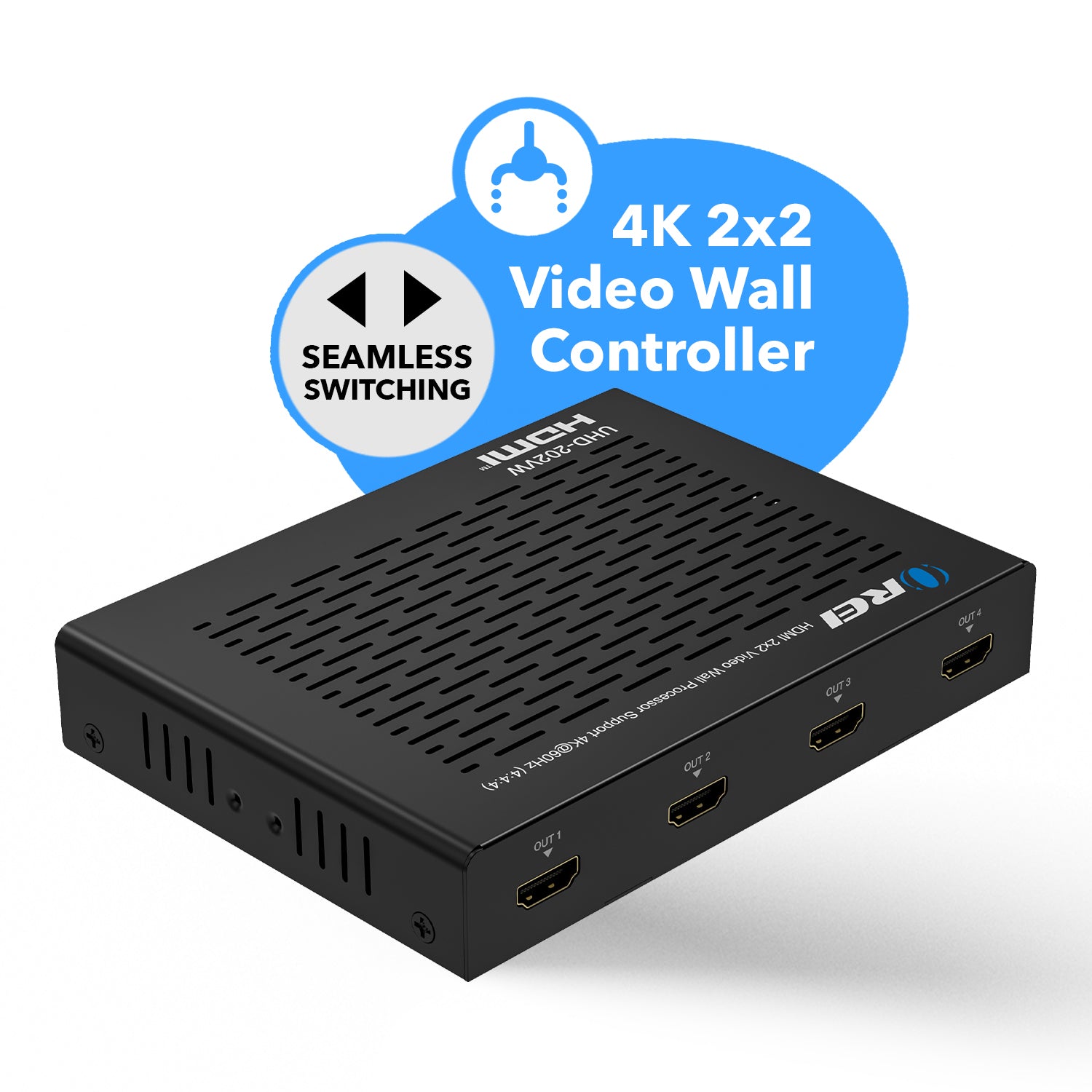

OREI UHD-202VW: 4K 2x2 Seamless Video Wall Controller

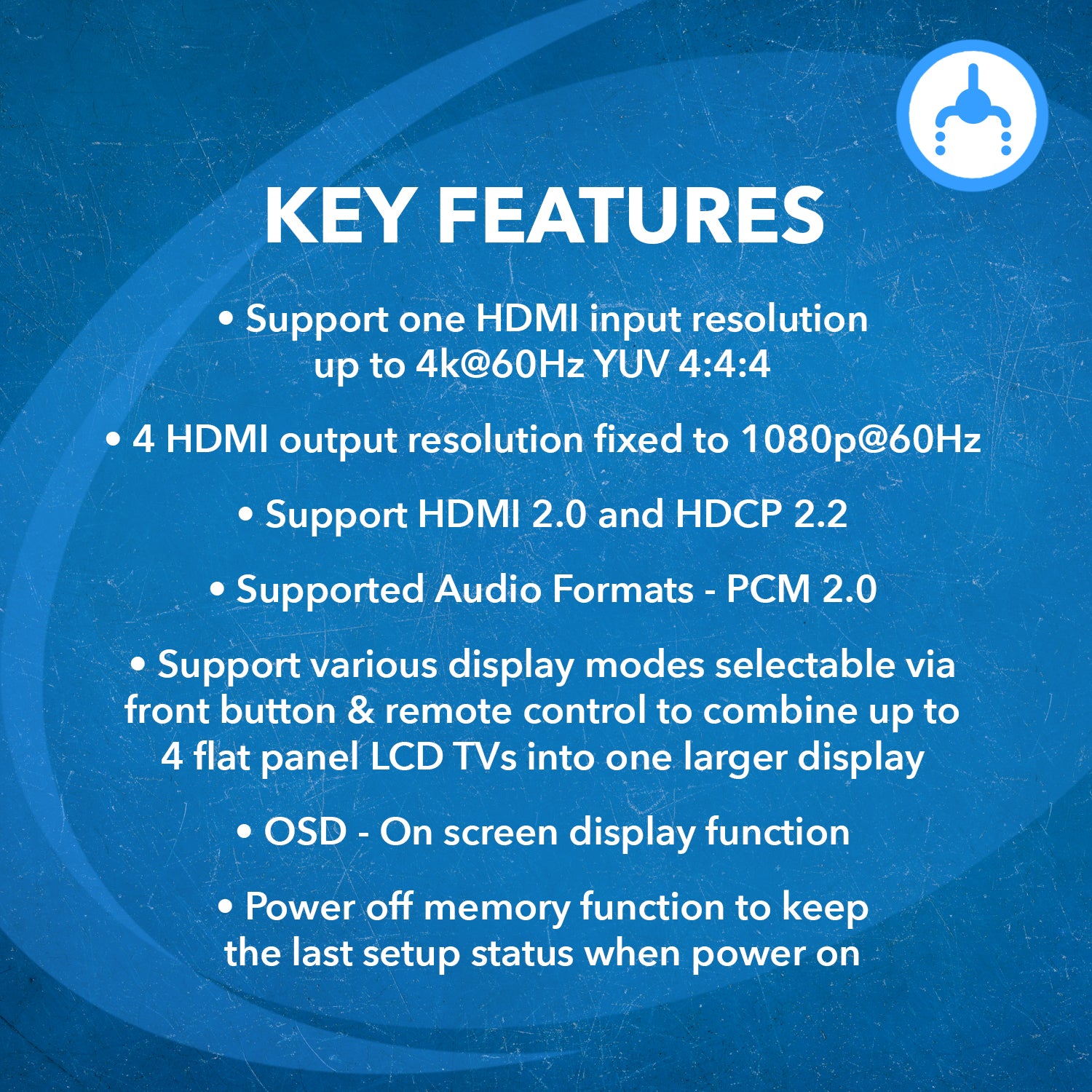

Key Features:

  • Support one HDMI input resolution upto 4k@60Hz YUV 4:4:4
  • 4 HDMI output resolution fixed to 1080p@60Hz
  • Support HDMI 2.0 and HDCP 2.2
  • Supported Audio Formats - PCM 2.0
  • Support various display modes selectable via front button and remote control to combine up to 4 flat panel LCD TVs into one larger display

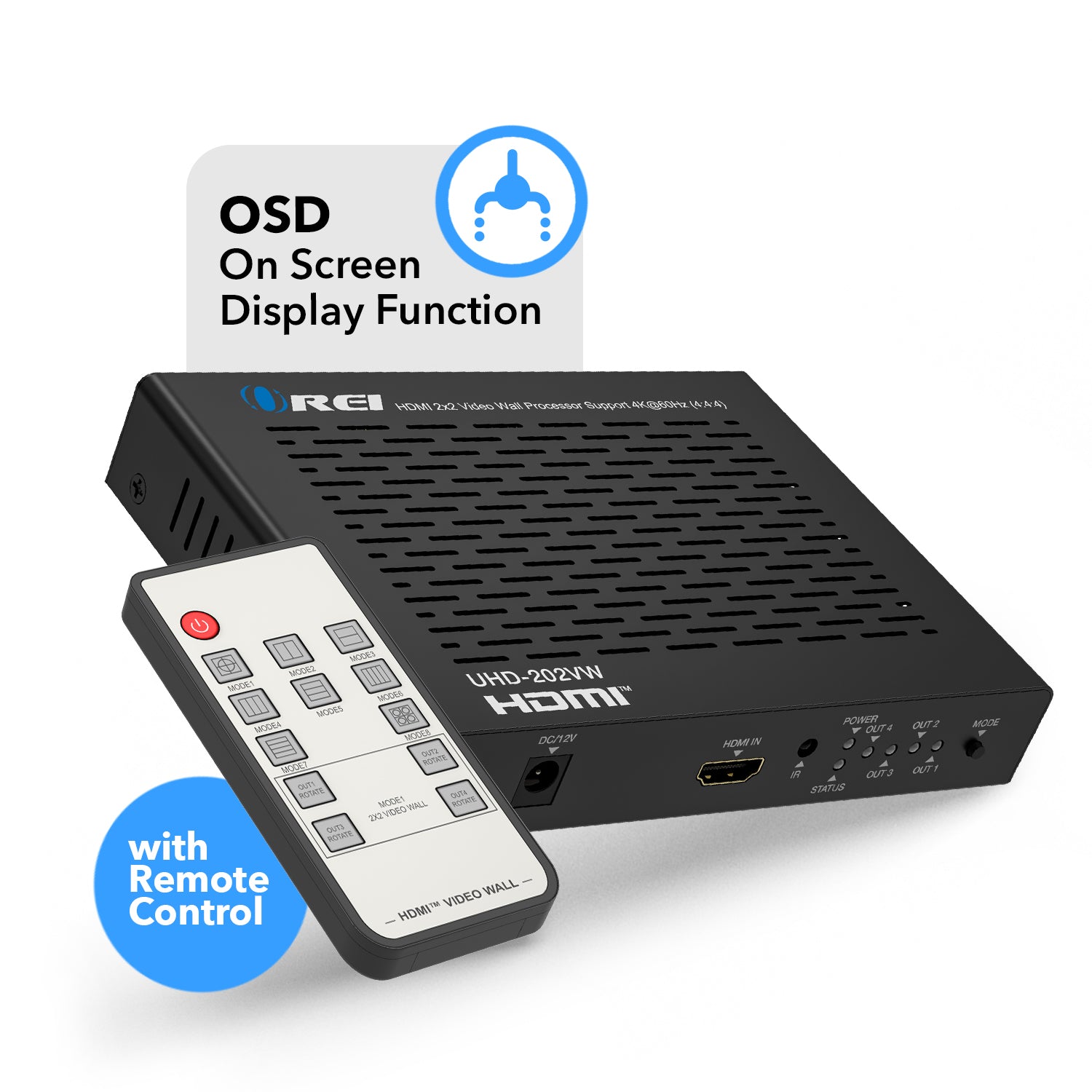

  • OSD - On screen display function
  • Power off memory function to keep the last setup status when power on



Few sample applications:

Seamless switching for distribution of any of the 4 input sources on any of the 4 output displays simultaneously, 4 Inputs & 4 Outputs. Perfect Professional Distribution Product, ideal for 4K Blu Ray Players, Game Consoles, Media Players, Satellite Receivers, Computers, Laptops, and Other Sources.

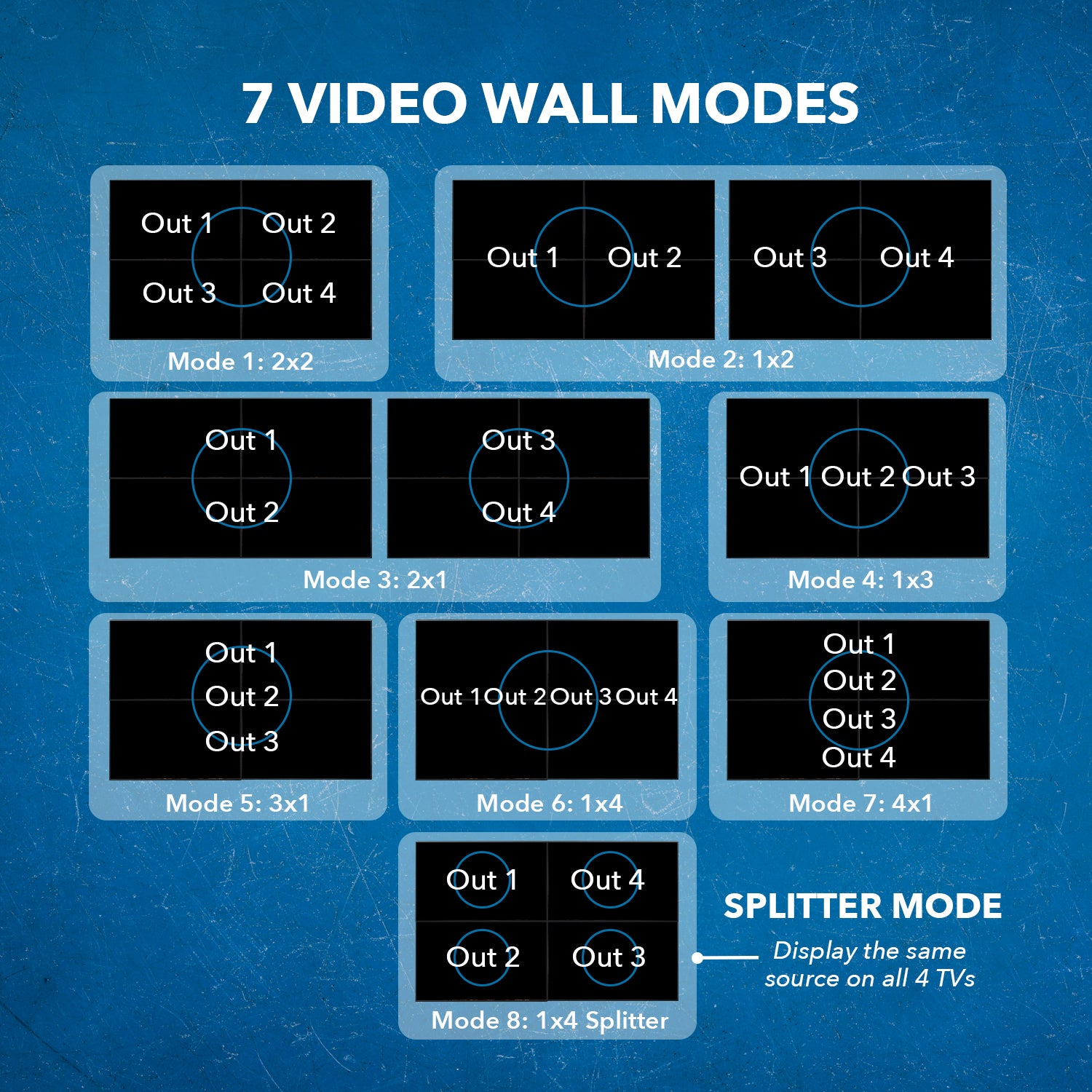

MULTIPLE SPLICING MODES: Multiple Display Modes - 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 and 1x4 Splitter Mode (Display the same source on all 4 TVs)

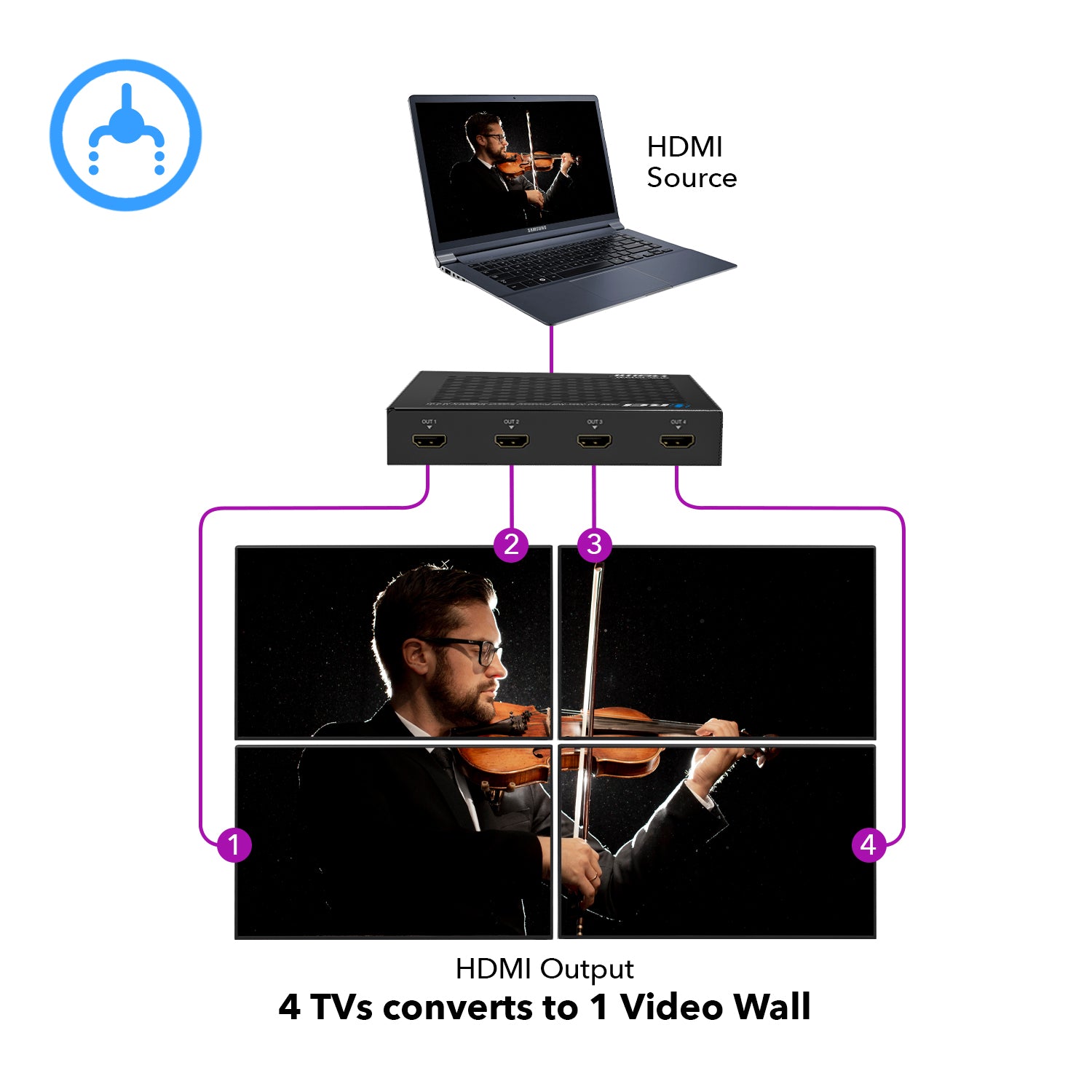

2x2 VIDEO WALL: This device easily lets you take one HDMI source (Blu Ray Player, Computer, Laptop, Media Player, Gaming Console) and divide on to 4 TV Display Screens simultaneously.

PLUG & PLAY - No extra software needed or Internet Required, Input with resolutions up to 4K/60Hz YUV 4:4:4,18GBPS, YUV 4:4:4, CEC, HDCP2.2.



Package Contents & Warranty:

    • Includes:
      • 1 x 2x2 seamless UHD Matrix
      • 1 x Matrix IR Remote
      • 1x User Manual
      • 1x Power Adapter 12V
    • Warranty:
      • 1 Year OREI Manufacturer's Warranty

  • SKU: UHD-202VW

  • 2x2 Video wall controller
  • Multiple Display Modes: 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1
  • Audio Formats: PCM 2.0

2x2 Video Wall Controller - UHD-202VW

  • Input Ports: 1 x HDMI Female
  • Output Ports: 4 x HDMI Female
  • HDMI 2.0
  • HDCP 2.2
  • Multiple Display Modes - 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 (1080i each Display) and 1x4 Splitter Mode (Display the same source on all 4 TVs @ 4K Each Display)
  • Interlaced upto 480i, 576i, 1080i
  • Progressive upto 480p, 576p, 720p, 1080p, 4K@24/25/30hz, 40K@50/60hz
  • Does Not Support HDR10, and Dolby Vision, Supported Audio Formats - PCM 2.0 (Does Not Support Dolby Digital and DTS
  • Supported Audio Formats - PCM 2.0
  • Vertical Freq uency Range: 50/60Hz
  • Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel(l8Gbps all channels)
  • lnterlaced (50&60Hz): 480i.576i.l080i
  • Progressive(50&60Hz): 480p,576p,720p,l080p.4K@24/25/30Hz.4K@50/60Hz
  • Operating Temperature: 0°C ~ 70°C
  • Storage Temperature: 5% to 90% RH non -condensation
  • Splitter Unit Cert: FCC, CE, RoHS
  • Power Supply Cert: FCC, CE, RoHS

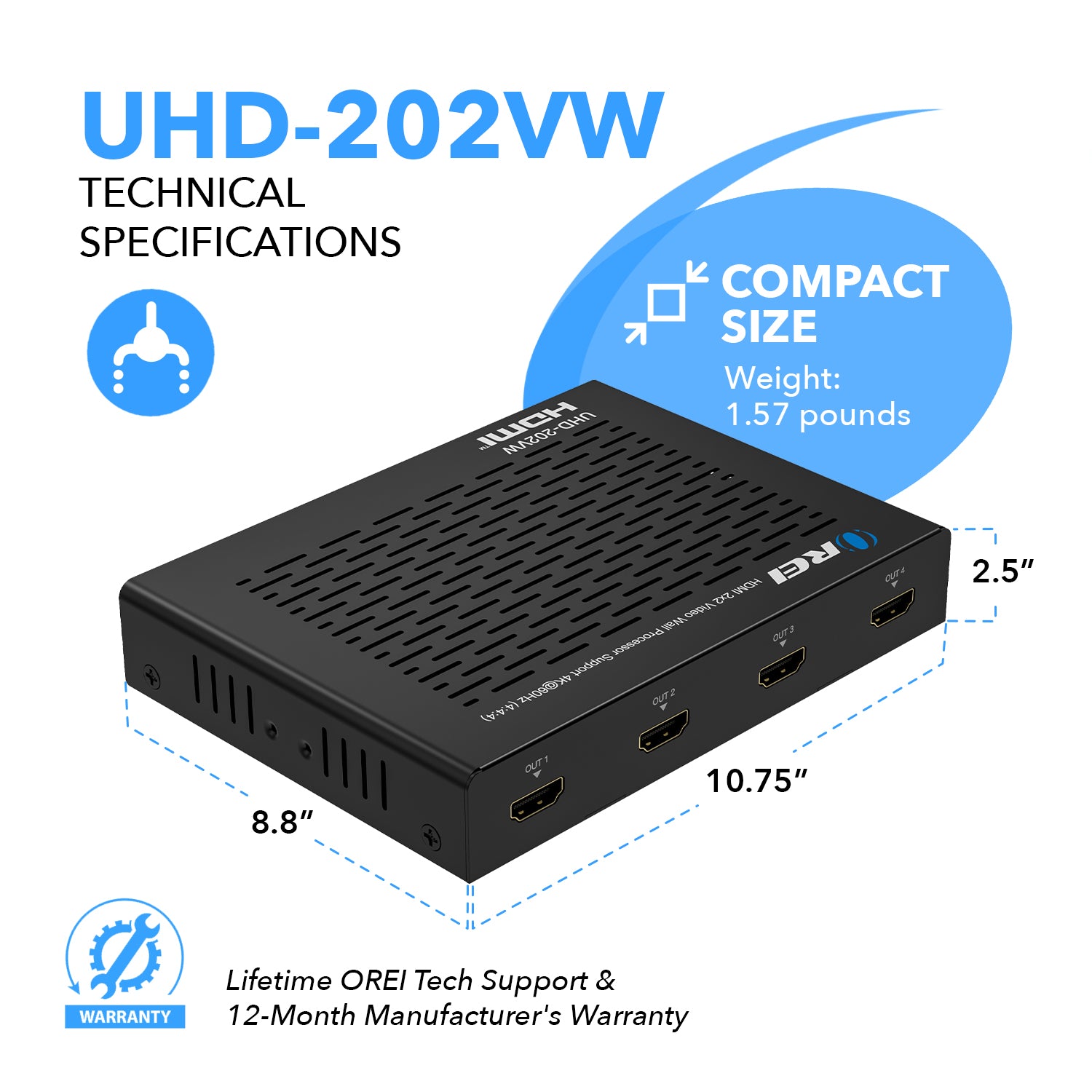

  • Dimensions (mm): 151(W) X 111(D) X 26.5(H)
  • Weight: 395g
  • Power Supply: 12V DC Power adapter
  • Power Consumption (Max): 12W
  • Material: Metal
