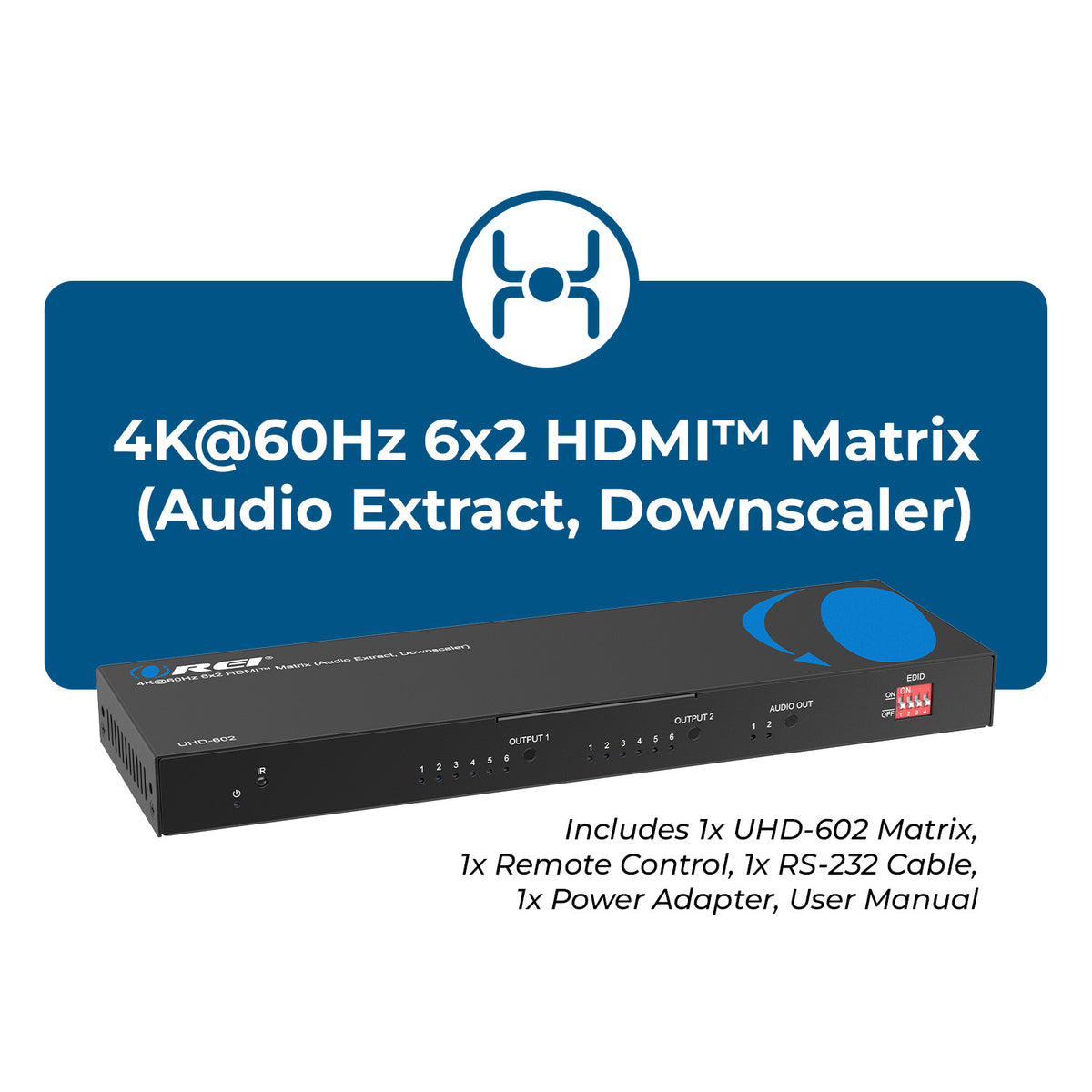

4K@60Hz 6x2 HDMI™ Matrix (Audio Extract, Downscaler) (UHD-602)

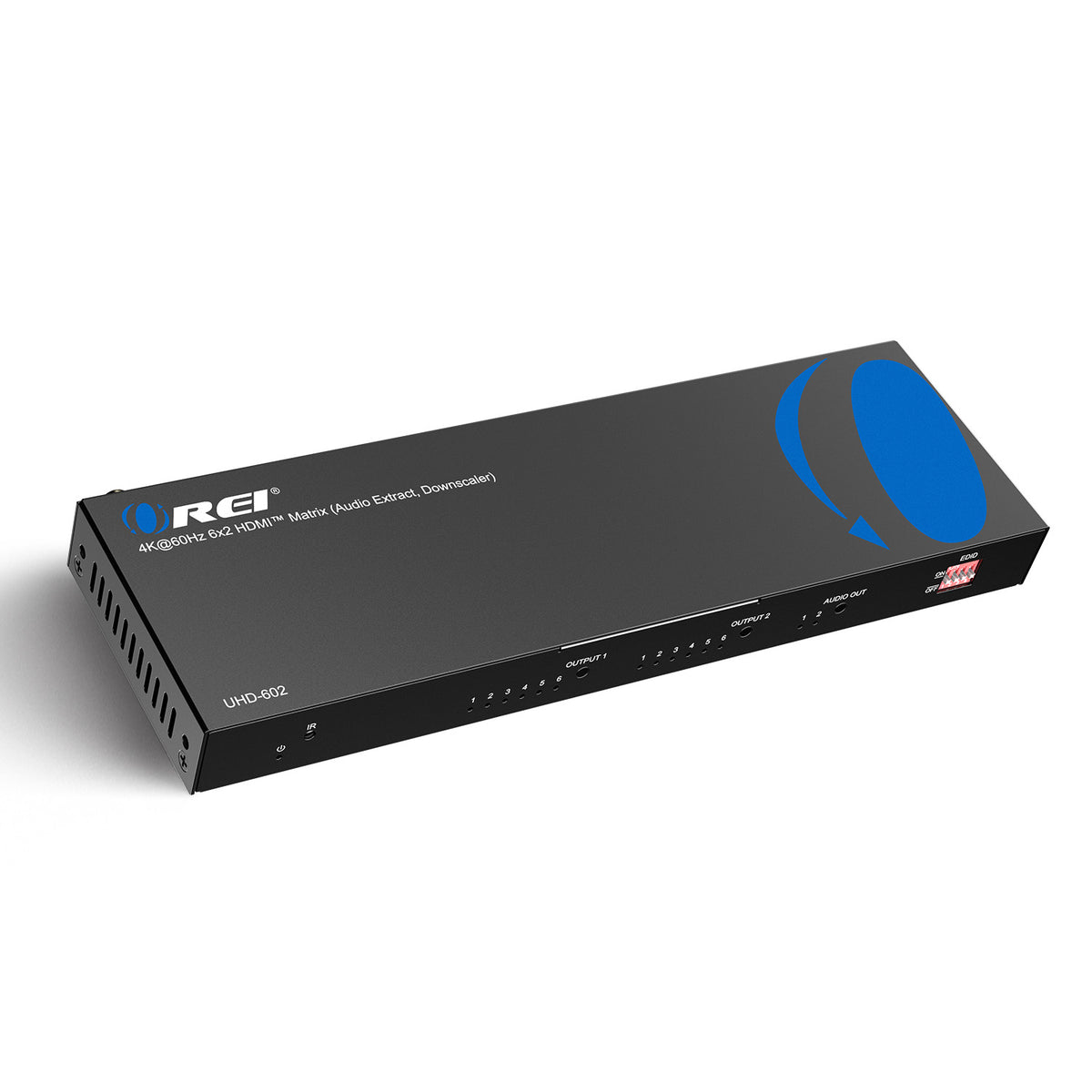

OREI UHD-602: 4K@60HZ 6X2 HDMI™ MATRIX

• HDCP 2.2 Support – Ensures compatibility with modern HDMI™ sources, displays, and protected content.

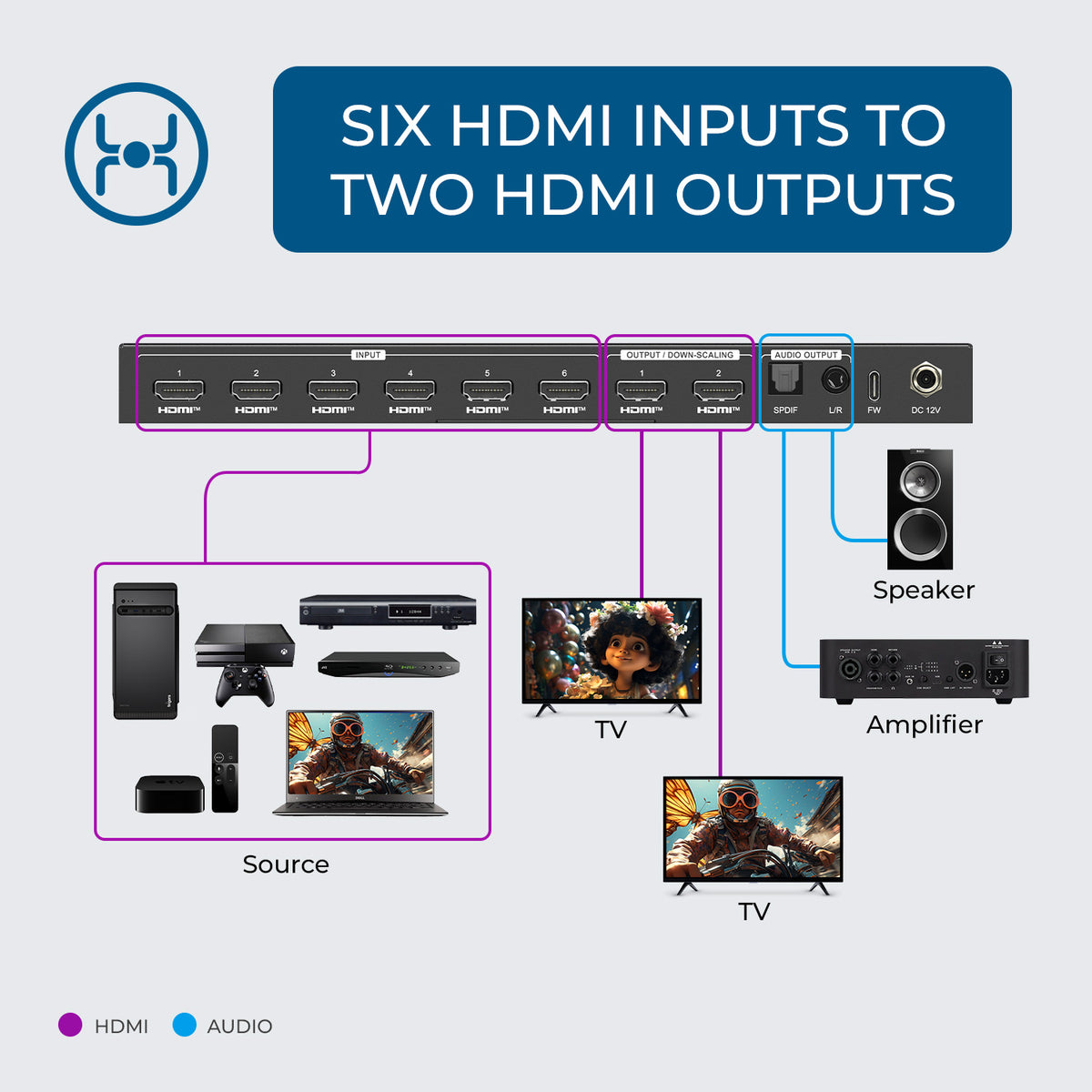

• 6×2 HDMI™ Matrix Switching – Routes any of six HDMI™ inputs to two independent HDMI™ outputs for flexible AV distribution.

• 18Gbps Video Bandwidth – Supports high-bandwidth HDMI™ signals with resolutions up to 4K@60Hz 4:4:4.

• Independent Output Downscaling – Converts 4K video to 1080p independently on each output for compatibility with different display resolutions.

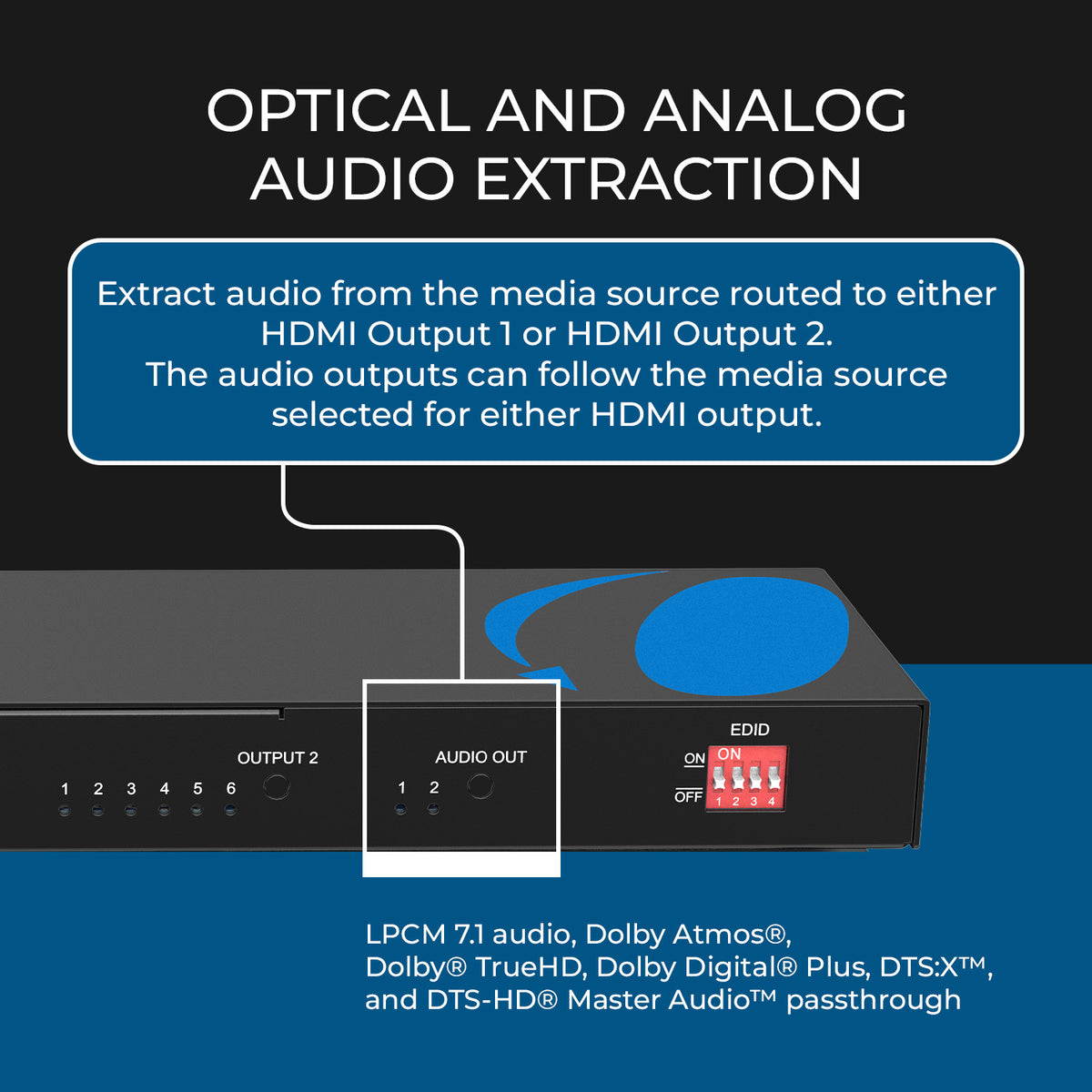

• Optical & Analog Audio Extraction – Extract audio from the media source routed to either HDMI Output 1 or Output 2, with simple selection using the unit or remote.

• Advanced EDID Management – Includes built-in EDID presets, and custom EDID functionality to optimize source and display compatibility.

• Multiple Control Options – Conveniently operate the matrix using front-panel buttons or the included IR remote control.

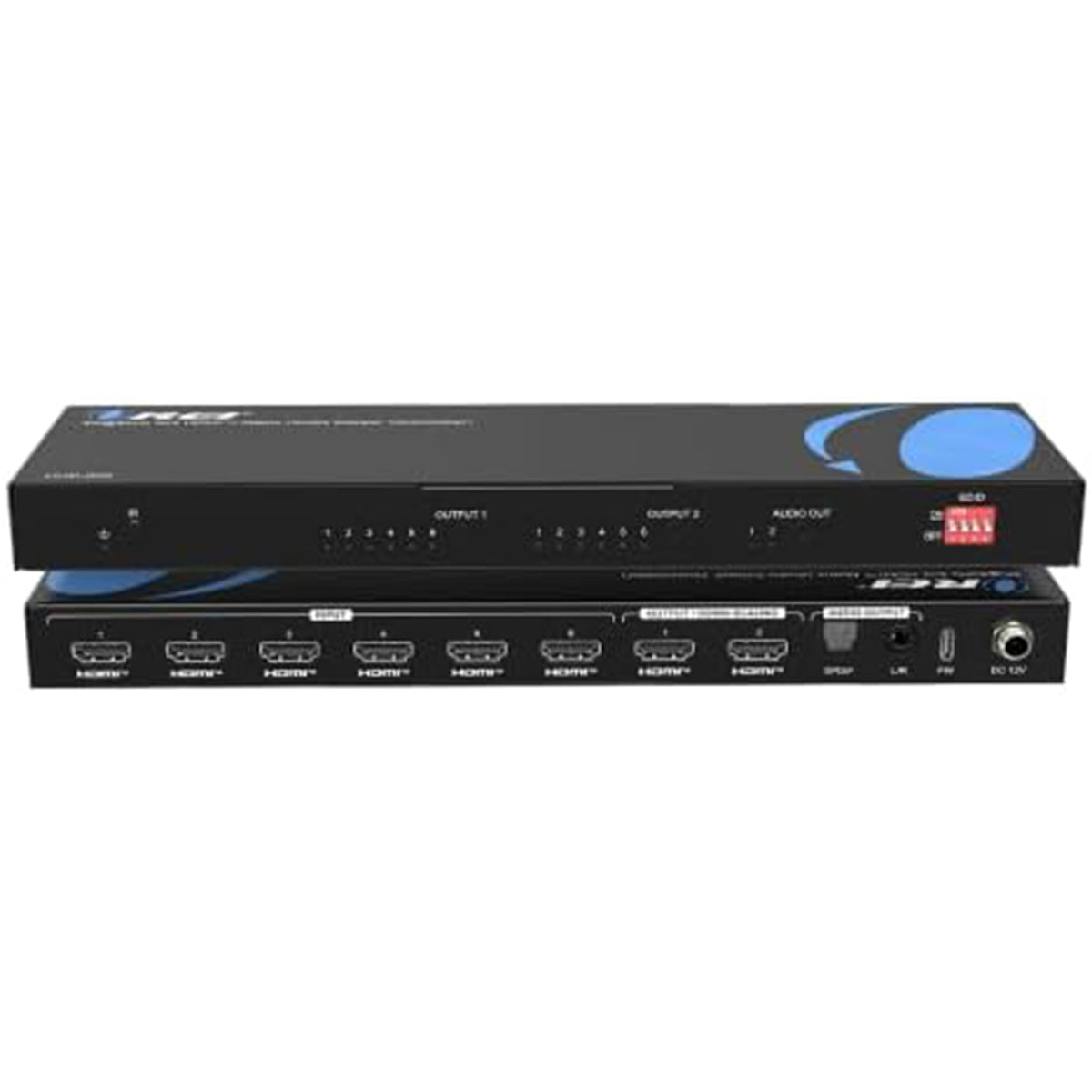

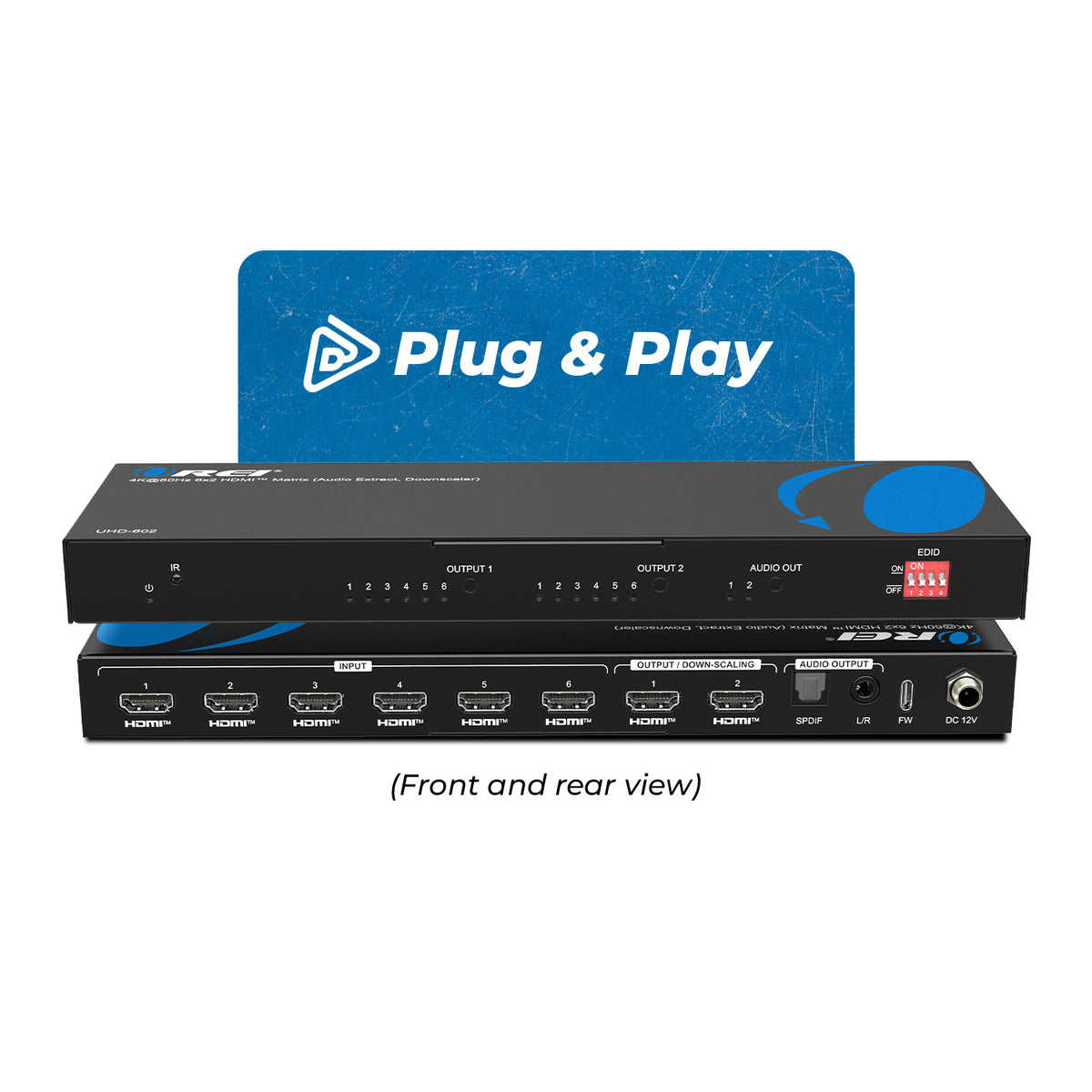

The UHD-602 is a professional 6×2 HDMI™ matrix switcher designed for fast and flexible distribution of high-quality video and audio signals. Featuring six HDMI™ inputs and two HDMI™ outputs, it supports video resolutions up to 4K@60Hz 4:4:4 with 18Gbps bandwidth, making it ideal for modern HDMI 2.0 and HDCP 2.2 compliant AV systems.

Each HDMI™ output supports independent 4K to 1080p downscaling, allowing the matrix to work with displays of different resolutions. The Matrix features both S/PDIF optical and analog audio outputs for flexible audio extraction. The extracted audio follows either Output 1 or Output 2, with only one output selectable at a time. Press the Audio button on the Matrix or the Audio Select button on the remote control to choose which output audio is sent to the optical and analog outputs.

Advanced EDID management, including built-in EDID presets, and custom EDID support, ensures reliable compatibility between connected source and display devices. With convenient control through front-panel buttons and IR remote, the UHD-602 offers a practical solution for conference rooms, classrooms, control rooms, digital signage, and professional AV installations.
