4K@60hz 4x4 HDMI™ Matrix w/ Video Wall (Seamless, Audio Extract, MultiView)-UHD-44MVW
- 4K 4x4 HDMI Matrix With Video Wall controller and Multiview functionality.
- 9 Video wall modes & 12 Multiview modes
- IR Matrixing & CEC
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Flexible 4x4 Matrix with Multiview and Video Wall Functions

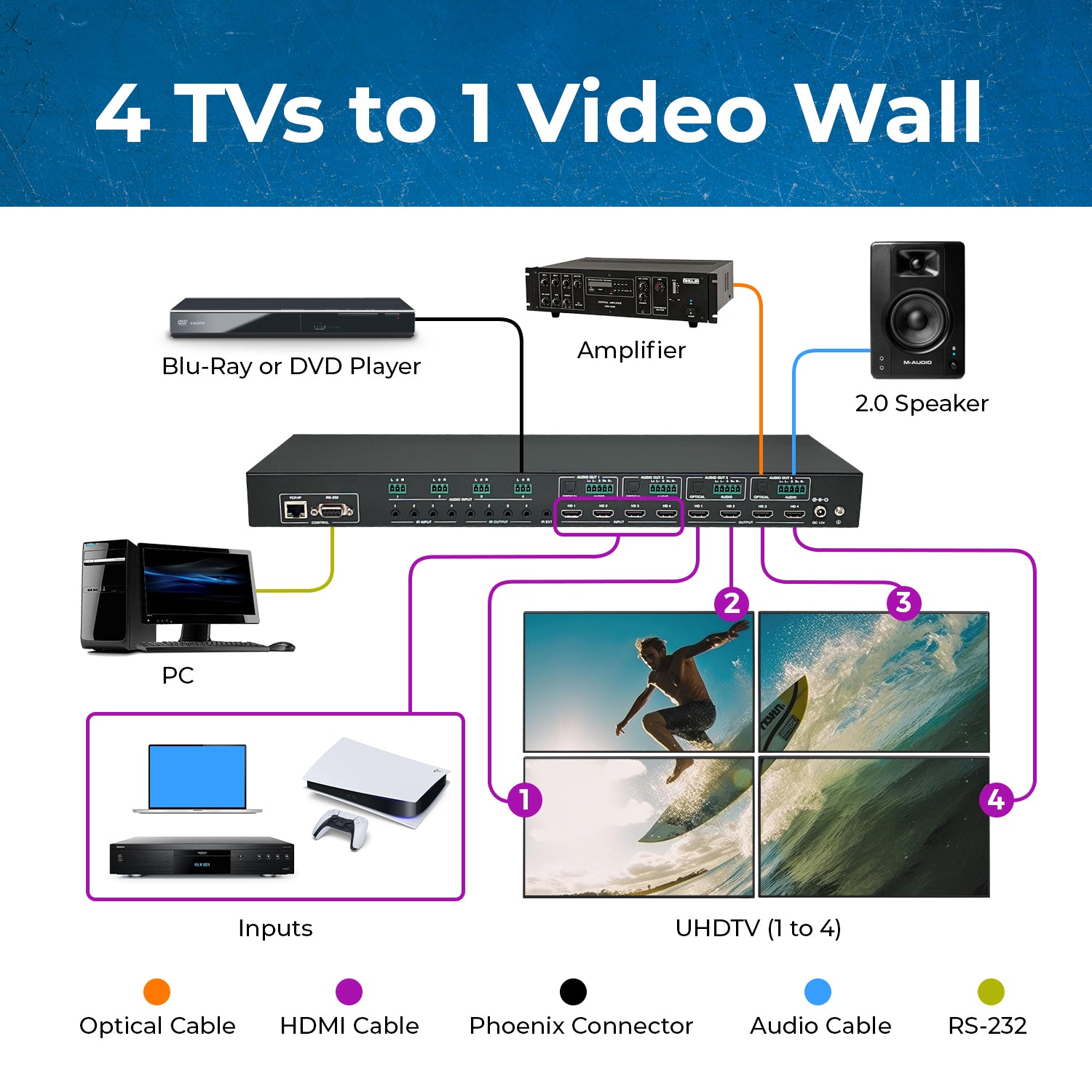

The UHD-44MVW combines the power of a 4x4 HDMI matrix with advanced Multiview and video wall capabilities—offering a complete AV control solution in one compact unit. Effortlessly route any of four HDMI sources to four displays, or transform multiple screens into a unified 4x4 video wall. Ideal for control rooms, collaborative workspaces, or high-end digital signage, it adapts to any setup with ease.
2. Ultra HD 4K Video with Professional-Grade Clarity
Supporting up to 4K@60Hz 4:4:4 resolution and 18Gbps bandwidth, this HDMI 4K matrix ensures uncompressed, ultra-clear video across all outputs. Whether you're showcasing dynamic content or monitoring multiple feeds in real time, the UHD-44MVW delivers flawless performance—making it a reliable choice for any HDMI video wall controller.
3. Customizable Layouts with Multiview and Wall Modes
Choose from 12 Multiview display modes or 9 configurable video wall layouts to tailor your viewing experience. Whether you need a side-by-side comparison, quad-view, or a large-scale video wall controller 4x4 configuration, the system adjusts to your needs in seconds. It's the perfect balance of flexibility and control for professional-grade video monitoring or multi-source broadcasting.
4. Advanced Audio & Control Integration
With CEC control, EDID management, and IR matrixing, the UHD-44MVW streamlines source-device communication and command control. Extract audio via optical or analog L/R outputs, and enjoy full support for premium audio formats like Dolby TrueHD and DTS-HD Master Audio. Manage it all using the front panel, IR remote, RS-232, or intuitive WebGUI—making this video matrix 4x4 ideal for integrators and AV pros alike.
OREI UHD-44MVW: 4K@60Hz HDMI Matrix, Multiviewer, Video wall Controller with Audio Extraction, CEC and IR Matrix
Key Features:
-
HDMI 2.0 & HDCP 2.2 Compliant – Ensures full compatibility with modern 4K displays and sources.
-
4K@60Hz Resolution Support – Delivers ultra-clear video with 18Gbps bandwidth and 4:4:4 chroma.
-
Video Wall & Multiview Capabilities – Combine or split inputs across displays with ease.
-
12 Multiview Modes & 9 Video Wall Layouts – Flexible configurations to meet diverse viewing needs.
-
CEC Control & EDID Management – Simplifies device communication and command integration.
-
Versatile Control Options – Manage via front panel, IR remote, RS-232, or WebGUI.
-
High-Fidelity Audio Support – Handles LPCM, Dolby TrueHD, DTS-HD Master Audio, and more.
-
IR Matrixing & Audio Extraction – Includes optical and analog L/R outputs for audio routing.

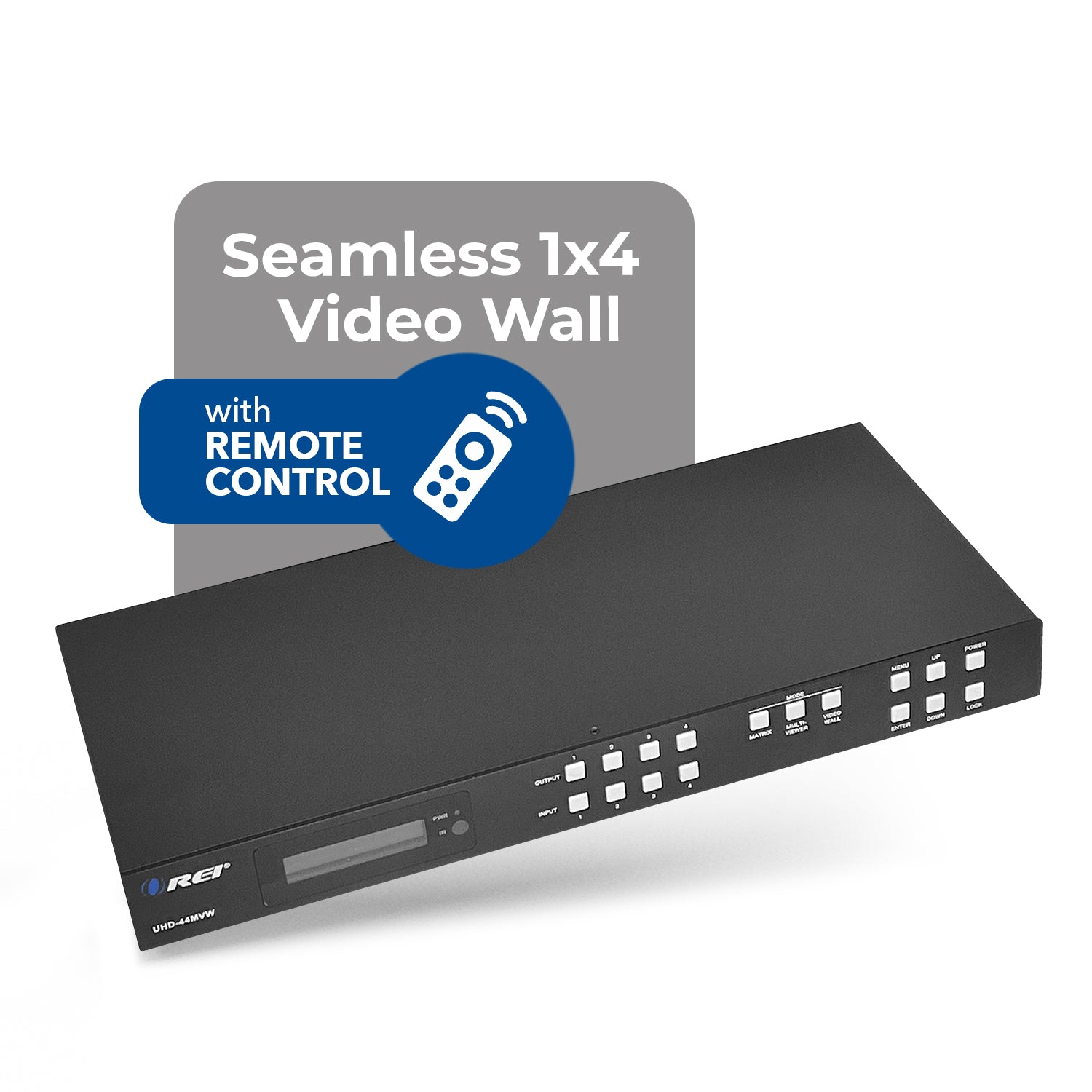

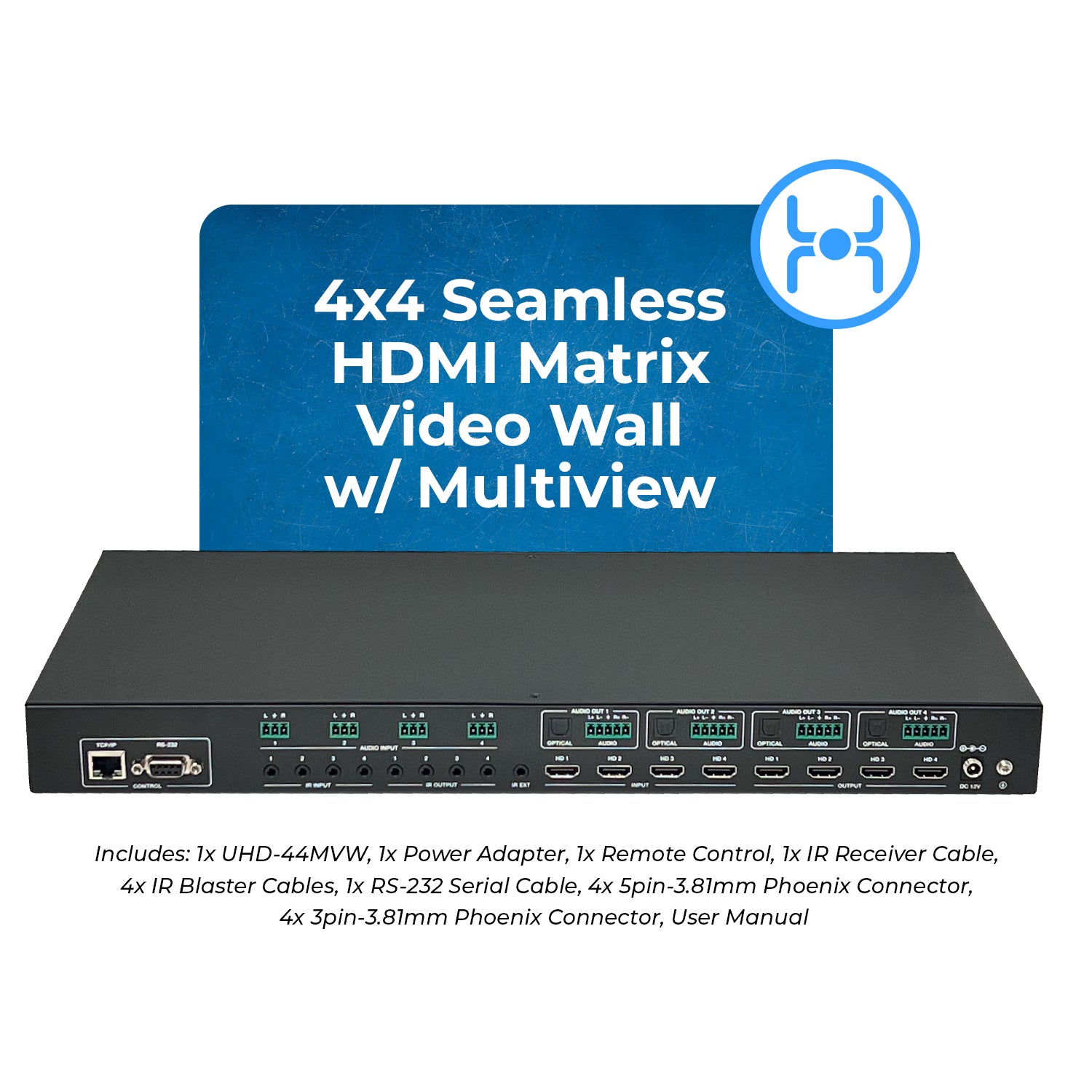

The UHD-44MVW 4x4 HDMI Matrix Switcher is a feature-rich AV solution designed to handle 4 HDMI inputs and 4 HDMI outputs with support for ultra HD 4K@60Hz 4:4:4 video. This all-in-one unit offers advanced Multiview and Video Wall functionality, allowing users to display multiple sources simultaneously or split one source across several displays.
Choose from 12 Multiview layouts or 9 Video Wall modes to tailor your presentation for control rooms, retail signage, broadcasting setups, or collaborative environments. With CEC pass-through, EDID customization, and audio extraction via optical or L/R ports, this switcher adapts to the needs of professional AV systems.
Control is flexible and intuitive via the front panel, IR remote, RS-232, or WebGUI, making it suitable for both commercial installations and high-end residential environments
UHD-44MVW User Manual Download
UHD-44MVW Specifications Sheet
UHD-44MVW Control 4 Driver
