4K@30hz HDMI™ Extender (Loop, IR) - 130ft (cat6)-EX-230C

$44.99 USD $59.99
SKU: EX-230C
Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free Shipping in USA
Free shipping in USA
Product Image
View details
video

Crisp 4K Video Over Long Distances

Delivering resolutions up to 4K@30Hz (YUV 4:4:4), this HDMI extender ensures sharp, vibrant visuals for professional AV environments. Whether using CAT6 or CAT5e, it supports long-distance transmission—up to 230ft (1080p) or 131ft (4K)—without signal loss, making it ideal for control rooms, classrooms, and digital signage applications.

Local Monitoring and Cascade Support with Loop-Out

The built-in HDMI loop-out allows you to connect a local display at the transmitter while also enabling signal cascading to additional extenders. Perfect for large-scale installations, this arc HDMI extender combines seamless video distribution and local previewing in a single, compact solution.

Simplified Setup with One-Way PoC and IR Control

Reduce clutter with Power over Cable (PoC), which allows the receiver to draw power from the transmitter through the same CAT cable. One-way IR pass-through lets users control the source device from the remote display location. Together, these features streamline your HDMI ARC extender setup—no need for extra power sources or complex wiring.

EDID Management and Audio Pass-Through for Seamless Performance

Advanced EDID copy from the receiver or loop-out display ensures optimal compatibility and video output. Supporting premium audio formats like PCM 7.1, Dolby TrueHD, and DTS-HD, this ARC extender delivers both stunning visuals and immersive sound. It’s a reliable arc over Cat6 solution that adapts smoothly to modern and legacy AV systems.

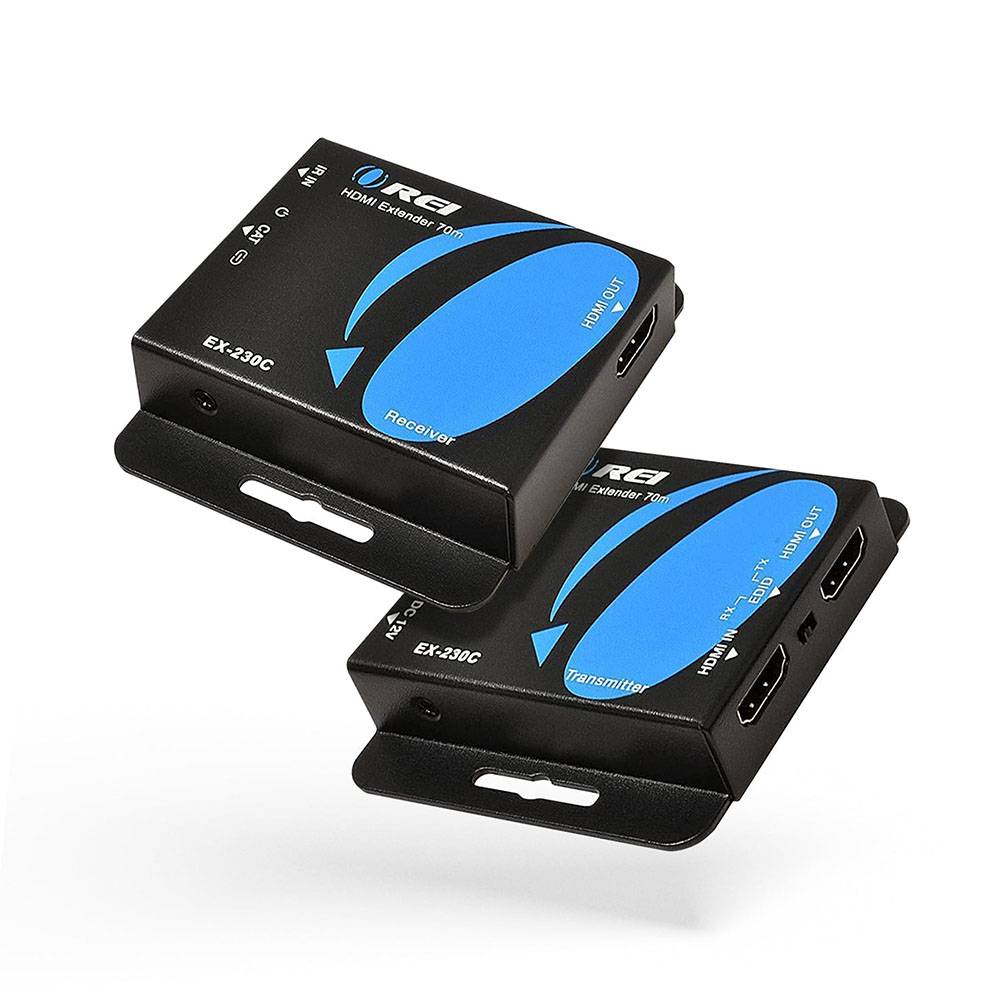

OREI 4K HDMI Extender with HDMI Loop Output, Uni- directional IR & Power over Cable (EX-230C)

Key Features:

  • HDMI 1.4, HDCP 1.4 & DVI 1.0 Compliant – Compatible with legacy and modern devices, ensuring broad system integration and secure content transmission.
  • Supports Up to 4K@30Hz (YUV 4:4:4) – Delivers crisp, high-resolution video for demanding AV applications.
  • Long-Distance Transmission over CAT6/5e –

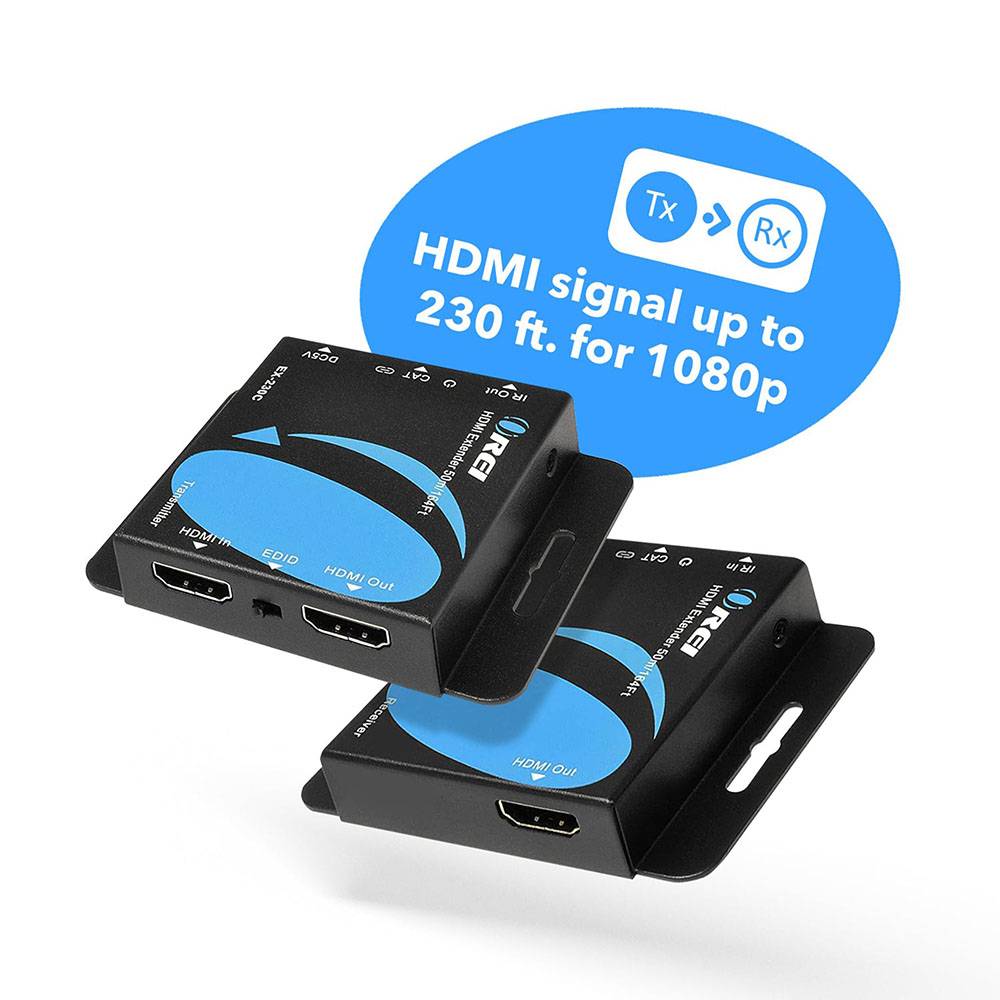

    • CAT6: Up to 230ft (70m) for 1080p, 131ft (40m) for 4K@30Hz
    • CAT5e: Up to 197ft (60m) for 1080p, 115ft (35m) for 4K@30Hz
  • HDMI Loop-Out with Cascading Support – Enables local monitoring and the ability to cascade to additional extenders for larger installations.
  • EDID Copying from Receiver or Loop-Out Display – Facilitates compatibility and optimized display settings by duplicating EDID from the connected screens.

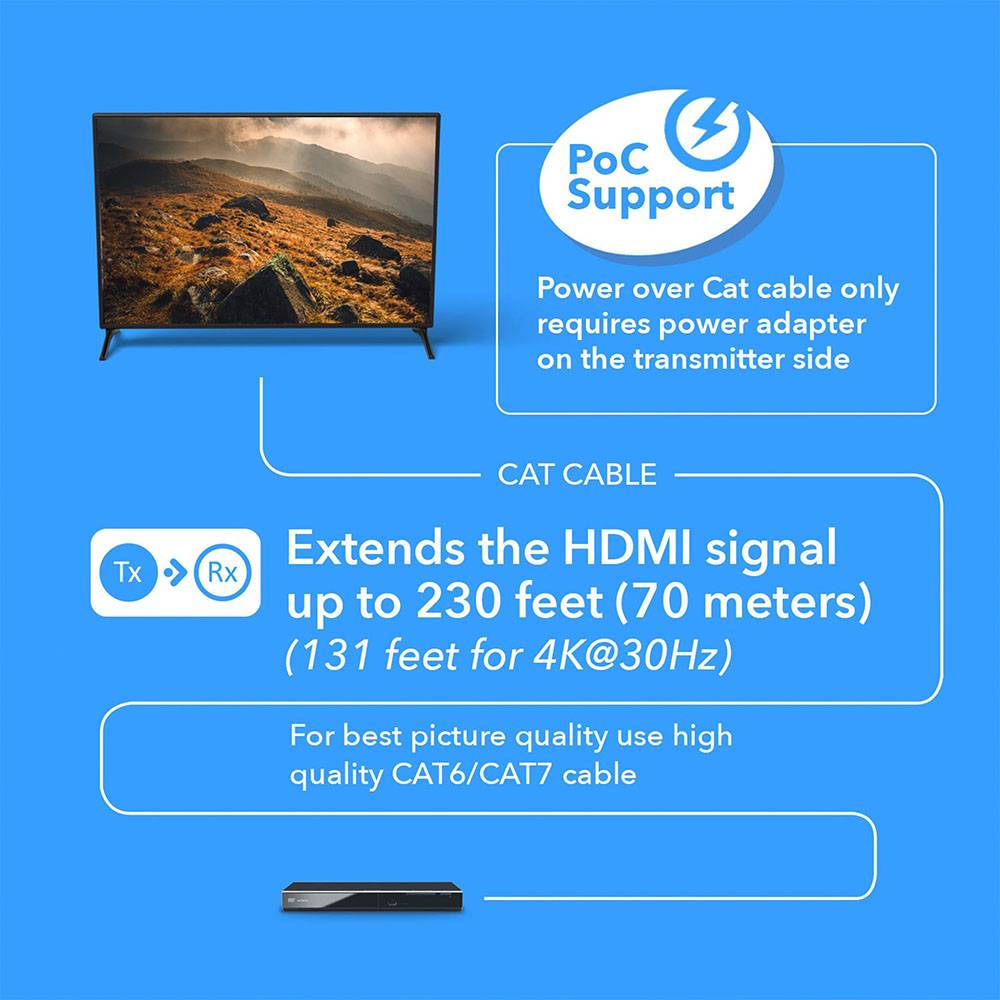

  • One-Way Power over Cable (PoC) – Powers the receiver unit directly from the transmitter using a single CAT cable, reducing power supply clutter.

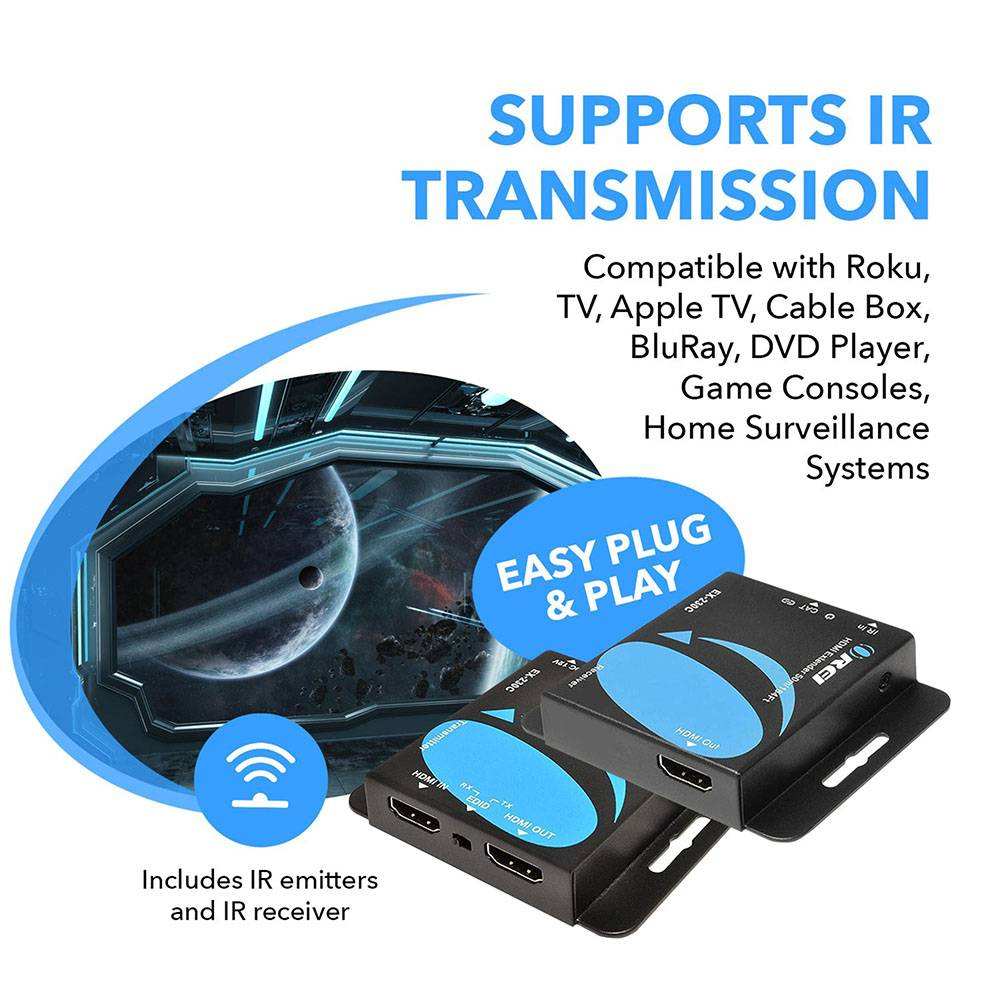

  • One-Way IR Signal Transmission – Allows remote control of the source device from the display location.

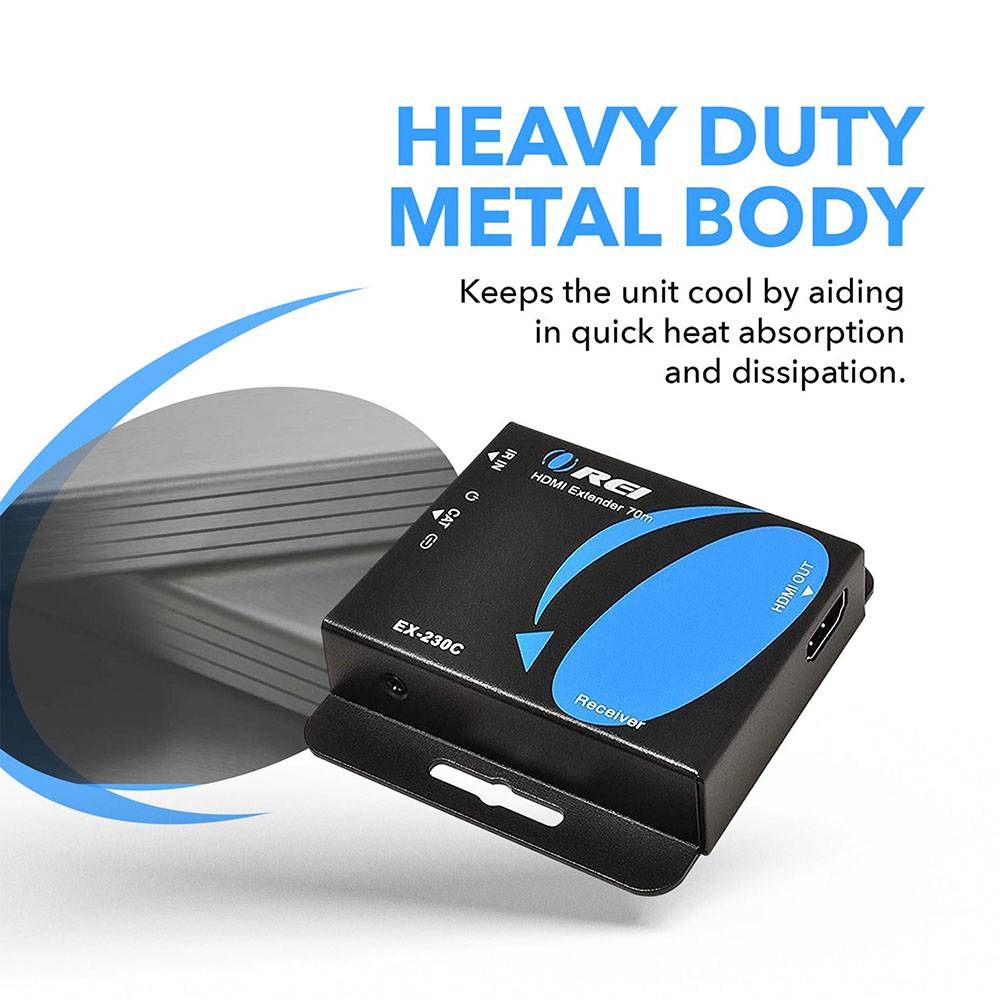

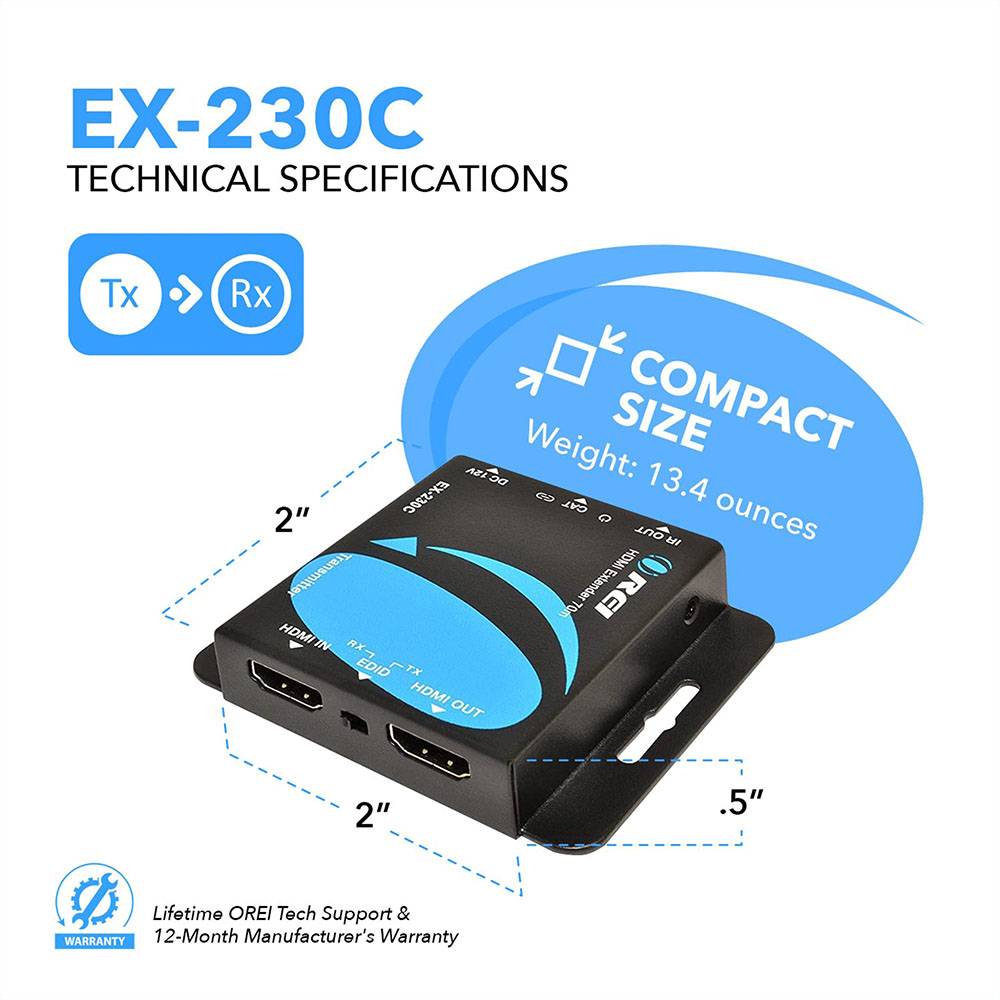

  • Compact Plug-and-Play Design – Streamlined housing and hassle-free setup make it ideal for professional or home AV installations.

This HDMI Extender with Loop-Out is a reliable solution for extending uncompressed high-definition video, audio, and IR signals over a single CAT5e/6 cable. It supports transmission distances of up to 230 feet (70 meters) at 1080p and 131 feet (40 meters) at 4K@30Hz when using CAT6. Designed to meet HDMI 1.4, HDCP 1.4, and DVI 1.0 standards, it ensures compatibility across a wide range of source and display devices. The built-in HDMI loop-out allows local display and cascading to additional extenders for expanded installations. The EDID copy function enables seamless communication between devices, optimizing video output settings. Audio formats such as PCM 7.1, Dolby True HD, and DTS-HD are supported for a premium multimedia experience. One-way PoC simplifies power requirements, and IR pass-through allows remote control of source equipment. Ideal for classrooms, conference rooms, signage, and control centers, this extender offers dependable performance in a compact and installer-friendly form factor.
