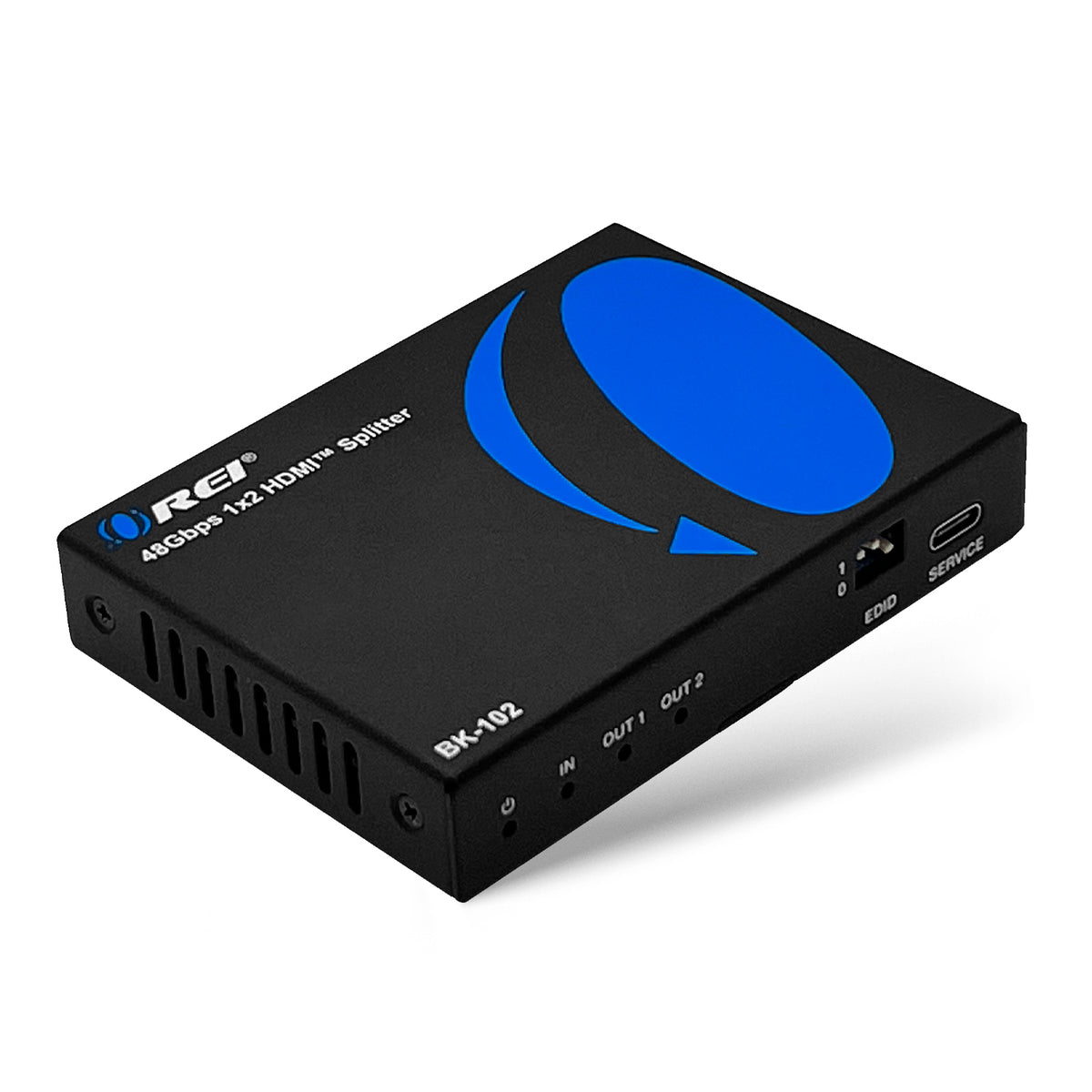

1x2 HDMI Splitter W/ Audio Out: 1-In 2-Out, UltraHD 8K, EDID (BK-102)

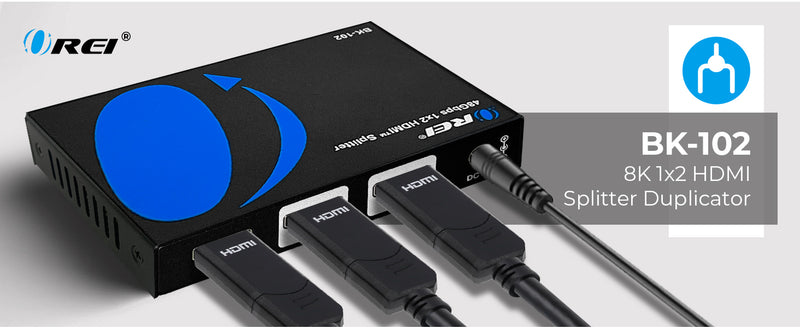

OREI BK-102: 1X2 8K HDMI SPLITTER WITH AUDIO OUT

Key Features:

• HDMI 2.1 and HDCP 2.3 compliant
• Support 48Gbps FRL and 18Gbps TMDS video bandwidth
• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
• Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
• 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
• HDR to SDR auto converting on all outputs

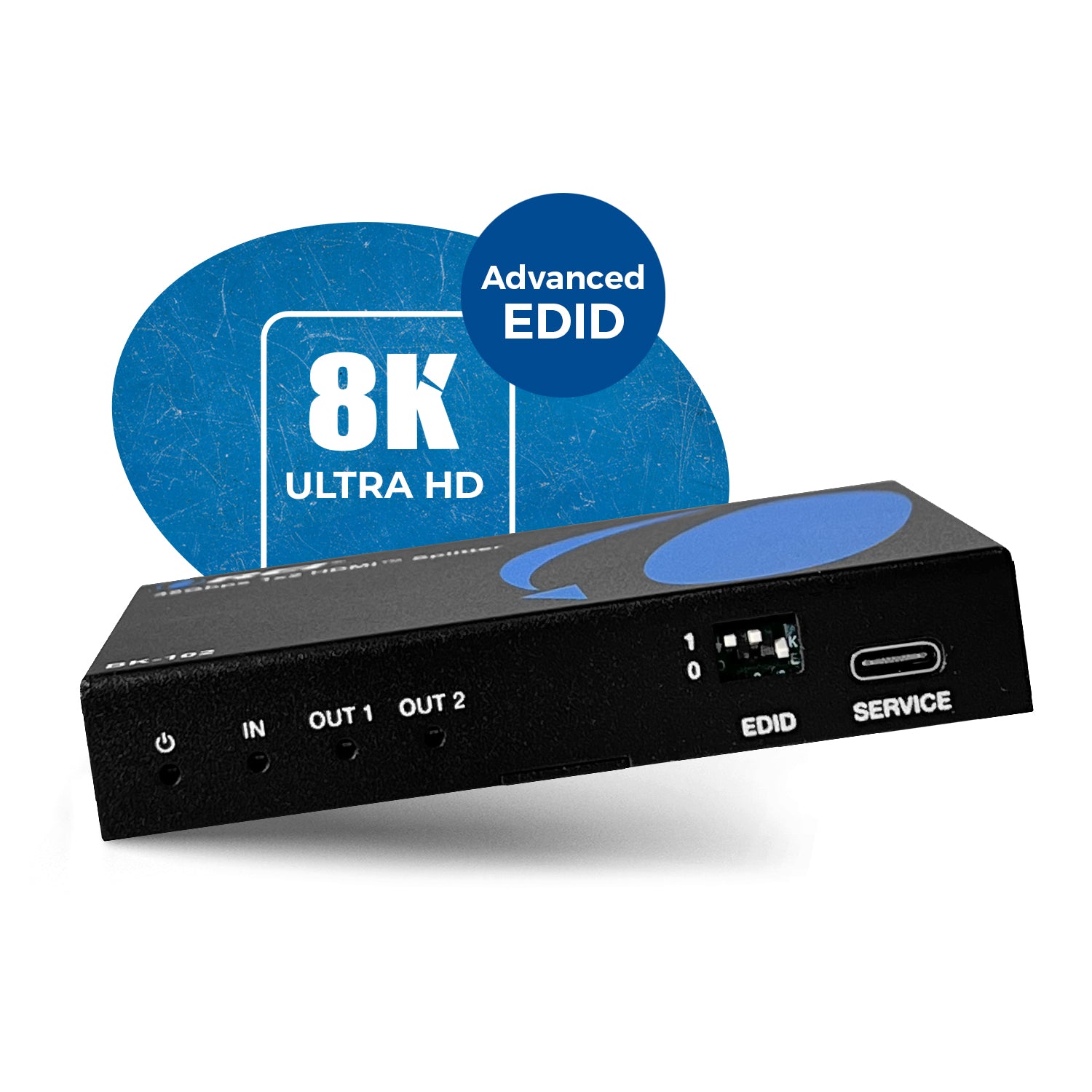

• Advanced EDID management

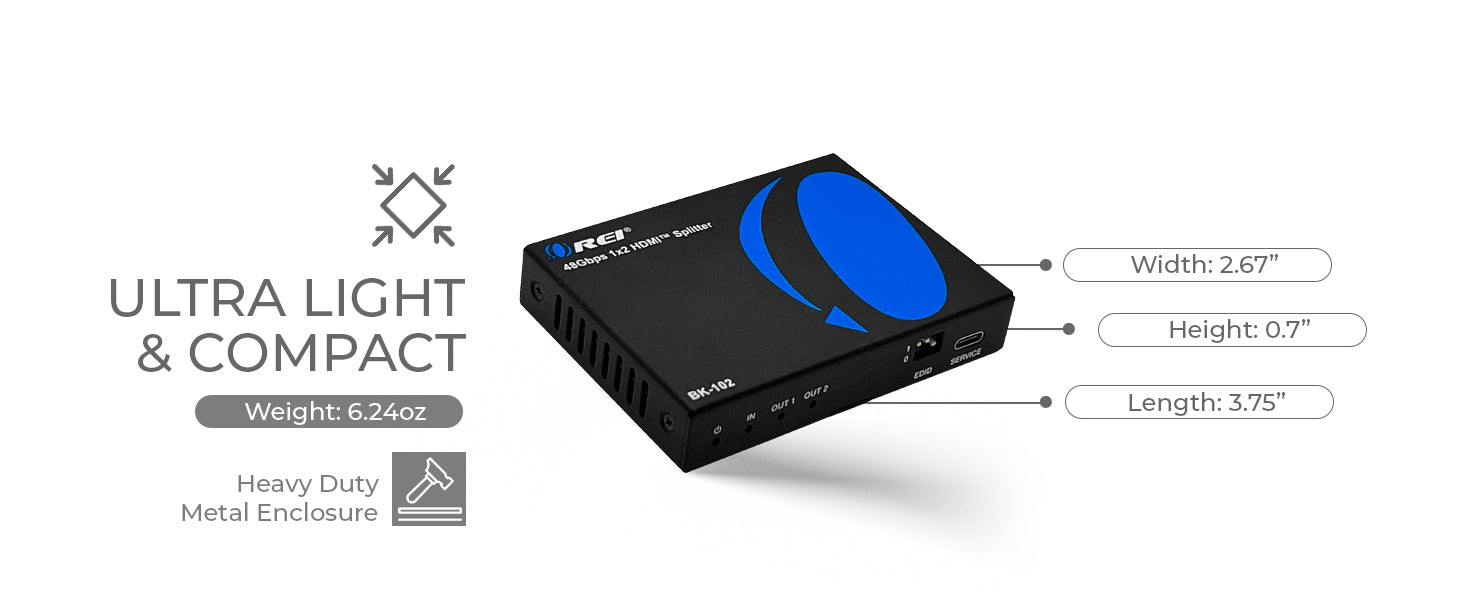

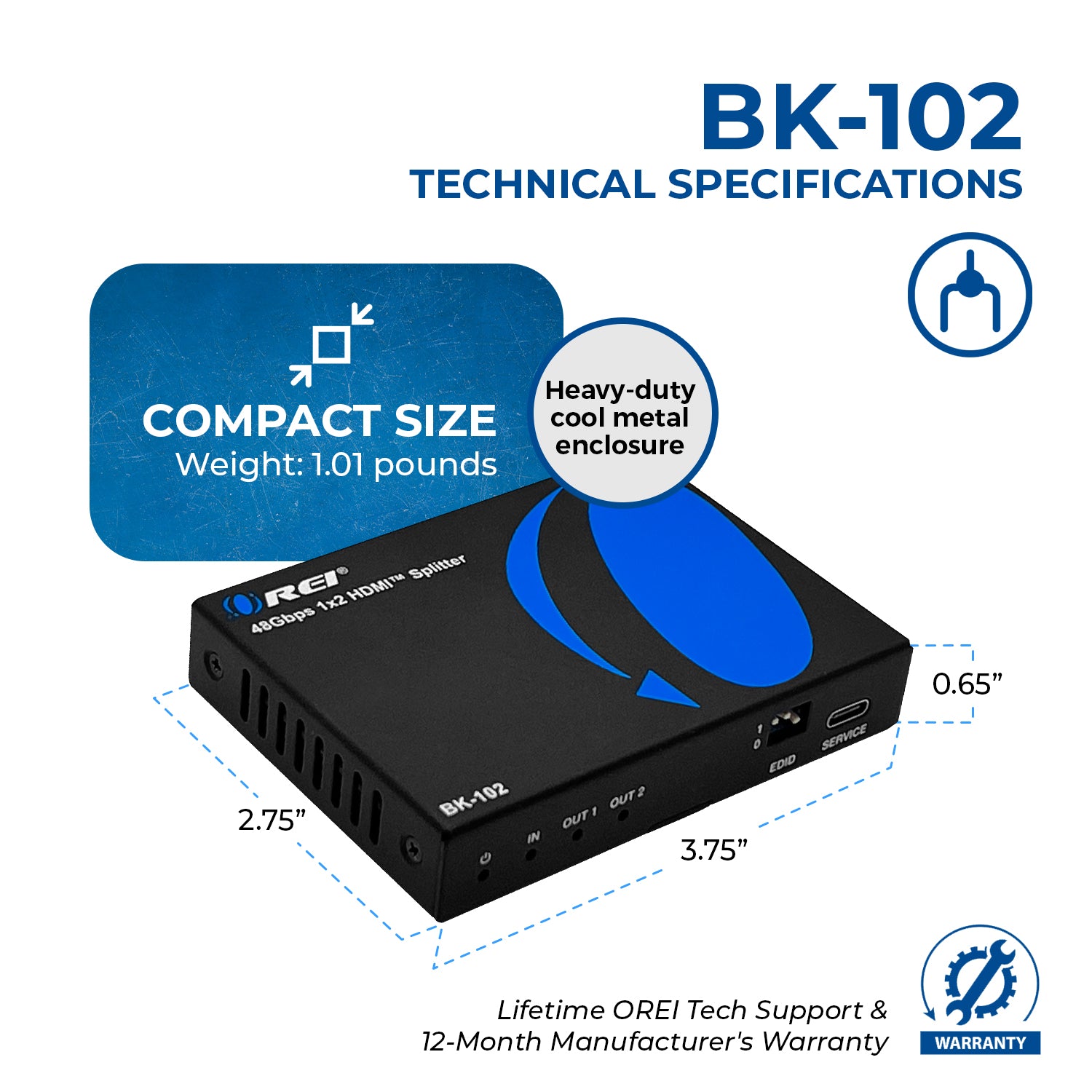

• Compact design for easy and flexible installation

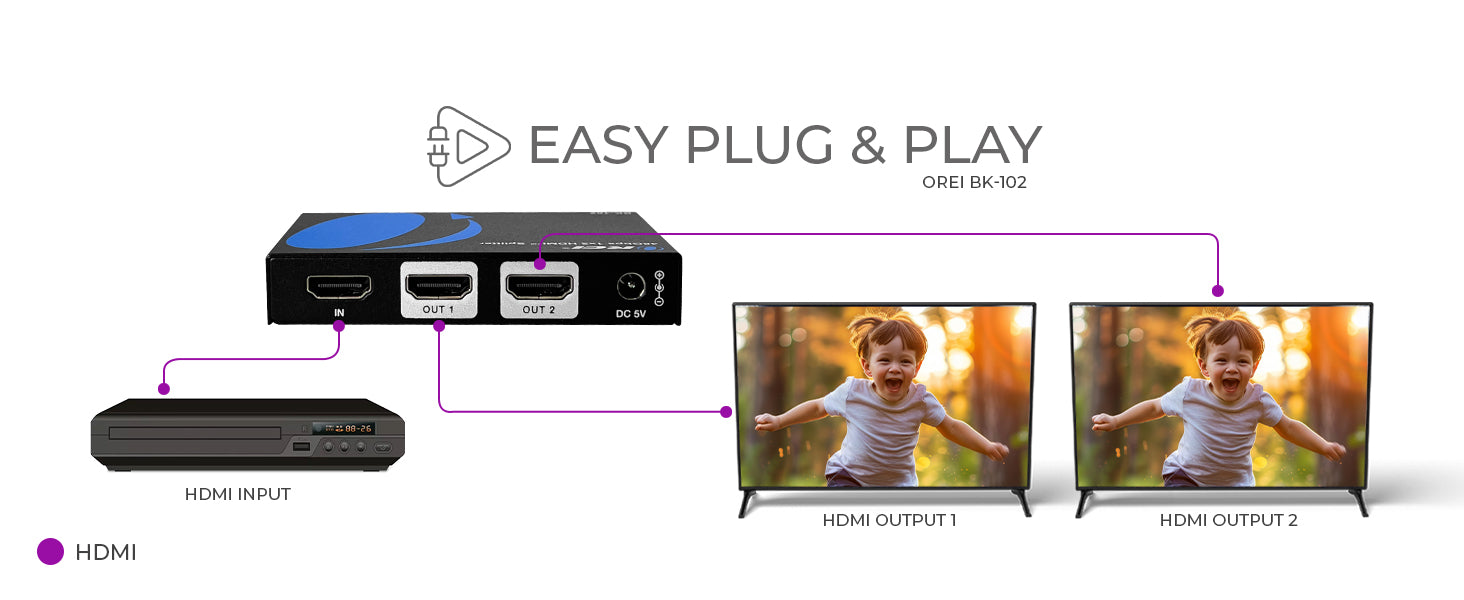

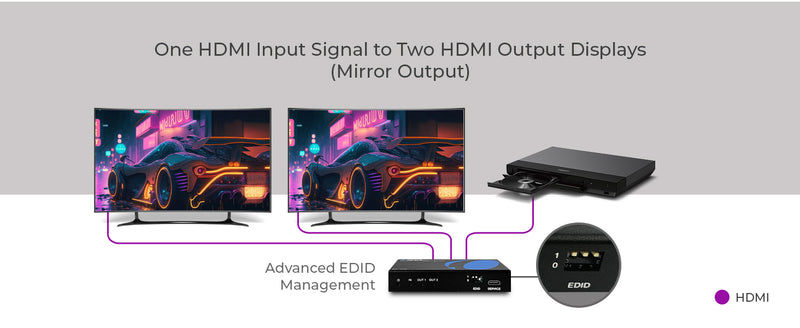

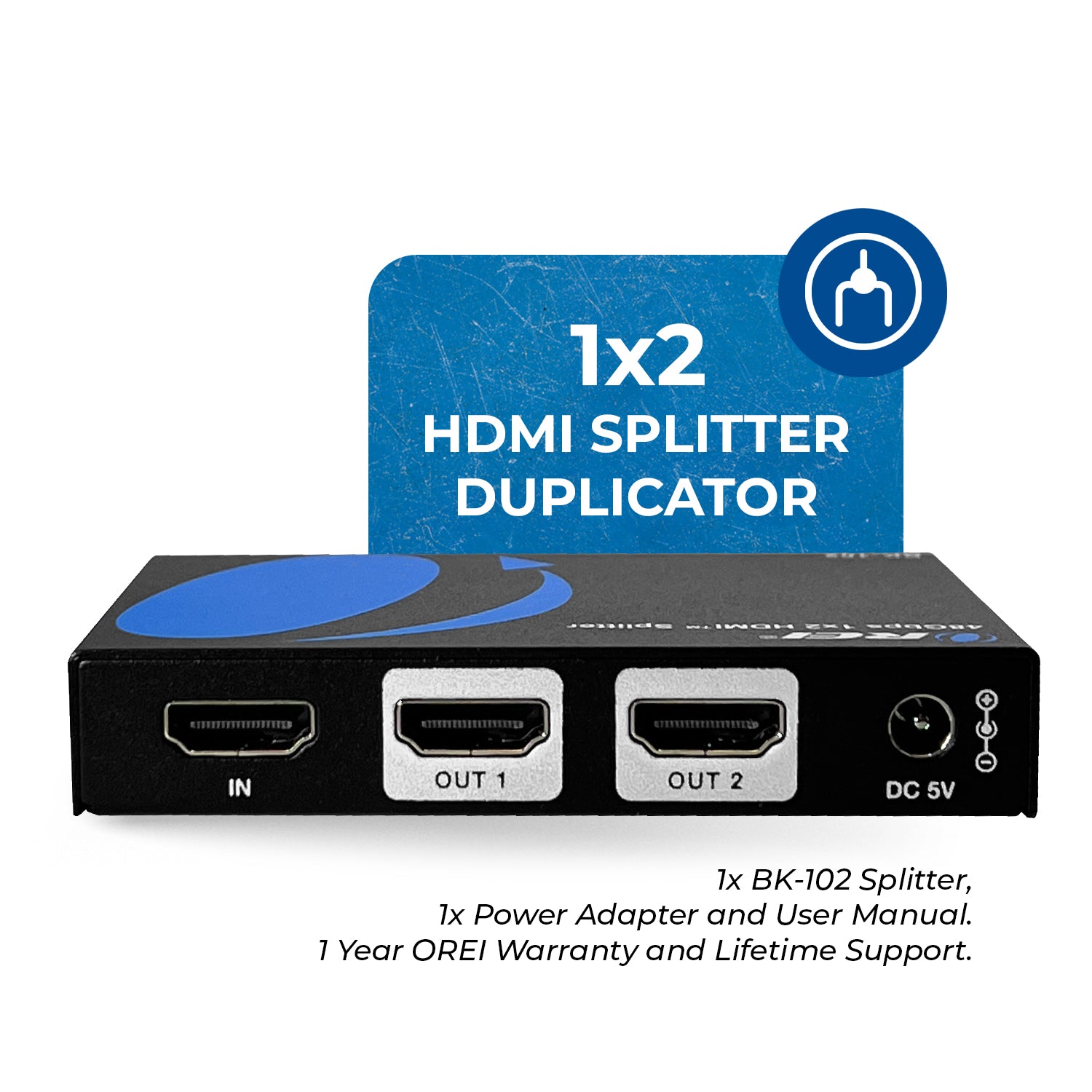

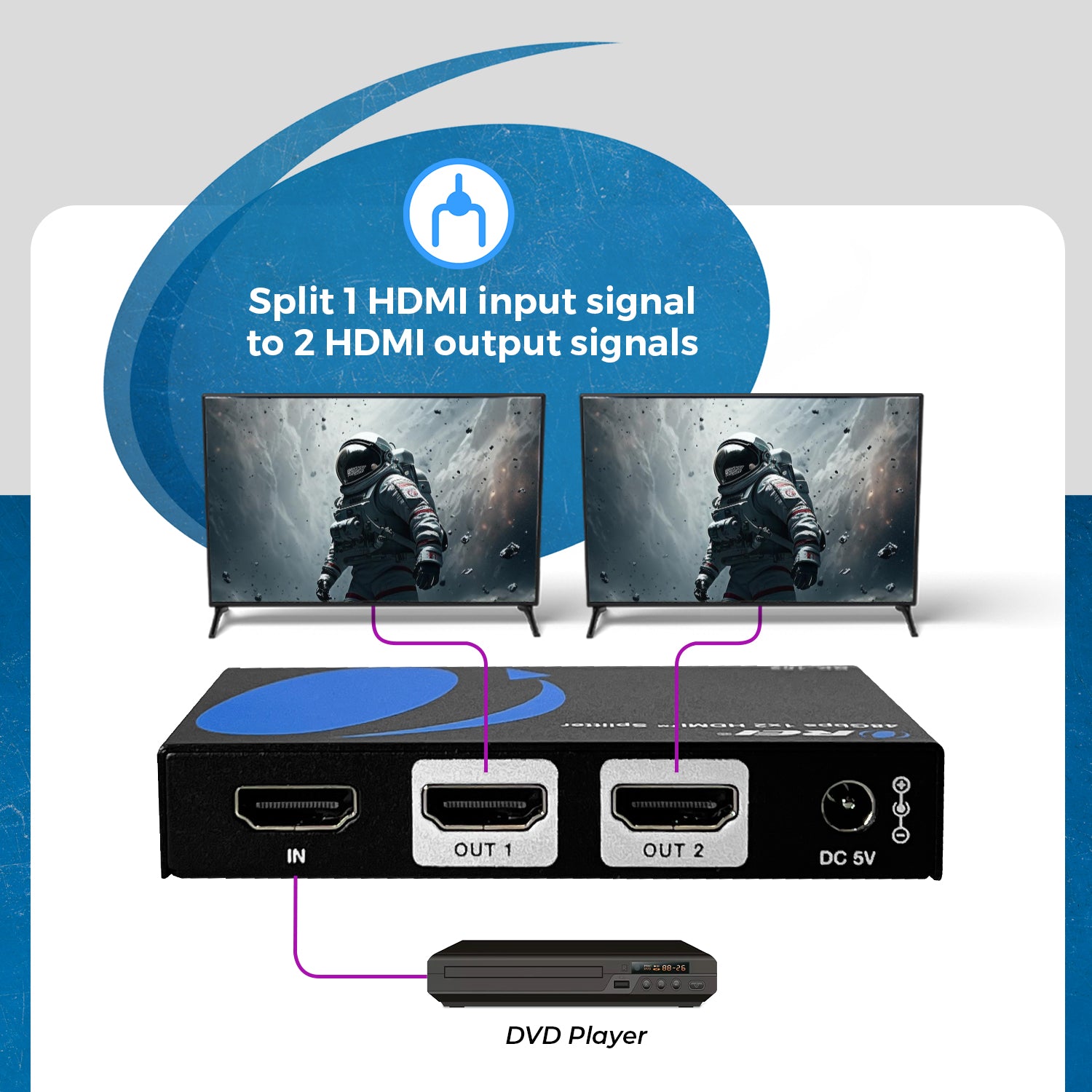

The BK-102 Splitter is an advanced solution for splitting single HDMI signal to 2 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. To transmit 4K@120Hz content, we recommend using cables under or equal to 10 feet.

It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization.

This multi-functional product can work well with xbox or PS5 to achieve 4K@120hz on your TVs or relative monitors.

BK-102 User Manual Download
