4K@60hz 1x8 HDMI™ Extender Splitter (Loop) - 230ft (cat6)-UHD18-IPC230-K

$649.99 USD

SKU: UHD18-IPC230-K

Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports RS-232 Control & Advance EDID

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

4K@60hz 1x8 HDMI™ Extender Splitter (Loop) - 230ft (cat6)-UHD18-IPC230-K

OREI UHD18-IPC230-K 4K HDMI Extender Splitter up to 230Ft

Key Features:

Supports up to 4K@60Hz resolutions – Delivers sharp, high-definition video with vibrant detail.
Zero-latency transmission – Ensures real-time video delivery for live and interactive applications.
Extends signals up to 230 feet – Uses shielded Cat6/7 cables for long-distance, stable transmission.

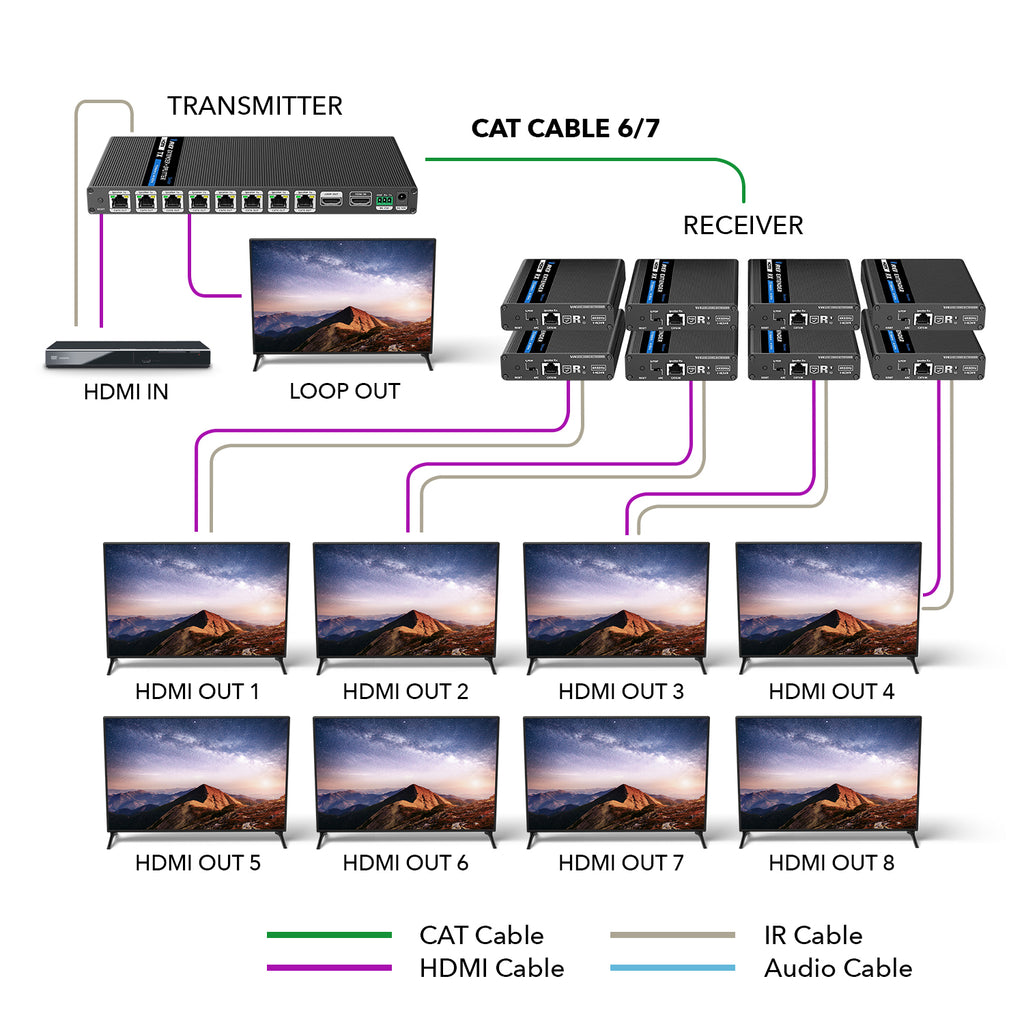

1x8 HDMI distribution – Simultaneously sends one HDMI input to eight synchronized displays.
HDMI loop-out on transmitter – Allows connection of a local monitor for on-site viewing.
S/PDIF audio output on receiver – Extracts digital audio from either the source or connected display.
Bi-directional IR support – Enables remote control from both transmitter and receiver ends.
RS-232 command control – Allows integration with control systems for professional AV setups.

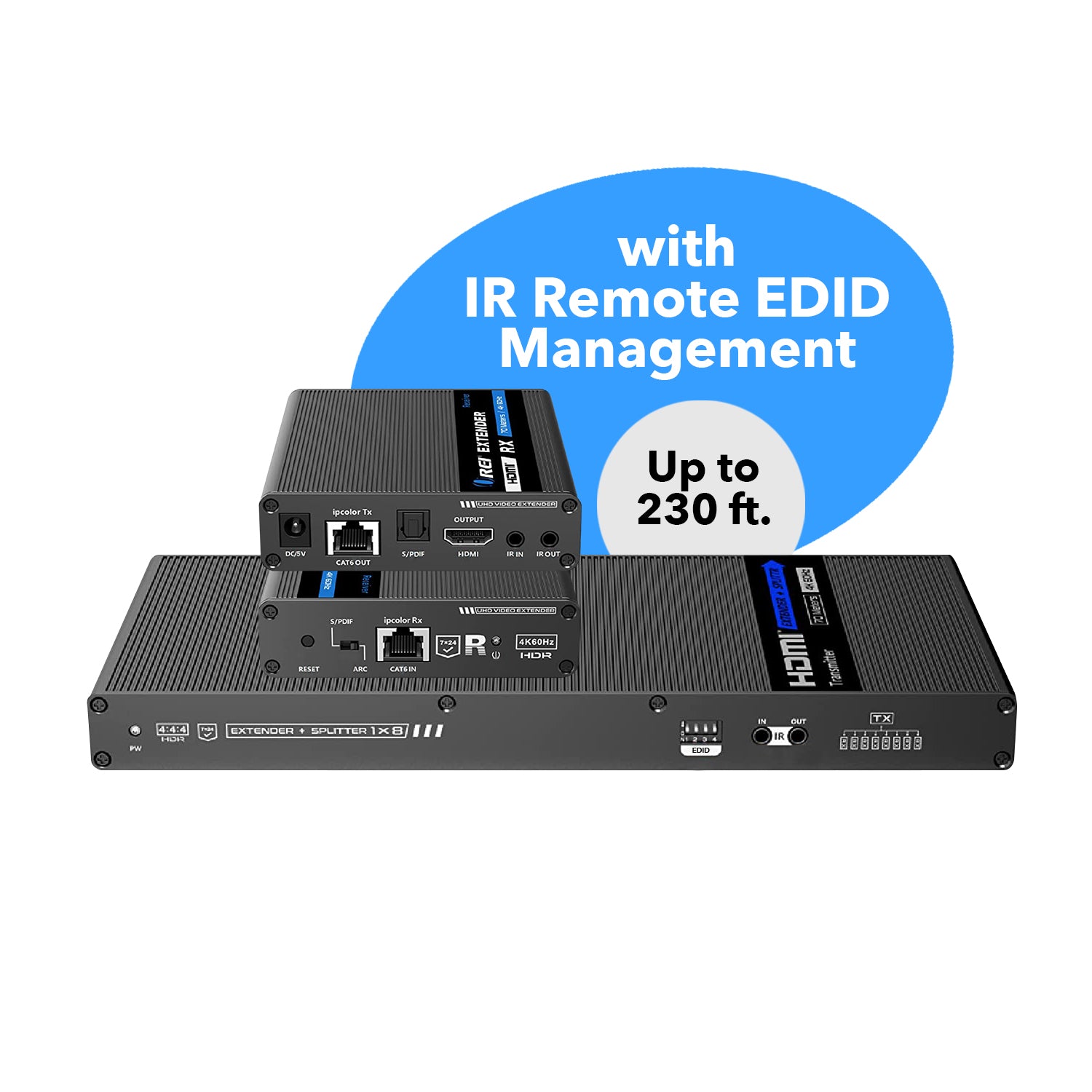

Advanced EDID management – Ensures compatibility with various display types and configurations.
Built-in surge, lightning, and ESD protection – Guards your equipment against electrical damage.
Rack-mount ready – Includes mounting ears for secure installation in AV racks.
Ideal for professional AV environments – Suitable for classrooms, studios, control rooms, and public installations.

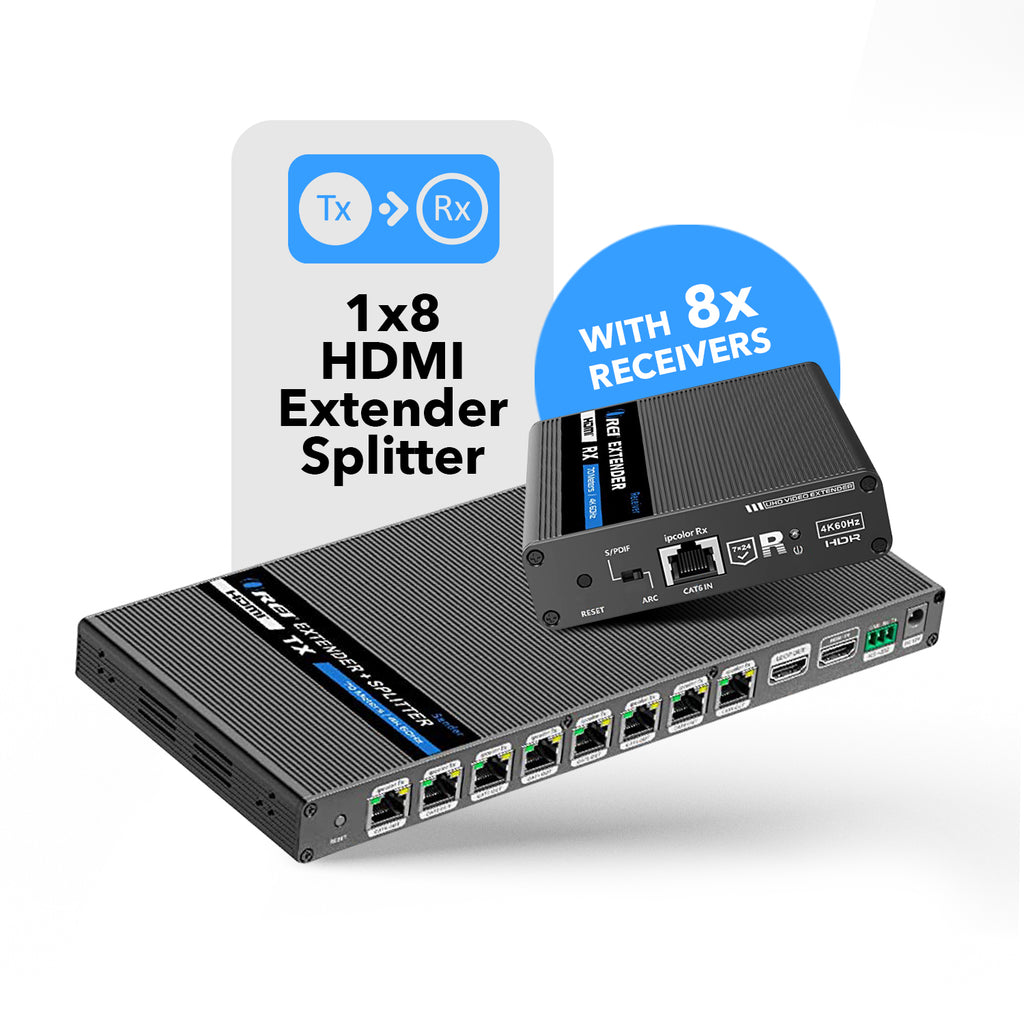

The UHD18-IPC230-K is a high-performance 1x8 HDMI extender splitter kit that combines distribution and extension functions in a single unit. It transmits one HDMI input to eight synchronized outputs with zero-latency performance, extending signals up to 230 feet using shielded Cat6/7 cables. Supporting resolutions up to 4K@60Hz with 18Gbps video bandwidth, this extender leverages advanced ipcolor technology for reliable, high-definition signal delivery.

The transmitter includes an HDMI loop-out for a local display, and the receiver offers audio extraction via a dedicated S/PDIF output. Bi-directional IR and RS-232 control are supported for flexible device integration, while advanced EDID settings ensure optimal display compatibility. Built-in protection circuits guard against lightning, surge, and ESD. Rack-mount ready and built for durability, the UHD18-IPC230-K is ideal for studios, classrooms, transit centers, and other commercial AV environments.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI INPUT
	OUTPUT PORTS:	8x RJ45 OUTPUT
		1x HDMI OUTPUT
Receiver:	INPUT PORTS:	1x RJ45 INTPUT
	OUTPUT PORTS:	1x HDMI OUTPUT

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP 2.2
Transmission Protocol:	Ipcolor

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

Up to 230 Feet

VIDEO OUTPUT

Video Bandwidth:	18 Gbps
Video Resolutions:	Up to 4K@60Hz
Color Space:	RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:	8bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	Yes
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Bi-Directional IR
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

SWITCHES

EDID Management:	Supports Advance EDID Management Control
ARC:	Supports ARC from the TV (receiver end)
S/PDIF:	Supports from the source device

AUDIO OUTPUT

HDMI Audio Formats:	LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:	Up to 5.1Ch

SIGNALS

TMDS Signals:	0.7~1.2Vp-p
DDC Signals:	5Vp-p

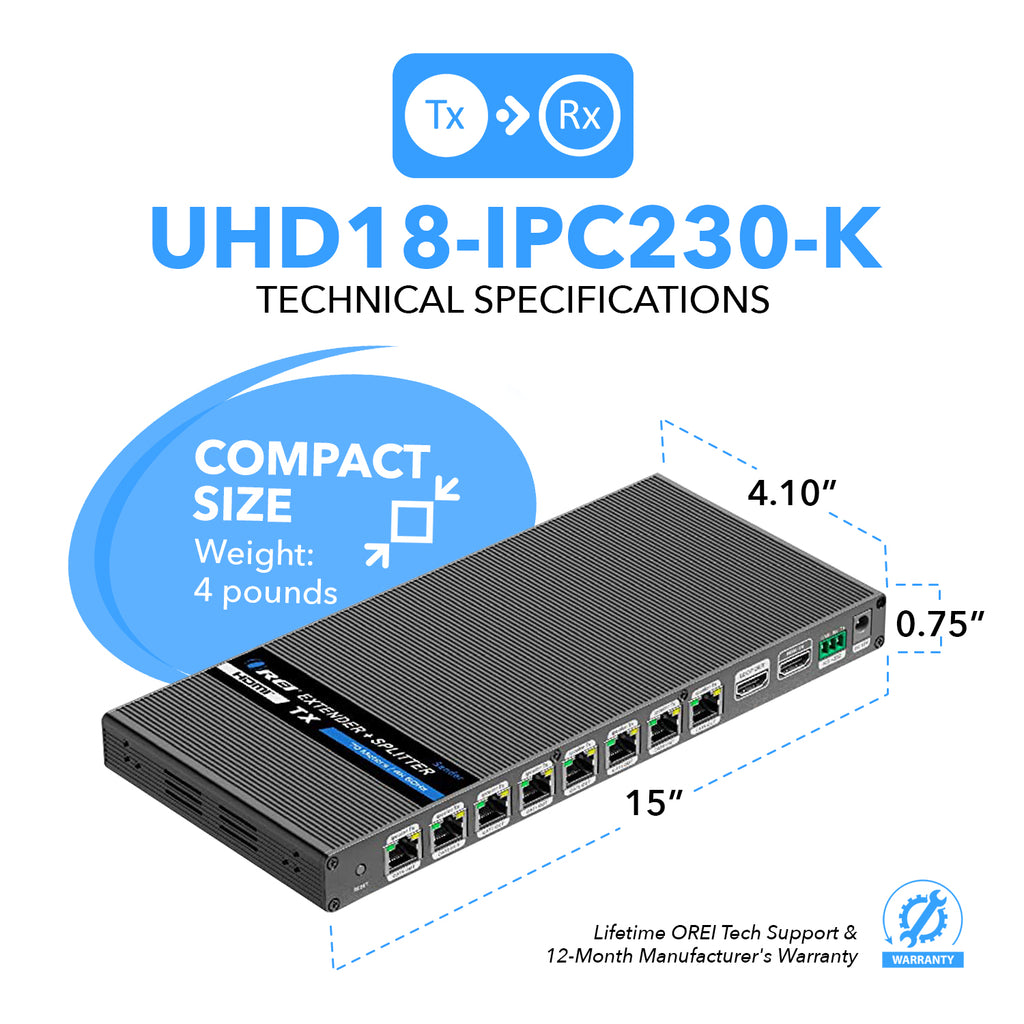

DIMENSIONS & WEIGHT

Transmitter:	Height:	23.5mm
	Width:	120mm
	Depth:	260mm
	Weight:	724g
Receiver:	Height:	26.2mm
	Width:	99mm
	Depth:	106mm
	Weight:	210g

PROTECTION

Operation Temperature:	-20 - 60°C
Storage temperature:	-30 - 70°C
Relative Humidity:	0 - 90% RH
ESD Protection:	1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:	IEC61000-4-2
Lightning Protection:	Yes
Surge Protection:	Yes

RJ-45 CONNECTOR Type

8P8C connector

POWER

Power Consumption (Max)	Transmitter:	24W
	Receiver:	4W
Power Supply	Input:	DC 12V/2A
	Output:	DC 5V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Aluminium Alloy Material + Crystal Panel
Processing Technology:	Ipcolor transmission technology
Finishing:	Grit blast

PACKAGE CONTENTS

1x HDMI Transmitter

8x HDMI Receivers

1x DC 12V/3A Power Adapter

8x DC 5V/2A Power Adapter

1x Terminal Block (RS-232)

1x IR Blaster Extension Cable

8x IR Receiver Extension Cable

36x Mounting Brackets

72x Screw

WARRANTY

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD18-IPC230-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.
