2x1 HDMI Switcher W/ Audio Out: 2-in 1-out, UltraHD 8K, EDID (BK-21A)
- Swtich between 2 HDMI Source to 1 display
- Extract Audio through Optical / Analog
- Video resolution upto 4K@120Hz
- Compliance: HDMI 2.1 - HDCP 2.3
OREI BK-21A: 2x1 8K HDMI Switcher with Audio Out
- WILL NOT WORK TO EXTRACT AUDIO
- NOT COMPATIBLE WITH CAPTURE CARD
- DOES NOT SUPPORT ARC

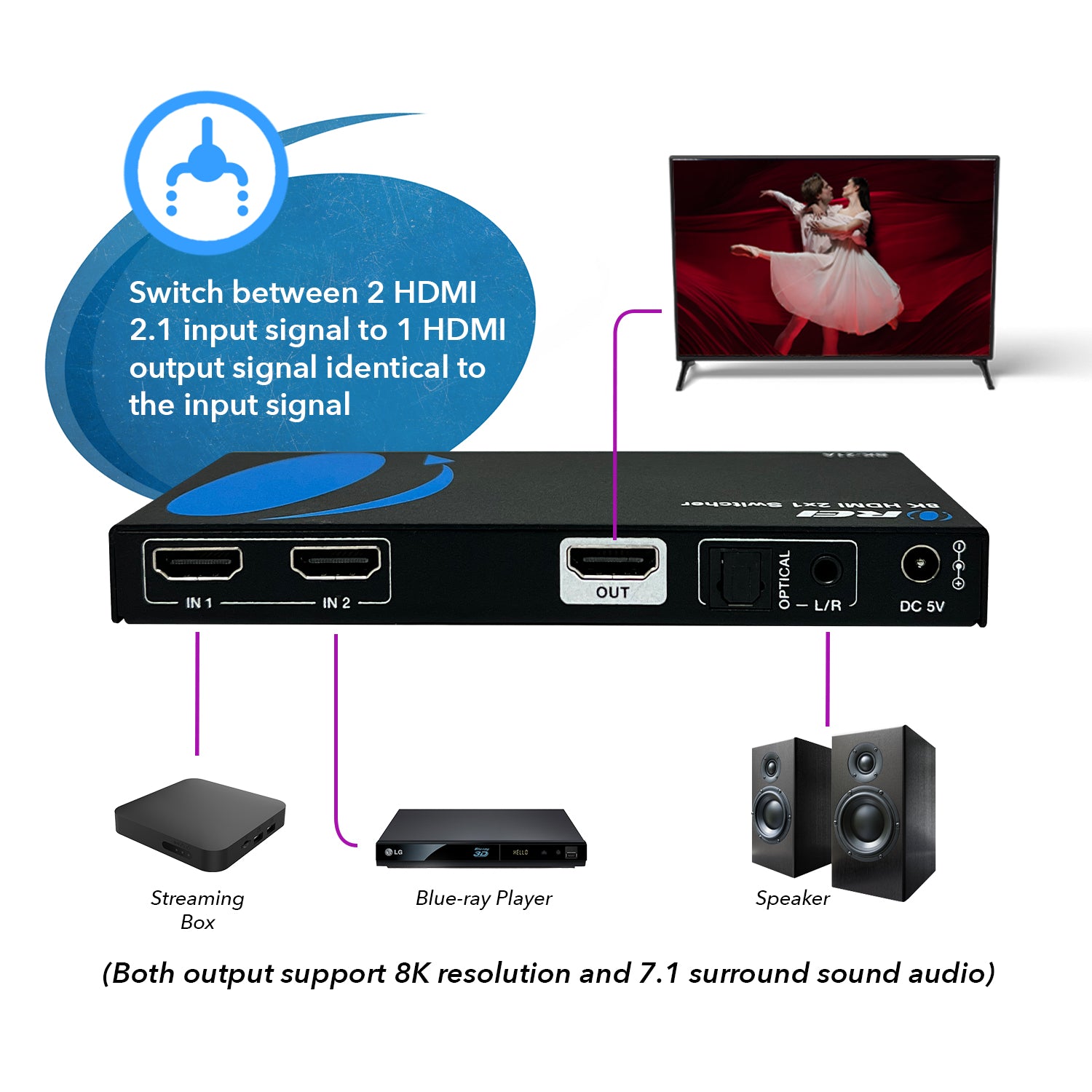

- Switch between two HDMI 2.1 input signal to 1 HDMI output signals identical to the input signal (Both output will have to support 8K)
- Remote Control Included
- 8K 40 Gbps Powered HDMI Switcher

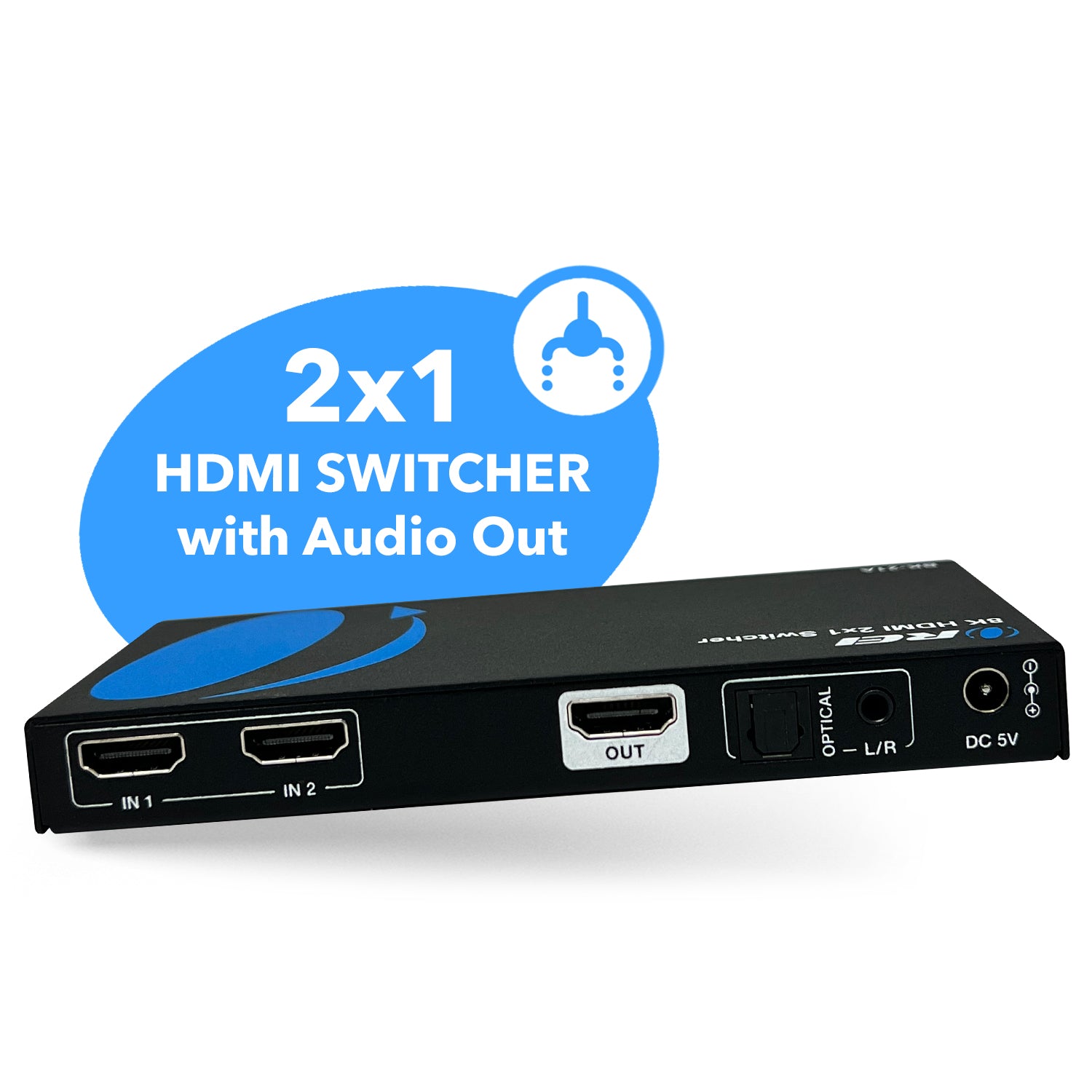

- Input: 2x HDMI & Outputs: 1x HDMI 1x Optical 1x L/R Analog

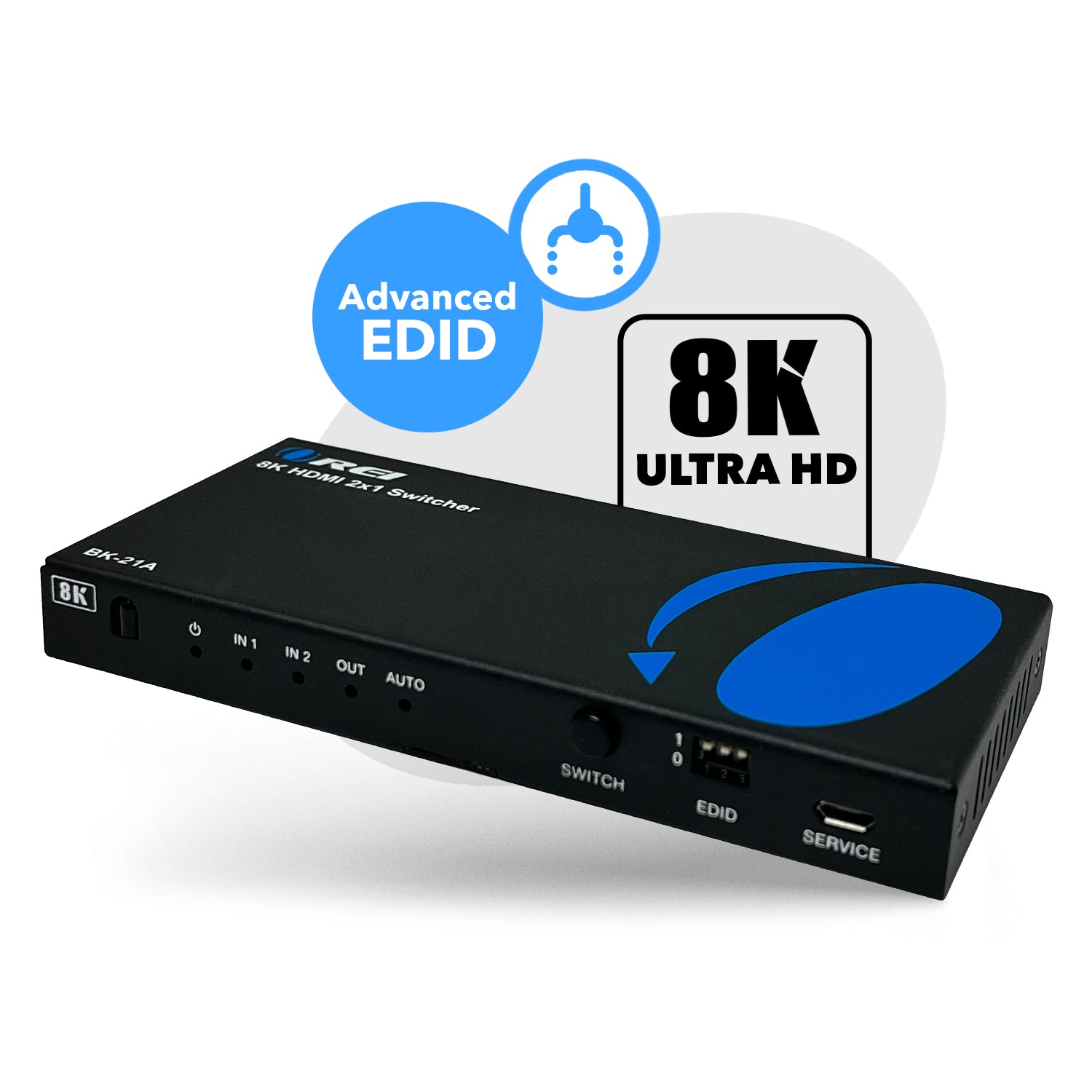

- Advanced EDID management
- Supports Audio De-embedding function (output through the optical and analog port)
- Supported resolution: up to 8K, 4K/120Hz, 1080p, 720p, HDR, HDR10, HDR10+
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG Pass Through
- Supports HDMI Audio Formats: LPCM, Dolby Digital / Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
- Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation

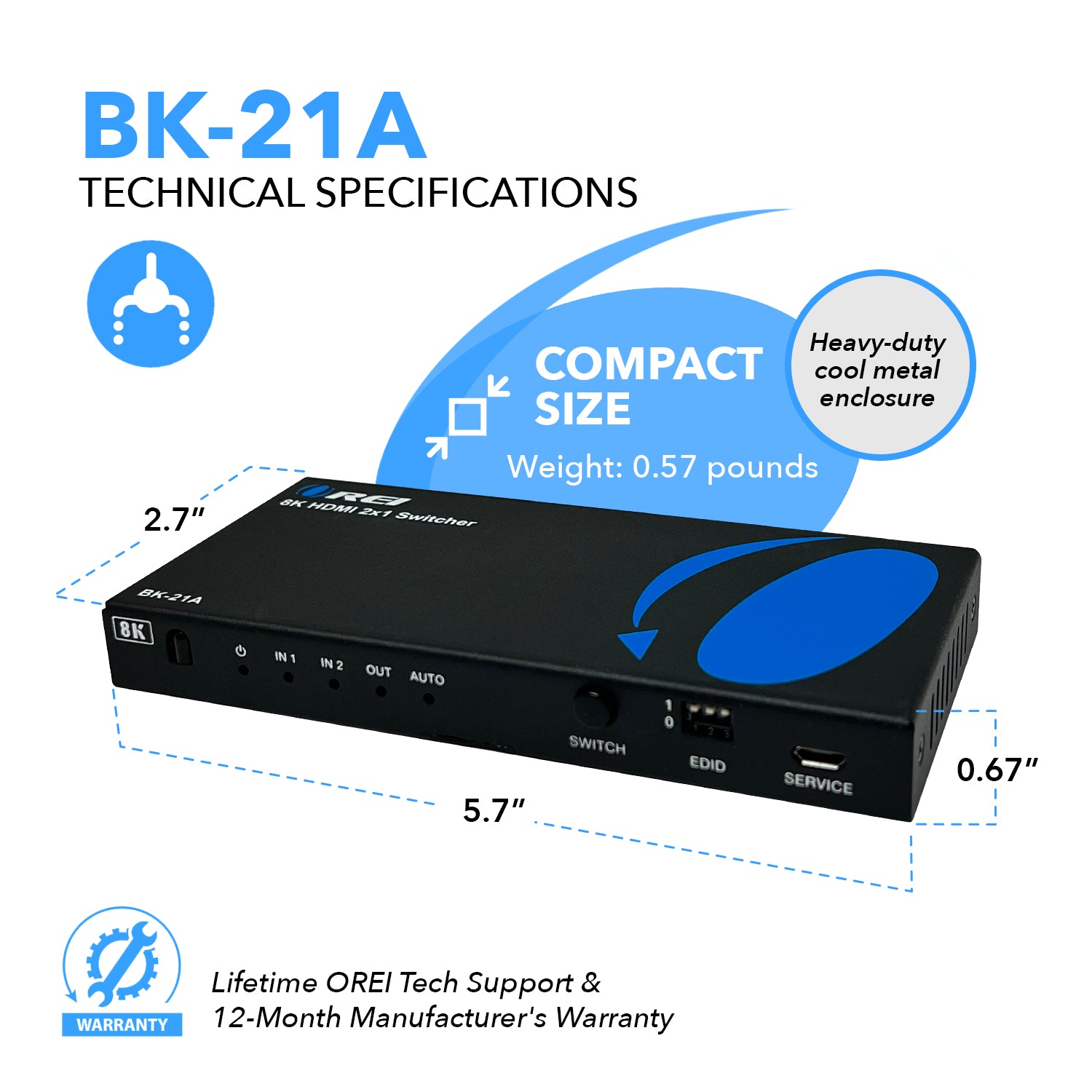

- Compact in size
- Easy plug & play installation
- HDCP 2.3 Compliant
- Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world
- Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
The OREI BK-21A 2 port HDMI Switch Supports 8K@60Hz (7680x4320p@60Hz). The switch features two independent inputs that each support 8K resolution and 7.1 surround sound audio.
8K is supported by the latest A/V devices and delivers four times the resolution of 4K. Plus, because the switch is backward compatible with Ultra HD 4K and high-definition 1080p, you can rest assured any video source will look great in your digital signage application.
Manual Port Switching: Enables you to manually select your HDMI Source with easy-to-use panel button
With this Switcher your also able to extract the Audio through Optical & Analog.
Compact, durable and easy to set up and operate. Ideal for trade show, conference room, lecture halls, bed room, living room, kitchen room and backyard.
We recommend using this HDMI 2.1 splitter with high quality HDMI cables 10 feet or less.
The package includes Orei BK-21A HDMI splitter 8K, 5V AC Adapter & user manual.
