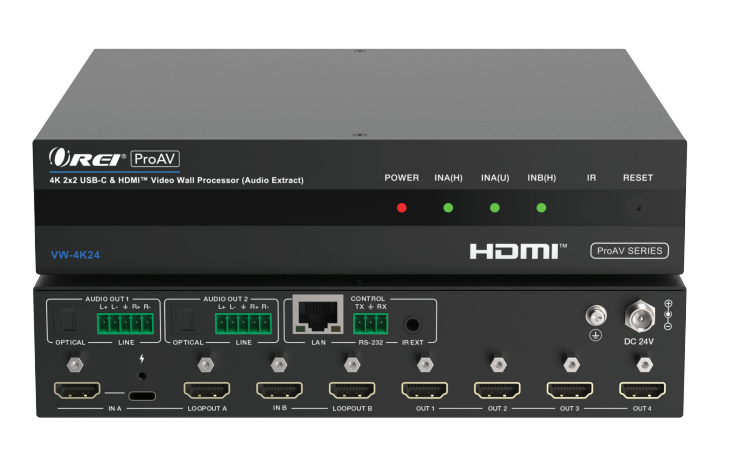

4K 2x2 USB-C & HDMI™ Video Wall Processor (Audio Extract) (VW-4K24)

OREI VW-4K24: 4K 2X2 USB-C & HDMI™ VIDEO WALL PROCESSOR (AUDIO EXTRACT)

Key Features:

• 2x2 Video Wall Processing – Drives four displays in a 2x2 matrix from dual inputs.
• Flexible Input Options – Choose between 2x HDMI™ inputs or 1x HDMI™ + 1x USB-C input.
• Ultra-HD Video Resolution – Supports video up to 4K@60Hz with 4:4:4 chroma subsampling.
• HDCP 2.3 & DisplayPort 1.2a Compliance – Ensures broad compatibility with protected content and modern devices.
• USB-C with DP Alt Mode – Direct video input from USB-C devices with up to 60W charging.
• Multiple Splicing Modes – Various video wall layout configurations for different display setups.
• Bezel Adjustment Compensation – Fine-tune alignment for seamless visuals across display edges.
• Advanced EDID Management – Optimizes source-display compatibility for reliable performance.
• Audio De-Embedding – Optical (SPDIF) and L/R analog audio outputs with independent gain control.
• Auto Display On/Off via CEC – Simplifies power management across connected displays.
• Versatile Control Options – IR remote, RS-232, TCP/IP, and Web GUI for flexible system integration.
• Plug-and-Play Operation – No driver installation or software setup required.

The VW-4K24 is a 2x2 video wall processor built on advanced video processing technology, designed to create stunning multi-screen video walls from a single source. It features dual inputs including HDMI™ and USB-C with loop outs, and four HDMI™ outputs for driving up to four displays in a 2x2 configuration. Supporting video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling at 8-bit color depth, the processor delivers crisp, high-quality imagery across all screens.

The USB-C input supports DisplayPort Alt Mode for direct video input from compatible laptops and mobile devices and provides up to 60W charging power to keep connected devices powered during use. Multiple video wall display modes allow flexible screen arrangements, while bezel adjustment compensation ensures seamless visual alignment across display edges. Advanced EDID management guarantees optimal source-to-display compatibility.

Designed for ease of use, the processor offers optical audio and L/R analog audio de-embedding outputs with independent gain control for flexible audio routing. Auto display on/off control via CEC simplifies system power management. The unit can be controlled via IR remote, RS-232, TCP/IP, or an intuitive Web GUI, making it suitable for retail signage, control rooms, hospitality venues, and other professional video wall applications.
