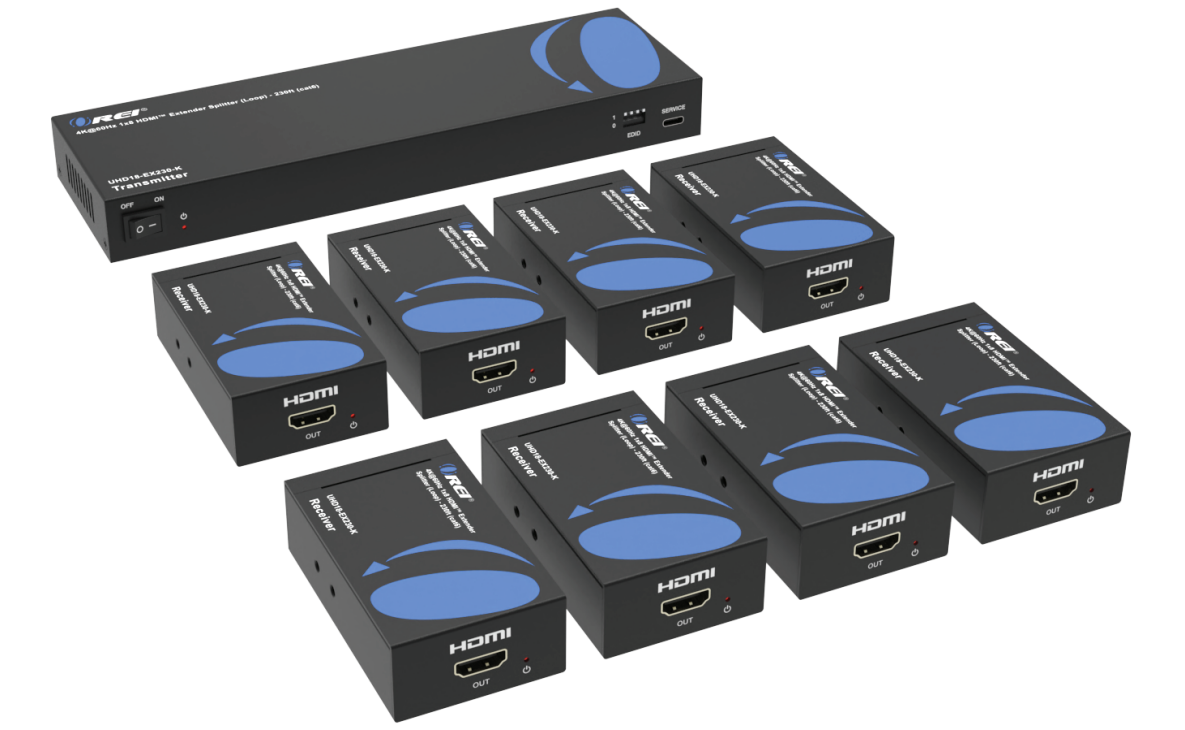

4K@60Hz 1x8 HDMI™ Extender Splitter (Loop) - 230ft (cat6) (UHD18-EX230-K)

• HDCP 2.2 Compliant – Ensures compatibility with modern HDMI™ devices and protected content.

• Supports Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video with exceptional clarity.

• Long-Distance HDBaseT Extension – Extends HDMI™ signals up to 230 ft (70 m) at 4K@30Hz or 197 ft (60 m) at 4K@60Hz over a single CAT6 cable.

• 1×8 HDMI™ Distribution – Features 1 HDMI™ input, 1 HDMI™ loop output, and 8 CAT outputs for local and remote display connections.

• HDMI™ Loop Output – Enables connection to a local display while distributing signals to remote receivers.

• Multi-Channel Audio Support – Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio pass-through.

• Power over Cable (PoC) – Requires only one power adapter to power both the transmitter and connected receivers.

• Advanced EDID Management – Optimizes communication between source devices and displays for maximum compatibility.

• Compact Design – Space-saving enclosure for easy installation in professional and residential AV environments.

The UHD18-EX230-K is a professional AV distribution solution designed to transmit a single HDMI™ source to up to eight remote displays over long distances. Supporting HDMI™ 2.0b and HDCP 2.2, it delivers video resolutions up to 4K@60Hz and extends signals up to 230 ft (70 m) at 4K@30Hz or 197 ft (60 m) at 4K@60Hz over a single CAT6 cable to each receiver. Making it ideal for commercial AV installations, digital signage, educational facilities, and conference rooms.

The transmitter features one HDMI™ input, one HDMI™ loop output, and eight CAT outputs, allowing both local monitoring and simultaneous distribution to multiple remote displays. It also supports advanced EDID management to ensure optimal compatibility between source devices and displays, while Power over Cable (PoC) simplifies installation by requiring power at only one end of the system. With support for high-quality multi-channel audio formats and a compact,
installation-friendly design, this extender splitter provides a reliable and  efficient  solution for long-distance HDMI™ distribution.
