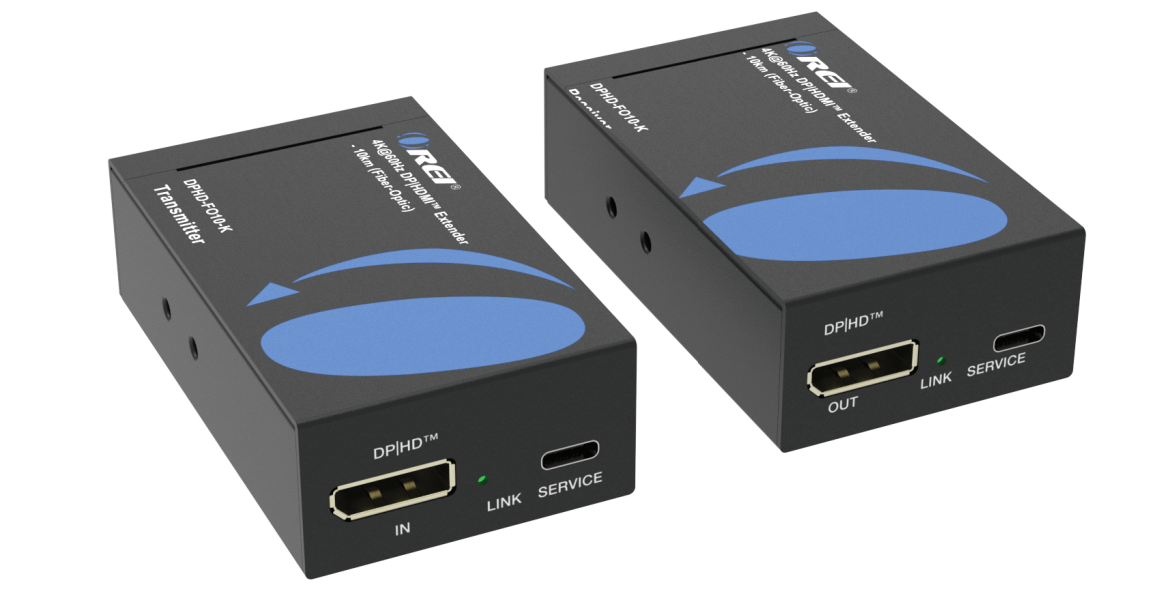

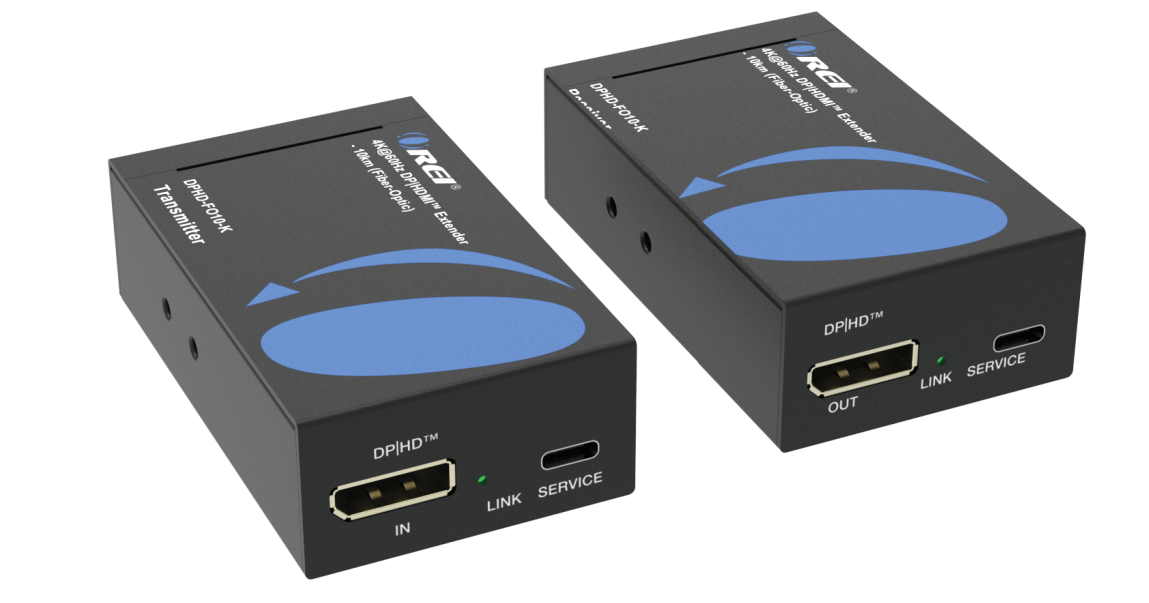

4K@60Hz DP|HDMI™ Extender - 10km (Fiber-Optic) (DPHD-FO10-K)

• DisplayPort/HDMI™ Combo Connectivity – Supports both DisplayPort and HDMI™ interfaces on the transmitter and receiver for maximum installation flexibility.

• DisplayPort 1.4 Alt Mode & HDCP 2.3 Compliant – Ensures compatibility with modern source devices, displays, and protected content.

• Supports Resolutions up to 4K@60Hz – Delivers ultra-high-definition video with exceptional clarity and detail.

• Long-Distance Fiber Transmission – Extends AV signals up to 10km (6.2 miles) over a single-mode fiber optic cable.

• Multi-Mode Fiber Support – Compatible with OM4 fi ber via supported SFP modules for transmission distances up to 300m (984ft).

• Automatic DP/HDMI™ Detection – Automatically recognizes DisplayPort or HDMI™ connections on both input and output ports.

• Four Conversion Modes Supported – Enables DP-to-DP, DP-toHDMI™, HDMI™-to-DP, and HDMI™-to-HDMI™ signal conversion.

• High-Bandwidth Video Support – Supports DisplayPort bandwidths up to 8.1Gbps per lane and HDMI™ bandwidth up to 18Gbps.

• HDR & Dolby Vision Pass-Through – Compatible with HDR10, HDR10+, Dolby Vision, and HLG for enhanced visual performance.
• Advanced Audio Format Support – Supports LPCM 7.1CH, Dolby Digital, Dolby TrueHD , Dolby Atmos, DTS-HD Master Audio, and DTS:X.

• EDID Pass-Through – Transfers EDID information from the receiver to the transmitter for optimal source-to-display compatibility.

• Compact Design – Lightweight and space-saving form factor for easy integration into professional AV systems and installations.

The DPHD-FO10-K is a professional-grade AV extension solution designed to transmit high-resolution DisplayPort and HDMI™ signals over long distances using fiber optic cabling. Featuring innovative combo DP/HDMI™ connectors on both the transmitter and receiver, it provides exceptional installation flexibility, allowing seamless integration between DisplayPort and HDMI™ devices in any combination.

Supporting video resolutions up to 4K@60Hz (4:4:4) and compliant with DisplayPort 1.4 Alt Mode and HDCP 2.3, the extender delivers crystal-clear, uncompressed video performance for professional AV, digital signage, control rooms, command centers, and enterprise applications. With support for all major VESA resolutions and advanced HDR formats, it ensures outstanding image quality and compatibility with modern display technologies.

Designed for ultra-long-distance transmission, the extender can transmit signals up to 10km (6.2 miles) over a single-mode fiber optic cable. It also supports multi-mode fiber via compatible SFP modules, providing transmission distances up to 300m (984ft) over OM4 fiber. Additional features include automatic DP/HDMI™ signal detection, EDID pass-through, advanced audio format support, and a compact design for flexible installation in demanding AV environments.
