4K@60Hz HDMI™ Extender (Over 1G IP, Loop, Bi-IR) - 400ft (Cat6) (UHD-EXM400-K)

OREI UHD-EXM400-K: 4K@60HZ HDMI™ EXTENDER (OVER 1G IP, LOOP, BI-IR) - 400FT (CAT6)

Key Features:

• HDCP 2.2 & HDMI™ 2.0b Compliant – Ensures compatibility with modern HDMI™ sources, UHD displays, and protected content.

• Supports Video Resolutions up to 4K@60Hz – Delivers Ultra HD HDMI™ video up to 4K@60Hz (4:4:4) with IP streaming support up to 4K@30Hz.

• 18Gbps Video Bandwidth – Supports high-bandwidth HDMI™ signals for exceptional image quality.

• H.265/H.264 AV over IP Technology – Utilizes advanced H.265/H.264 encoding and decoding for e cient, high-quality video transmission over standard IP networks.

• Long-Distance Transmission – Extends HDMI™ signals up to 394ft (120m) over a single CAT5e/6/6A cable.

• One-to-One or One-to-Many Distribution – Supports point-to-point or multi-display distribution through a standard 1G managed network switch.

• HDMI™ Loop Output – Provides a local HDMI™ output on the encoder for monitoring or cascading additional displays.

• Audio De-Embedding – Extracts LPCM 2.0 audio from the decoder for integration with external audio systems.

• Advanced Network & EDID Management – Features a built-in Web GUI, DHCP (APIPA) and Static IP modes, preset and custom EDID management, and logo image upload.

• Bi-Directional IR & RS-232 Pass-Through – Enables remote control and serial communication between connected devices.

• Smart Output Resolution Modes – Decoder supports three intelligent HDMI™ output resolution modes for improved display compatibility.

• Image Adjustment Controls – Allows brightness, contrast, hue, and saturation adjustments for optimized image quality.

• Low-Latency Performance – Delivers smooth, responsive video transmission with excellent picture quality.

• ESD & Surge Protection – Enhances reliability and protects connected equipment in demanding installations.

• Plug-and-Play Design – Compact, easy-to-install solution requiring minimal setup for professional AV environments.

The UHD-EXM400-K is an HDMI™ 4K@60Hz AV over IP Extender built on advanced H.265/H.264 compression technology, designed to distribute UHD content to one or multiple UHD display devices over a standard network switch. It extends transmission distance up to 394ft/120m between encoder and decoder via a single CAT5e/6/6A cable, offering configurable high-quality, low-bandwidth video streaming.

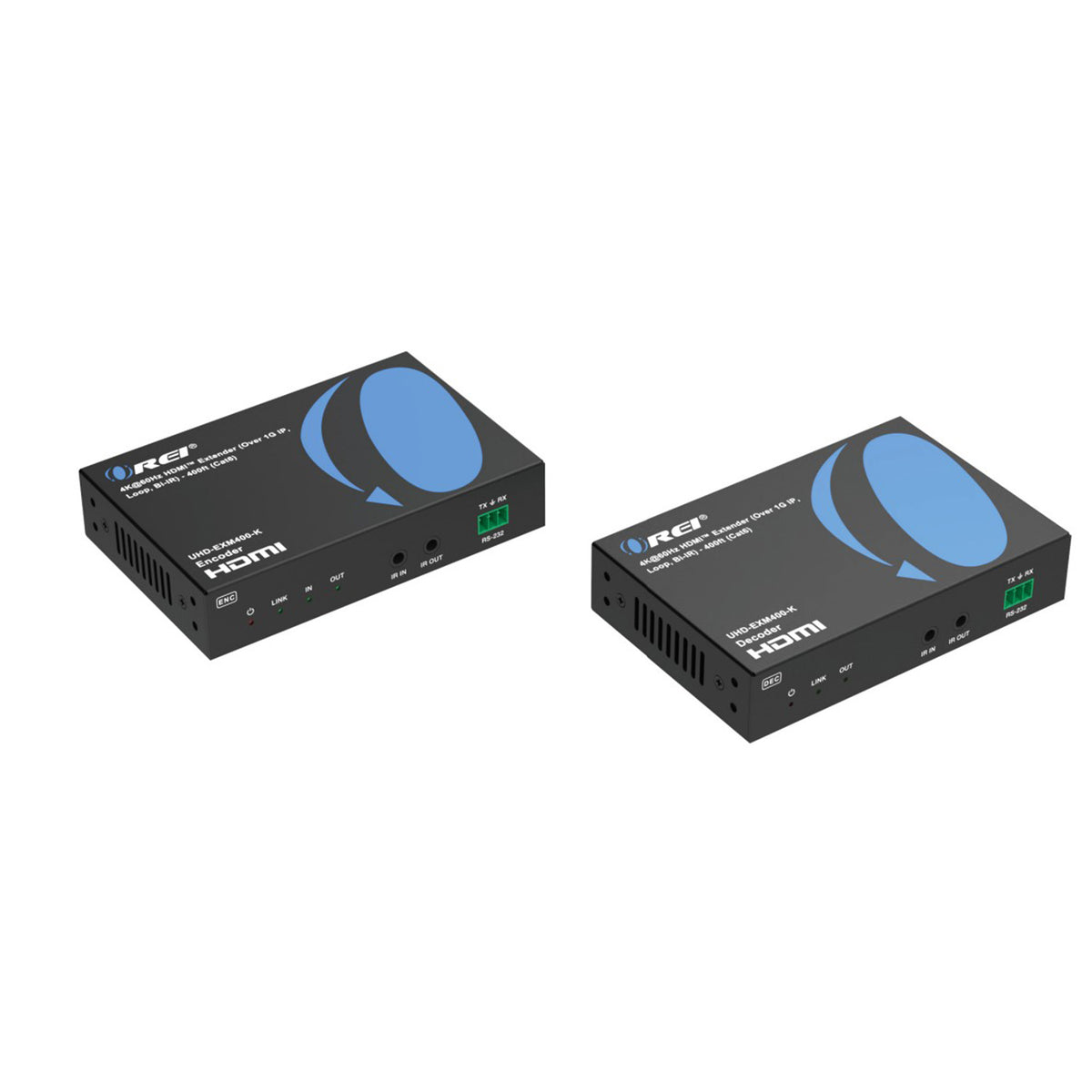

The extender includes two units: an Encoder and a Decoder. The Encoder captures HDMI™ signals for encoding and transmission over CAT5e/6/6A cables, with an HDMI™ loop output for local monitoring or cascading. The Decoder receives and decodes the signals, outputting HDMI™ to UHD displays. Video resolution supports up to 4K@60Hz (4:4:4) on HDMI™ inputs and outputs, with 4K@30Hz IP stream transmission.

The product supports bi-directional IR and RS-232 signal transmission for flexible remote device control. Built-in Web GUI configuration allows easy setup of DHCP (APIPA) and static IP modes, picture adjustments (brightness, contrast, hue, saturation), preset and user EDID data, and logo image upload. Audio de-embedding on the decoder provides flexible audio routing. Ideal for one-to-one or one-to-many distribution over standard network infrastructure, this extender is the perfect solution for any professional AV application requiring reliable HDMI™ over IP extension.
