4K ARC 4x1 HDMI Switcher - Supports 4K @ 60Hz, Connect Sound bar With ARC

  • $39.99
  • Availability: In Stock
  • SKU: UHD-401ARC

  • 4K 2.0a (18Gbps) HDMI 4 Input into 1 output Switcher
  • highest video resolution up to 4K x 2K at 60Hz
  • ARC bypass function

UHD-401ARC HDMI Combo Switch - 4 Input 1 Output

Key Features:

  • 4 inputs and 1 output HDMI Switch
  • HDMI 2.0 / Ultra HD 4k (3840 x 2160 @60Hz)
  • DTS® HD, Dolby® TrueHD lossless compressed digital audio compliant

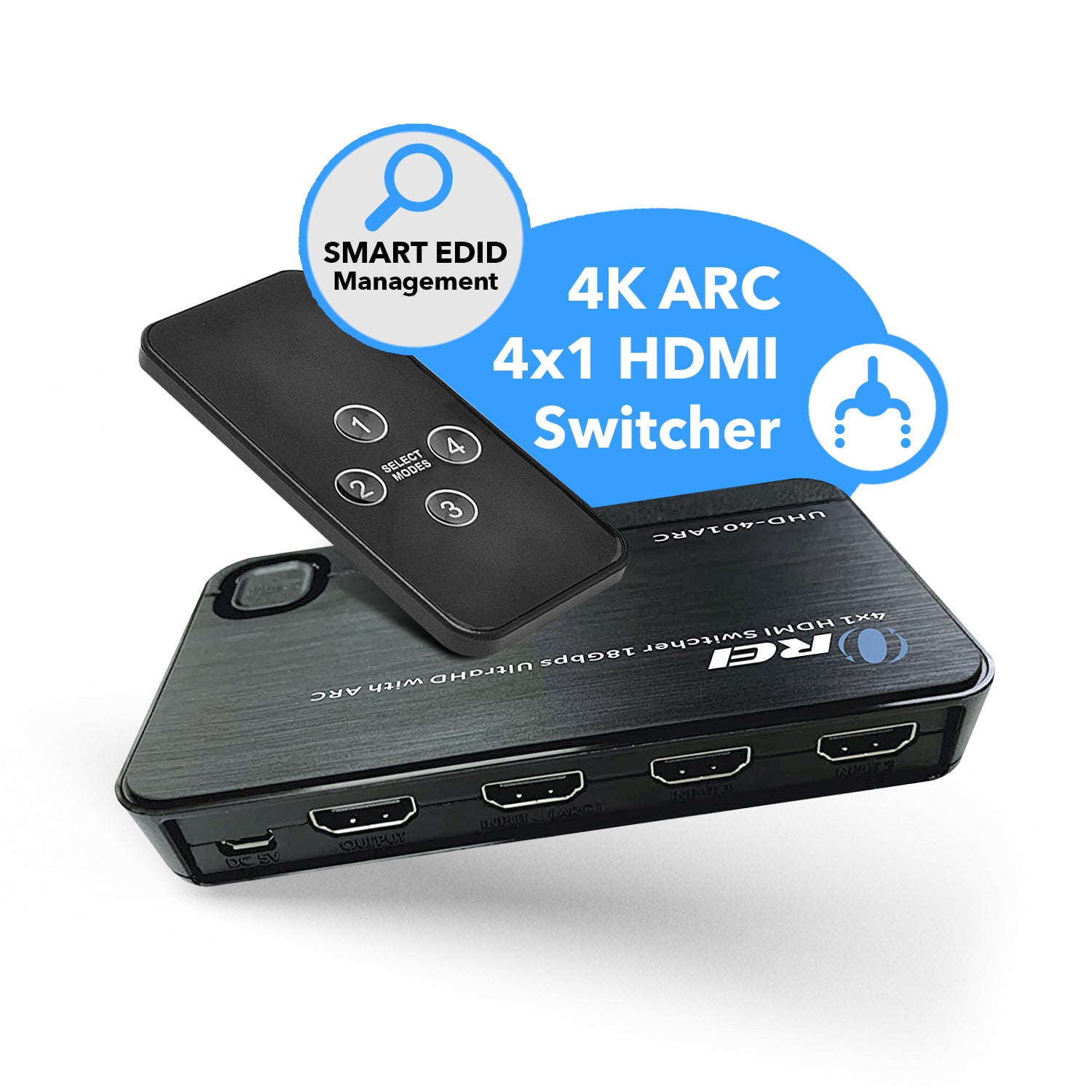

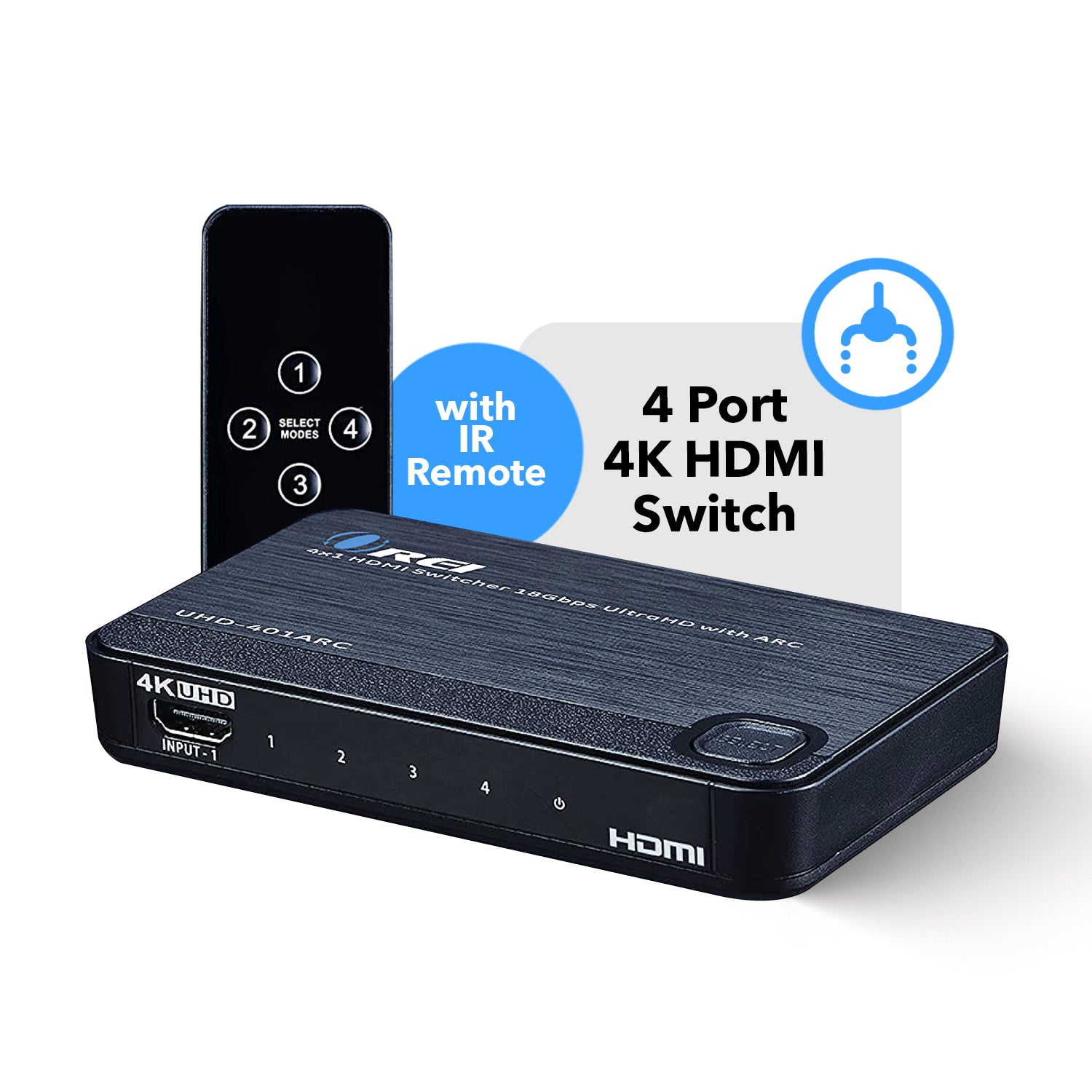

  • Multiple controls: Front panel button operation and IR Remote Control
  • One HDMI input port on the front panel for quick and easy access

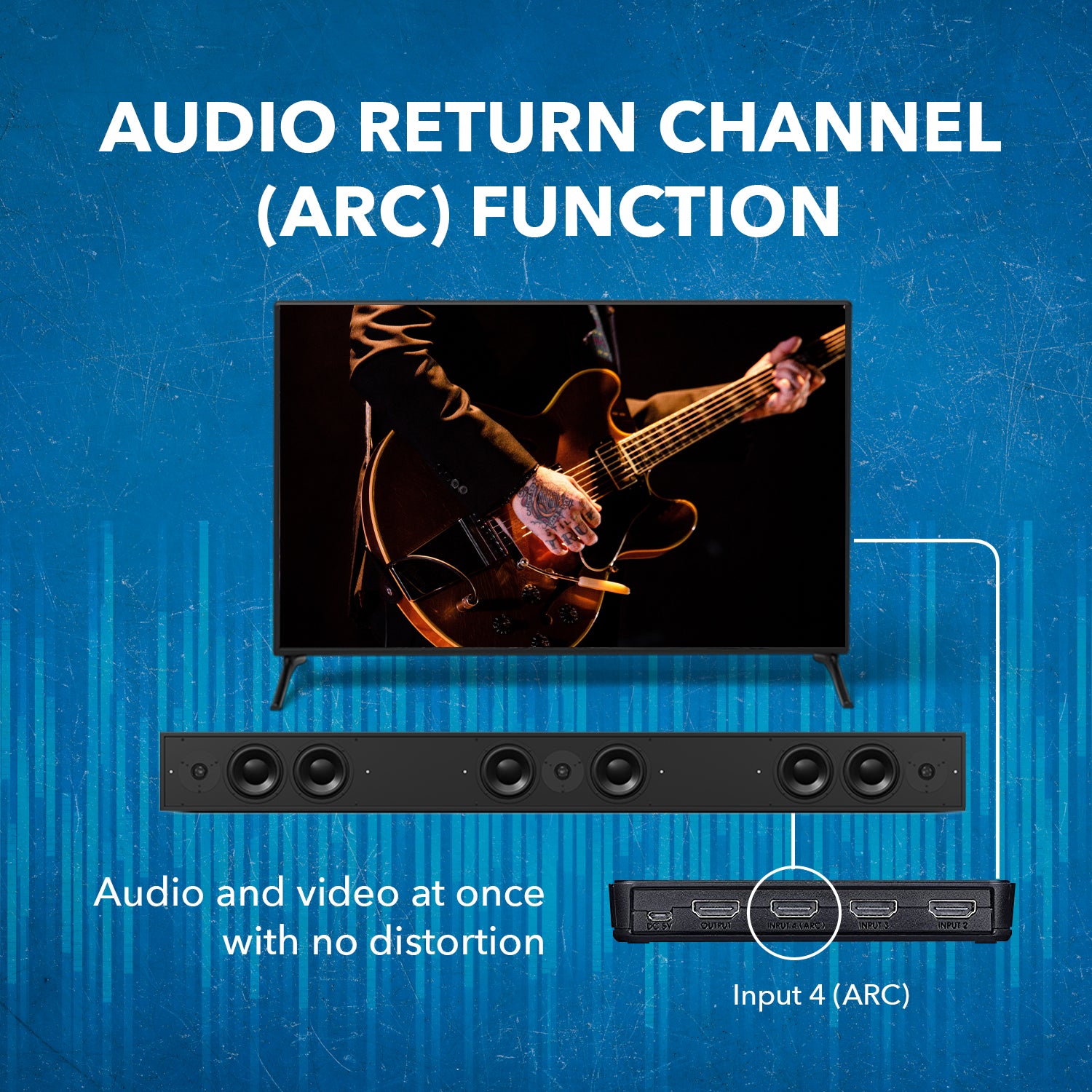

  • ARC bypass (Input-4 & Output)

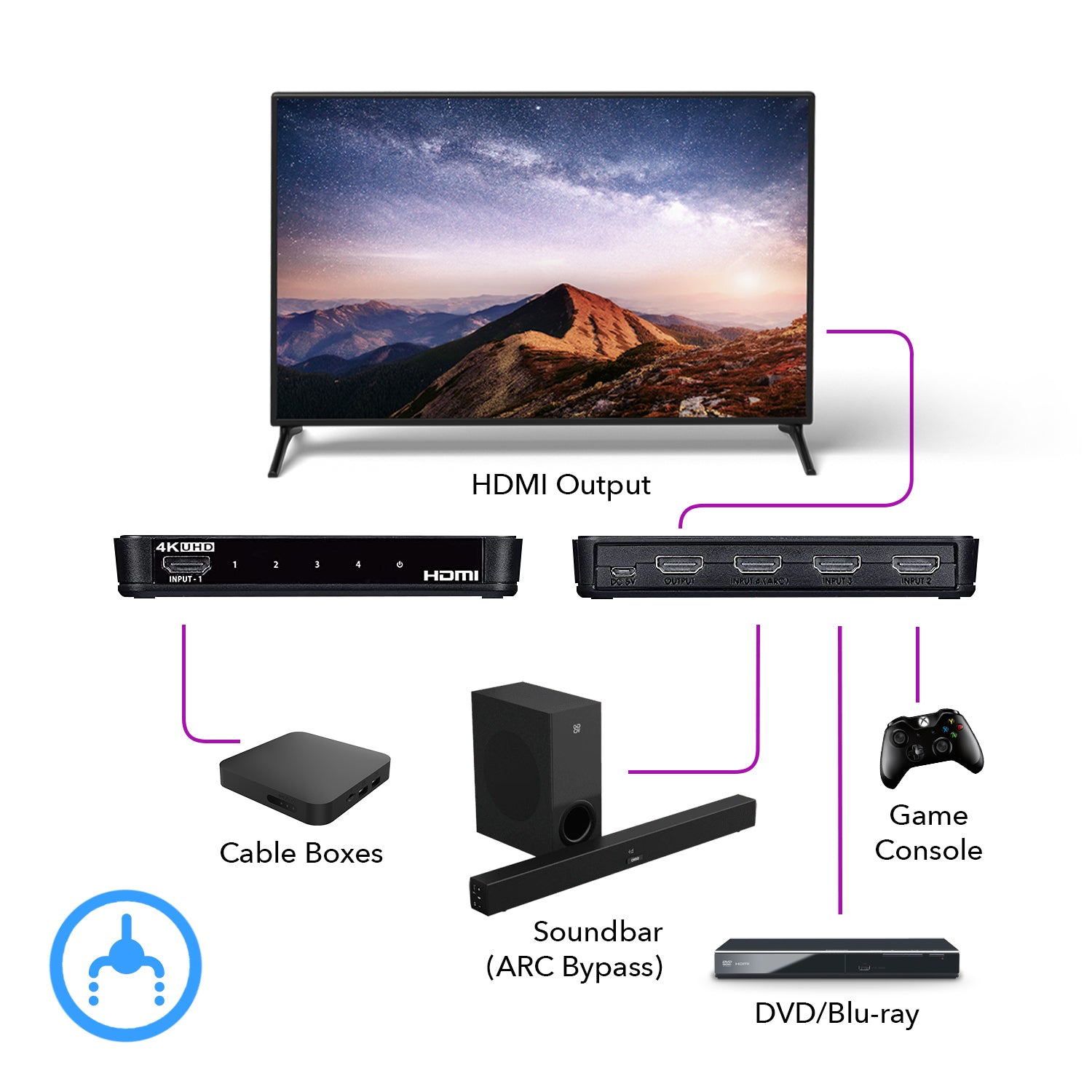

The OREI UHD-401ARC 4x1 switch can expand the HDMI input of your HDMI display with up to 4 HDMI inputs with a single HDMI cable connected to your display. The switch supports HDMI 2.0 (4K@60) signal and its HDCP 2.2 compliant with your HDMI enabled devices. It also supports ARC bypass function (Input-4 & Output) to connect a soundbar or audio receiver with HDMI ARC port.

  • Includes:
    • 1x DC 5V / 0.6A (Micro USB) Power adaptor
    • 1x IR Remote Control
    • 1x Switcher main unit
    • 1x User Manual
  • Warranty:
    • 1 Year OREI Manufacturer's Warranty

  • SKU: UHD-401ARC

  • 4K 2.0a (18Gbps) HDMI 4 Input into 1 output Switcher
  • highest video resolution up to 4K x 2K at 60Hz
  • ARC bypass function

Quick Setup & Installation guide

UHD-401ARC User Manual Download

  • Input Port
    • 4 HDMI input (Type A 19-pin female)
  • Output Port
    • 1 HDMI output (Type A 19-pin female)
  • Bandwidth 25MHz ~ 600MHz
  • HDCP Compliance: HDCP 2.2, 2.3 Compliant and HDMI 2.0
  • AUDIO FORMATS – Supports HDMI audio pass-through and all standard HDMI audio formats including DTS-HD and Dolby TrueHD 7.1, Digital, and Stereo
  • Supports up to 4K @60Hz YUV 4:4:4, HDR10, 18Gbps bandwidth
  • Control: Manual
  • Power Supply: DC 5V / 0.6A (Micro USB) Power adaptor
