4K HDBaseT HDMI™ Extender (Loop, KVM) - 330ft (Cat6) (UHD-EXB330U2-K)

$299.00 USD
SKU: UHD-EXB330U2-K

  • HDMI™ 2.0b & HDCP 2.3 Compliant
  • 18Gbps High-Speed Bandwidth
  • 4K Ultra HD Video Support

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in USA
Free shipping in USA
Product Image
View details

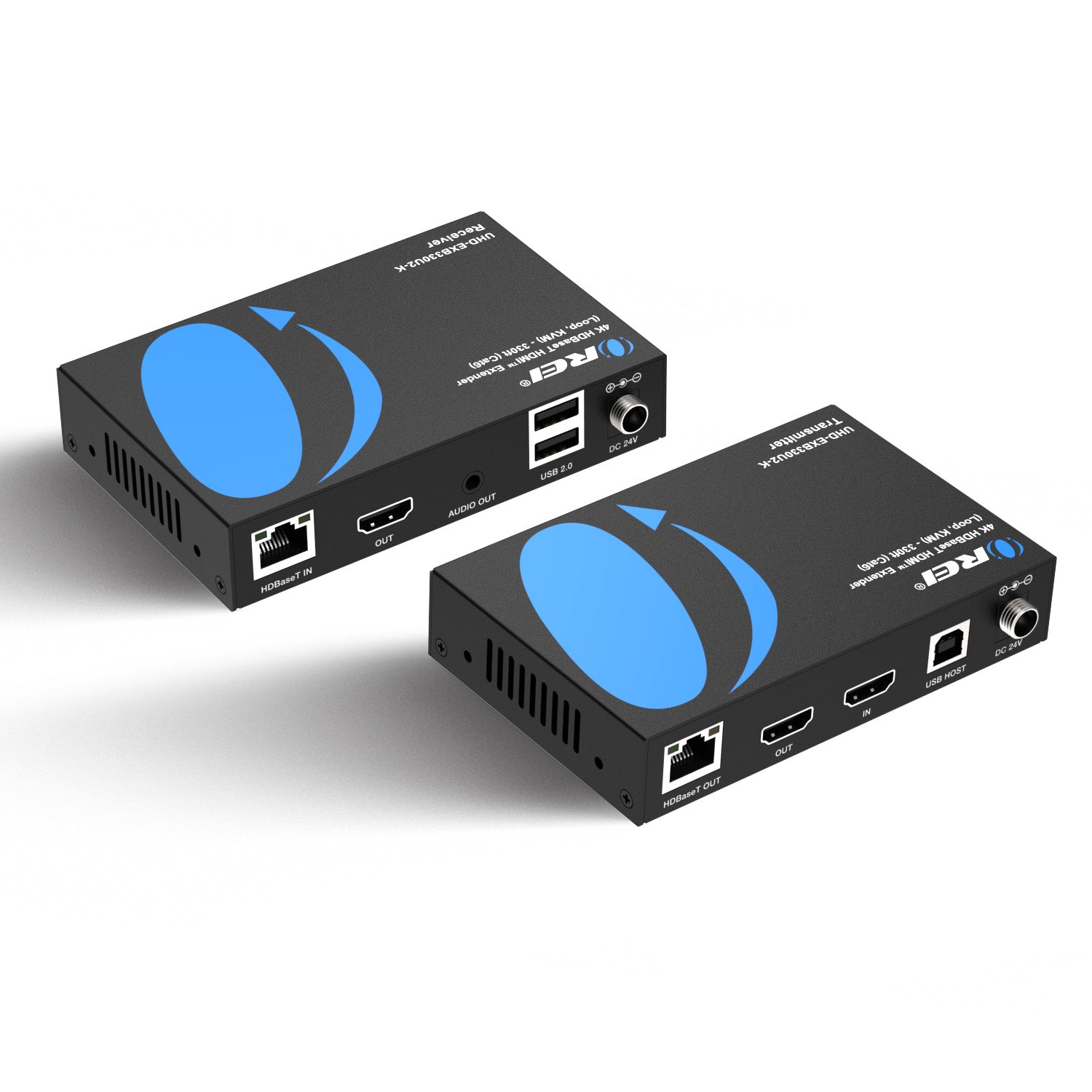

OREI UHD-EXB330U2-K: 4K HDBASET HDMI™ EXTENDER (LOOP, KVM) - 330FT (CAT6)

Key Features:

  • HDMI™ 2.0b & HDCP 2.3 Compliant – Ensures full compatibility with modern HDMI™ sources and protected content formats.
  • 18Gbps High-Speed Bandwidth – Supports video bandwidth up to 18Gbps for stable and lossless signal transmission.
  • 4K Ultra HD Video Support – Resolutions up to 4K@60Hz (4:4:4) for sharp, detailed image quality.
  • Long-Distance HDBaseT Transmission – Extends HDMI™ signals up to 100m / ~330ft over a single CAT5e/6/7 cable.

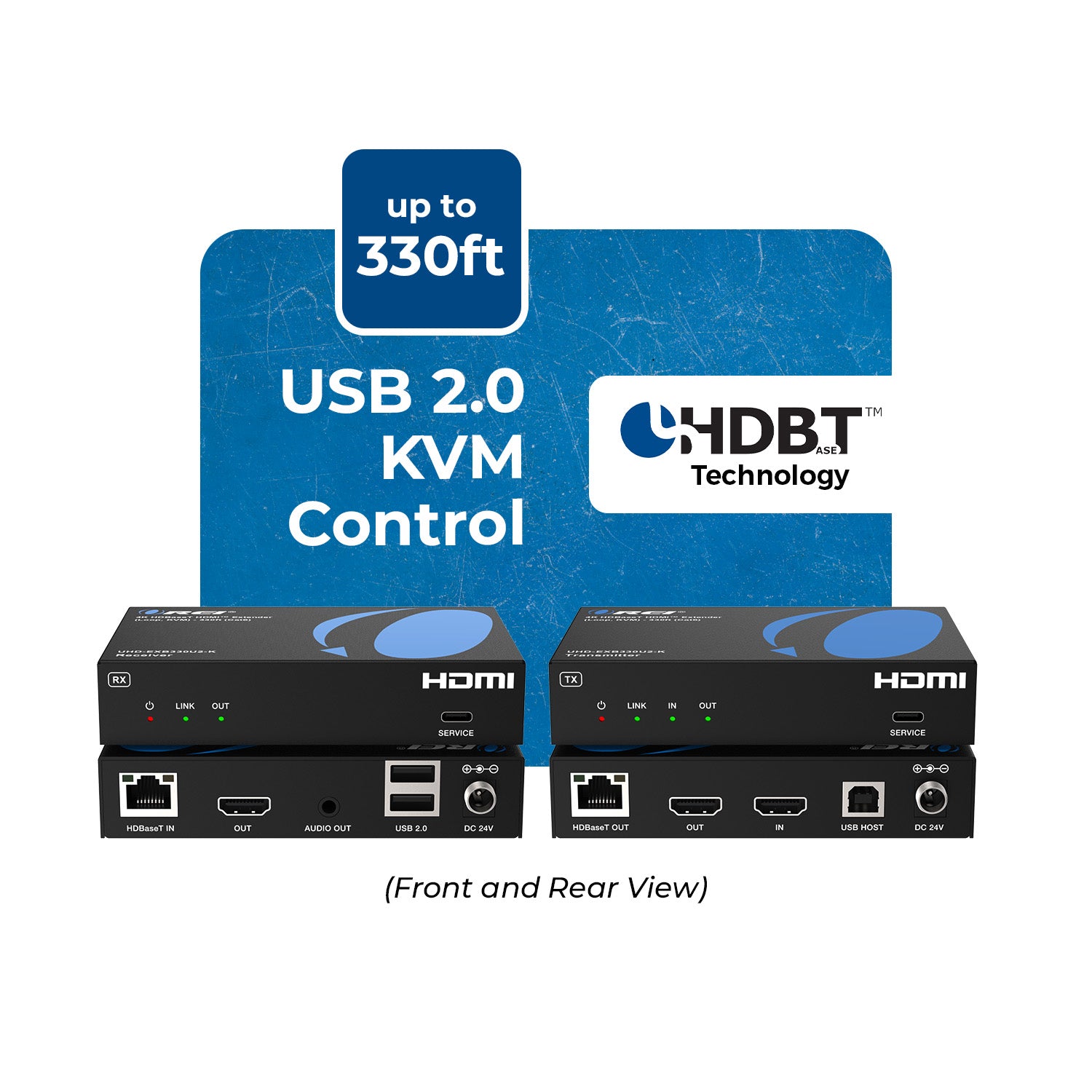

  • USB 2.0 KVM Control – Transmits USB 2.0 data alongside HDMI™, enabling remote PC control using keyboard, mouse or any other peripherals.
  • HDR Pass-Through – Compatible with HDR, HDR10, HDR10+, Dolby Vision, and HLG for enhanced dynamic range and color performance.
  • Comprehensive Audio Format Support – Supports LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-HD Master Audio, and DTS:X through HDMI.
  • Audio Extraction on Receiver – Allows extraction of audio from HDMI™ for integration with external audio systems through a 3.5mm jack.
  • CEC Pass-Through – Enables control signal transmission between source and display devices via HDMI™ CEC.
  • Bi-Directional PoC (Power over Cable) – Powers both transmitter and receiver using a single power adapter for simplified installation.

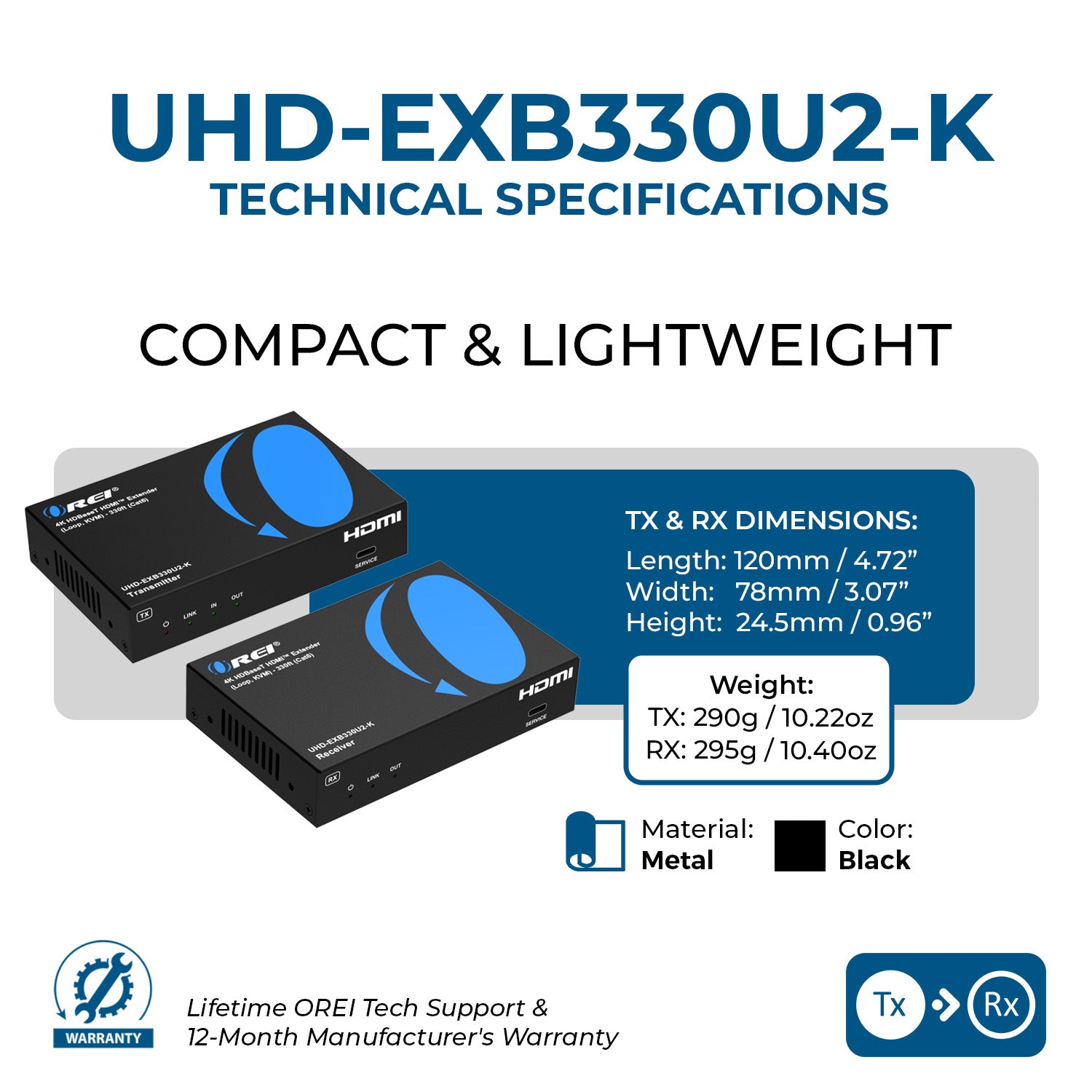

  • Compact & Installation-Friendly Design – Space-saving form factor ideal for professional and commercial AV environments.

The UHD-EXB330U2-K HDBaseT HDMI KVM Extender is designed to transmit HDMI™ and USB 2.0 signals over long distances with exceptional reliability and image quality. Supporting resolutions up to 4K@60Hz (4:4:4) and bandwidth up to 18Gbps, it ensures uncompromised Ultra HD performance for demanding AV installations.

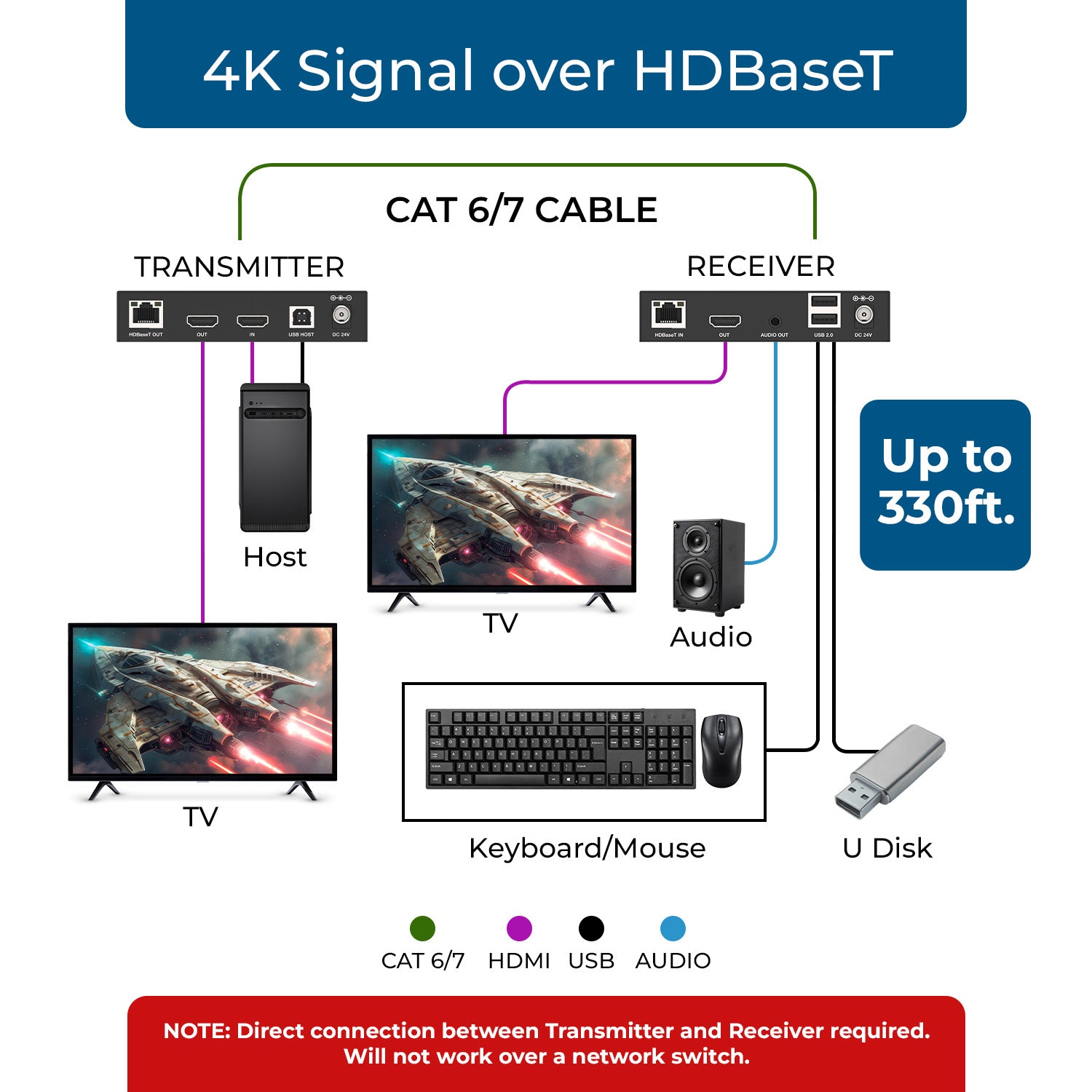

By converting HDMI™ signals into standard HDBaseT transmission, the extender delivers stable signal distribution up to 100 meters (~330 feet) over a single CAT5e/6/7 cable. It supports KVM functionality, allowing remote control of a connected PC using keyboard, mouse, or other peripherals.

The unit also supports HDR formats like HDR10, HDR10+, Dolby Vision, and HLG, advanced multi-channel audio including Dolby Atmos and DTS:X through HDMI, CEC pass-through, and bi-directional PoC, simplifying system integration and reducing cable clutter. With its compact design and robust performance, this extender is ideal for video conferencing systems, multimedia broadcasting, digital signage, control rooms, and work from home applications.
