4K HDBaseT HDMI™ & USB-C Extender with Wall Plate (TX) (KVM) - 330ft (Cat6) (UHD-WPE330UR-K)

OREI UHD-WPE330UR-K: 4K HDBASET HDMI™ & USB-C EXTENDER WITH WALL PLATE (TX) (KVM) - 330FT (CAT6)

Key Features:

• HDCP 2.3 Compliant – Ensures compatibility with modern HDMI™ sources, displays, and protected content.

• 2×1 HDMI™ & USB-C US Wall Plate Extender – Extends HDMI™, USB-C, and USB 2.0 signals over a single CAT6/6A cable for clean, professional installations.

• HDBaseT 2.0 Technology – Transmits 4K@60Hz 4:4:4 video and USB 2.0 signals up to 328ft (100m) with reliable performance.

• USB-C with 60W Power Delivery – Supports DisplayPort Alt Mode (DP 1.2a), USB 2.0 data, and up to 60W laptop charging when locally powered.

• Intelligent Source Switching – Supports automatic, manual, and priority switching modes with signal and 5V source detection.

• USB 2.0 Extension – Extends USB 2.0 data up to 255Mbps, with four USB device ports available on the receiver for peripherals.

• Balanced & Unbalanced Audio De-Embedding – Extracts audio from the receiver for flexible integration with external audio systems.

• Advanced EDID Management & CEC Pass-Through – Optimizes source-to-display compatibility while supporting HDMI™ CEC communication.

• Bi-Directional IR & RS-232 Pass-Through – Enables remote device control and seamless integration with third-party automation systems.

• Display Power Control – Supports display ON/OFF control through CEC, RS-232, or IR output.

• Bi-Directional Power over Cable (PoC) – Requires only one power adapter to power both the transmitter and receiver, simplifying installation. (USB-C charging is available only when the transmitter is powered locally

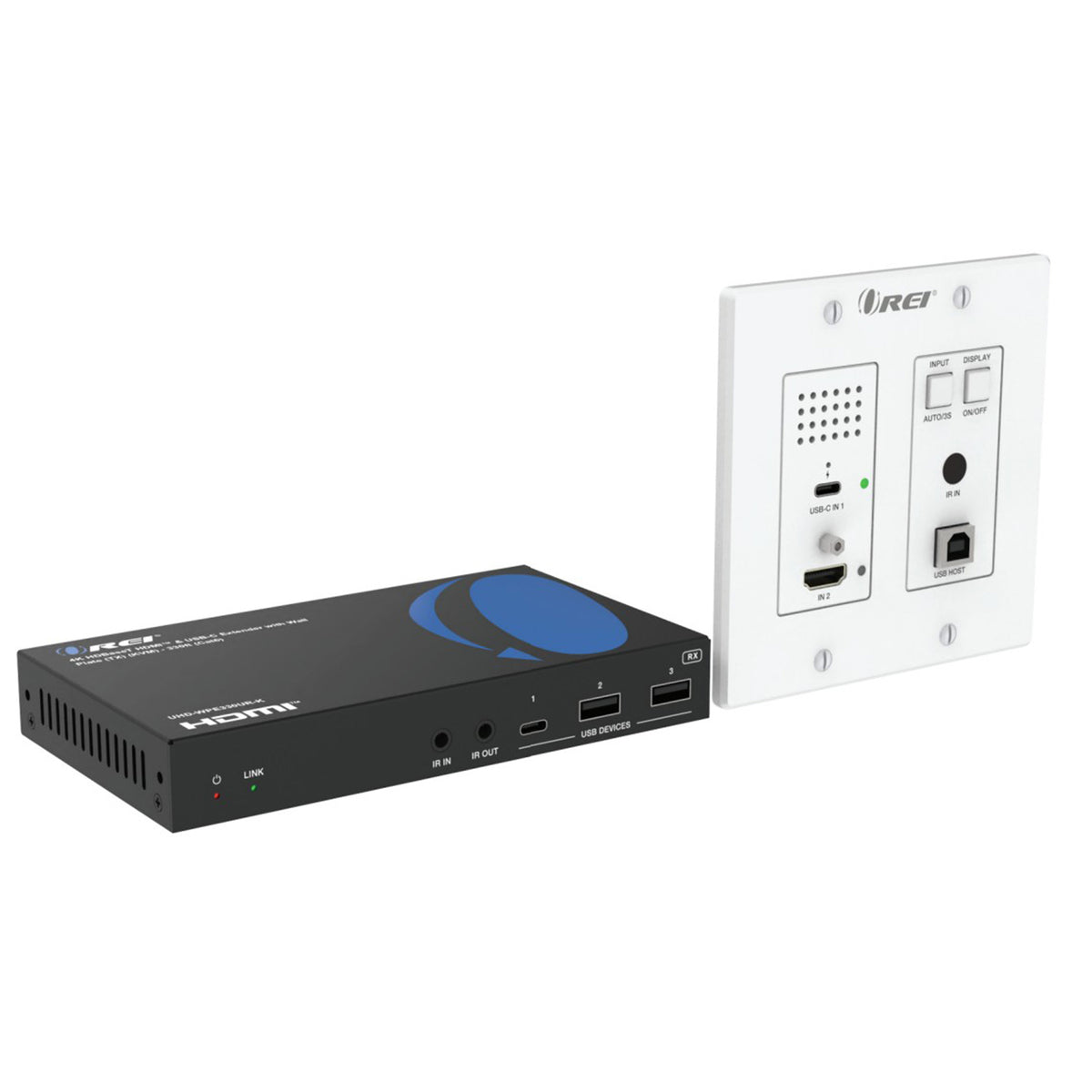

The UHD-WPE330UR-K is a 2x1 HDBaseT 2.0 Extender Kit built on advanced HDBaseT technology, designed to extend HDMI™/USB-C video signals up to 4K@60Hz 4:4:4 8-bit and USB 2.0 signals up to 328ft/100m over a single CAT6/6A cable. The wall plate transmitter features one HDMI™ input and one USB-C input, supporting auto, manual, and priority switching modes.

The USB-C input port supports DisplayPort Alt Mode (DP v1.2a), USB 2.0 data, and up to 60 watts charging for connected devices. The transmitter can be powered by a local 24V DC power supply for USB-C charging, or by 24V PoC from the receiver box when USB-C charging is not required. The receiver box features one HDMI™ output and four USB 2.0 device ports for peripheral connectivity.

Both the transmitter and receiver support bi-directional IR and RS-232 pass-through, enabling seamless remote device control from either end. The receiver supports balanced and unbalanced audio de-embedding for flexible audio routing. EDID management and CEC pass-through ensure optimal source-to-display compatibility and simplified system power control. Designed for residential and commercial AV applications, this extender kit offers the most convenient solution for long-distance video extension over a single CAT cable.
