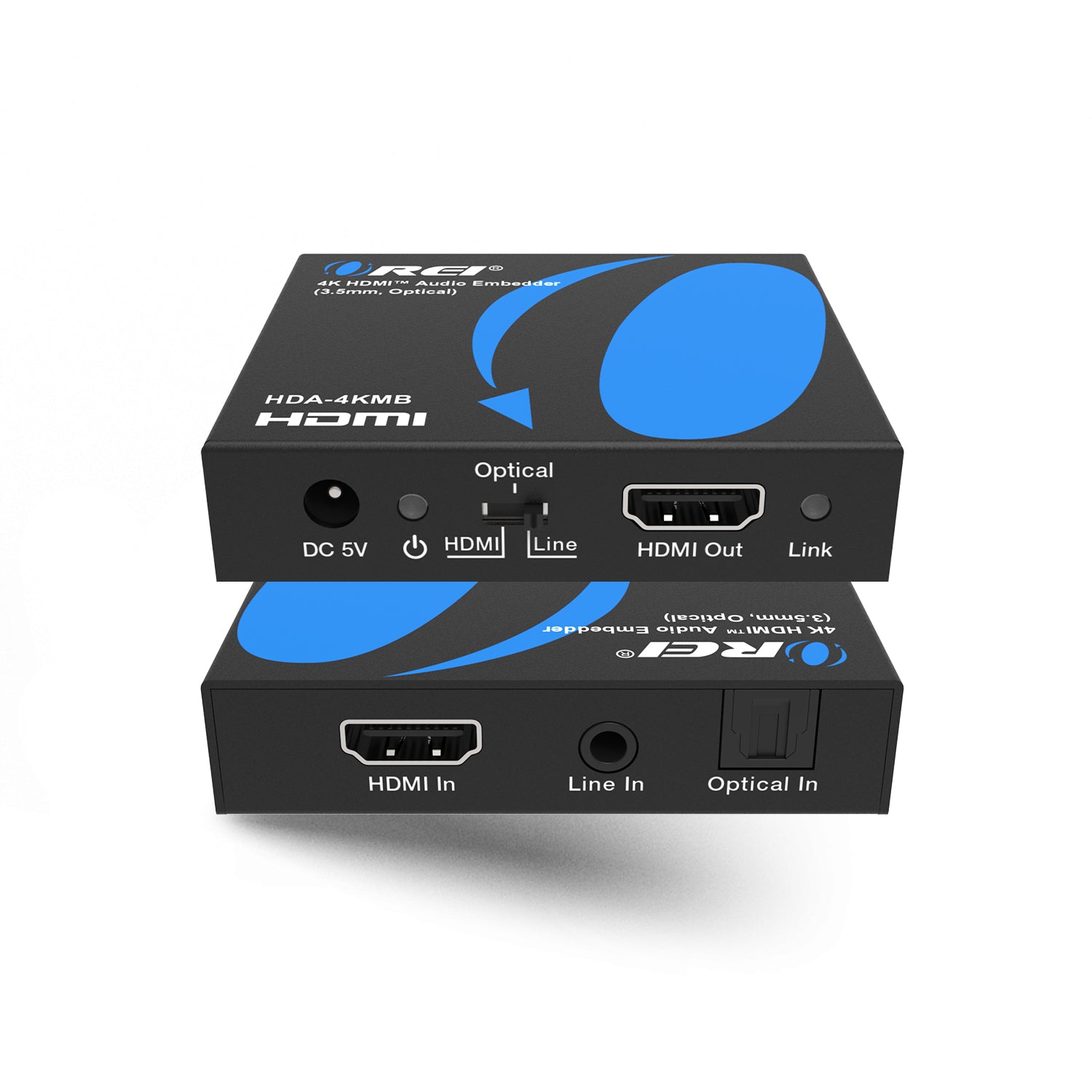

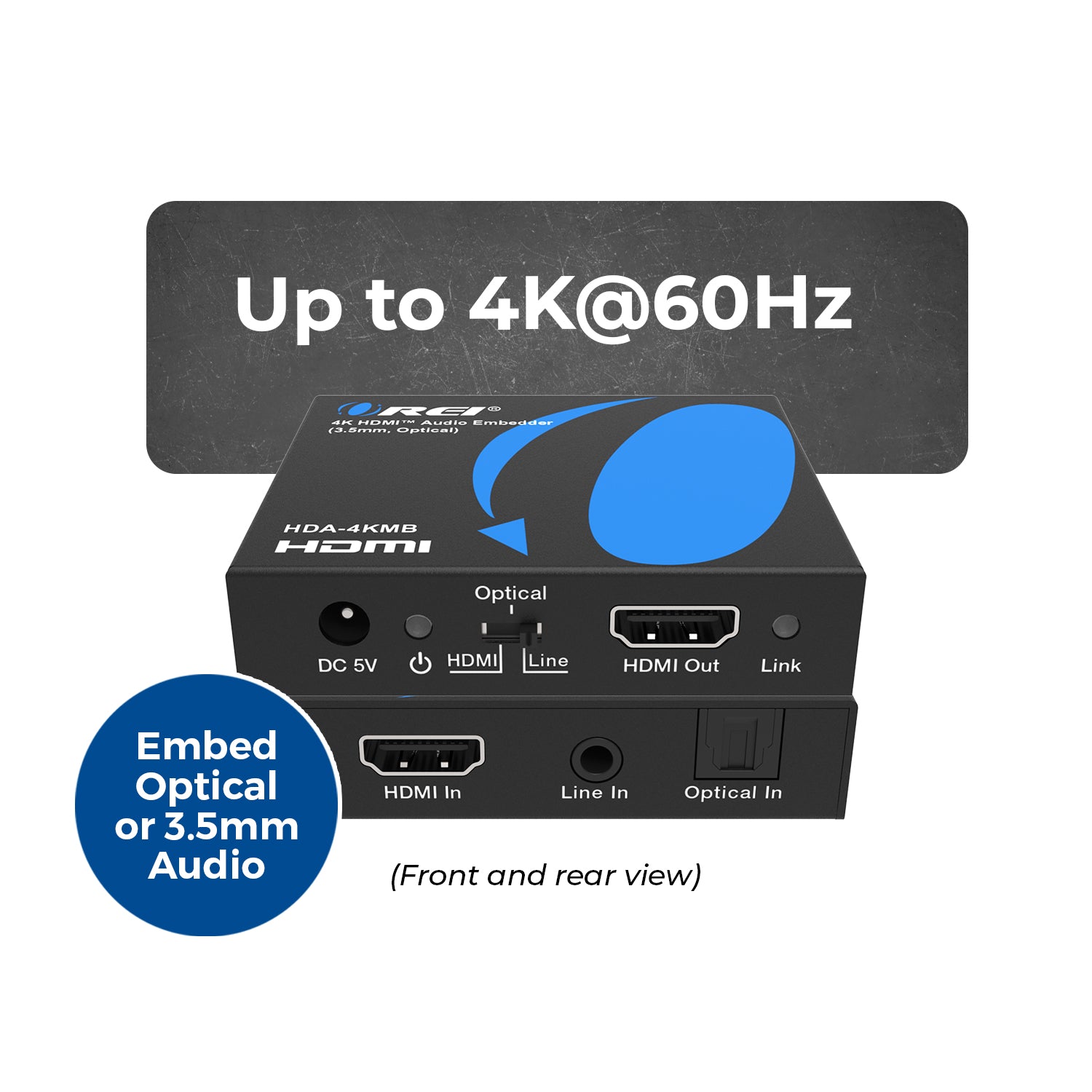

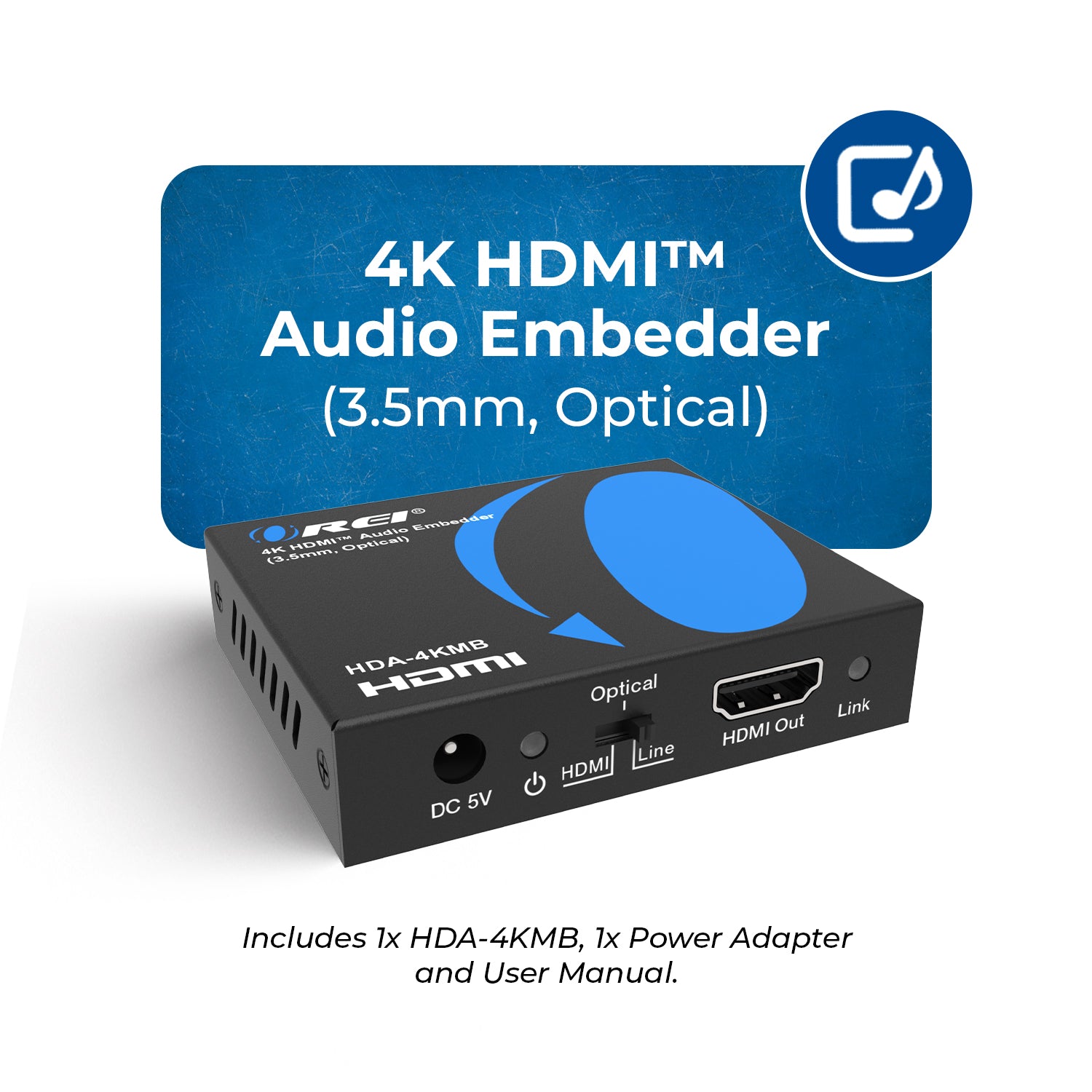

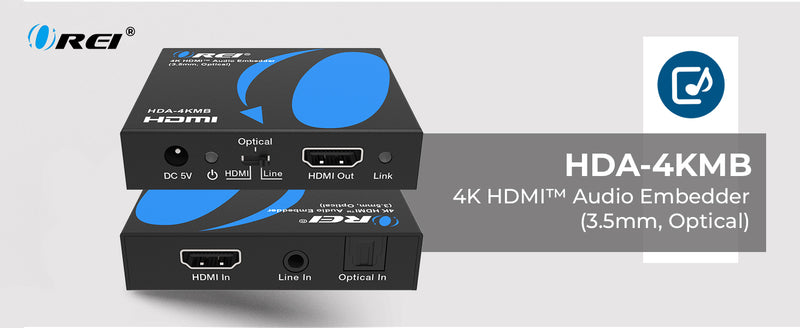

4K HDMI™ Audio Embedder (3.5mm, Optical)-HDA-4KMB
- Embed SPDIF or Analog Audio into HDMI
- Supports 4K@60Hz (4:4:4), HDR & HDCP 2.2
- Compatible with Dolby Atmos & DTS-HD MA
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
High-Resolution HDMI™ Audio Embedding Solution

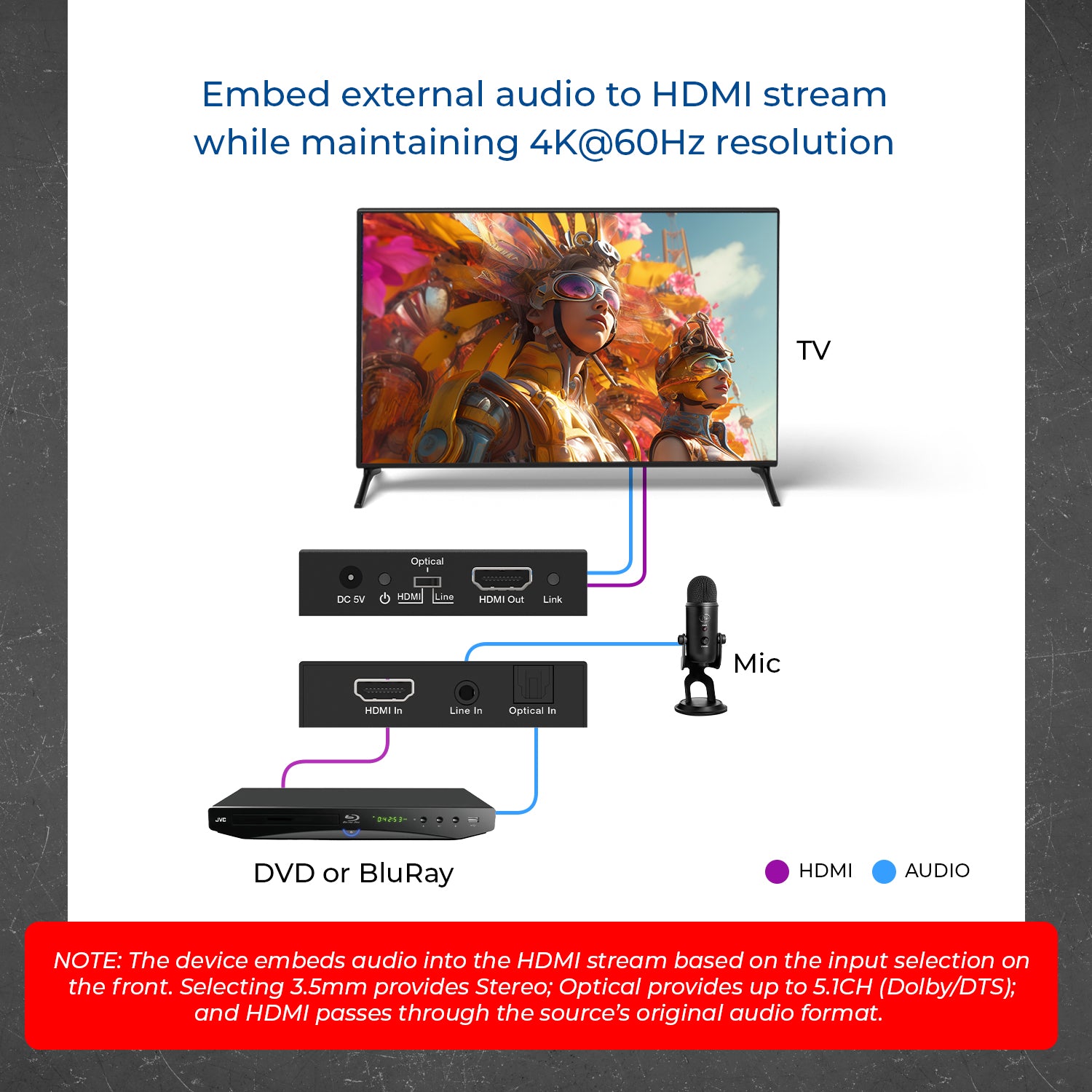

The HDA-4KMB is a high-performance HDMI™ audio embedder designed to seamlessly integrate external audio sources into an HDMI™ output. It allows embedding of digital optical (SPDIF) or analog stereo line-level audio, making it ideal for professional AV systems requiring flexible audio insertion without compromising video quality.
4K HDR Video & High-Bandwidth Performance
Built to support modern video standards, the HDA-4KMB handles resolutions up to 4K@60Hz (YUV 4:4:4) with full 18Gbps HDMI™ 2.0b bandwidth. It supports 10-bit HDR pass-through, ensuring compatibility with high dynamic range content while maintaining uncompressed video clarity and stable signal transmission across connected displays.
Advanced Multi-Format Audio Support

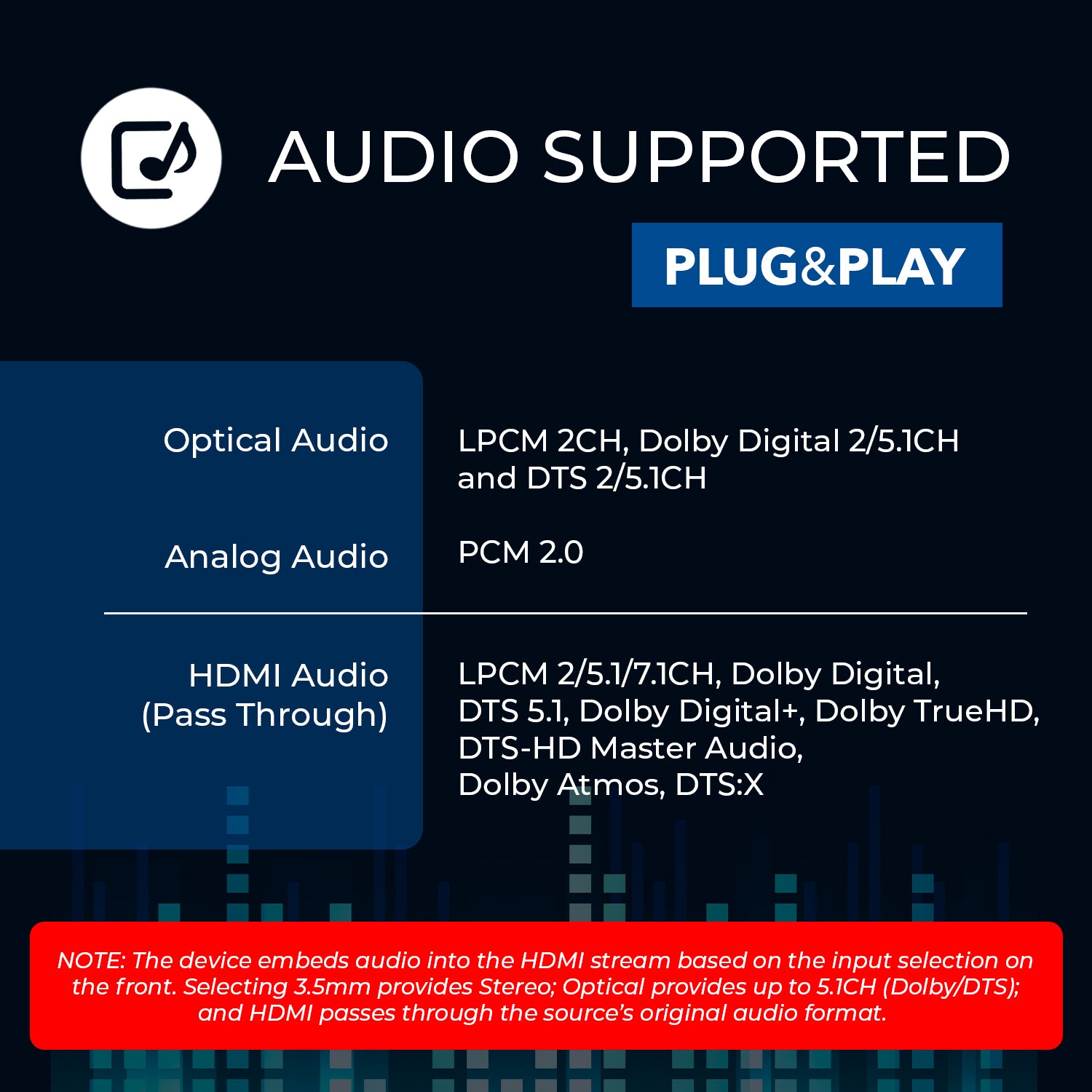

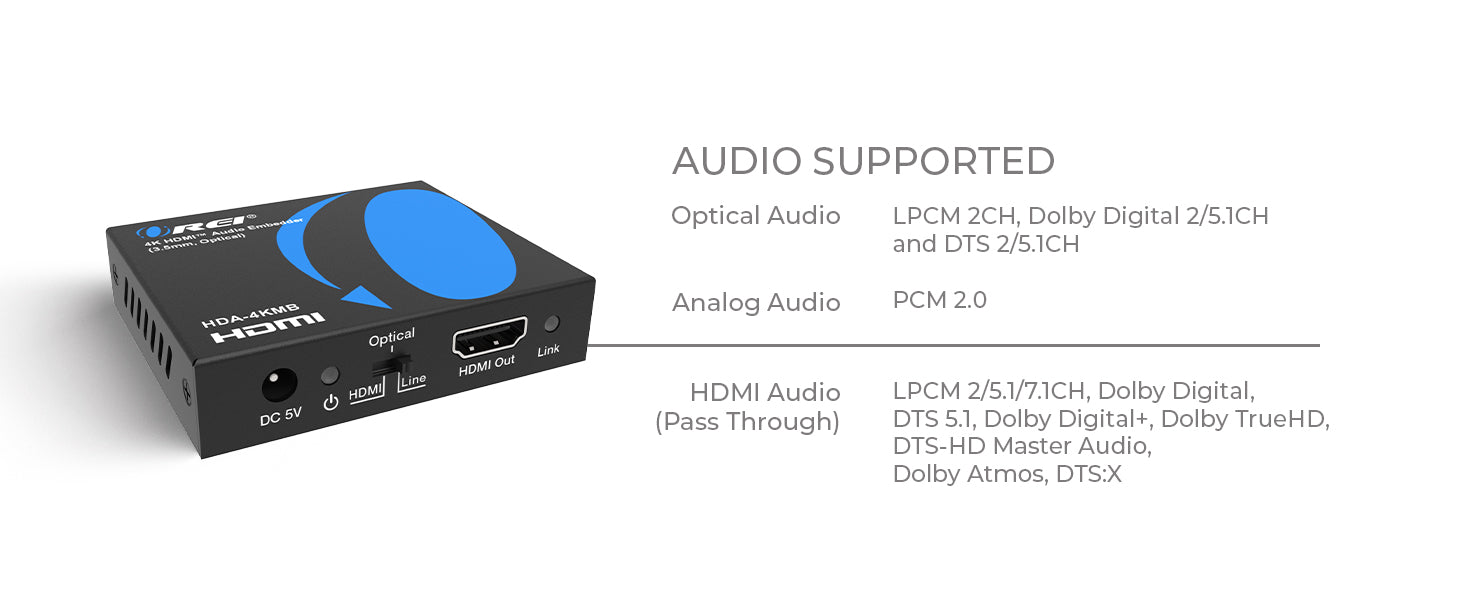

This embedder supports a wide range of audio formats including LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH via optical input, along with PCM 2.0 analog stereo embedding. It also passes through HDMI™ High Bit Rate (HBR) audio formats such as Dolby Atmos, Dolby TrueHD, and DTS-HD Master Audio, delivering immersive sound for high-end AV applications.

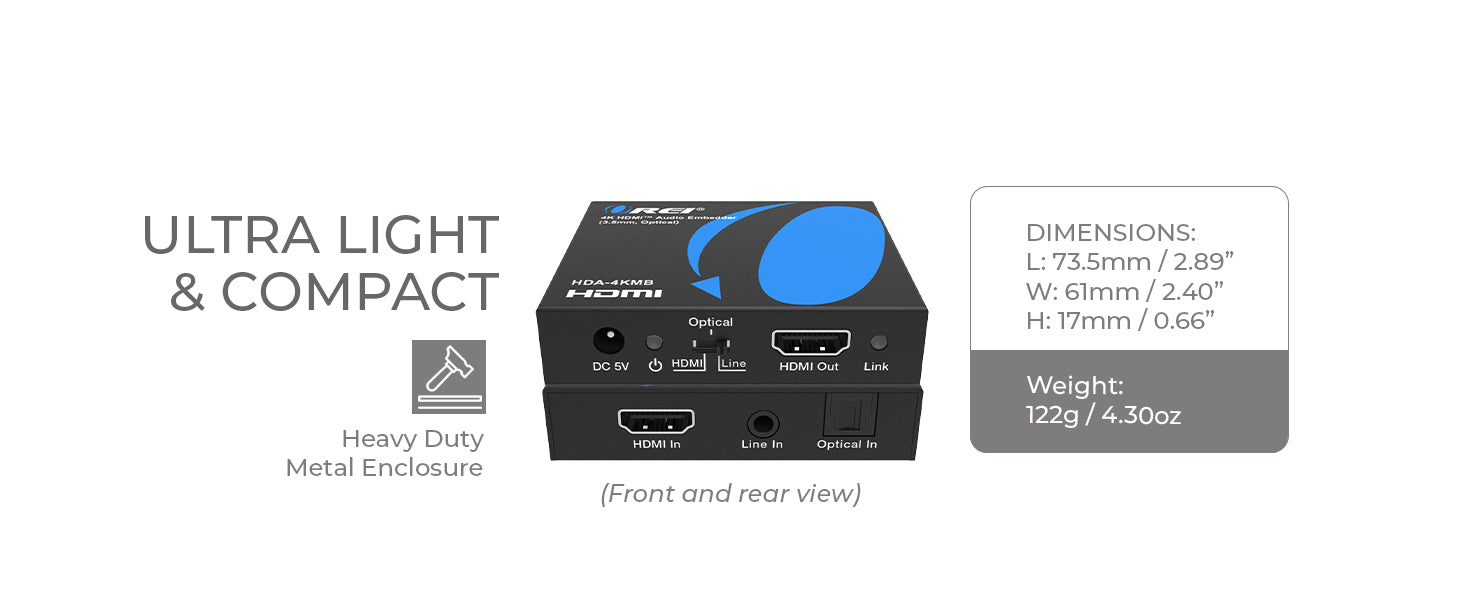

Compact Design with Professional Compatibility
Designed for both residential and commercial installations, the HDA-4KMB features a compact, reliable form factor that integrates easily into existing AV setups. With HDCP 2.2 compliance and CEC bypass support, it ensures smooth interoperability with protected content and connected devices, making it a dependable solution for home theaters, control rooms, and professional AV environments.
High-Resolution HDMI™ Audio Embedder with 4K HDR & Multi-Format Audio Support
Key Features:
- Audio Embedding – Embeds multi-channel digital optical (SPDIF) or analog stereo line audio into HDMI™ output.
- Optical Audio Support – Handles LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH formats.
- Analog Audio Support – Supports standard PCM 2.0 stereo analog audio embedding.
- 4K Video Resolution – Supports video resolutions up to 4K@60Hz (YUV 4:4:4) for stunning image quality.
- 18Gbps HDMI™ 2.0b Bandwidth – Delivers high-performance uncompressed video and audio signals.
- HDR Pass-through – Supports 10-bit HDR formats, including High Dynamic Range video content.
- High-Resolution Audio Pass-through – Supports advanced HDMI™ High Bit Rate (HBR) audio formats like Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more.
- HDCP 2.2 & CEC Bypass – Ensures content protection compatibility and seamless control integration.
- Compact & Reliable Design – Ideal for both residential and commercial AV environments.

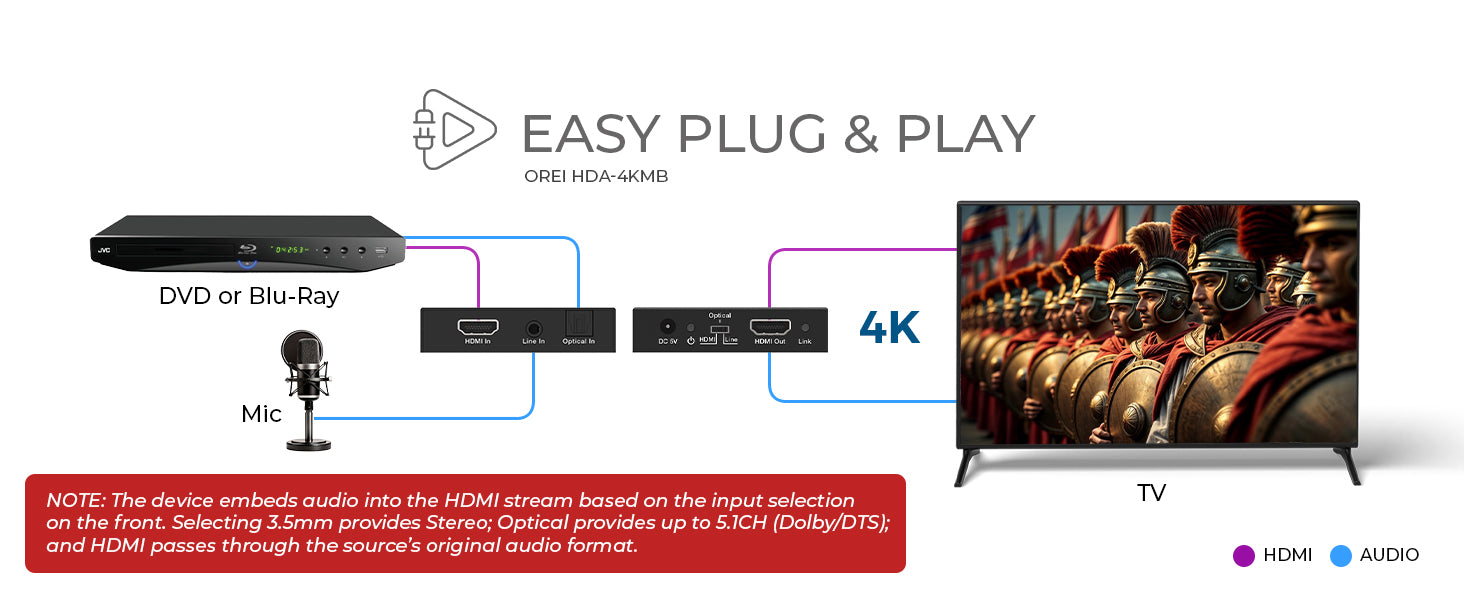

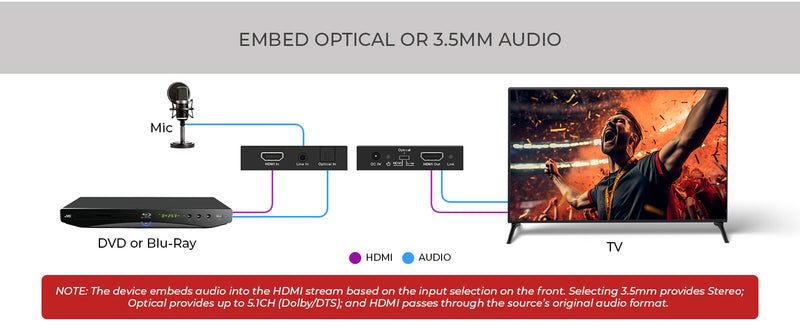

The HDA-4KMB is a high-performance HDMI™ Audio Embedder designed to seamlessly integrate external audio signals into an HDMI™ output. It supports embedding audio from either a digital optical (SPDIF) source or Analog stereo line input, providing flexible audio integration options for various AV setups.
With full support for HDMI™ 2.0b and HDCP 2.2 standards, this device handles video resolutions up to 4K@60Hz (YUV 4:4:4) and passes through advanced video formats, including 10-bit HDR (High Dynamic Range).
It also supports high-resolution digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more, ensuring an immersive audio-visual experience. Ideal for home theater systems, commercial AV installations, and professional applications where audio integration with HDMI™ output is required, the HDA-4KMB offers reliable, high-quality performance in a compact design
HDA-4KMB User Manual Download
