4K HDMI Extender Balun up to 230Ft Over CAT6/7 - One to Many Cascade 4K@60Hz 4:4:4 with HDR, Downscaling (UHD-IPC230-CS)

Name: 4K HDMI Extender Balun up to 230Ft Over CAT6/7 - One to Many Cascade 4K@60Hz 4:4:4 with HDR, Downscaling (UHD-IPC230-CS)
Brand: OREI.COM
SKU: UHD-IPC230-CS-K
Price: 79.99 USD
Availability: InStock

$149.99

Shipping calculated at checkout.

SKU: UHD-IPC230-CS-K

Supports up to 10 receivers in cascade
Auto adapt to display resolution
Support bi-directional IR, Dolby 5.1, 7.1Ch

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Style

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

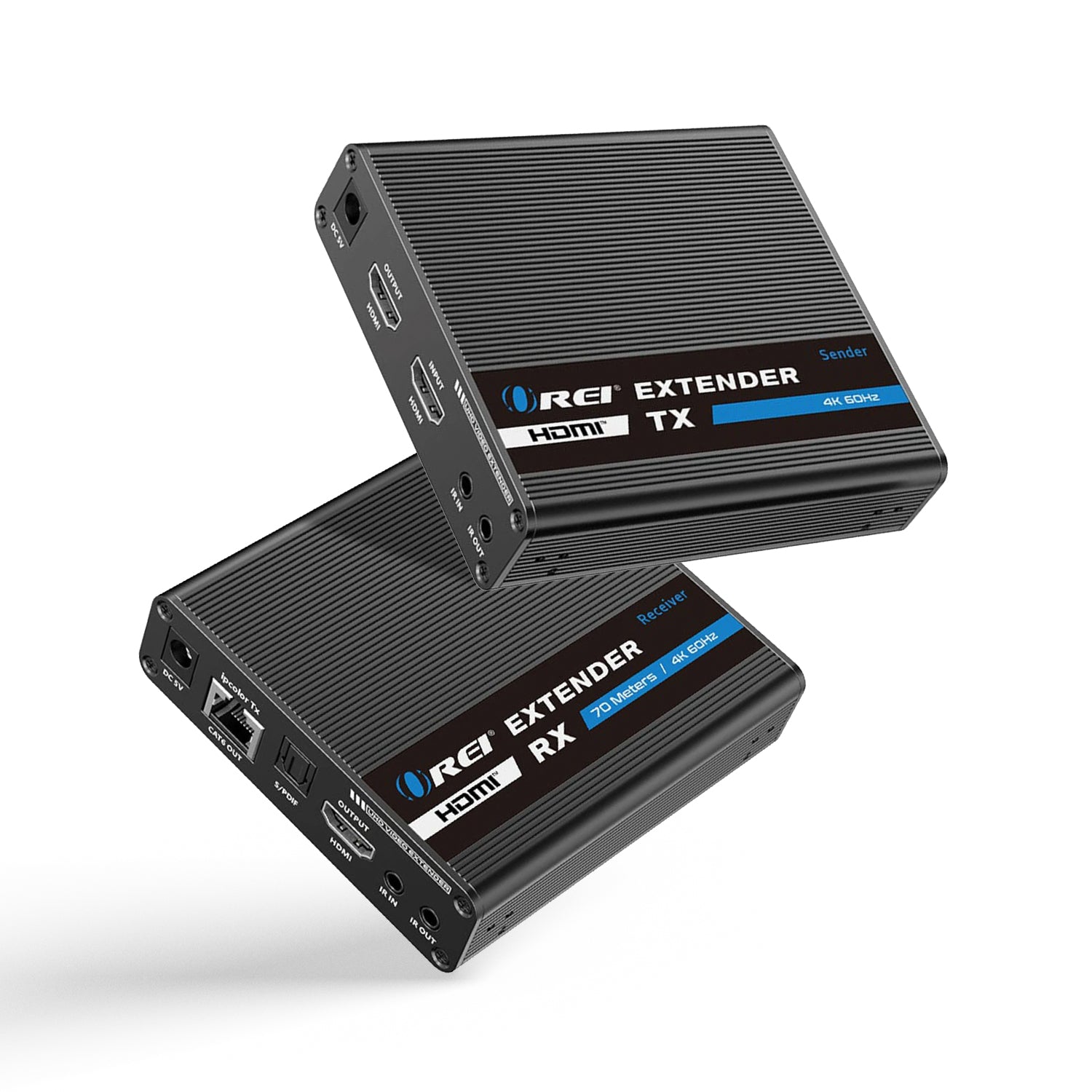

OREI UHD-IPC230-CS 4K HDMI Extender Balun up to 230Ft

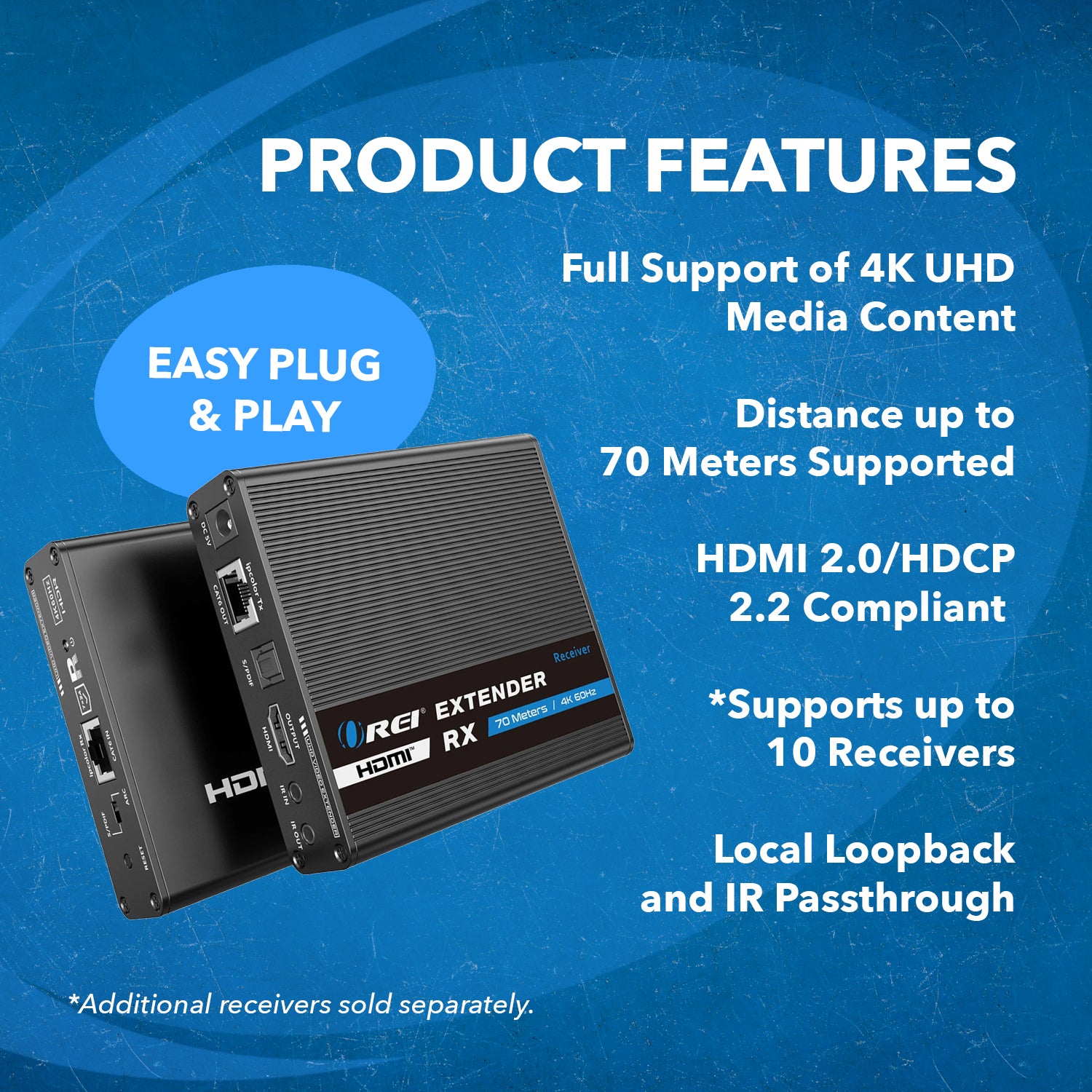

Key Features:

Supports HDMI 2.0 & HDCP 2.2 compliance

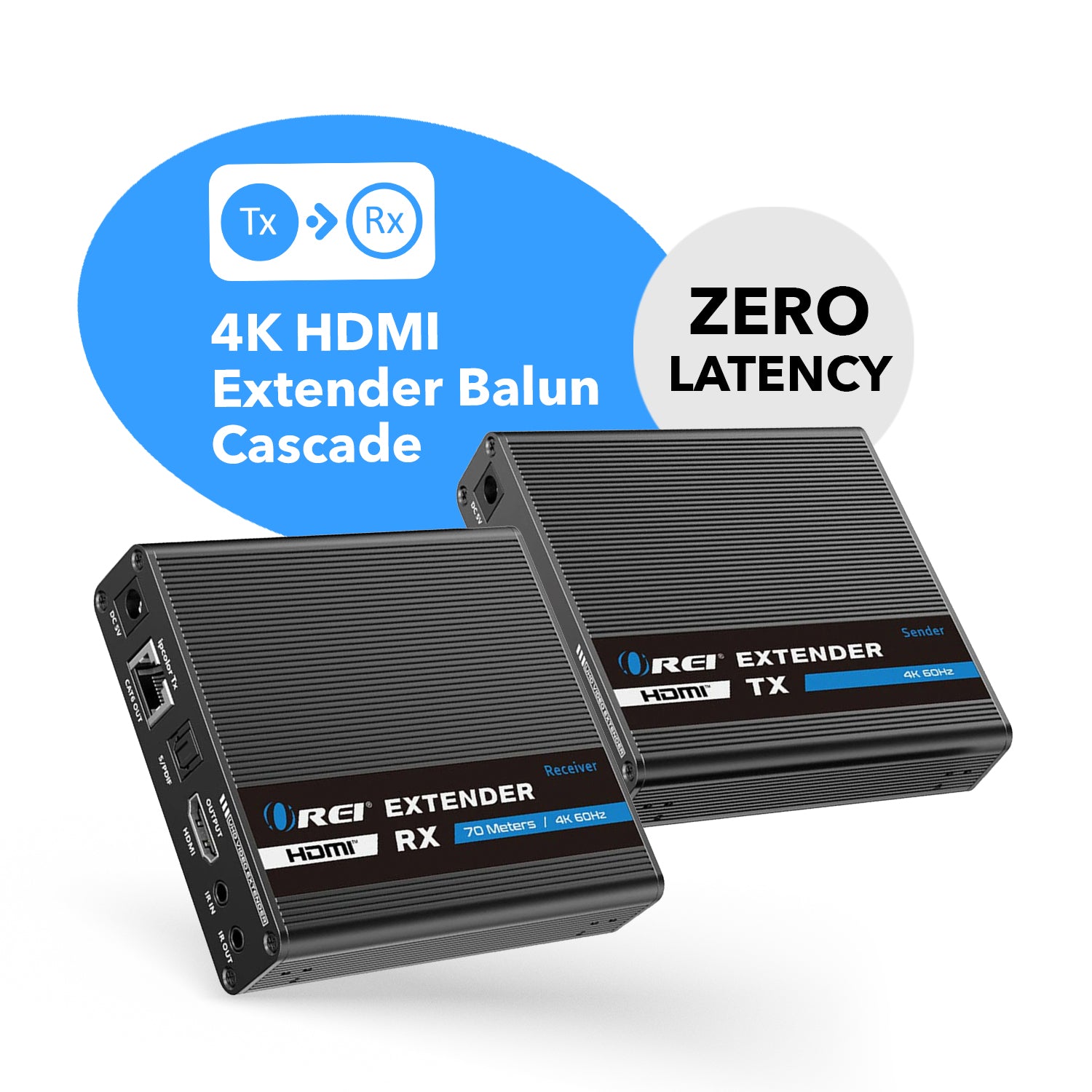

Transfers video signals at Zero latency

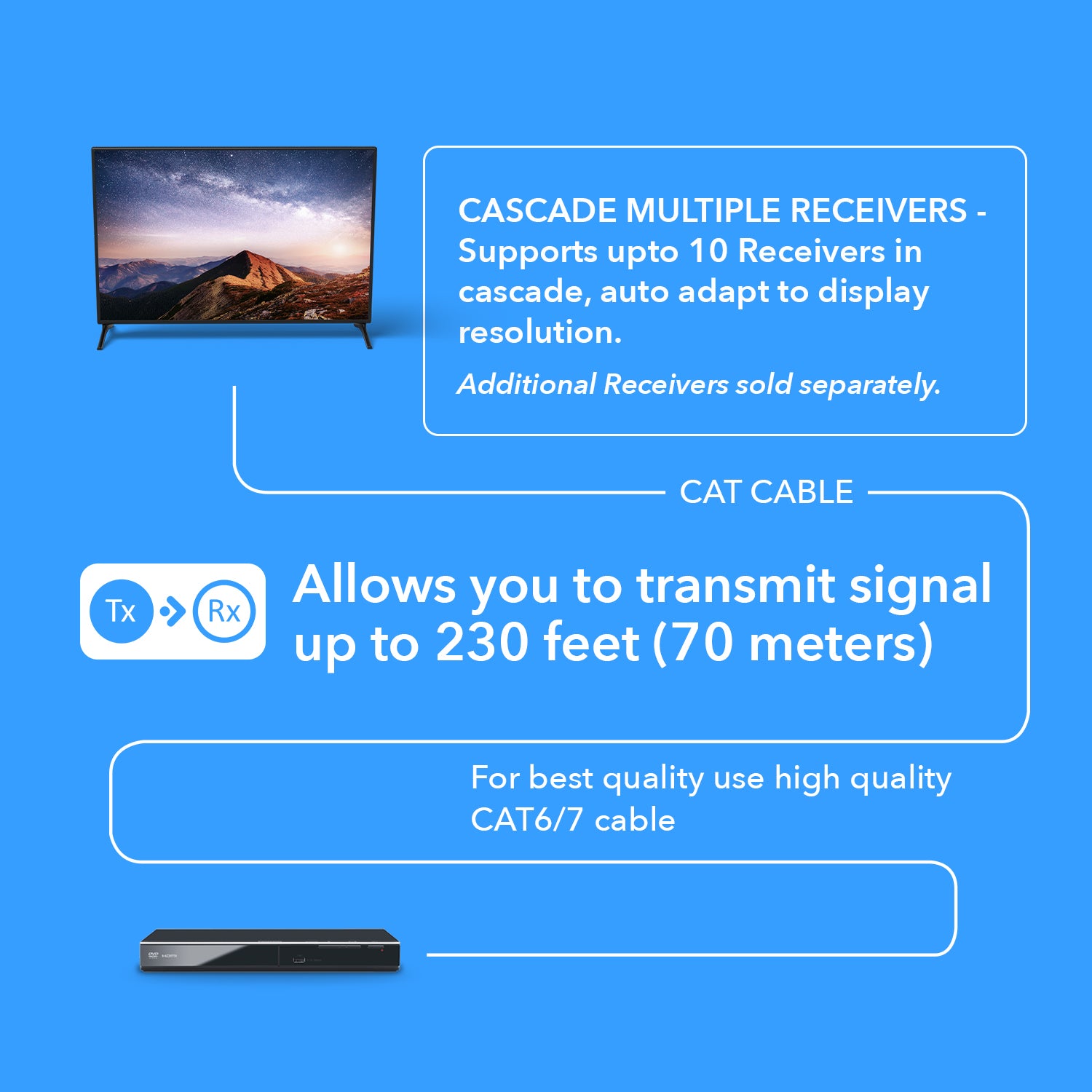

Extends 4K@60Hz up to 230ft, distance decreases to 165ft when cascading receivers

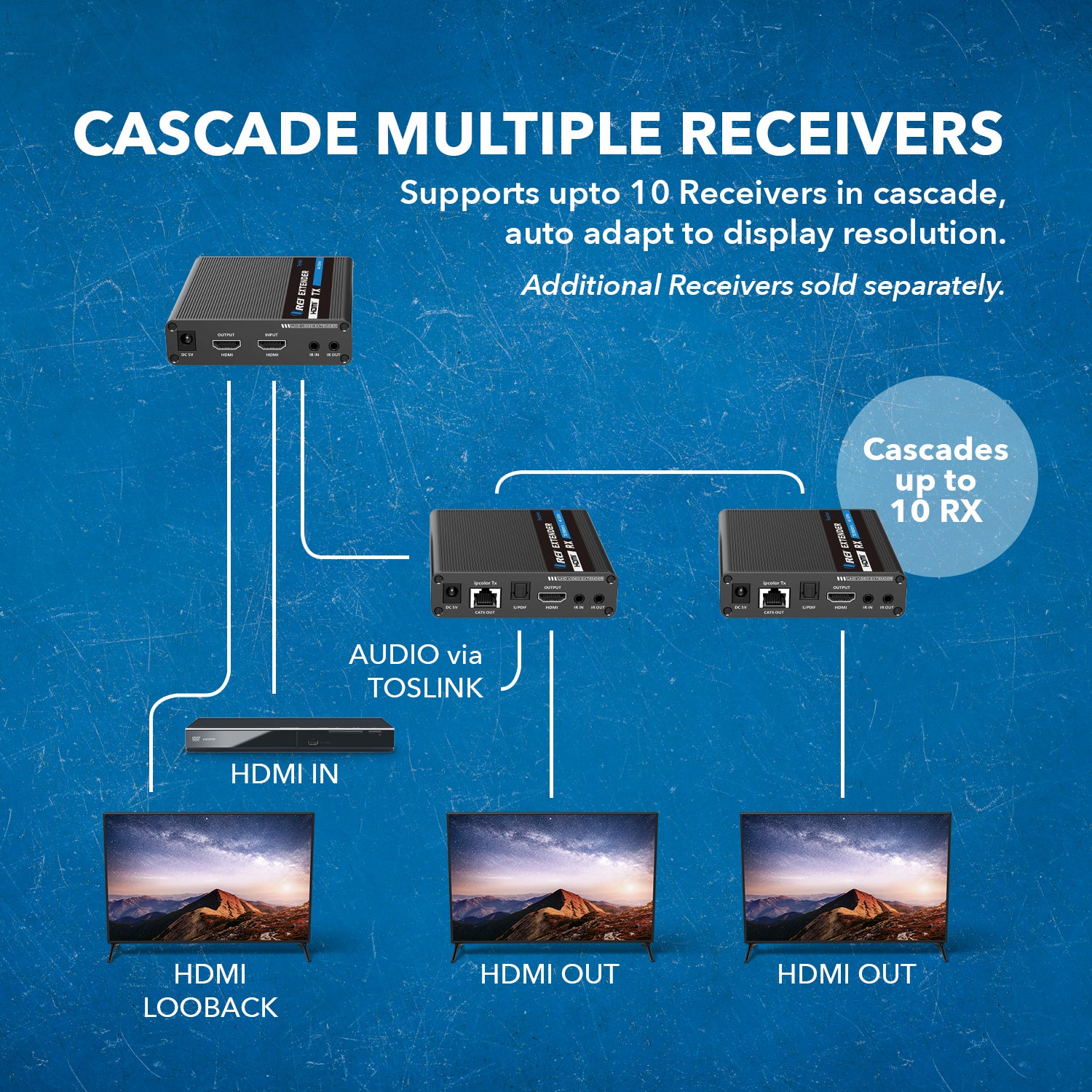

Supports up to 10 receivers in cascade
Auto adapt to display resolution
The receiver can extract the digital audio from the transmitter through S/PDIF port
Supports Dolby TrueHD 7.1Ch, Dolby Digital 5.1Ch audio formats
Supports HDR (YUV4:4:4), EDID pass back
Transmitter support one HDMI loop-out port
Supports bi-directional IR pass back function (20-60Hz)
Anti-lightning, anti-surge, anti-static protection

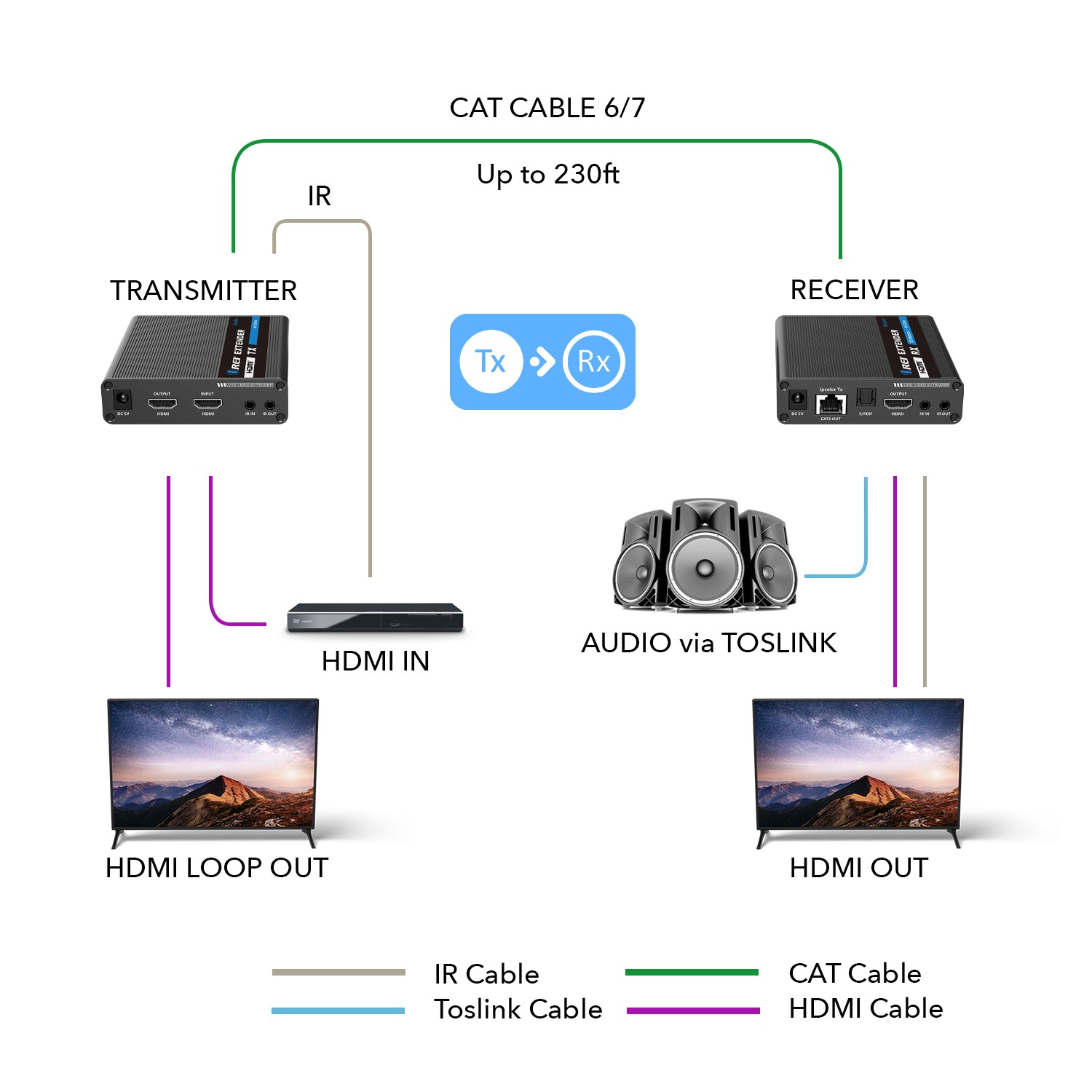

This HDMI Extender - UHD-IPC230-CS with HDMI loop out port can extend 4K@60Hz 4:4:4 HDMI signal over 230 feet via shielded CAT6 cable.

It supports EDID passthrough, auto downscaling & cascading up to 10 receivers (distance decreases to 165ft when cascading receivers). It also supports bi-directional IR control which allows you to easily control your DVD player at TV side or control your TV at DVD player side when using this extender. Besides, the receiver can extract the digital audio from the transmitter through the S/PDIF port.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI Input
		1x IR Input
	OUTPUT PORTS:	1x HDMI Output
		1x IR Out
		1x RJ45 Out
Receiver:	INPUT PORTS:	1x IR Input
		1x RJ45 Input
	OUTPUT PORTS:	1x IR Output
		1x RJ45 Output
		1x Optical Output

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP 2.2

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:	Up to 230 feet
Cascaded receivers:	Up to 165 feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	480i@60Hz, 480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1600x900, 1024x768, 800x600

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Bi-directional
Downscaler Function:	Yes
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO OUTPUT

HDMI Audio Formats:	LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1Ch/Dolby Digital 5.1Ch
SPDIF/Optical Audio Formats:	Up to 5.1Ch.

SIGNALS

TMDS Signals:	0.7-1.2Vp-p(TMDS)
DDC Signals:	5Vp-p(TTL)

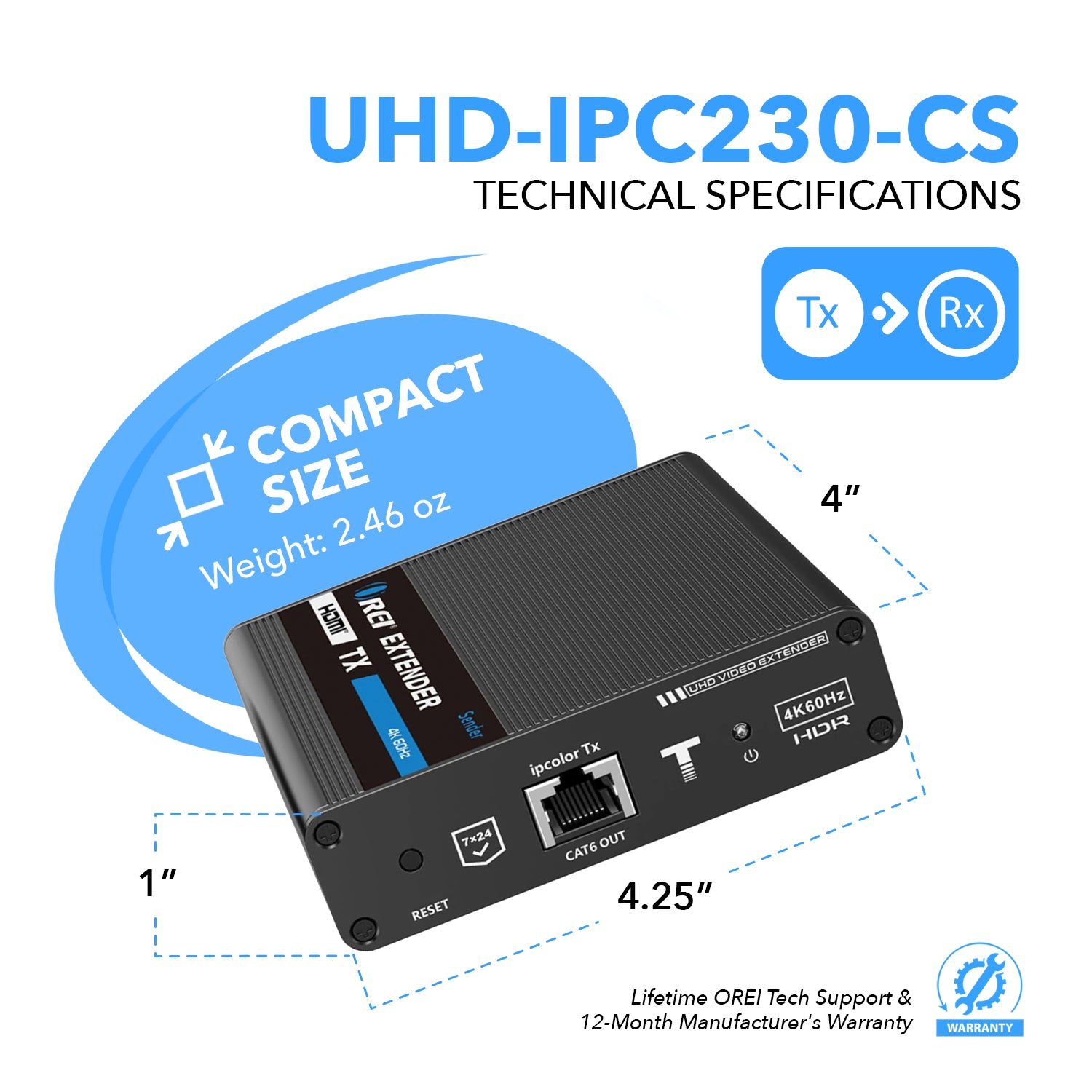

DIMENSIONS & WEIGHT

Height:	26.2mm
Width:	99mm
Depth:	106mm
Weight:	Transmitter:	210g
	Receiver:	210g

PROTECTION

Operation Temperature:	-20 ~ 60°C
Storage temperature:	-30 ~ 70°C
Relative Humidity:	0 ~ 90% RH
Electrostatic Protection of the whole Machine:	1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter:	4W
	Receiver:	4W
Power Supply:	DC 5V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Aluminium Alloy Material + Crystal Panel
Treatment Process:	Grit Blast
Input Cable Length:	<=8m(AWG24)
Output Cable Length:	<=8m(AWG24)

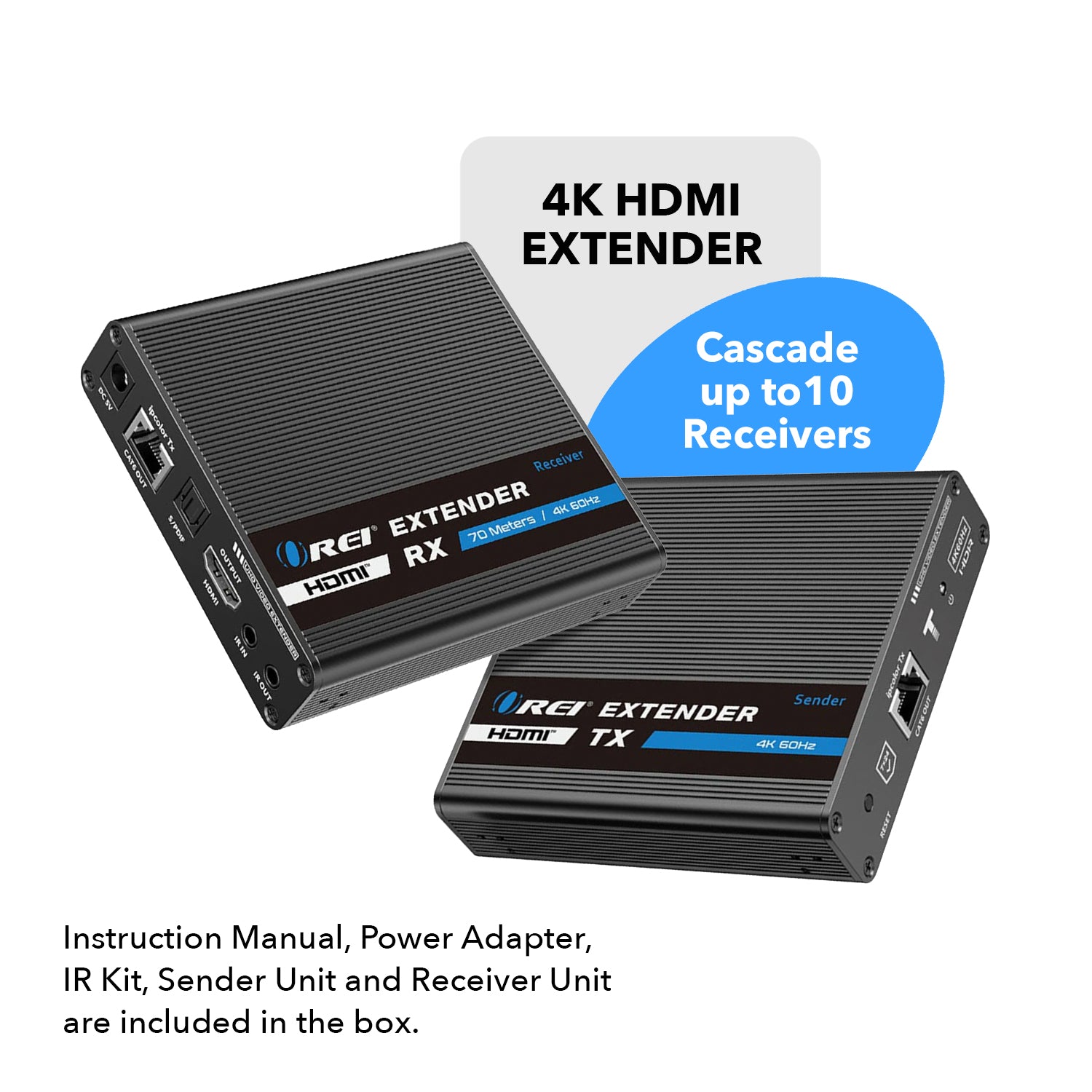

PACKAGE CONTENTS

1x HDMI Transmitter

1x HDMI Receiver

1x IR Blaster Extension Cable

1x IR Receiver Extension Cable

8x Mounting Brackets

18x Screw

2x DC5V/2A Power Supply

1x User Manual

WARRANTY

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-IPC230-CS-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.
