4K@60hz HDMI™ Extender (KVM) - 230ft (cat6)-UHD-EX230-KVM
-
KVM and HDMI extender over ethernet up to 230 feet
-
Video resolutions up to 4K@60Hz 4:4:4
-
Audio extraction & Bi-directional Power over cable
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
1. Ultra HD 4K Video Extension Without Compromise
Deliver stunning 4K@60Hz video with full RGB and 4:4:4 chroma subsampling using this high-performance HDMI extender. With support for HDMI 2.0b and HDCP 2.2, it ensures compatibility with the latest high-definition displays and protected content—making it ideal for home theaters, control rooms, and high-end AV setups.
2. Zero-Latency Transmission Over Long Distances
Transmit uncompressed video and audio signals up to 230 feet (70 meters) over a single CAT6/6a cable without any delay. This extender HDMI 4K solution supports a bandwidth of 18Gbps, making it perfect for real-time applications like broadcasting, live monitoring, and interactive presentations where zero-latency HDMI over Ethernet 4K is essential.
3. Enhanced Audio Flexibility and EDID Compatibility
Enjoy immersive audio with support for formats like LPCM 2.0–7.1, Dolby Digital, Dolby TrueHD, and Dolby Digital Plus. The 3.5mm analog audio output allows for audio de-embedding directly from the receiver, offering flexibility for external speakers or sound systems. Built-in EDID pass-through ensures optimal handshaking between your source and display devices for reliable performance.
4. Remote KVM Control and Simplified Power Setup
Featuring USB 1.1 KVM pass-through, this KVM extender over Cat6 allows for remote control of the source device via keyboard and mouse at the display location. With bi-directional Power over Cable (PoC), the system can be powered from either end, reducing cable clutter and simplifying installation. The compact, installer-friendly design is a perfect fit for any professional HDMI and USB over Ethernet deployment.
OREI 4K KVM Extender over Ethernet up to 230 feet - With Audio extraction & Bi-directional Power over Cable
-
HDMI 2.0b & HDCP 2.2 Compliant
-
Features USB 1.1 Protocol
-
4K@60Hz transmission up to 230ft
-
Zero latency transmission using CAT6/6A/7 cables.
-
KVM functionality to control a PC remotely.
-
HDR10, HLG, and Dolby Vision pass-through
-
Audio extraction through the receiver’s L/R port
-
Bi-directional power over cable functionality; only requires one power adapter to power up both units.
-
EDID copy pass-through function between the source device and display device
-

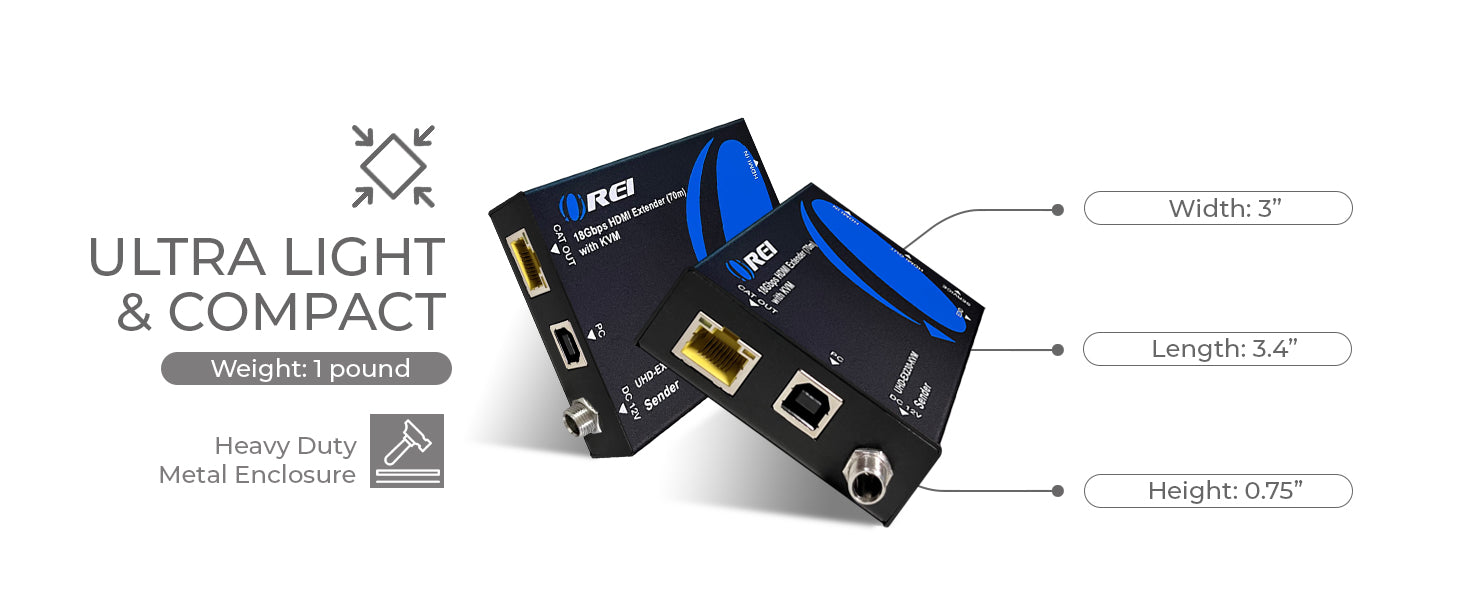

Compact build with easy installation.
-
Perfect for both personal and commercial uses.

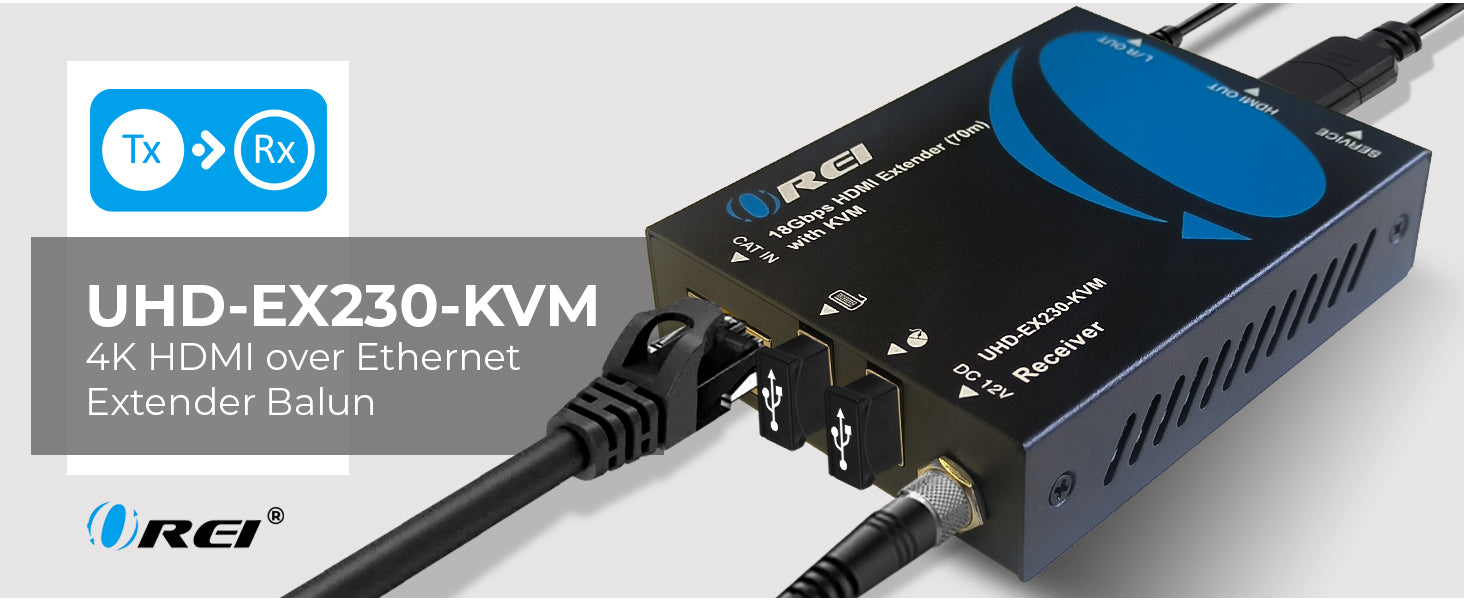

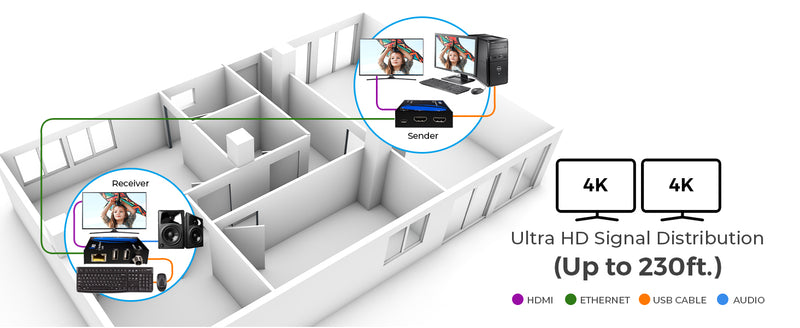

The UHD-EX230-KVM HDMI Extender supports resolutions up to 4K@60Hz and can extend HDMI and KVM signals up to 70m/230ft over a CAT6/6A/7 cable. It is HDMI 2.0b, HDCP 2.2, and USB 1.1 compliant. The device can extract audio from the source and output it through the L/R port on the receiver unit. It supports pass-through for HDR, Dolby Vision, and HLG. It requires a point-to-point connection and also supports KVM functionality, allowing a keyboard and mouse at the receiver end to control the PC or laptop at the source. The bi-directional power-over-cable technology requires only one power adapter to power both devices, adding flexibility to the setup. It also features an EDID copy pass-through function between the source and display devices. With a robust metal build and compact size, it ensures easier installation. Compact design with easy plug-and-play installation. Perfect for commercial and personal uses.
UHD-EX230-KVM User Manual Download
UHD-EX230-KVM Specifications Sheet
