4K HDMI/USB-C HDBaseT 3.0 Extender over CAT6/7 with KVM (UHD-EXB330CU-K)

Name: 4K HDMI/USB-C HDBaseT 3.0 Extender over CAT6/7 with KVM (UHD-EXB330CU-K)
Brand: OREI
SKU: UHD-EXB330CU-K
Price: 509.99 USD
Availability: InStock

$509.99 $599.99

Shipping calculated at checkout.

SKU: UHD-EXB330CU-K

USB KVM Control
4K@60Hz up to 330 feet
HDBaseT 3.0 technology

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD-EXB330CU-K: 4K HDMI/USB-C HDBaseT 3.0 Extender over CAT6/7 with KVM

Key Features:

HDMI 2.0b & HDCP 2.3 compliant
18Gbps video bandwidth
Video resolutions up to 4K@60Hz at 330 feet
Reach up to 490 feet distance at 1080p resolution with the flick of a

switch
HDBaseT 3.0 technology
USB-C and HDMI Inputs
DP-ALT mode support and charging up to 60 watts on the USB-C port
HDR10+, Dolby Vision, and HLG pass-through
4K to 1080p Downscaling on HDMI Output
Analog audio output on both ends for Audio Extraction
Each USB-A port provides power up to 5V/500mA

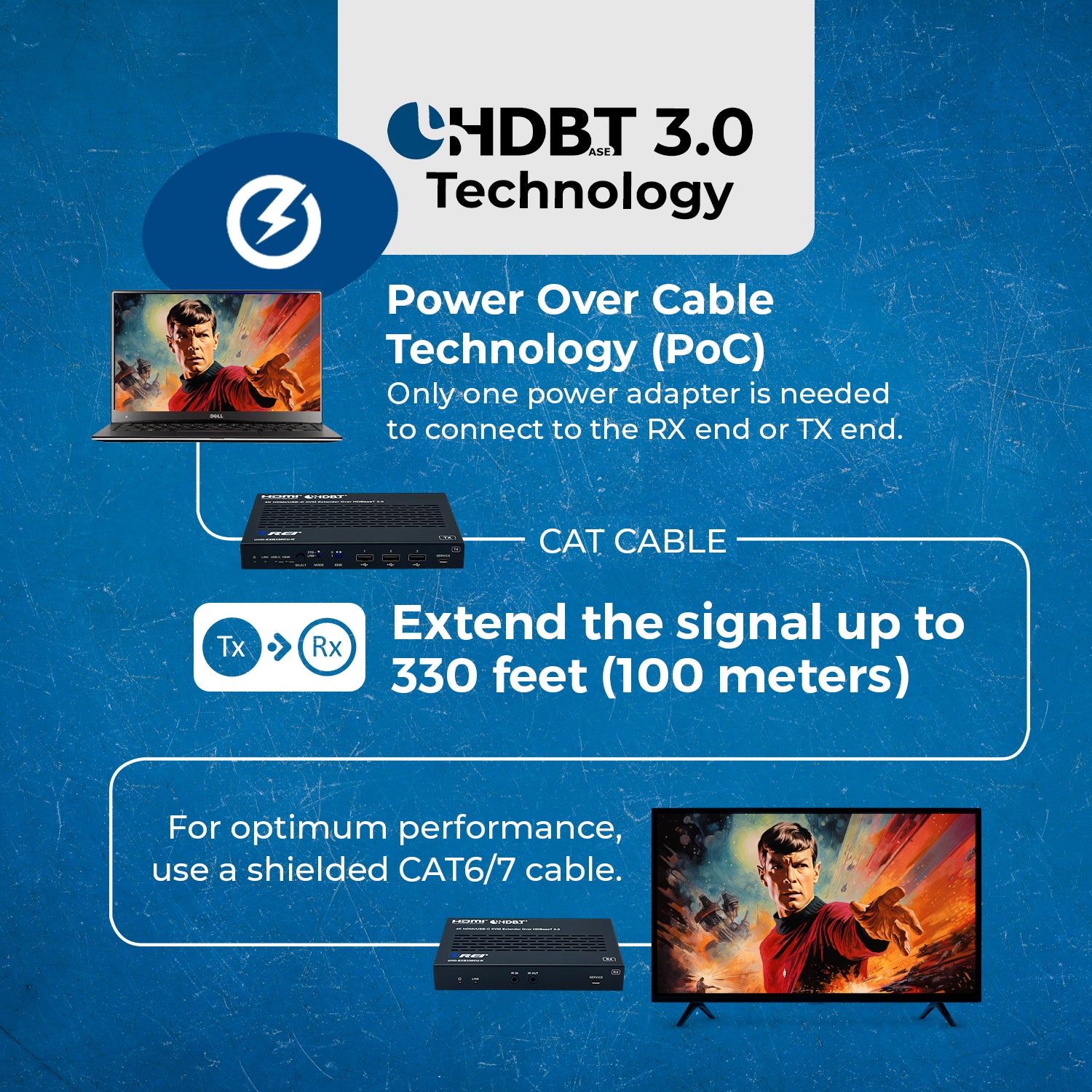

Power over Cable technology for easy and flexible installation

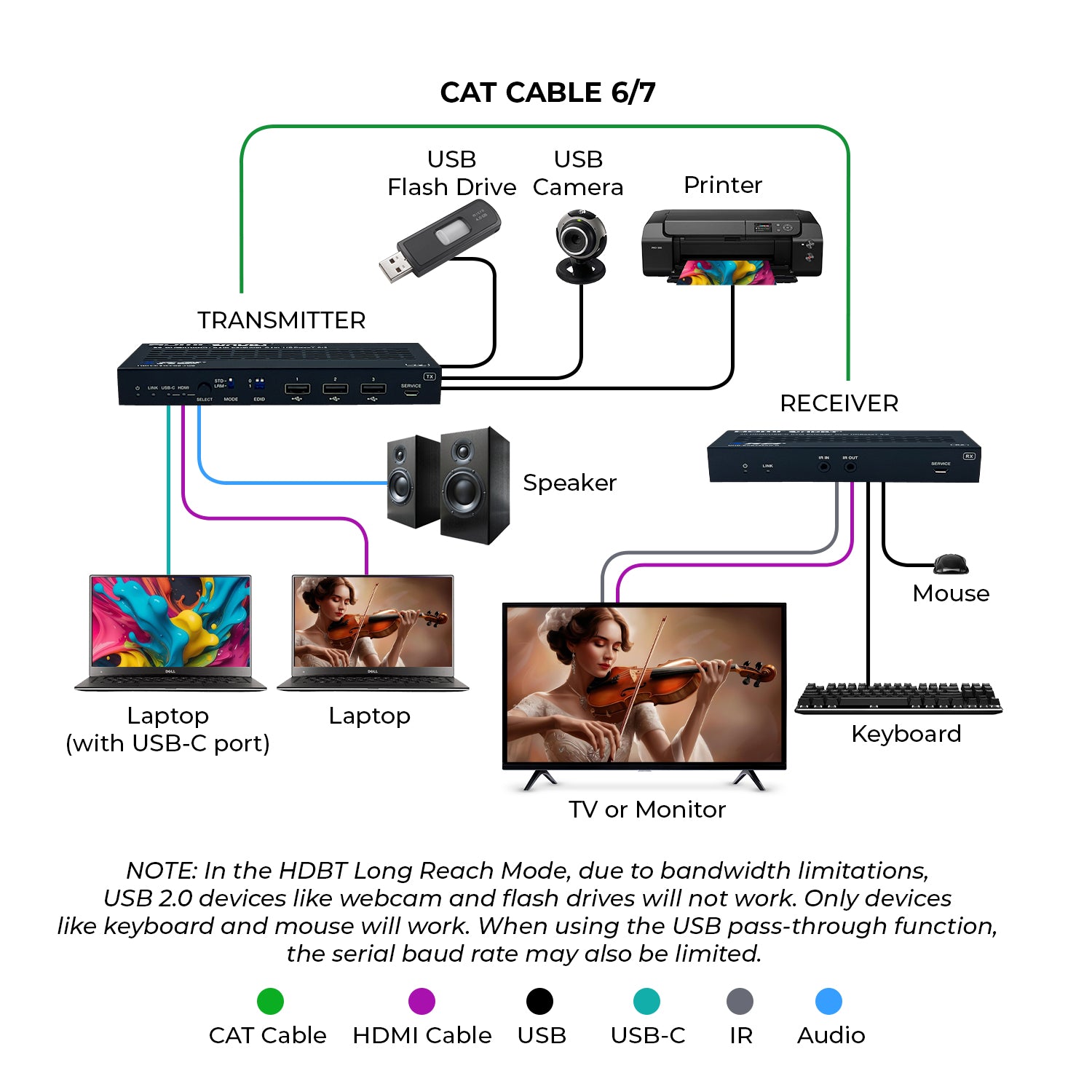

The UHD-EXB330CU-K HDMI extender is a versatile gadget that can send uncompressed audio-video signals up to 330 feet with just a single CAT 6/6A/7 cable. It features support for video resolutions up to 4K@60Hz. The device also features a USB-C input, which makes it compatible with the latest laptops and other devices. KVM function allows you to control a laptop or PC from the Receiver location. It also features Bi-directional IR and PoC with HDBaseT 3.0 technology. It also supports 4K to 1080p Downscaling on the HDMI output. This device is perfect for home office and home theatre setups.

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
		1 × USB [Type C, 24-pin female]
	OUTPUT:	1 × HDBaseT [RJ45, 8-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	Control:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3pin-3.81mm phoenix connector]
		1 × SERVICE [Micro USB, 5-pin female]
		1 × USB HOST [USB Type B, 4-pin female]
		3 × USB Devices [USB Type A, 4-pin female]
Receiver:	INPUT:	1 × HDBaseT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	Control:	1 x IR IN [3.5mm Stereo Mini-jack]
		1 x IR OUT [3.5mm Stereo Mini-jack]
		1 x RS-232 [3pin-3.81mm Phoenix jack]
		1 × SERVICE [Micro USB, 5-pin female]
		2 × USB Devices [USB Type A, 4-pin female]

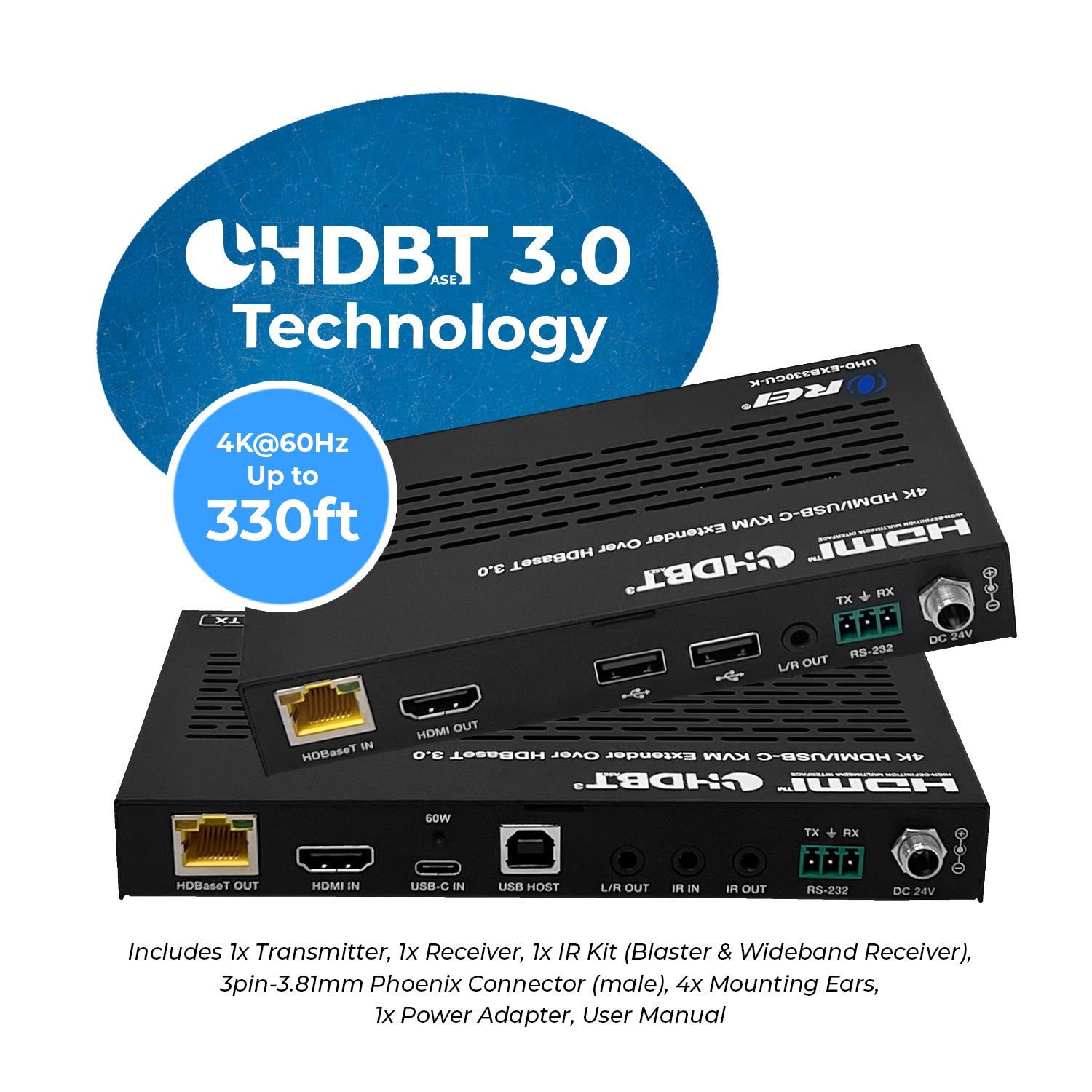

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

2x 3pin Phoenix Connector

4x Mounting Brackets

8x Screw (KM3*4)

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

Up to 330 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	Yes
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	Yes
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	No
Number of Loop out ports:	0

AUDIO OUTPUT

HDMI Audio Formats:	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
SPDIF/Optical Audio Formats:	LPCM 2CH

COMPLIANCES

HDMI Compliance:	HDMI 2.0b
HDCP Compliance:	HDCP 2.3

POWER

Power Consumption (Max):	94.32W Max (with power supply on Tx, USB-C charging enabled)
	10.8W Max (with power supply on Tx or Rx, USB-C charging disabled)
Power Supply:	Input: AC 100-240V 50/60Hz Output: DC 24V 3.75A

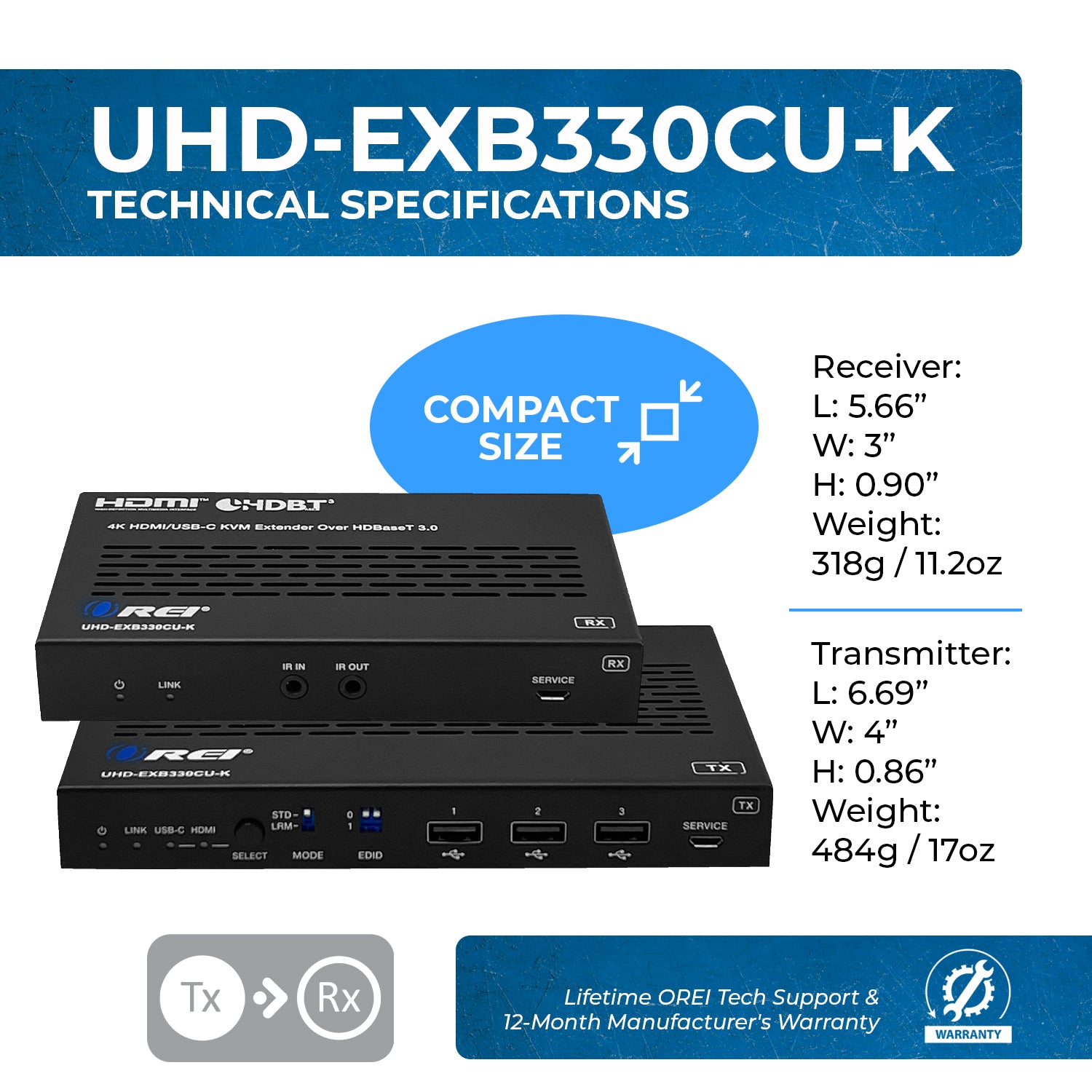

DIMENSIONS & WEIGHT

Transmitter:	Length:	170mm / 6.69in
	Width:	102mm / 4.01in
	Height:	22mm / 0.86in
	Weight:	484g / 17oz
Receiver:	Length:	144mm / 5.66in
	Width:	78mm / 3.07in
	Height:	318g / 11.2oz
	Weight:	484g / 17oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-EXB330CU-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with an increase in the distance, and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 330 Feet when using a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has a low bandwidth as compared to CAT6. We recommend you use a shielded CAT6 cable.

If the power and link LED lights do not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
