OREI UHD-EXB400-KVM 4K KVM HDMI HDBaseT Extender up to 400Ft

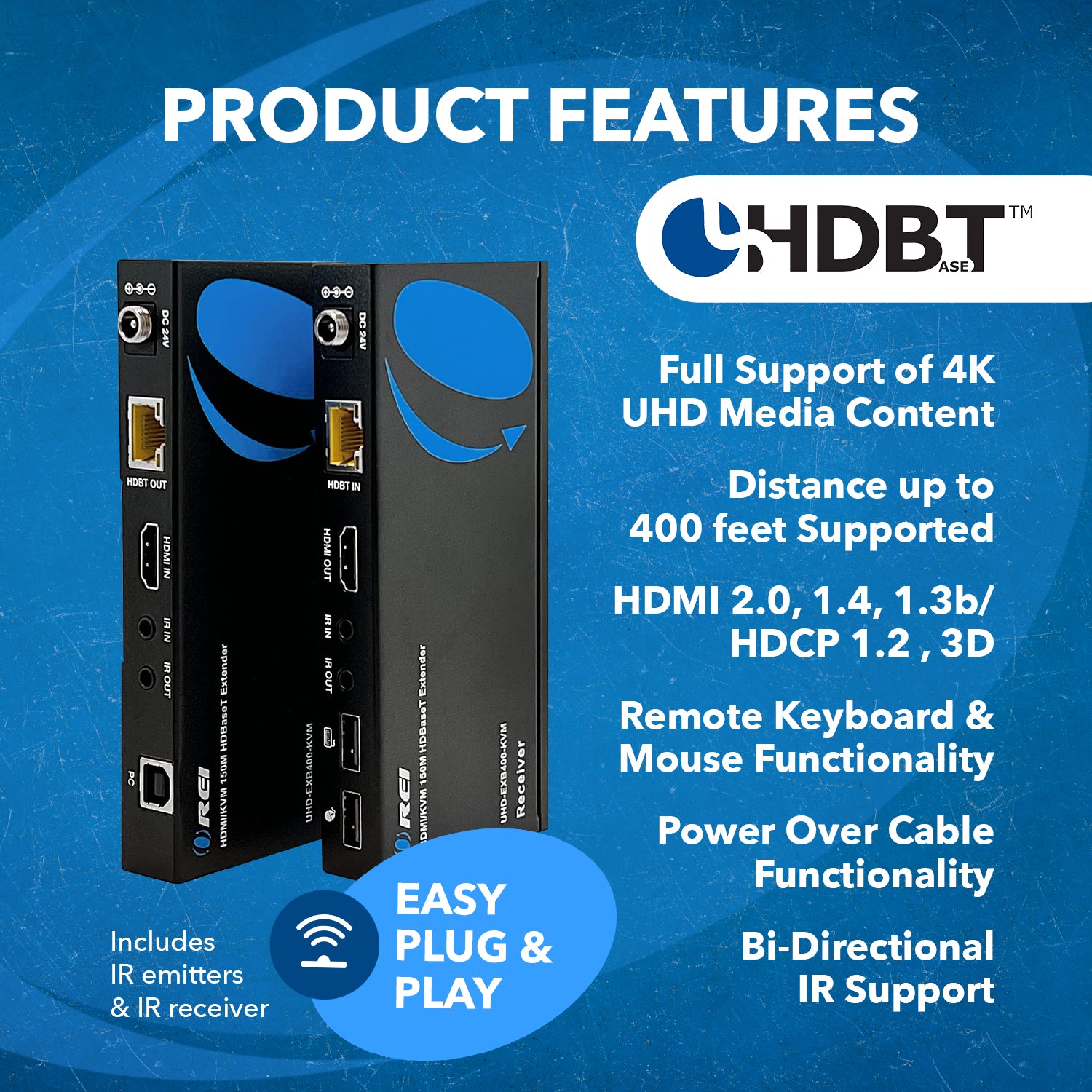

Key Features:
Transfers the 4K UHD video resolutions at zero latency
Supports KVM (keyboard, and mouse) function
HDMI 2.0, HDCP 2.2, and USB 1.1 compliant
Extends 4K@60Hz signal up to 400 feet via shielded CAT6/7 cable
Supports HDR (YUV 4:4:4) with EDID
KVM - This feature allows you to control your PC through Keyboard/Mouse remotely at the receiver end.
Support 18Gbps Video Bandwidth
This unit requires only one power adapter to work
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
Surge protection, and ESD protection
Plug & play setup

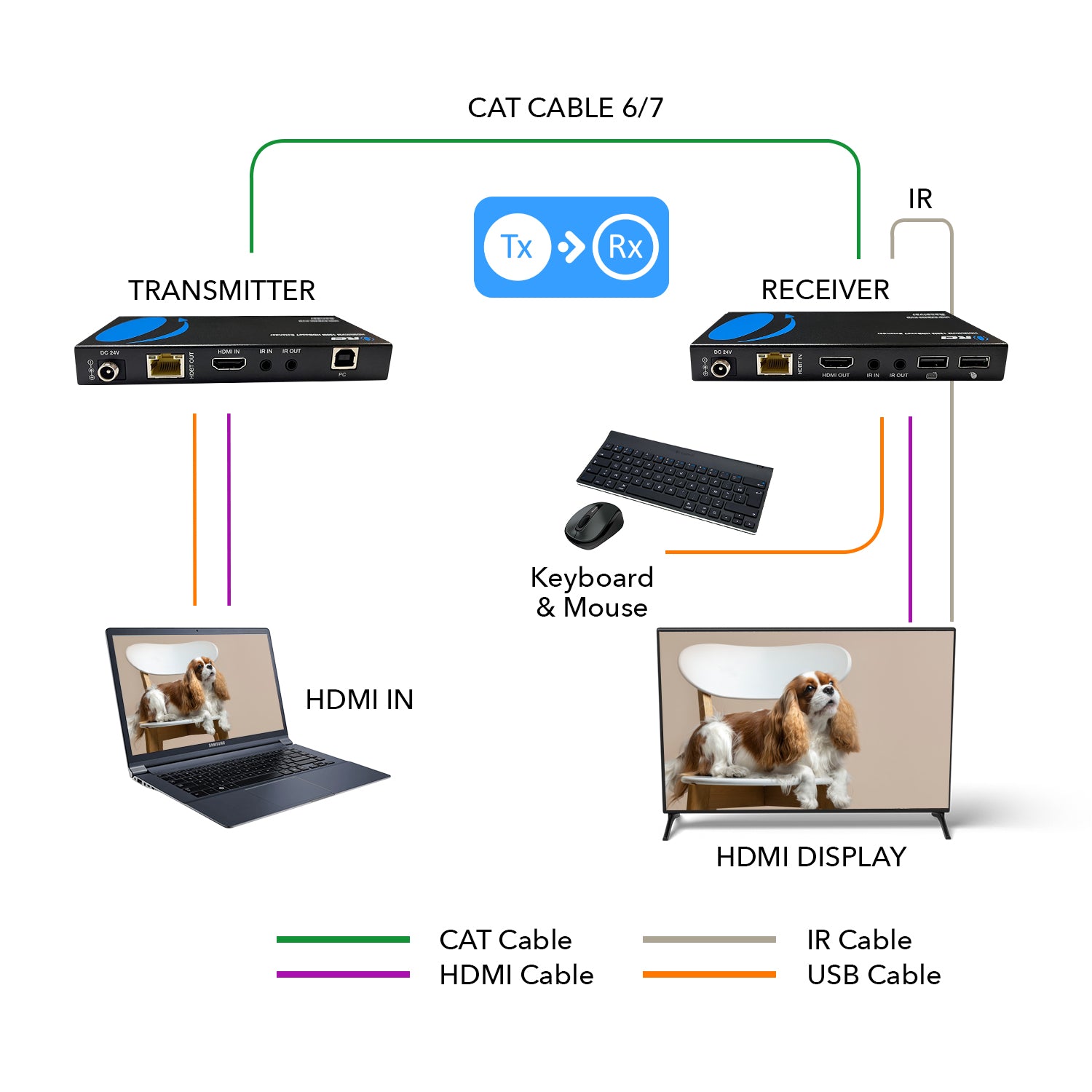

UHD-EXB400-KVM is 18Gbps HDBaseT Extender that can extend HDMI signal, bi-directional IR control signal, and USB KVM signal to a distance up to 400 feet via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source device or display device from the remote end through a bi-directional IR signal pass-through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC functions.
The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.
Full Customer Support - 1 Year Warranty - Includes 1x Sender, 1x Receiver, 1x IR Kit, 1x, Manual
AUDIO AND VIDEO

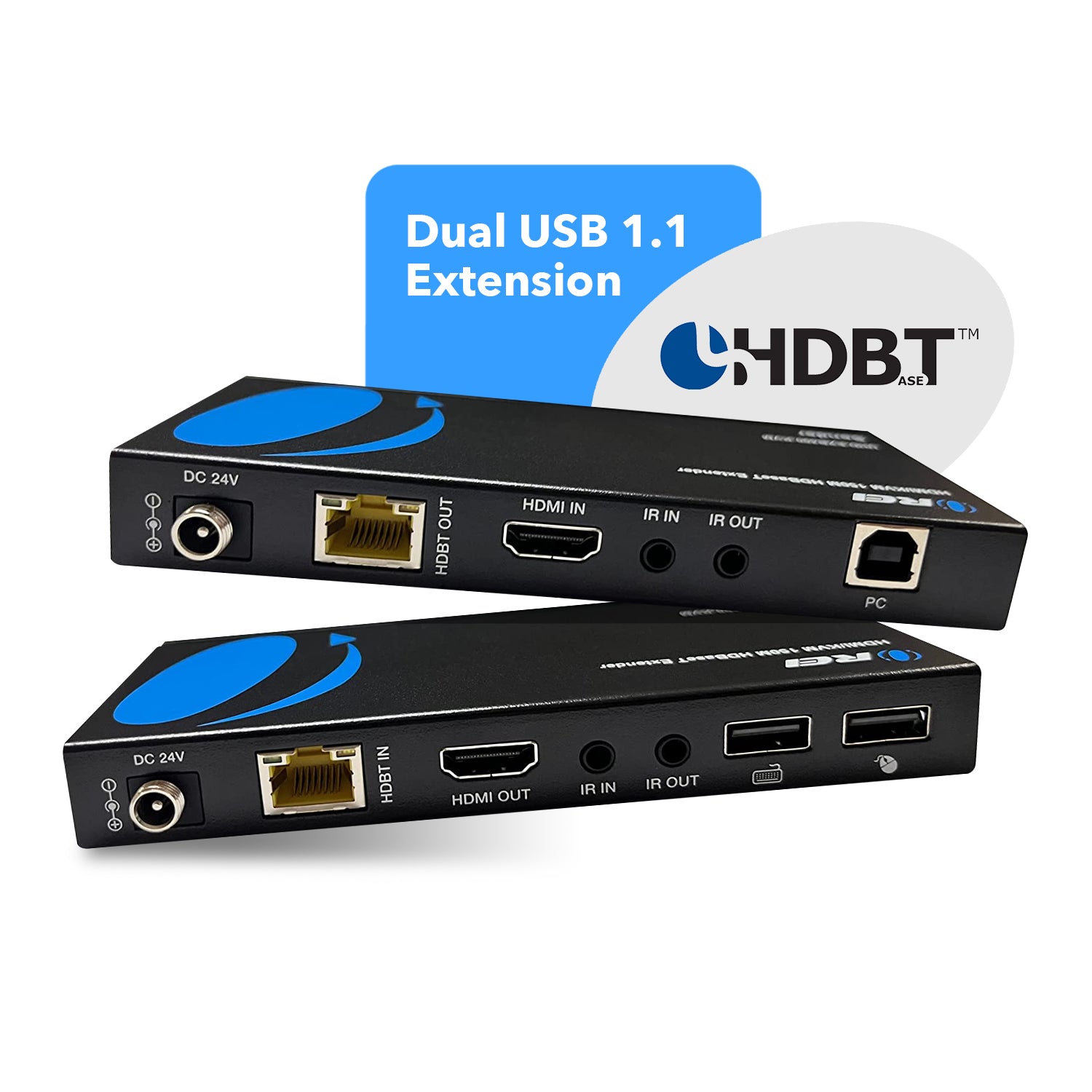

Transmitter:
INPUT PORTS:
1x HDMI IN [TypeA, 19-pin female]
1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro-USB jack]
1x USB [USB-B, 4-pin female]
OUTPUT PORTS:
1x HDBT OUT [RJ45]
1x IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT PORTS:
1x HDBT IN [RJ45 with light]
1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro-USB jack]
OUTPUT PORTS:
1x HDMI OUT [TypeA, 19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
2x USB [USB-A, 4-pin female]
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 400 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K2K@60Hz YUV 4:4:4
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
Yes
ARC Function:
No
USB KVM Function:
Yes
PoC/PoE Function:
Yes
IR Controller:
Yes
Downscale Function:
No
Over Network Function:
Yes
HDBaseT Function:
Yes
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
No
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
SPDIF/Optical Audio Formats:
No
SIGNALS
TMDS Signals:
3.3V
DDC Signals:
5V
DIMENSIONS & WEIGHT
Height:
18mm
Width:
140mm
Depth:
65mm
Weight:
Transmitter:
246g
Receiver:
246g
PROTECTION
Operation Temperature:
0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:
20~90% RH (non-condensing)
Electrostatic Protection of the whole Machine:
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
