Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
Supports SPDIF audio reverse transmission
Bi-directional IR, RS-232, and 1G Ethernet signal pass-through
Supports USB2.0 transmission, Host/Device is configurable
Bi-directional 24V POC function

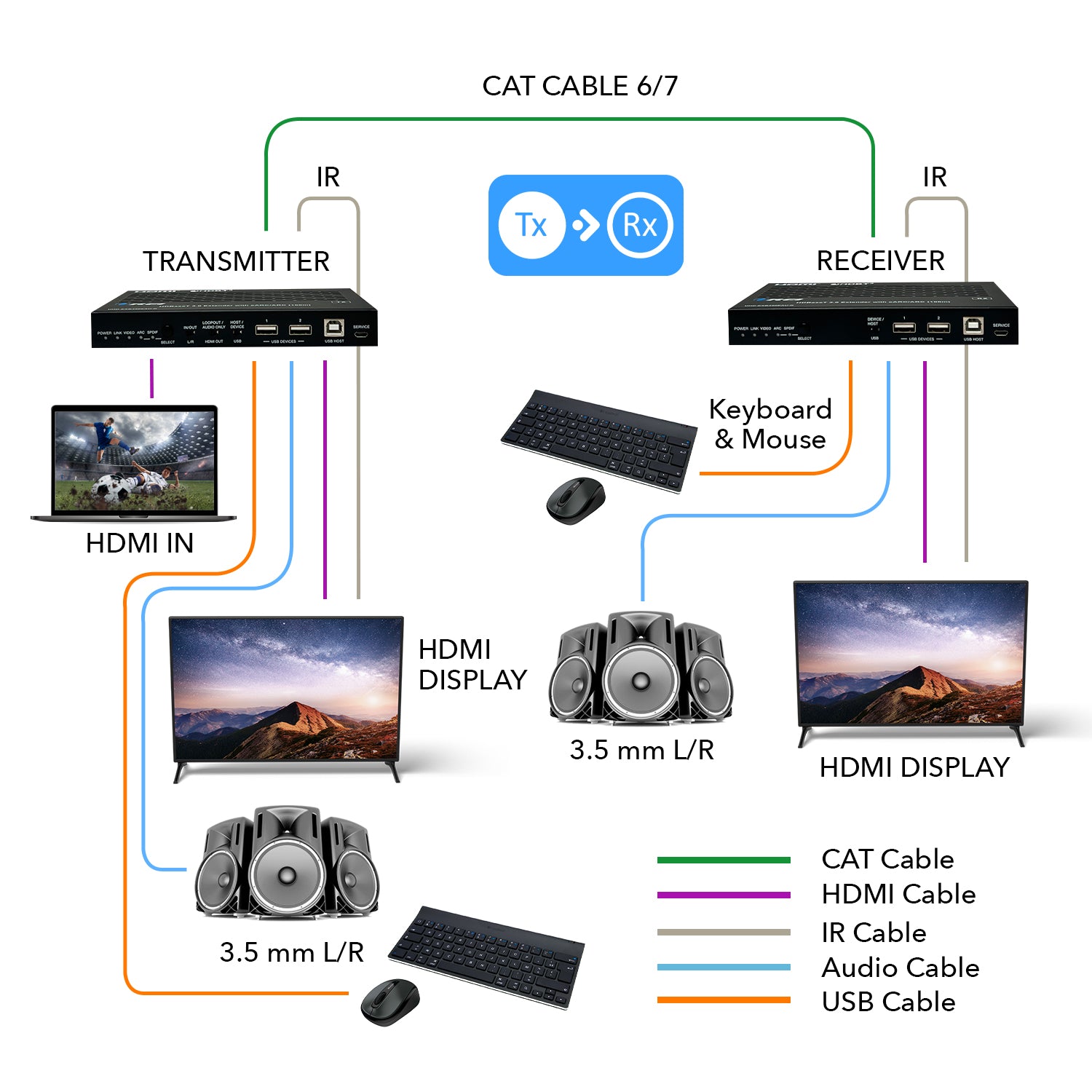

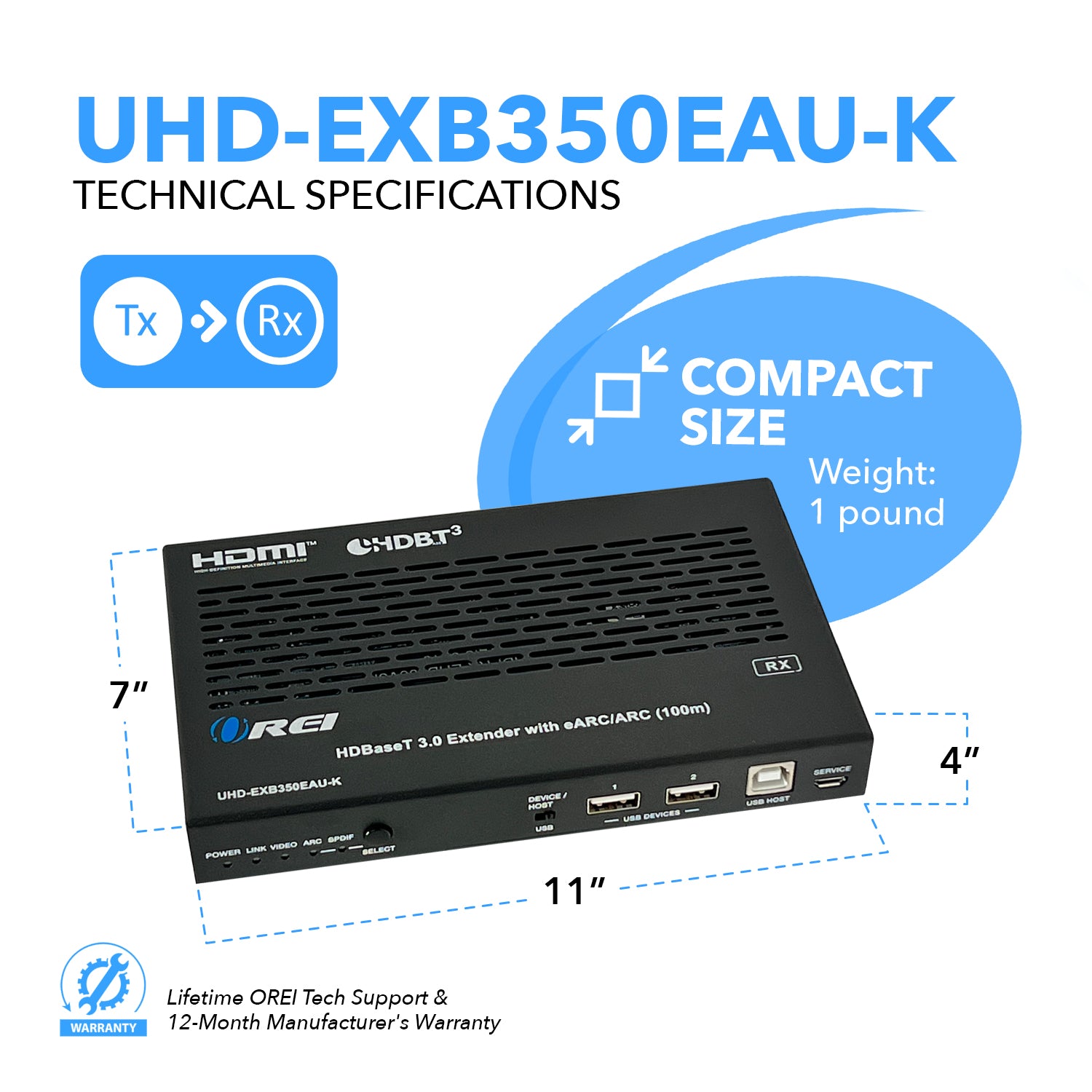

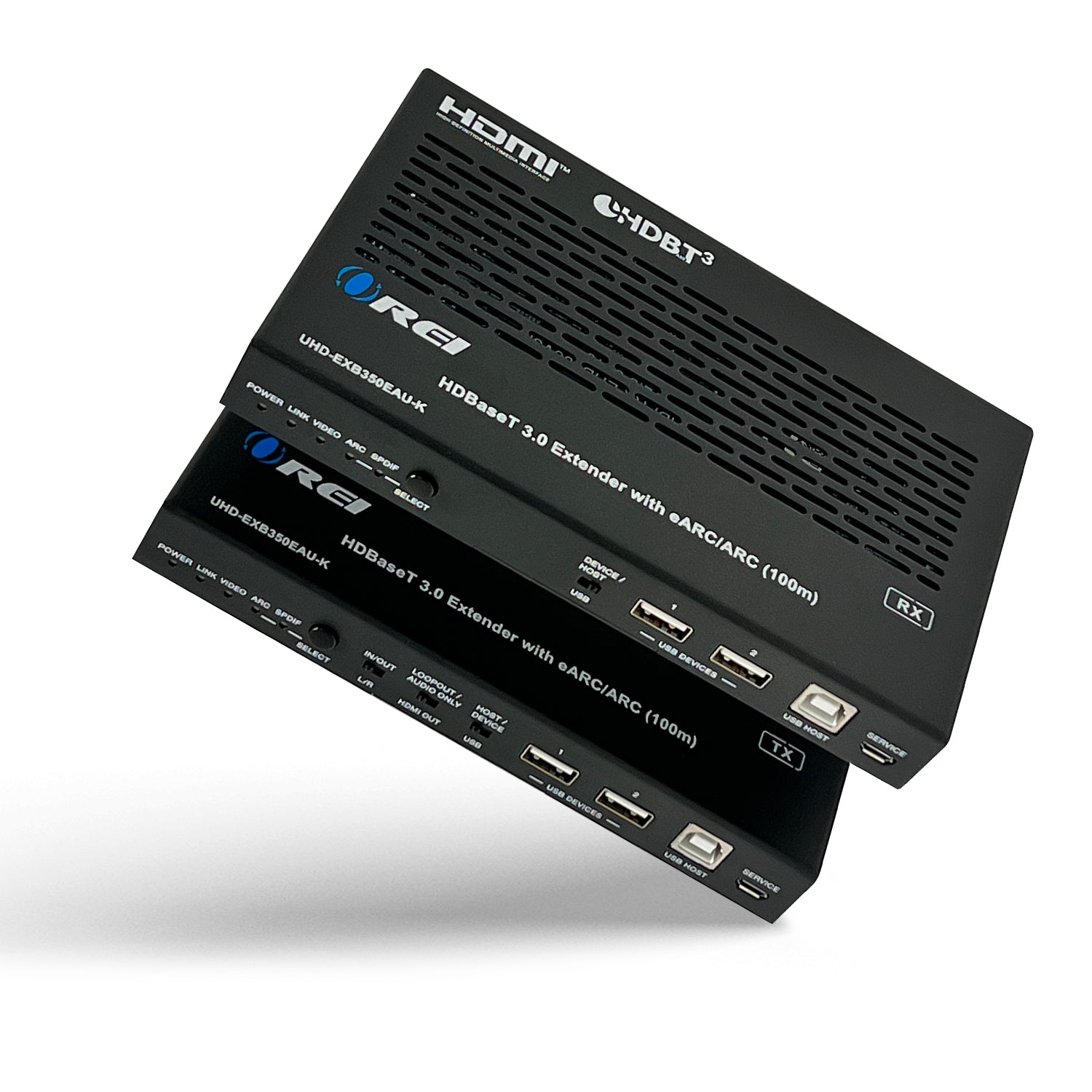

UHD-EXB350EAU-K is an 18Gbps HDBaseT Extender that can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX’s HDMI output pass through to TX’s HDMI input or de-embedding to TX’s HDMI audio only and SPDIF output ports, USB 2.0 (Host/device is configurable), and bi-directional POC.
The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long-distance capability and is the perfect solution for home/commercial application
AUDIO AND VIDEO

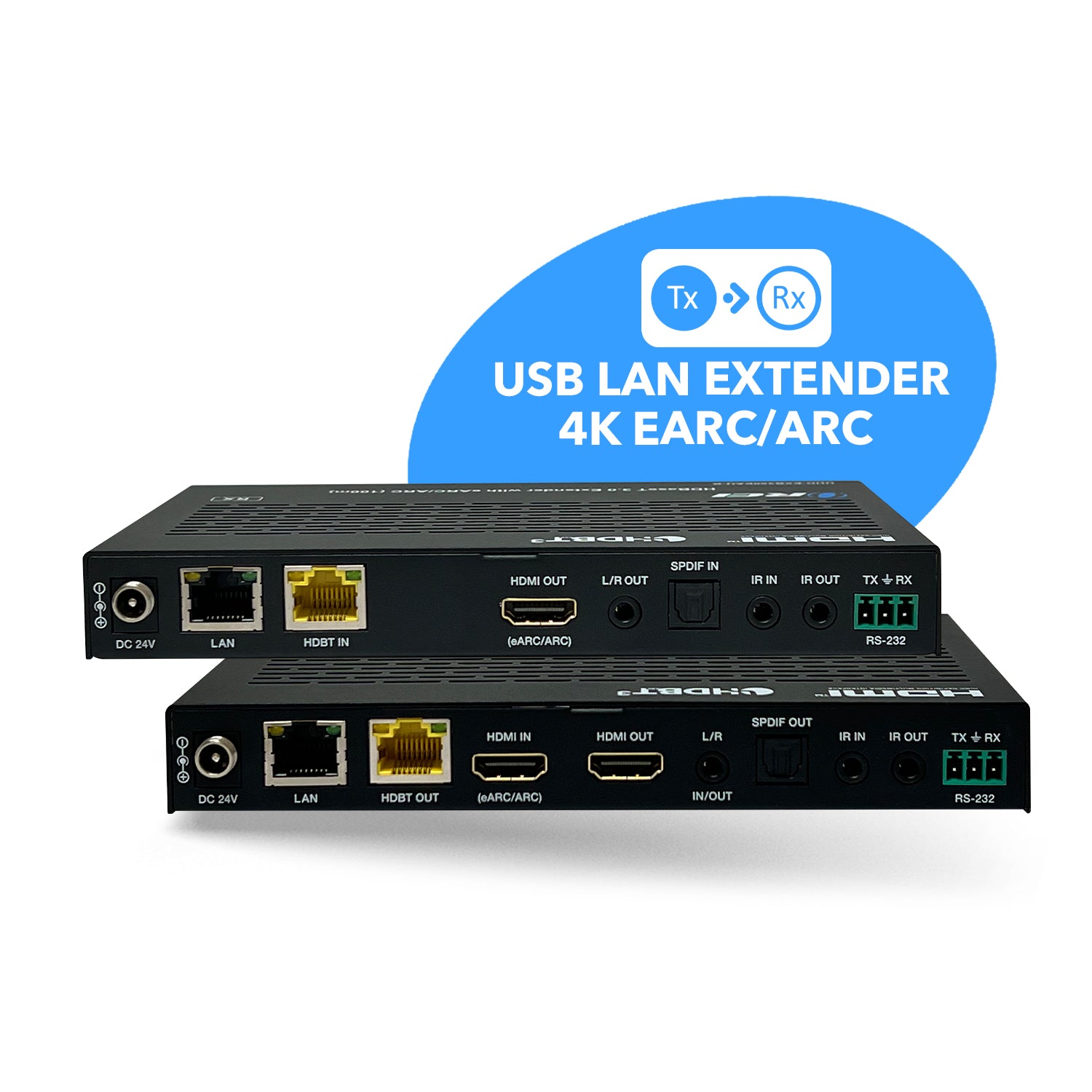

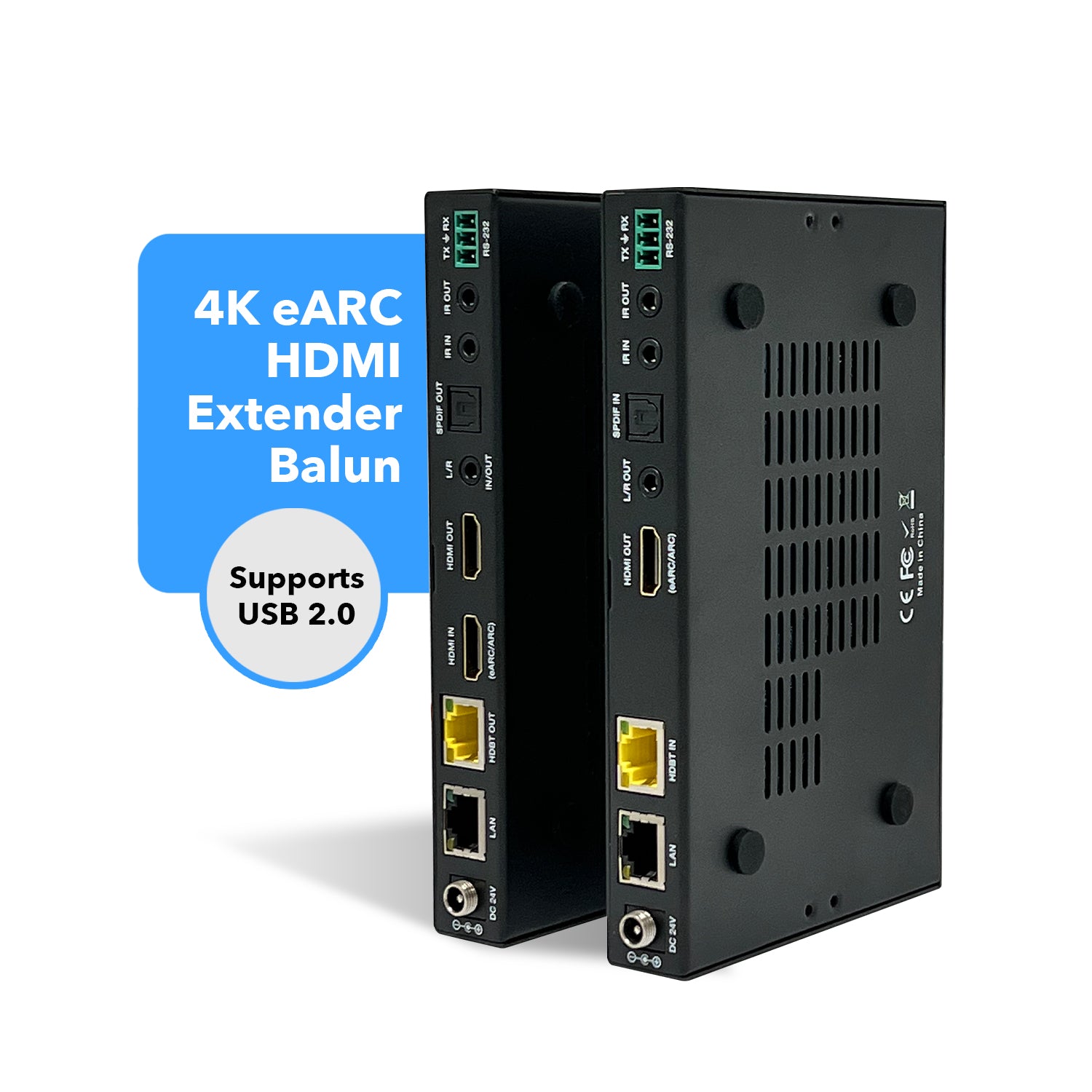

Transmitter:
INPUT PORTS:
1 x HDMI IN [Type A, 19-pin female]
OUTPUT PORTS:
1 x HDMI OUT [Type A, 19-pin female]
1 x HDBT OUT [RJ45, 8-pin female]
1 x SPDIF OUT [S/PDIF]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR I N [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Mini-USB, Update port]
1 x USB HOST [USB Type B]
2 x USB DEVICES [USB Type A]
1 x LAN [RJ45]
Receiver:
INPUT PORTS:
1 x HDBT IN [RJ45, 8-pin female]
1 x SPDIF IN [S/PDIF]
OUTPUT PORTS:
1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Mini-USB, Update port]
1 x USB HOST [USB Type B]
2 x USB DEVICES [USB Type A]
1 x LAN [RJ45]
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 330 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
