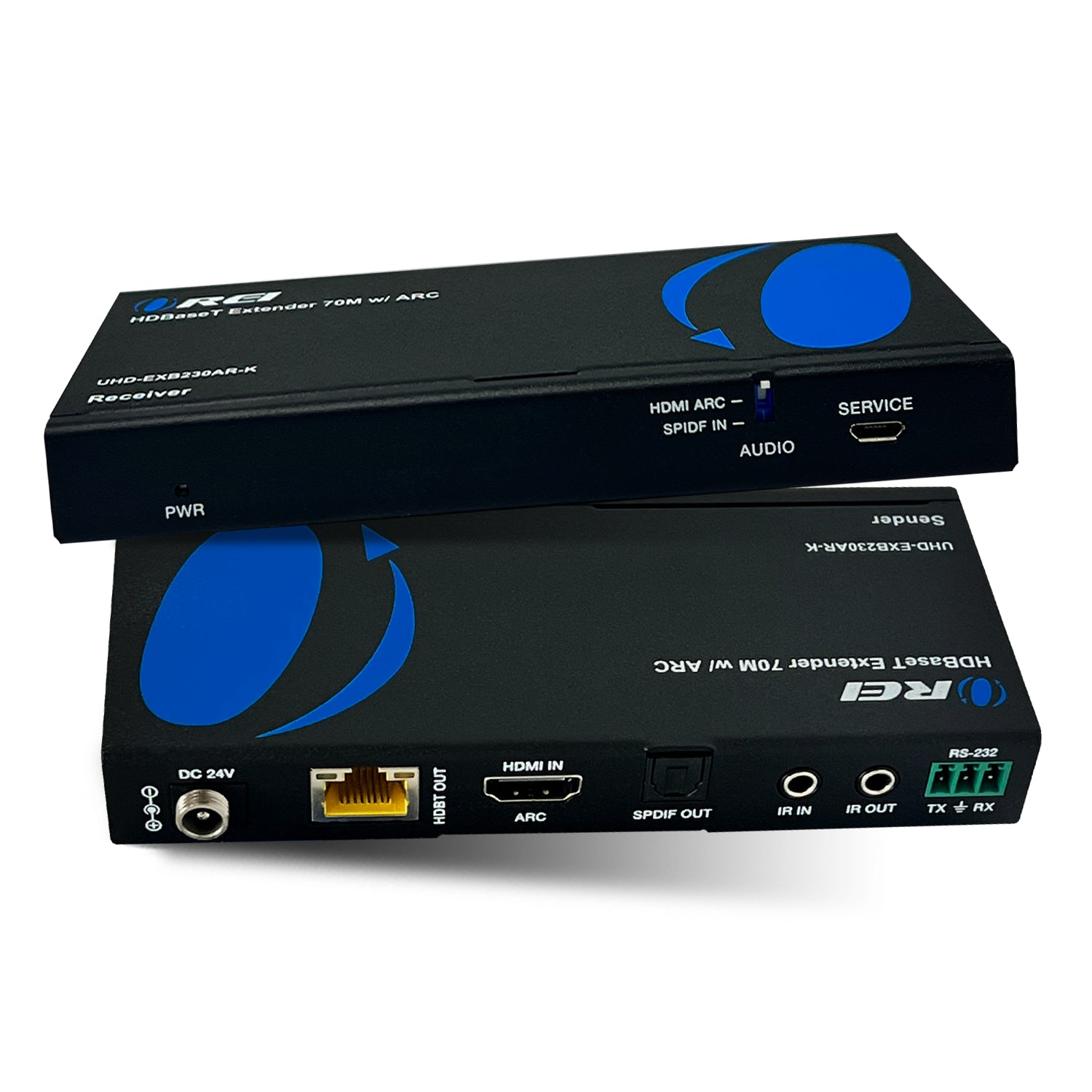

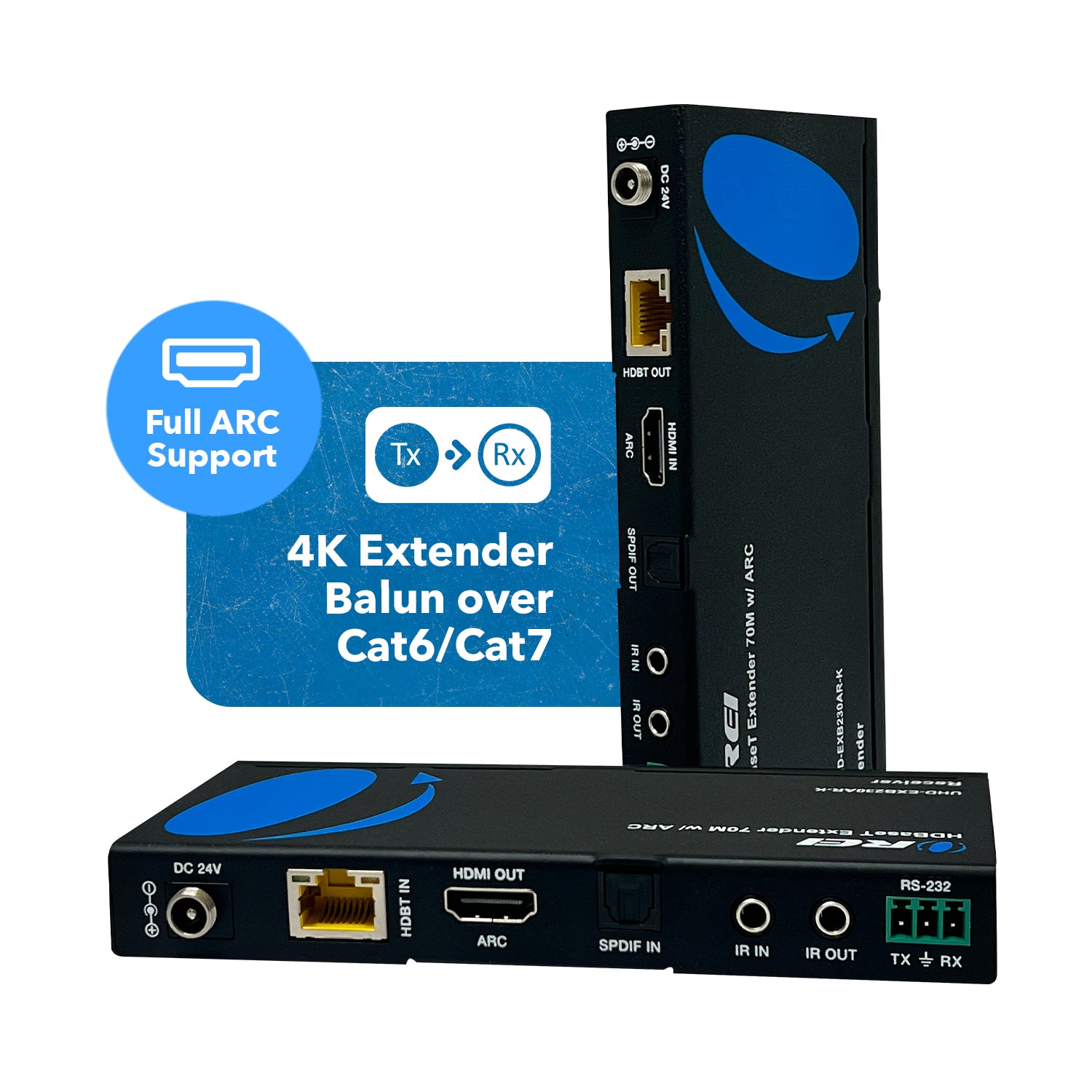

4K HDBaseT HDMI™ Extender (ARC) - 230ft (cat6)-UHD-EXB230AR-K
- Supports 4K@60Hz YUV 4:4:4 up to 230 feet
- Supports 18Gbps video bandwidth
- Supports ARC, PoC, Bi-directional IR and RS-232 control
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability
Reliable Long-Distance 4K HDMI Transmission
The UHD-EXB230AR-K HDMI extender delivers uncompressed, ultra-high-definition video resolutions up to 4K@60Hz over a single Cat6/6a/7 cable. With a transmission range of up to 230 feet (70 meters), it ensures high-quality signal integrity without lag or loss, making it an ideal HDMI over Cat6 solution for commercial AV setups, home theaters, and conference rooms.
Exceptional Audio-Visual Compatibility
Supporting 18Gbps bandwidth and modern video formats like HDR, Dolby Vision, and HLG, this HDMI over Ethernet 4K extender maintains true-to-source image quality with vibrant color and deep contrast. It also offers multi-channel audio pass-through including Dolby TrueHD and DTS-HD Master Audio, ensuring immersive sound alongside stunning visuals.
Integrated ARC & Optical Audio Return Functionality
Designed with advanced audio flexibility, this HDMI ARC extender allows you to extract audio from an ARC-enabled display via Optical or HDMI IN on the transmitter. It also supports optical audio return from the receiver to the transmitter, making it perfect for routing audio from display devices back to sound systems—no additional equipment required.
Simplified Installation with Compact, Durable Design
With Power over Cable (PoC) technology, only one power adapter is needed—reducing cable clutter and simplifying installation. Its compact, durable design makes it suitable for discreet use in tight AV spaces. Whether you're building a high-performance home theater or a professional digital signage setup, this extender HDMI 4K solution combines flexibility, performance, and ease of use.
OREI UHD-EXB230AR-K: 4K UHD HDMI Extender with ARC
-
HDCP 2.2 Compliant – Ensures secure and reliable transmission of protected 4K content.
-
4K@60Hz Resolution Support – Delivers ultra-high-definition video with sharp detail and vibrant colors.
-
18Gbps Video Bandwidth – Provides smooth, uncompressed video and audio performance.
-
HDR, Dolby Vision & HLG Pass-Through – Preserves the latest HDR formats for lifelike contrast and color.
-
Long-Distance Extension – Transmits HDMI signals up to 230 ft (70 m) via a single Cat6/6a/7 cable.
-
Multi-Channel Audio Support – Compatible with LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and more.
-
ARC Audio Extraction – Sends audio from an ARC-enabled TV back to a sound system via Optical or HDMI IN.
-
Optical Audio Return Channel – Routes audio from the receiver to the transmitter using an Optical cable.
-
Bi-Directional IR & RS-232 Pass-Through – Enables flexible control between source and display locations.
-
Power over Cable (PoC) – Operates with a single power adapter for simplified installation.
-
Compact & Durable Build – Designed for reliable performance in both home and professional AV setups.
The UHD-EXB230AR-K is a high-performance HDMI over Ethernet extender designed for long-distance signal transmission using HDBaseT technology. Supporting HDMI 2.0b and HDCP 2.2 standards, it delivers uncompressed AV content at resolutions up to 4K@60Hz with a video bandwidth of 18Gbps.
This extender enables media transmission up to 230 feet (70 meters) via a single Cat6/6a/7 cable, maintaining full signal integrity across commercial or residential environments.
Advanced video format compatibility includes HDR, Dolby Vision, and HLG. The system also supports ARC (Audio Return Channel), allowing audio from an ARC-enabled TV to be extracted via the transmitter’s HDMI IN or Optical output.
Additionally, it enables optical audio return from the receiver to the transmitter, ensuring flexible audio routing. Bi-directional IR and RS-232 pass-through provide comprehensive device control from either location.
