8K 1x8 HDMI Splitter (Downscaler)-(BK-108)
- HDMI 2.1 and HDCP 2.3 compliant
- 48Gbps video bandwidth
- Advanced EDID management
*Overnight shipping doesn't include Weekends, or any holidays.
Couldn't load pickup availability

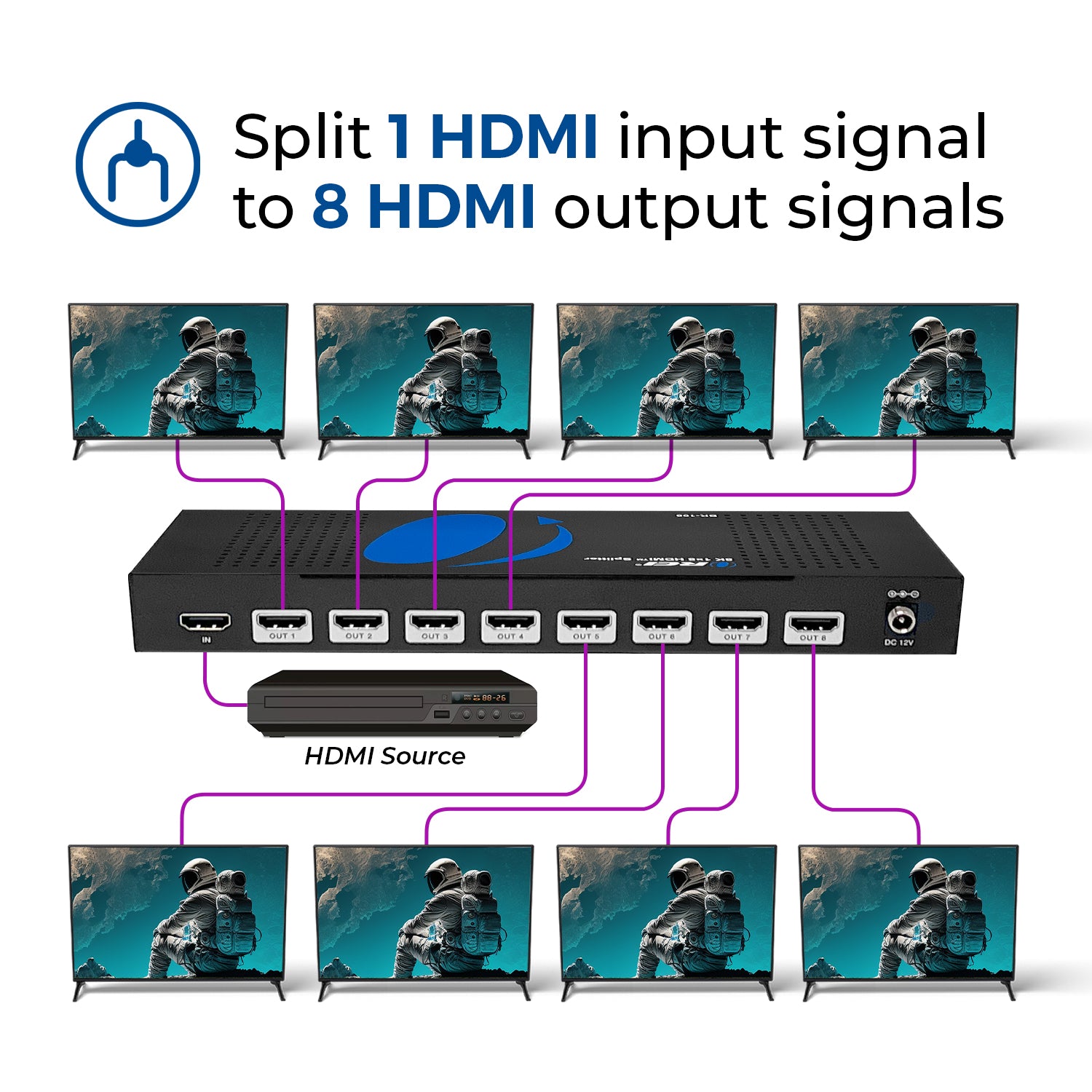

1. 1x8 HDMI Splitting for High-Resolution
The BK-108 1x8 HDMI splitter is built to duplicate a single HDMI source to up to eight separate displays, making it ideal for commercial setups, presentations, and multi-screen entertainment systems. Supporting up to 8K@60Hz and 4K@120Hz, this HDMI splitter 1 in 8 out ensures each connected display receives a high-quality signal with no lag or loss, creating a unified visual experience across all screens.
2. Advanced Downscaling and HDR to SDR Conversion
With the BK-108, users have the benefit of downscaling from 8K to 4K and from 8K/4K to 1080p, enabling compatibility with various displays. This 8K HDMI splitter 1 in 8 out also includes automatic HDR to SDR conversion for displays that don’t support HDR, making it highly adaptable to mixed-resolution environments. Whether it's for professional or personal use, this HDMI splitter 1x8 8K provides flexibility in high-resolution display management.
3. Enhanced Audio Compatibility for Dolby and DTS
The OREI BK-108 HDMI splitter 1x8 is equipped with audio pass-through capabilities, supporting advanced audio formats such as Dolby and DTS. This feature makes the splitter suitable for users who want to integrate sound systems with their multi-display setup, creating an immersive audio-visual experience.
4. Easy Installation with Advanced EDID Management
Designed for ease of use, the BK-108 features a plug-and-play setup and advanced EDID management. This feature allows users to optimize compatibility across all connected displays. Compact and robust, the Orei 1x8 HDMI splitter is a reliable choice for anyone needing high-quality HDMI distribution with advanced customization options.

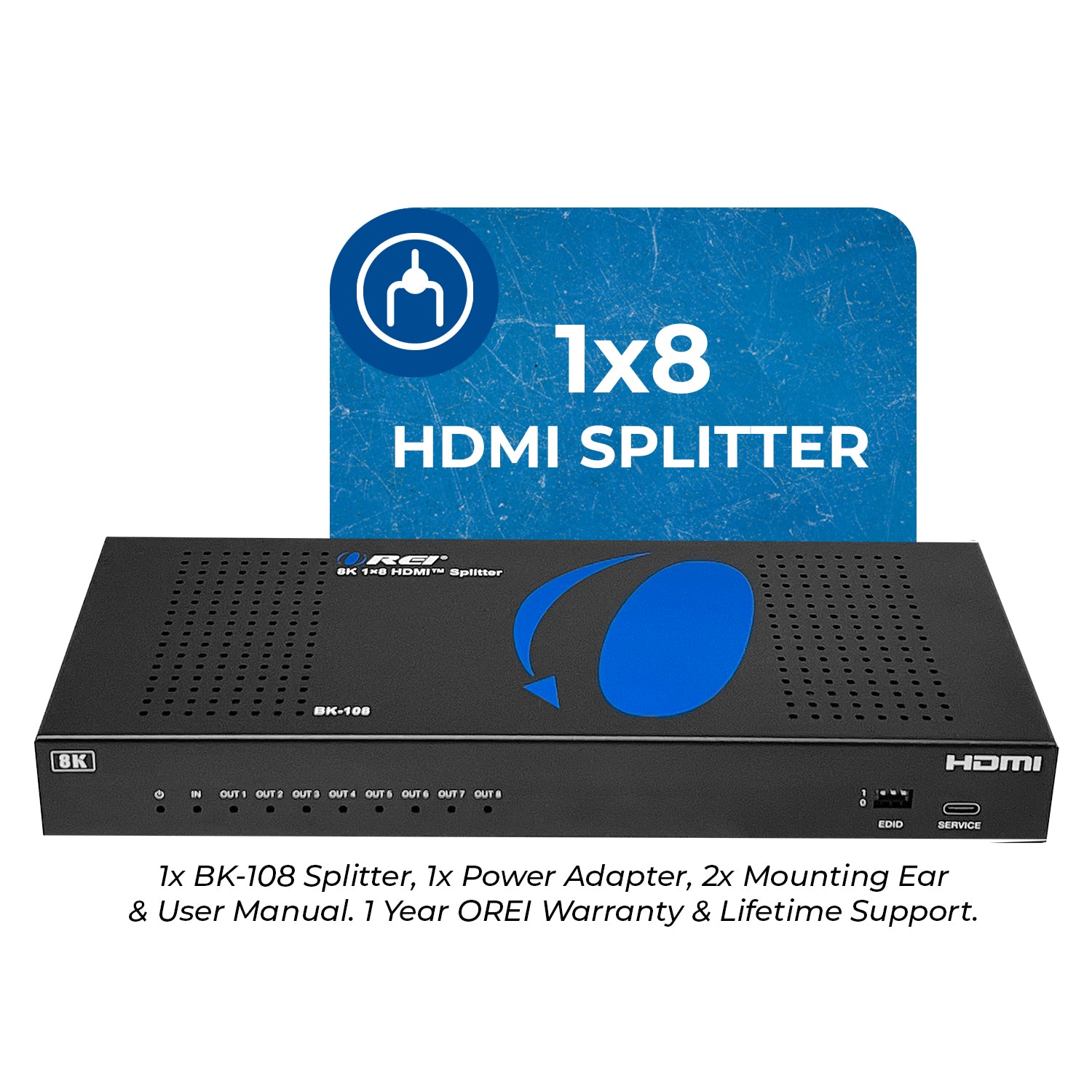

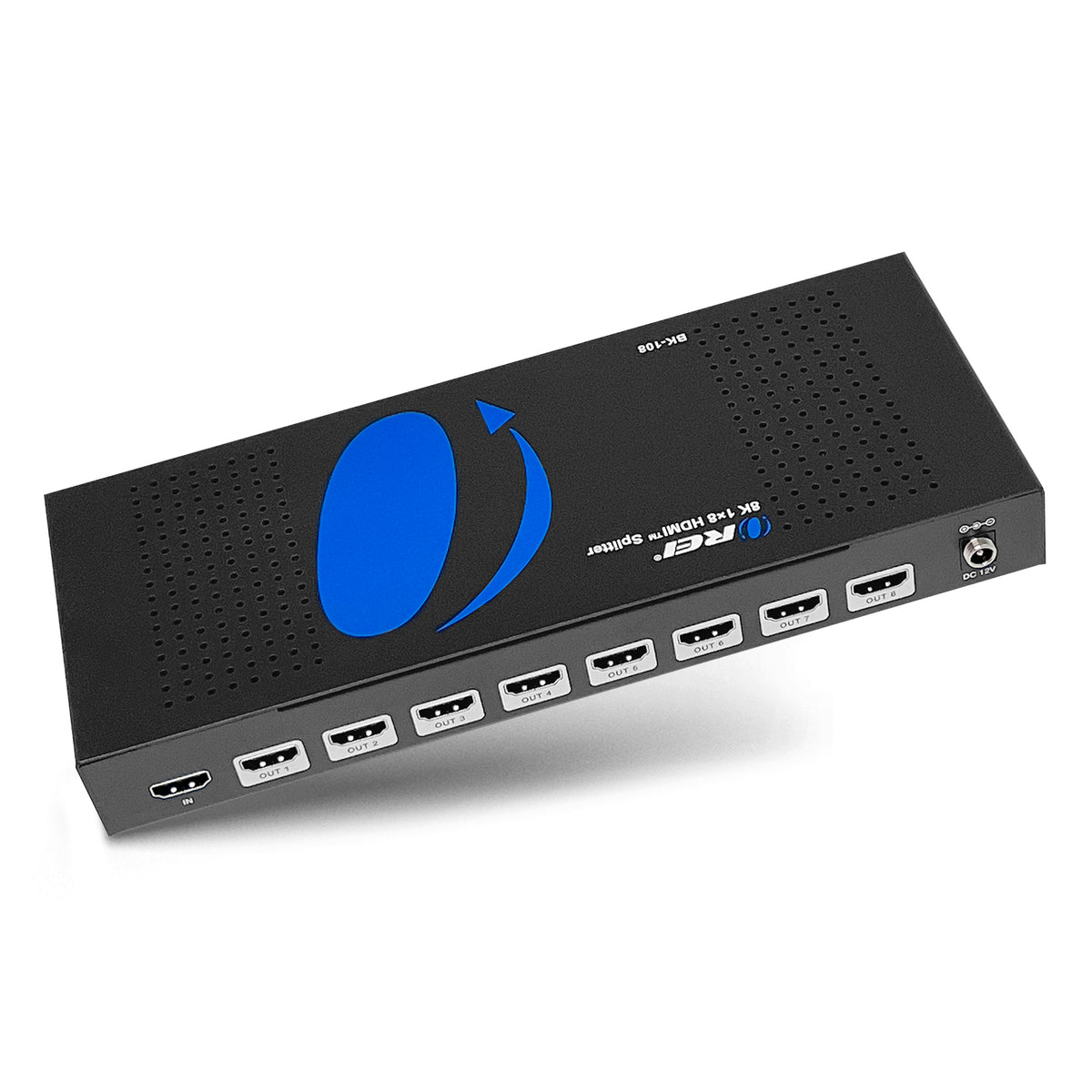

OREI BK-108: 8K 1x8 HDMI Splitter (Downscaler)
- HDMI 2.1 and HDCP 2.3 compliant
- 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through from HDMI
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- Automatic HDR to SDR Conversion on all outputs

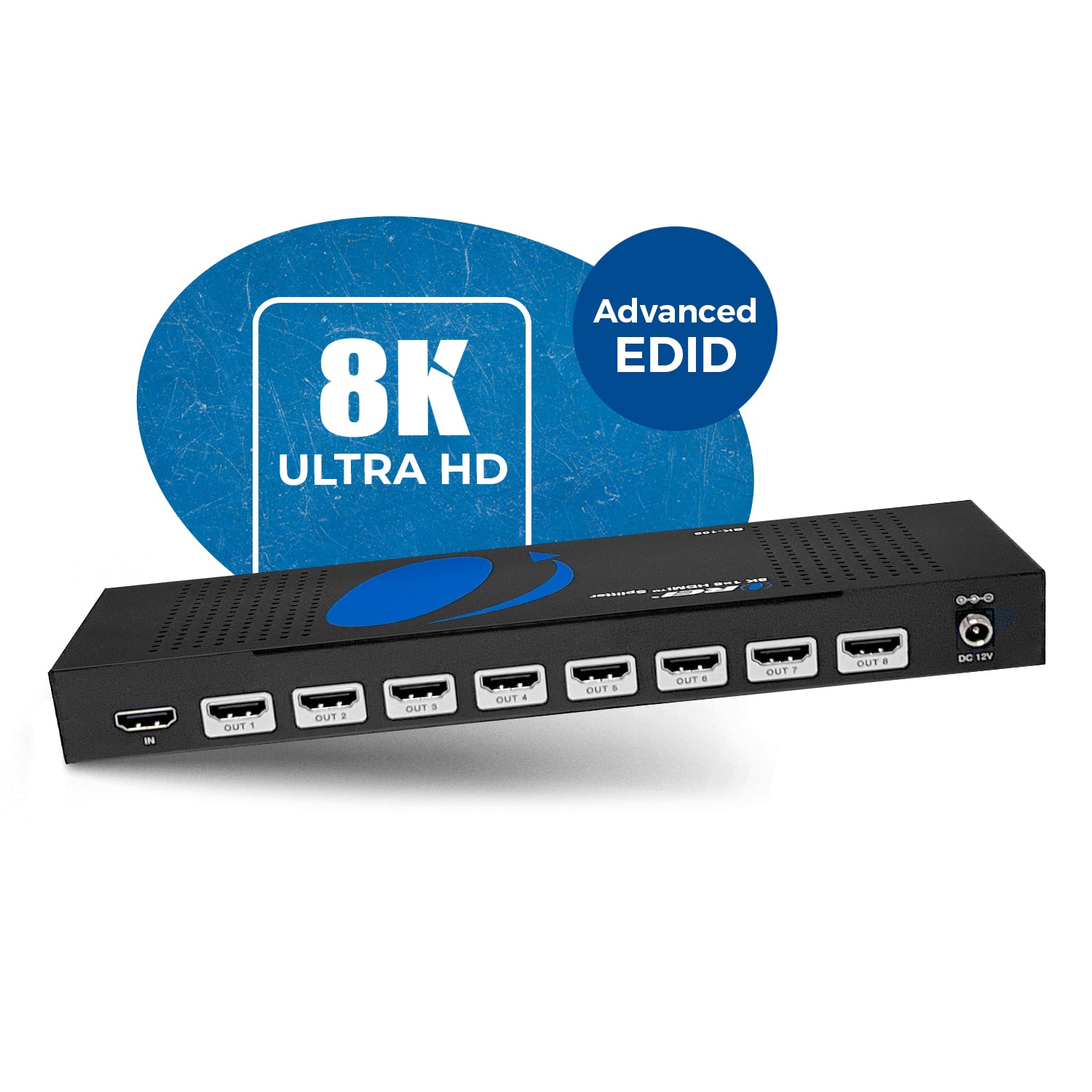

- Advanced EDID management

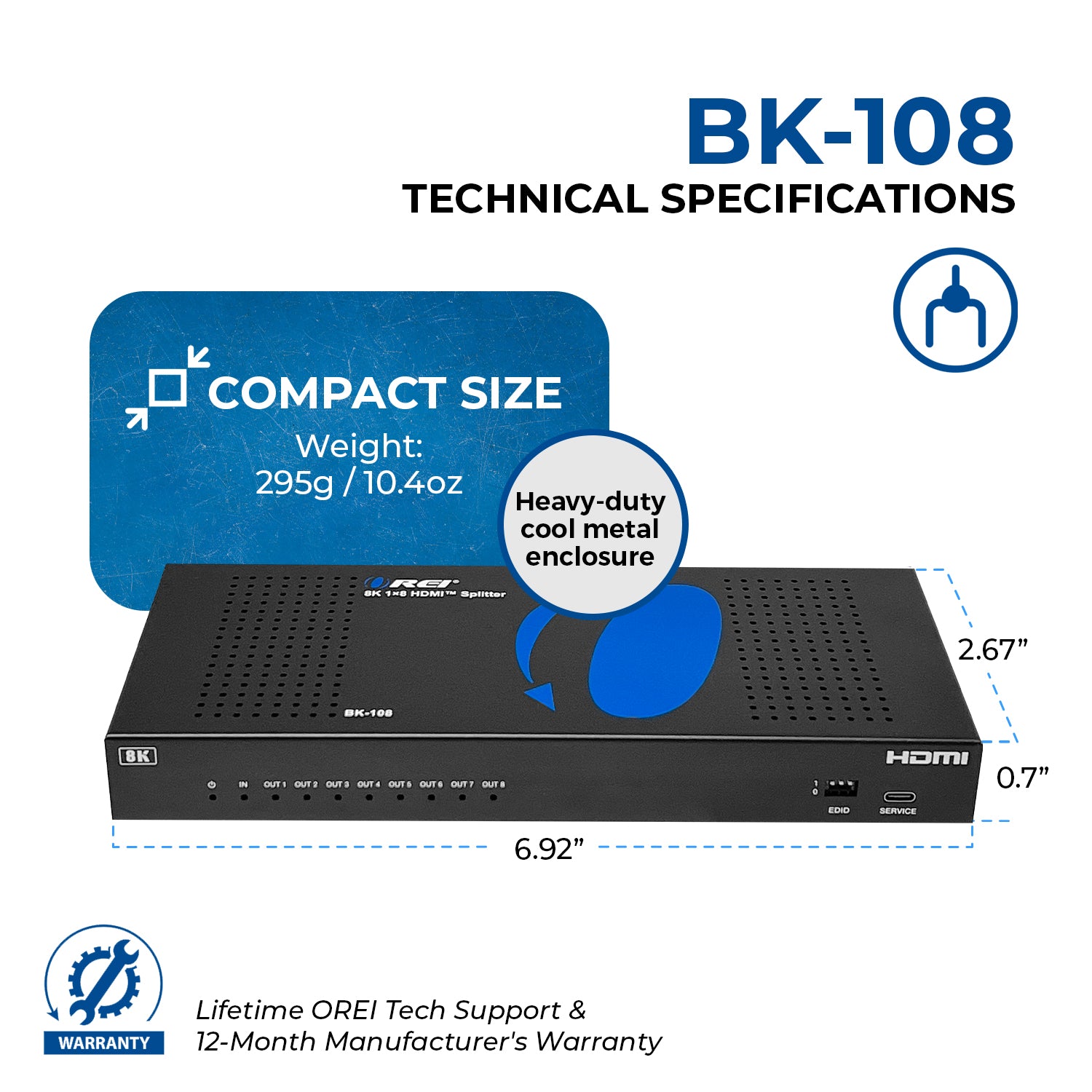

- Compact design for easy and flexible installation
The BK-108 8K 1x8 Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 requirements. HDR/10/10+, Dolby Vision and HLG pass through is supported. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. It also features a compact design and plug & play setup.
BK-108 User Manual Download
