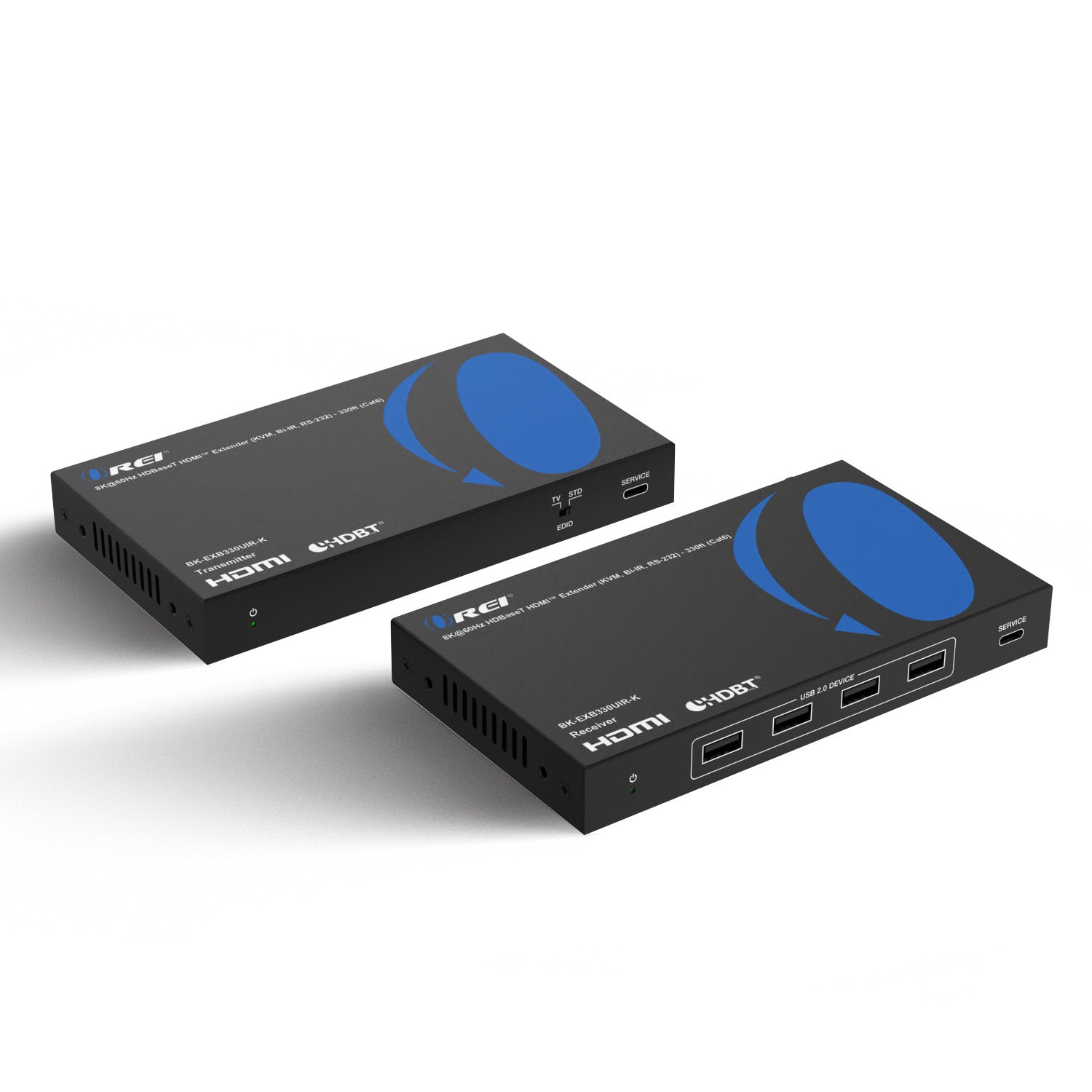

8K@60Hz HDBaseT HDMI™ Extender (KVM, Bi-IR, RS-232) - 330ft (Cat6) (BK-EXB330UIR-K)
-
HDCP 2.3 compliant
-
HDBaseT Technology
-
HDR10+, Dolby Vision, and HLG pass-through
*Overnight shipping doesn't include Weekends, or any holidays.
8K HDMI™ 2.1 HDBaseT Signal Extension

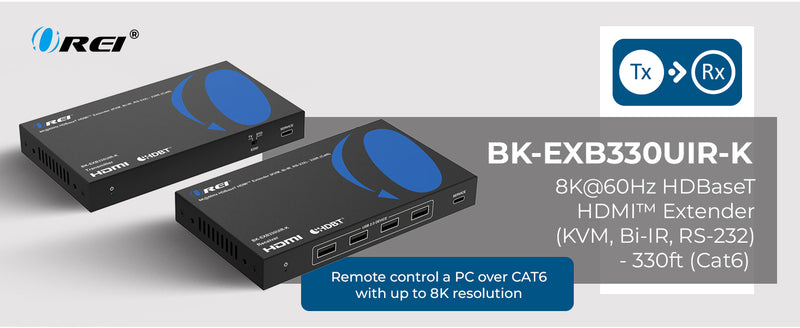

The OREI BK-EXB330UIR-K is a professional HDMI™ 2.1 HDBaseT extender designed to transmit ultra-high-definition video, audio, USB 2.0, and control signals up to 330ft (100m) over a single CAT5e/6/7 cable. Supporting resolutions up to 8K@60Hz and 4K@144Hz, it delivers reliable, uncompressed AV performance for commercial and residential installations.
Next-Generation Video with HDR Support
Supporting HDMI™ 2.1 with up to 48Gbps FRL bandwidth, the extender delivers exceptional image quality with 8K and high-refresh-rate 4K video. It is compatible with HDR10, HDR10+, Dolby Vision, and HLG, while advanced HDMI™ gaming features including VRR, ALLM, QMS, QFT, and SBTM provide smoother motion and reduced latency for demanding applications.
Integrated KVM, Audio & Control Features
The built-in USB 2.0 KVM functionality allows remote control of a connected computer using a keyboard, mouse, touchscreen, or other USB peripherals over the same HDBaseT connection. It also supports audio de-embedding at the receiver, bi-directional IR, RS-232, HDMI™ CEC pass-through, and comprehensive HDMI audio formats including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and DTS:X.
Professional Installation with Bi-Directional PoC
Designed for seamless integration into conference rooms, control centers, digital signage, multimedia broadcasting, and professional AV environments, the BK-EXB330UIR-K features advanced EDID management for optimal display compatibility and bi-directional Power over Cable (PoC), requiring only a single power adapter to operate both transmitter and receiver for simplified installation.

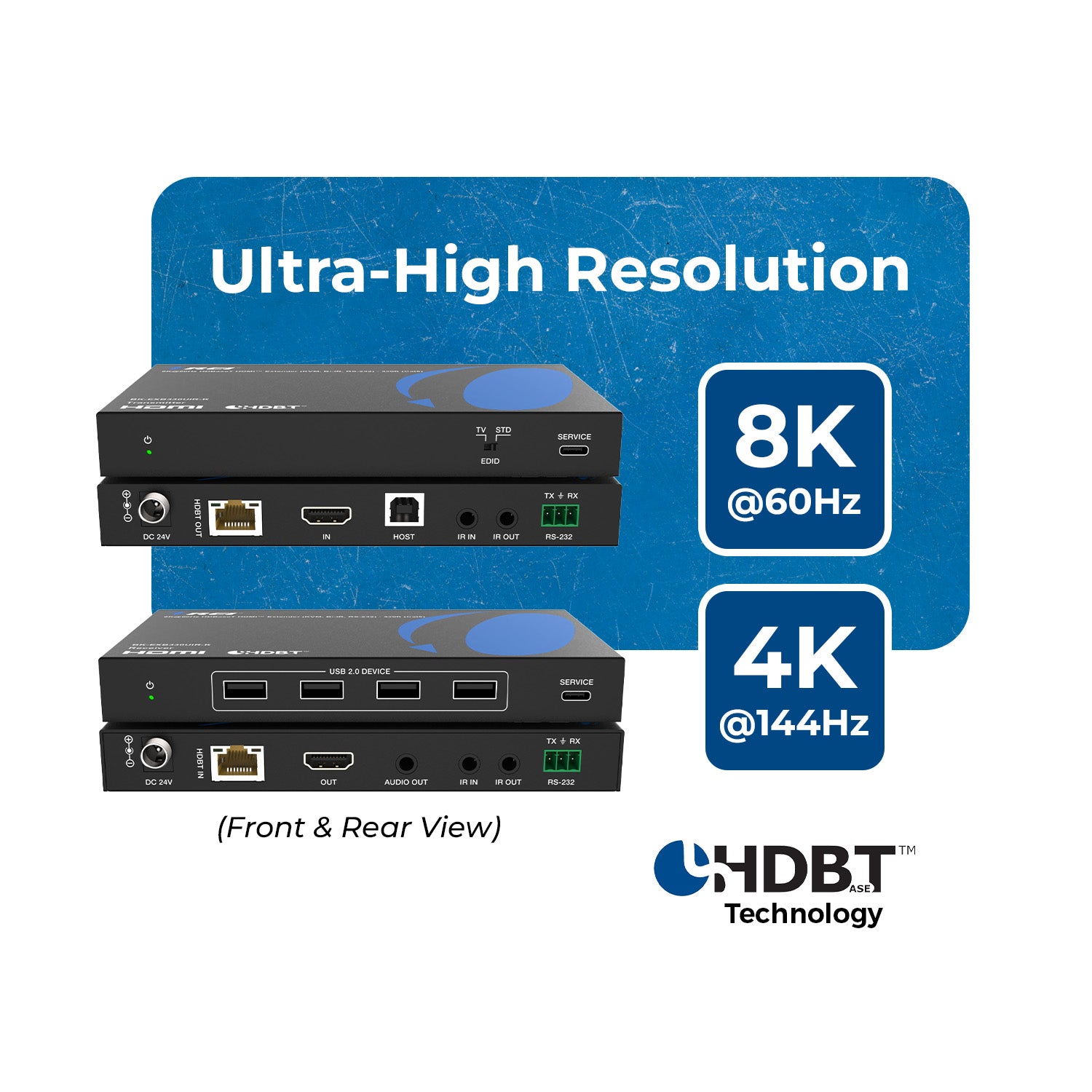

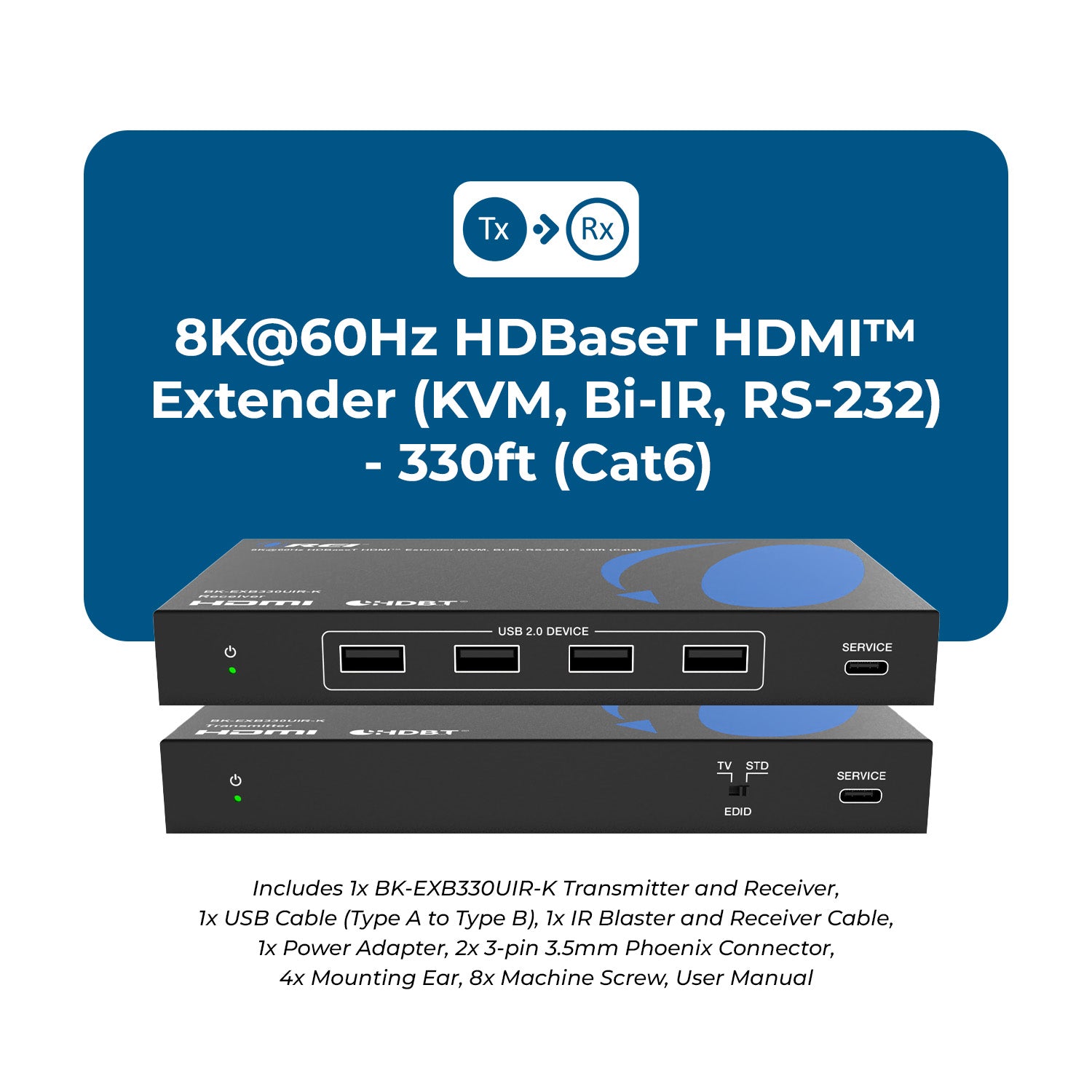

OREI BK-EXB330UIR-K: 8K@60HZ HDBASET HDMI™ EXTENDER (KVM, BI-IR, RS-232) - 330FT (CAT6)
-
HDMI™ 2.1 & HDCP 2.3 Compliant – Ensures full compatibility with next-generation HDMI™ sources and protected content, supporting the latest AV standards.
-
Ultra-High Video Bandwidth – Supports up to 48Gbps FRL and 18Gbps TMDS, delivering uncompressed, high-frame-rate video performance.
-
8K & High-Refresh 4K Video Support – Handles resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@144Hz (4:4:4).
-
Long-Distance HDBaseT Transmission – Extends HDMI™ signals up to 100m / 328ft over a single CAT5e/6/7 cable with no signal degradation.
-
Advanced HDMI™ 2.1 Gaming Features – Supports VRR, ALLM, QMS, QFT, and SBTM for smooth motion, reduced latency, and enhanced gaming performance.
-
HDR Pass-Through Support – Compatible with HDR10, HDR10+, Dolby Vision, and HLG for superior contrast and color depth.
-
USB 2.0 KVM Functionality – Enables transmission of USB 2.0 signals alongside HDMI™ over the same cable enabling remote control of a PC.
-
Comprehensive Audio Format Support – Supports LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-HD Master Audio, DTS:X, and more through HDMI.
-
Audio De-Embedding on Receiver – Allows audio extraction at the receiving end for flexible audio routing.
-
Bi-Directional Control & CEC Pass-Through – Supports bi-directional IR, RS-232, and HDMI™ CEC for full remote device control.
-
Advanced EDID Management – Includes two EDID modes (TV / STD) for optimized source-to-display compatibility.
-

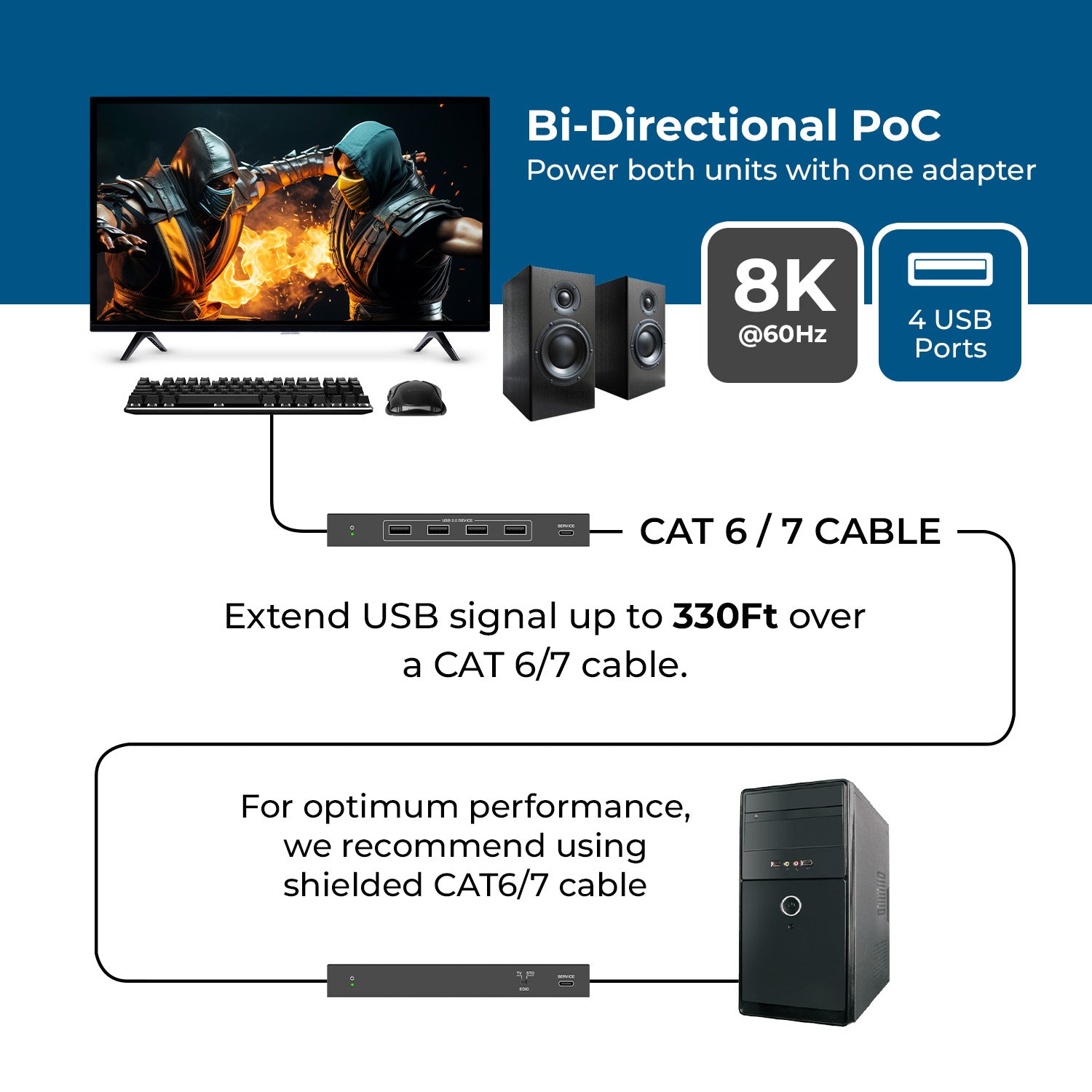

Bi-Directional PoC (Power over Cable) – Requires a single power adapter on either side to power both units.

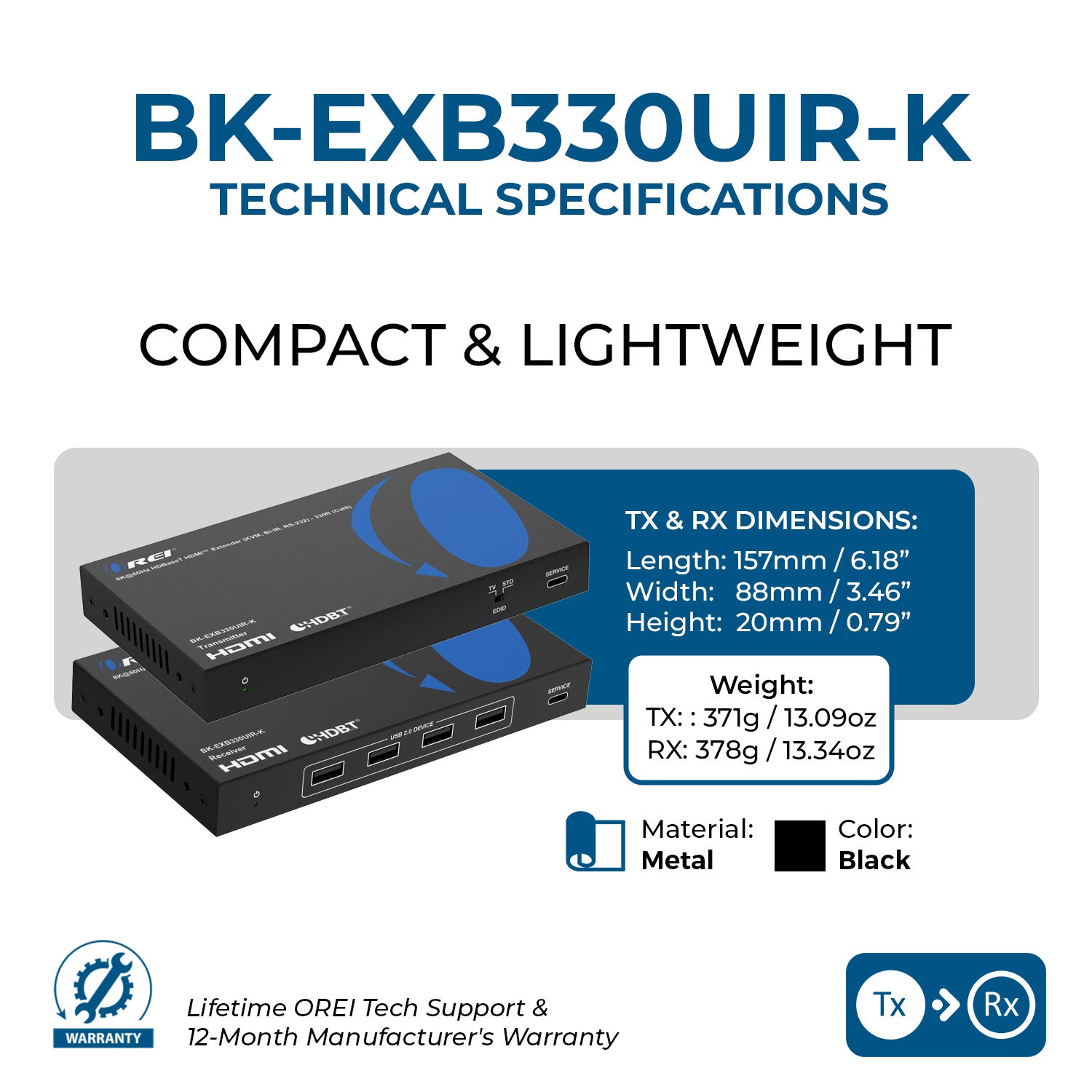

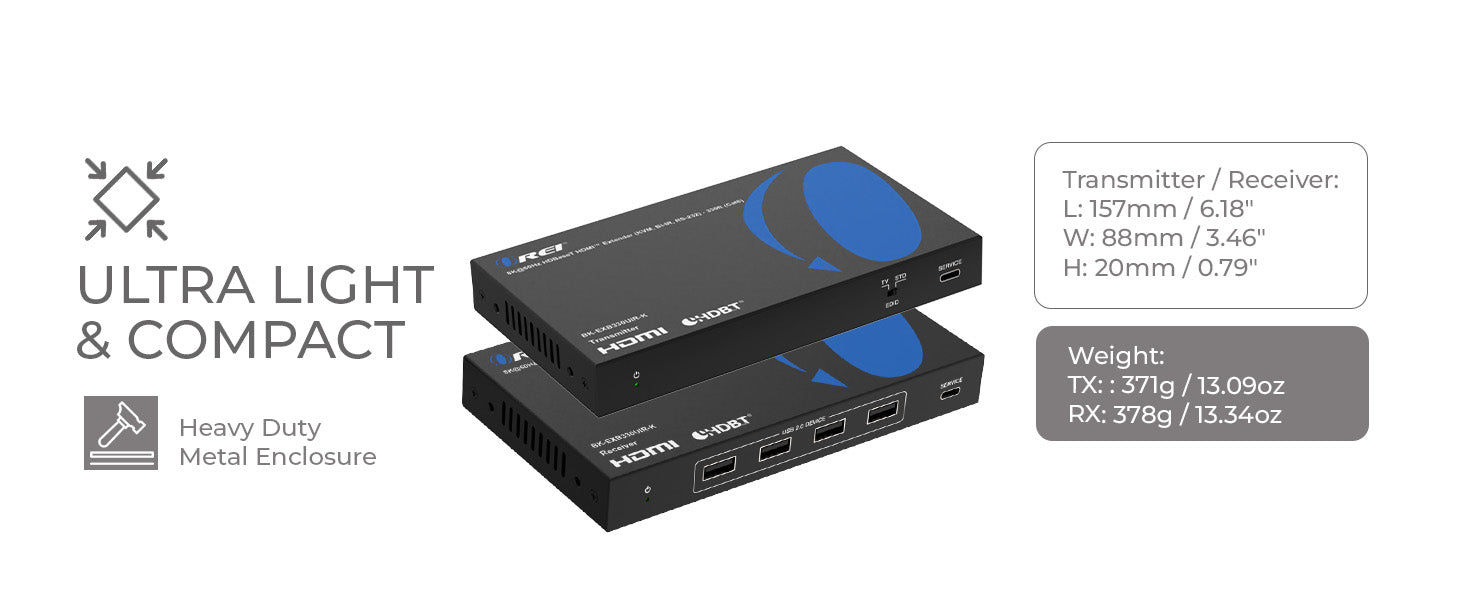

- Compact & Installation-Friendly Design – Space-saving form factor ideal for professional and residential AV installations.
The BK-EXB330UIR-K HDMI™ 2.1 HDBaseT extender is designed to transmit ultra-high-definition video, audio, USB 2.0, and control signals over long distances with exceptional reliability. Supporting resolutions up to 8K@60Hz and 4K@144Hz, it delivers next-generation AV performance for demanding professional and home entertainment environments.

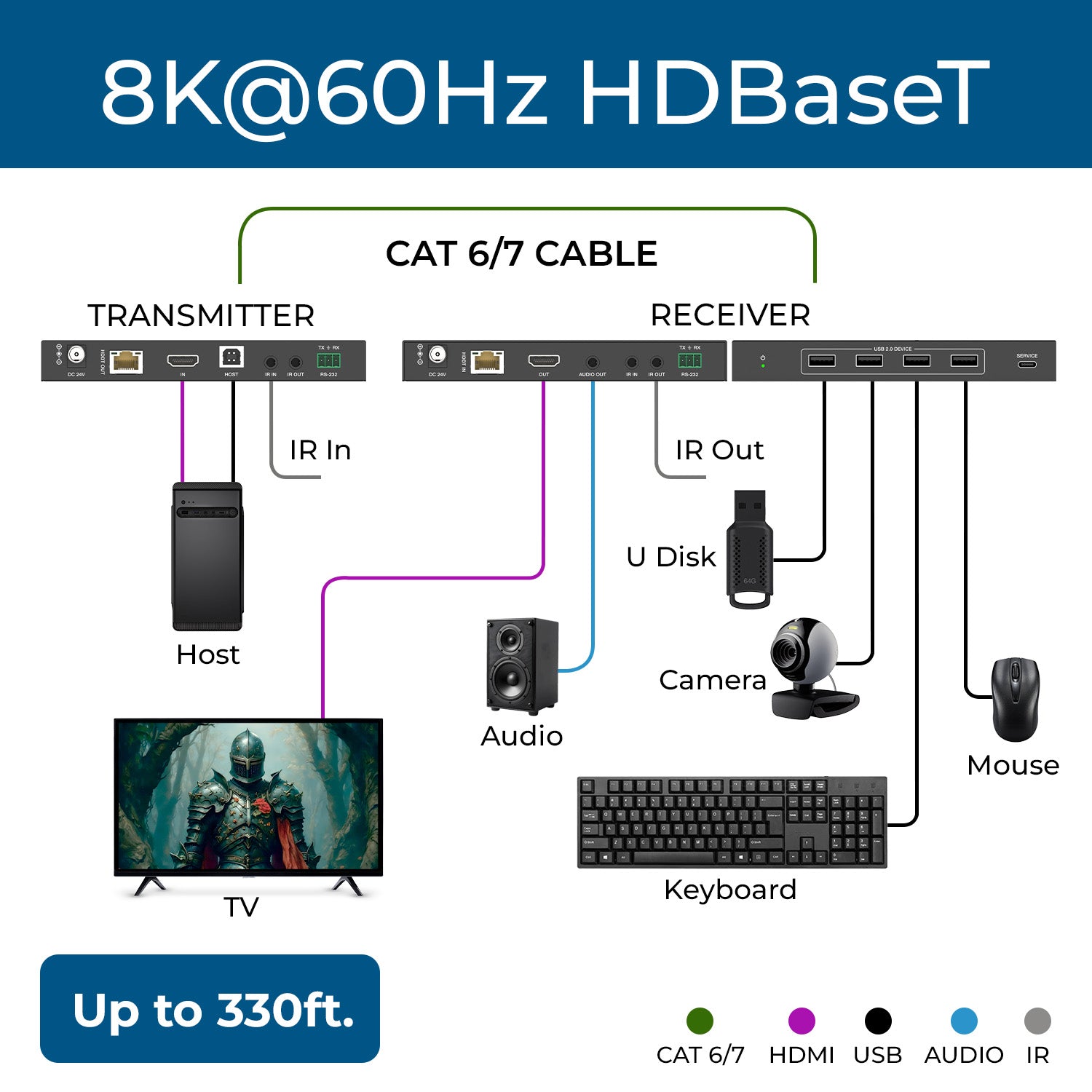

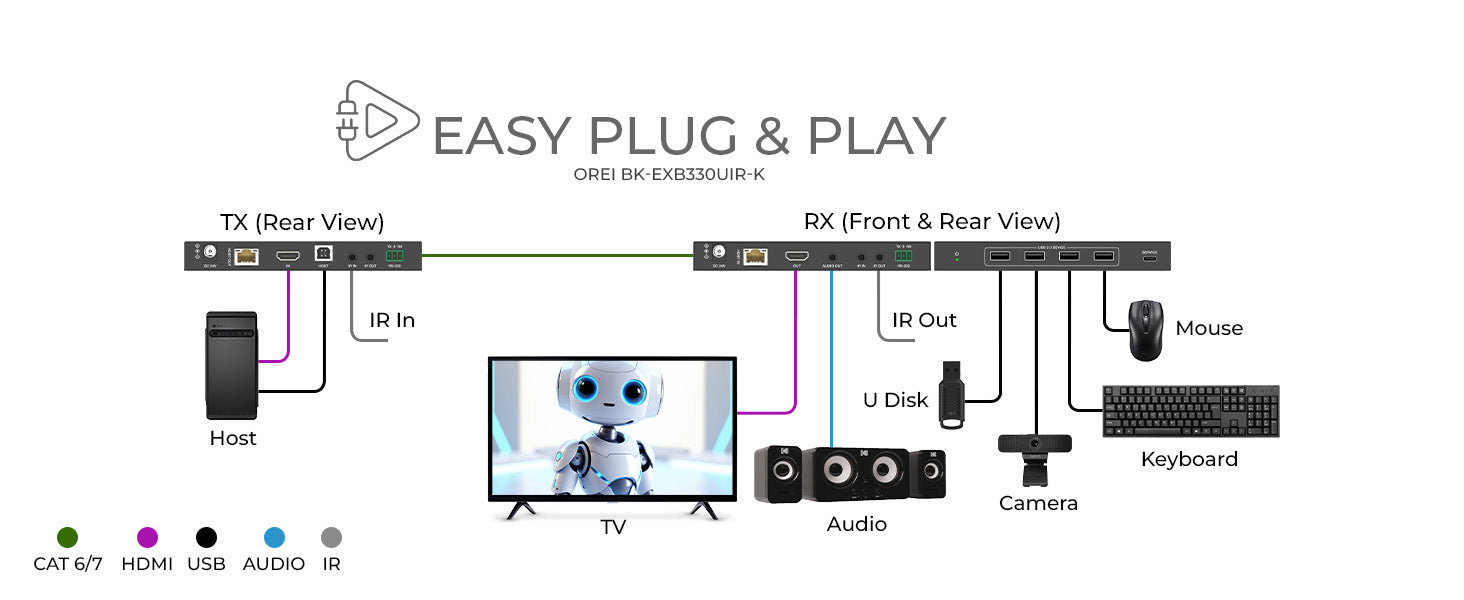

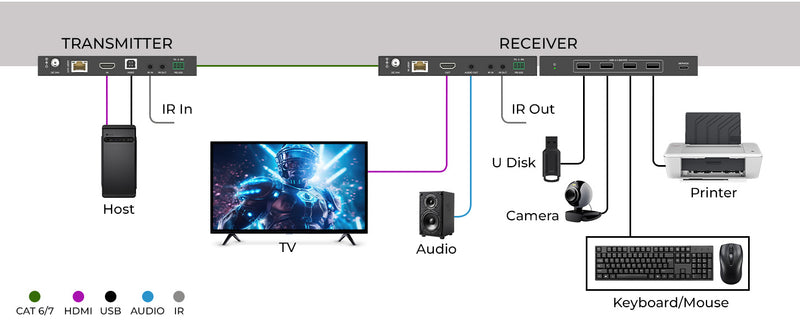

Utilizing advanced HDBaseT technology, the extender converts HDMI™ signals into standard HDBaseT signals and transmits them up to 100 meters (328 feet) over a single CAT5e/6/7 cable. It supports the latest HDMI™ 2.1 features, including VRR, ALLM, QMS, QFT, and SBTM, ensuring smooth visuals, reduced latency, and optimized performance for gaming and high-frame-rate content.
The system also supports HDR10, HDR10+, Dolby Vision, and HLG, along with a full range of advanced audio formats such as Dolby Atmos and DTS:X (through HDMI), delivering immersive audio-visual experiences. USB 2.0 KVM functionality allows remote control of a PC from the Receiver end using a keyboard, mouse and other peripherals such as webcam or touch panels. With audio de-embedding at the receiver, bi-directional IR, RS-232, CEC control, EDID management, and bi-directional PoC, this extender provides a powerful and flexible solution for video conferencing systems, multimedia broadcasting, control rooms, digital signage, and HDMI™ signal extension applications.
BK-EXB330UIR-K User Manual Download
