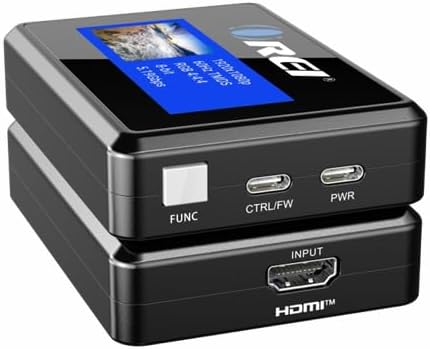

OREI OPAV-SA-8K: 8K@60HZ HDMI 2.1 SIGNAL ANALYZER

Key Features:

• HDMI™ 2.1 & HDCP 2.x Compatible – Supports HDMI 2.1 with backward compatibility for earlier HDMI standards.
• Supports Resolutions up to 8K@60Hz – Analyzes ultra-high-definition HDMI signals with multiple RGB and YUV color formats.
• 40Gbps Signal Analysis – Supports total bandwidth up to 40Gbps with a maximum of 10Gbps per lane.
• FRL & TMDS Signal Analysis – Accurately analyzes both HDMI 2.1 FRL and legacy TMDS transmission modes.
• Automatic Signal Detection & Recording – Detects and records incoming signal parameters for efficient troubleshooting.
• Integrated LCD Display – Displays real-time signal information including resolution, color space, bit depth, bandwidth, and video format.
• Advanced Audio Analysis – Supports multiple audio sampling frequencies with up to 8 audio channels.
• Command & LCD Status Monitoring – Retrieve device status via command interface or directly from the built-in display.
• Compact Design – Portable form factor ideal for field testing, AV integration, and laboratory environments.

The OPAV-SA-8K is a professional diagnostic and monitoring tool designed to analyze HDMI™ signals with bandwidths of up to 40Gbps. Supporting both FRL (Fixed Rate Link) and TMDS signal analysis, it provides comprehensive real-time information for HDMI 2.1 and earlier video sources, making it an essential tool for AV integrators, installers, manufacturers, and testing laboratories.

Equipped with a built-in display, the analyzer provides instant access to critical signal information including video image, resolution, signal format, color space, color depth, bandwidth utilization, and audio parameters. It supports video resolutions up to 8K@60Hz, multiple RGB and YUV color formats, and up to 8-channel audio, while automatic signal detection and recording simplify troubleshooting and validation. Its compact design, intuitive operation, and stable performance make the OPAV-SA-8K an ideal solution for professional HDMI signal analysis and verification.
