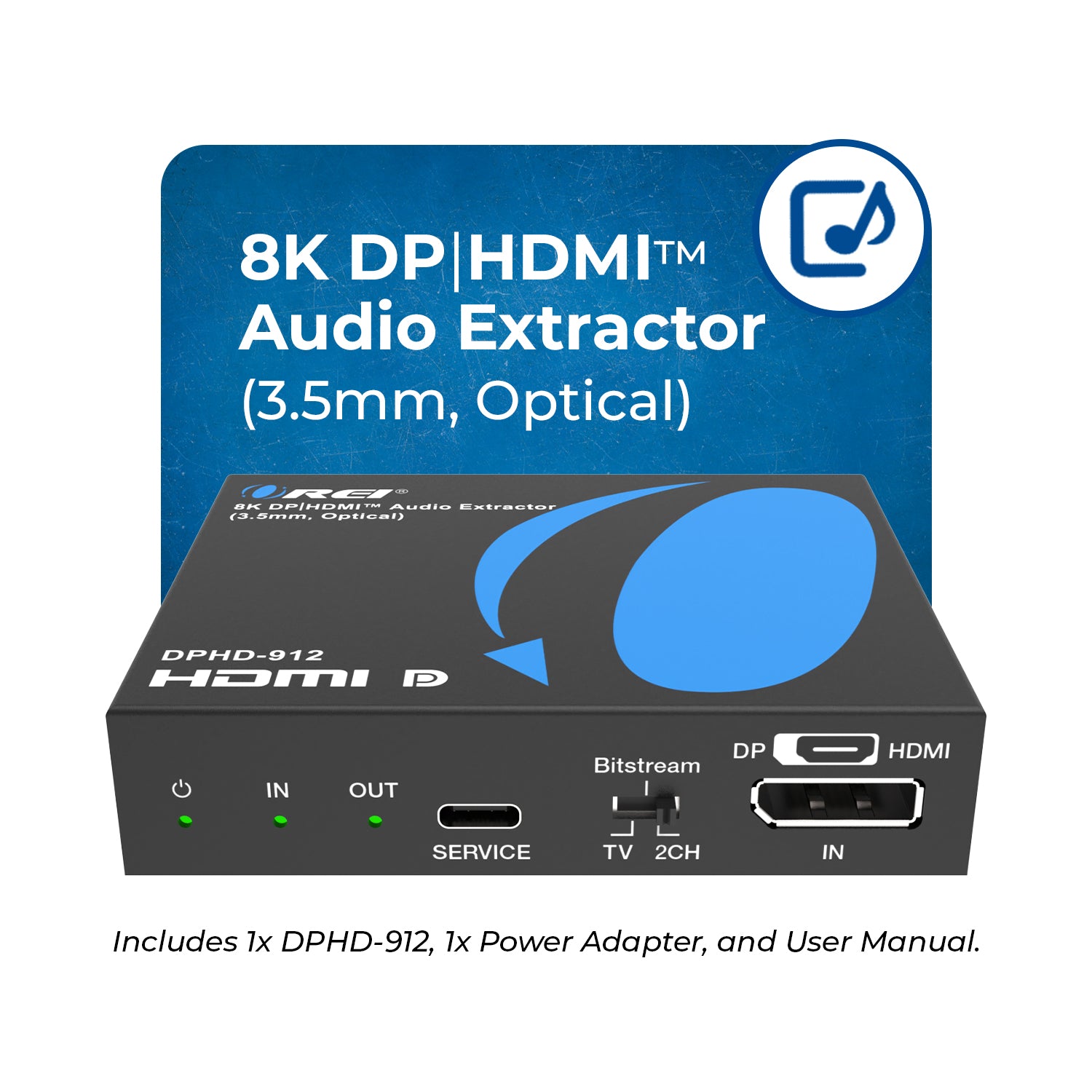

8K DP|HDTM Audio Extractor (3.5mm, Optical) (DPHD-912)

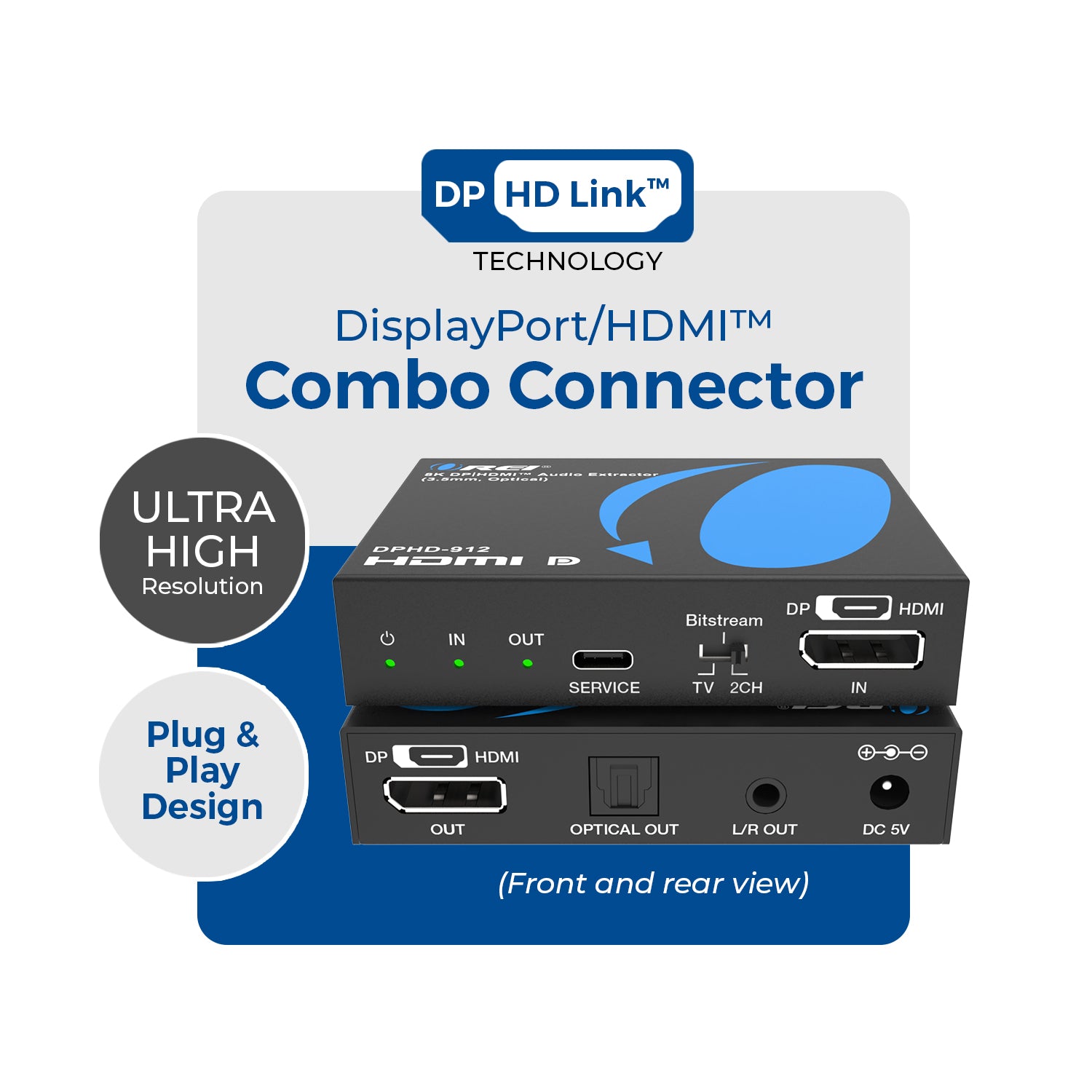

• DP|HD™ Link Technology – Supports both DisplayPort and HDMI™ interfaces through a single combo input for flexible source connectivity.

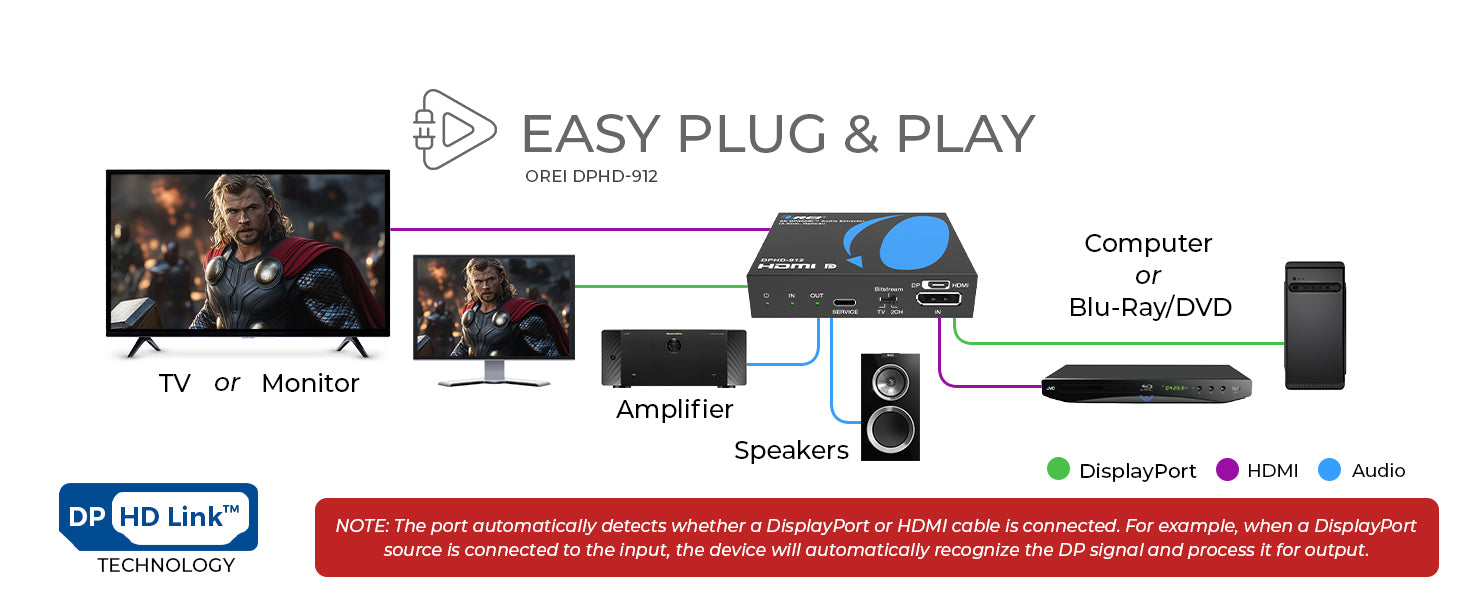

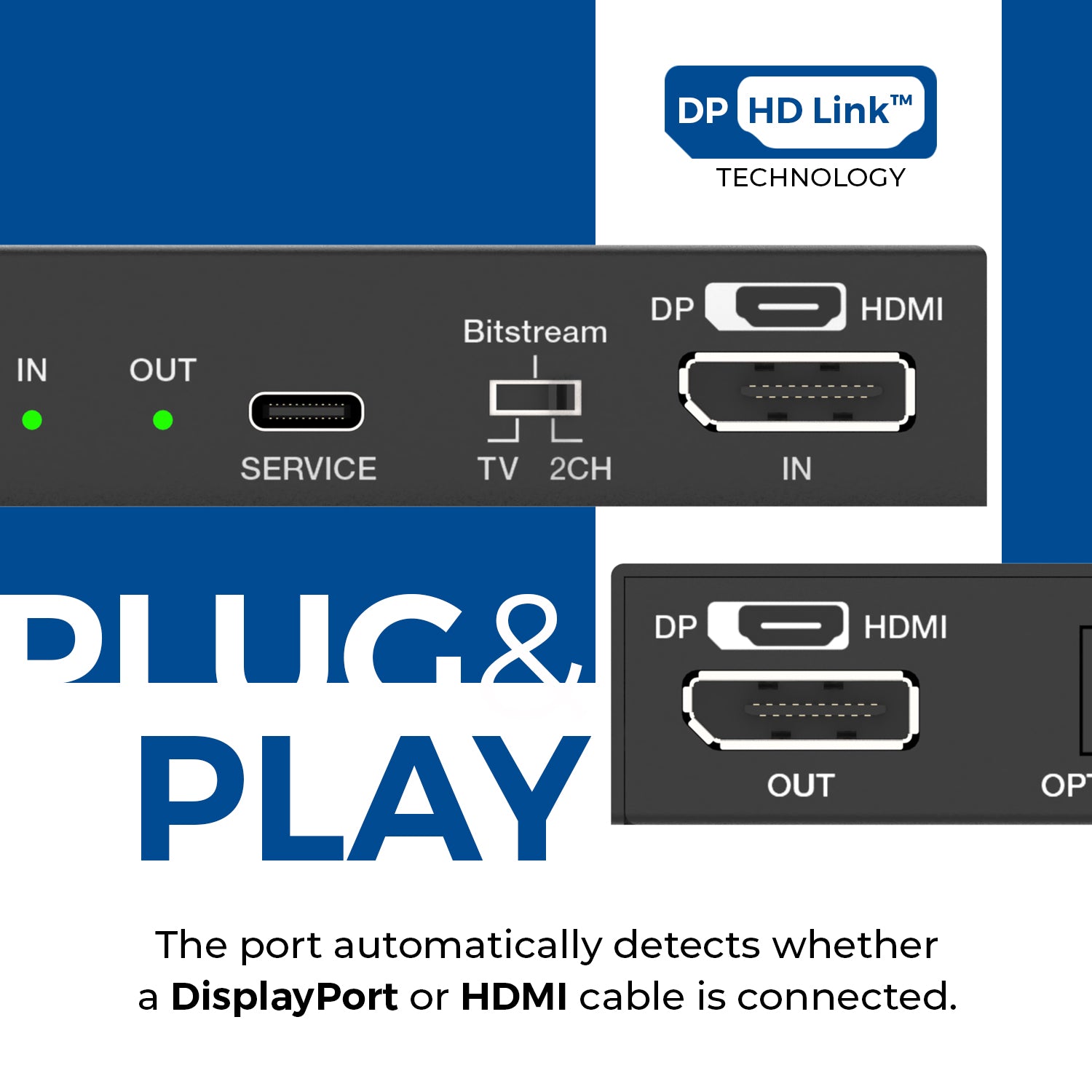

• Automatic DP/HDMI Detection – Enables automatic interface detection and seamless signal conversion between DisplayPort and HDMI™.

• HDCP 2.3, DisplayPort 1.4 ALT Mode & HDMI 2.0b Compliant – Ensures compatibility with modern AV devices and protected content.

• High Video Bandwidth – Supports up to 32.4Gbps bandwidth for DisplayPort and 18Gbps for HDMI for high-resolution video transmission.

• Supports Ultra-High Resolutions – Supports up to 8K@30Hz and 4K@120Hz through DisplayPort and up to 4K@60Hz through HDMI.

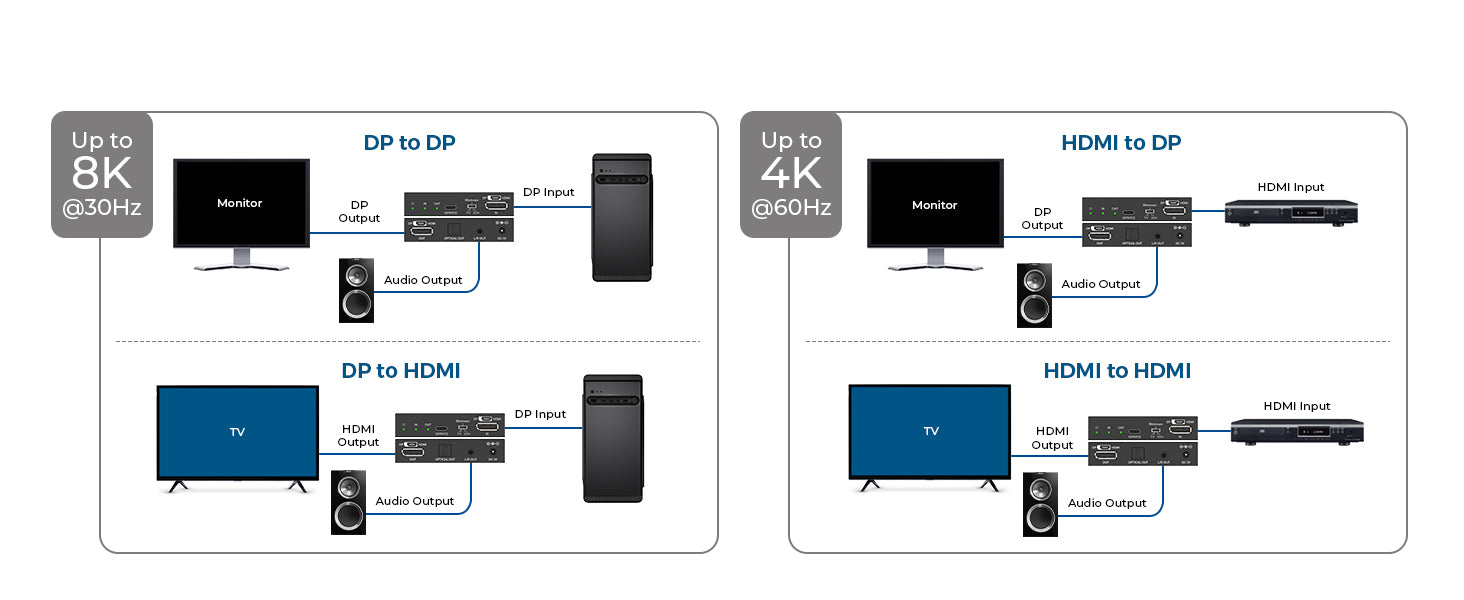

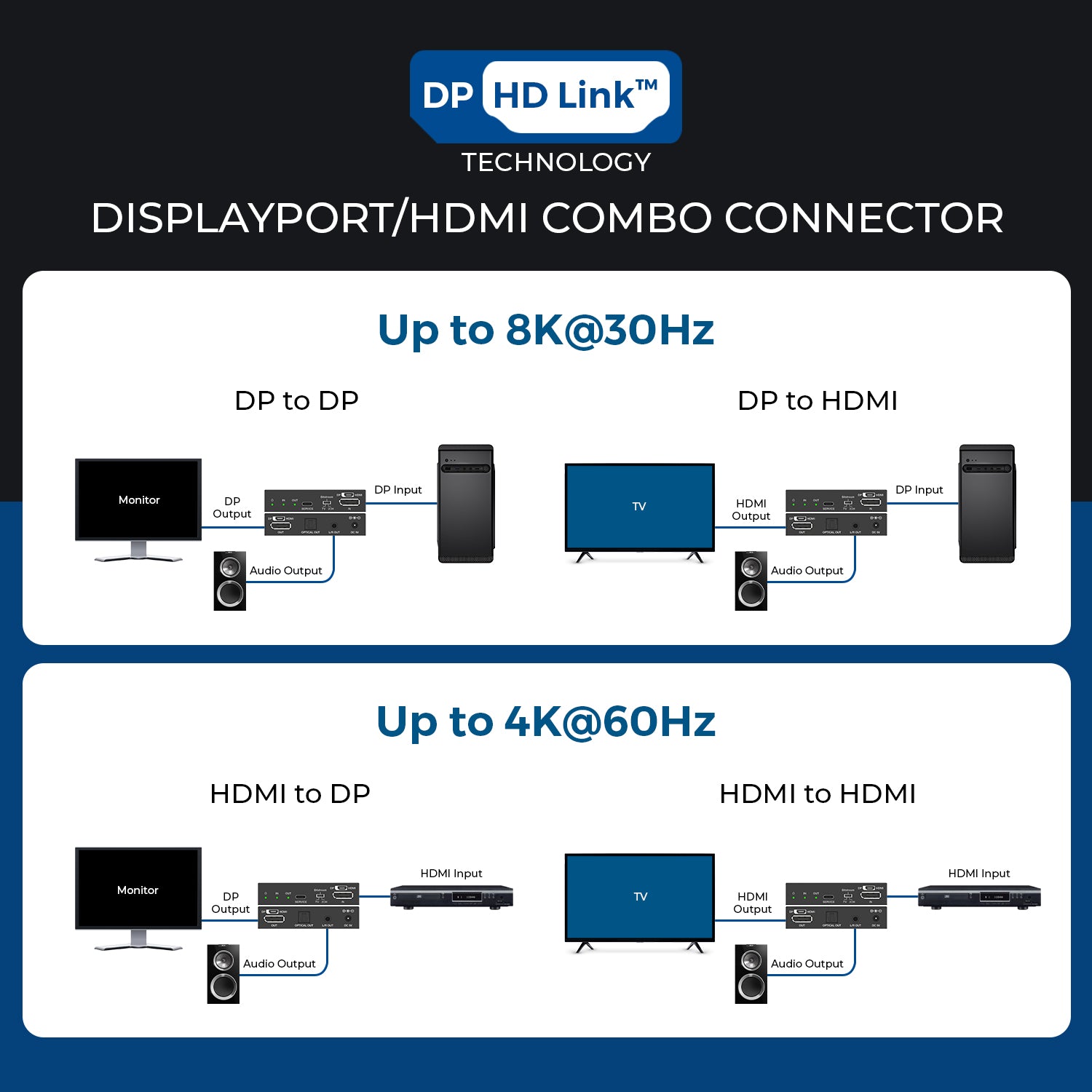

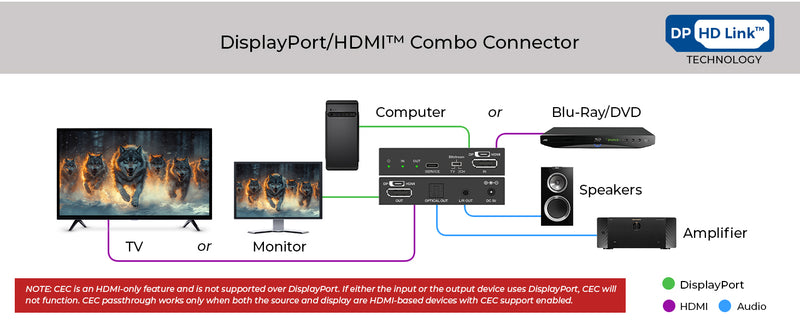

• 4-Way Signal Conversion – Supports DP→DP, DP→HDMI, HDMI→DP, and HDMI→HDMI configurations for versatile source and display connectivity.

• Audio Extraction – Extracts audio from compatible HDMI/DP sources and outputs it simultaneously through optical (SPDIF) and 3.5mm analog audio ports.

• HDMI/DP Audio Support – Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio through the HDMI/DP signal path.

• Optical Audio Output – Supports LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH through the SPDIF output.

• Analog Audio Output – Provides LPCM 2.0 analog audio through the 3.5mm stereo output.

• HDR Format Support – Passes through HDR, HDR10, HDR10+, Dolby Vision, and HLG for enhanced image quality with compatible equipment.

• CEC Pass-Through – Maintains compatible CEC control signals between connected devices.

• EDID Management – Provides EDID management to ensure reliable compatibility between different source, display, and audio devices.

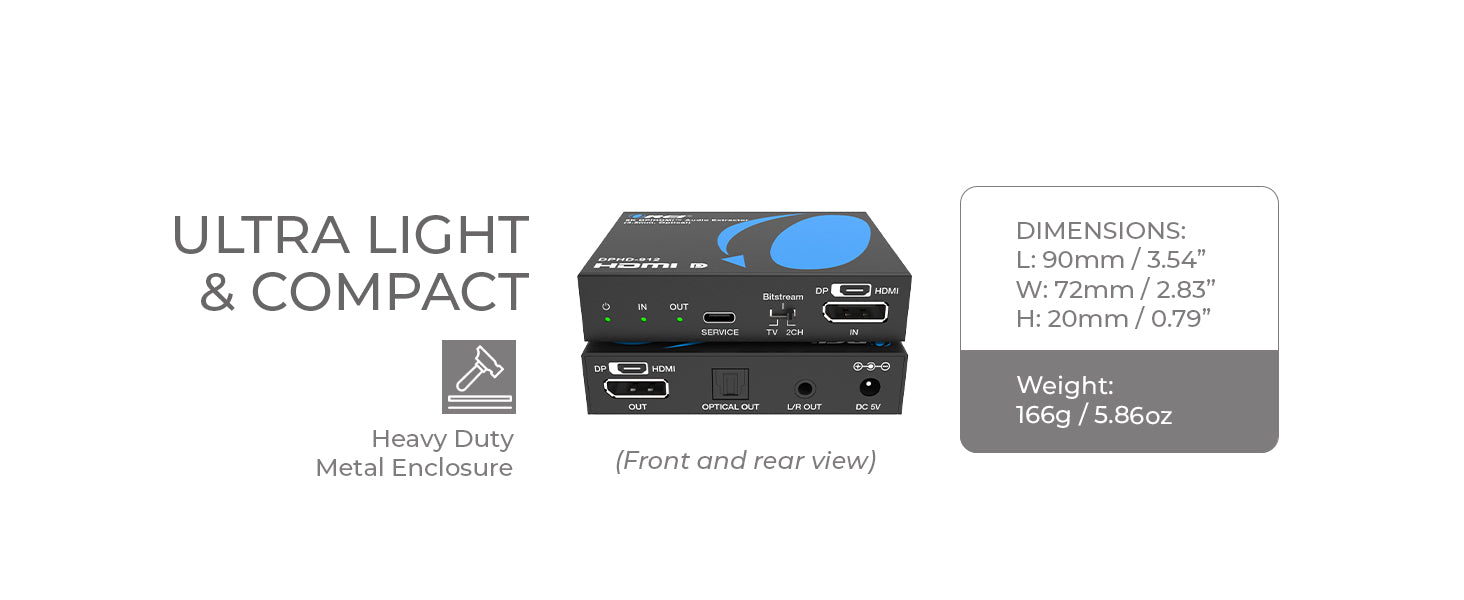

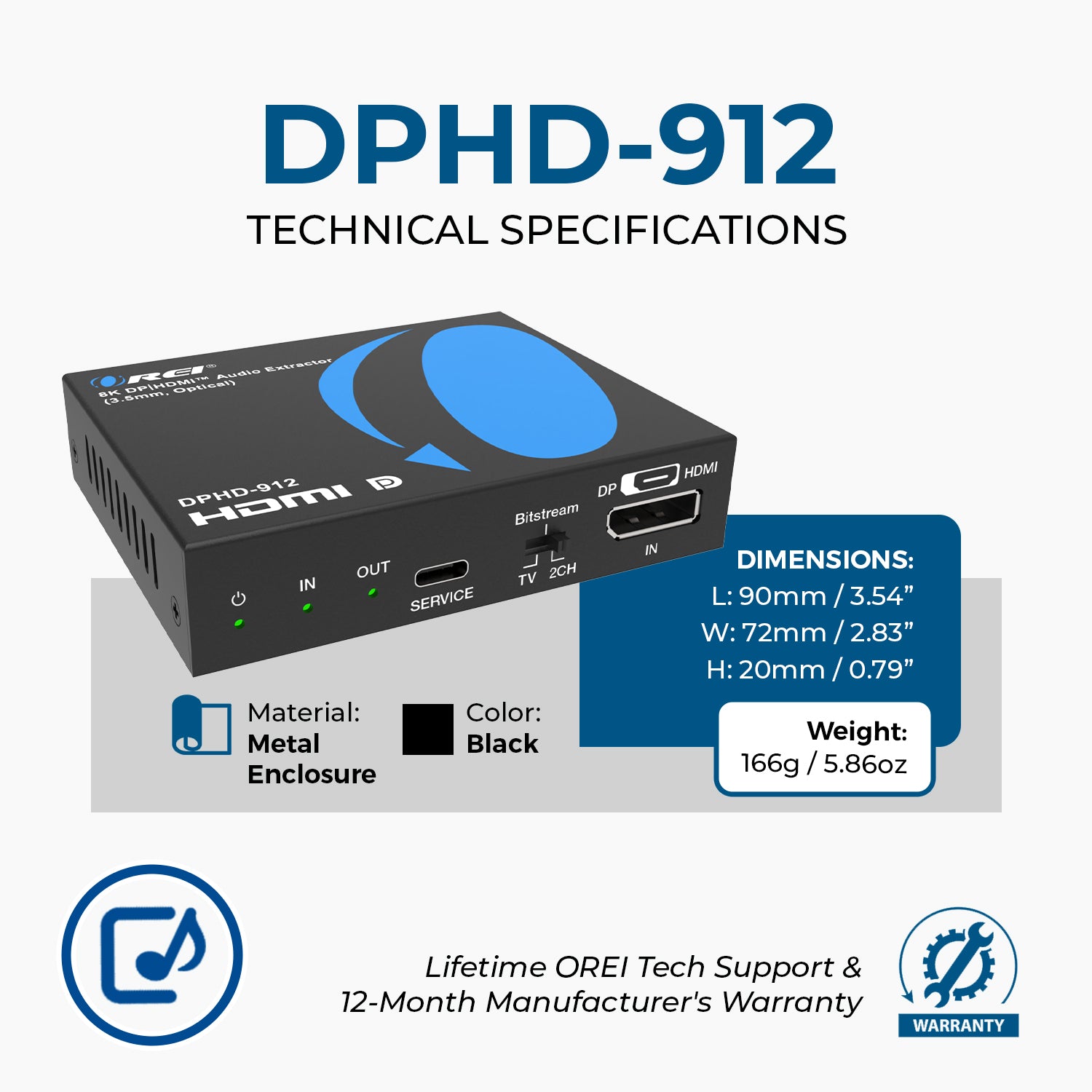

• Compact Design – Features a compact and durable enclosure suitable for professional AV installations, home theaters, and mixed-signal display setups.

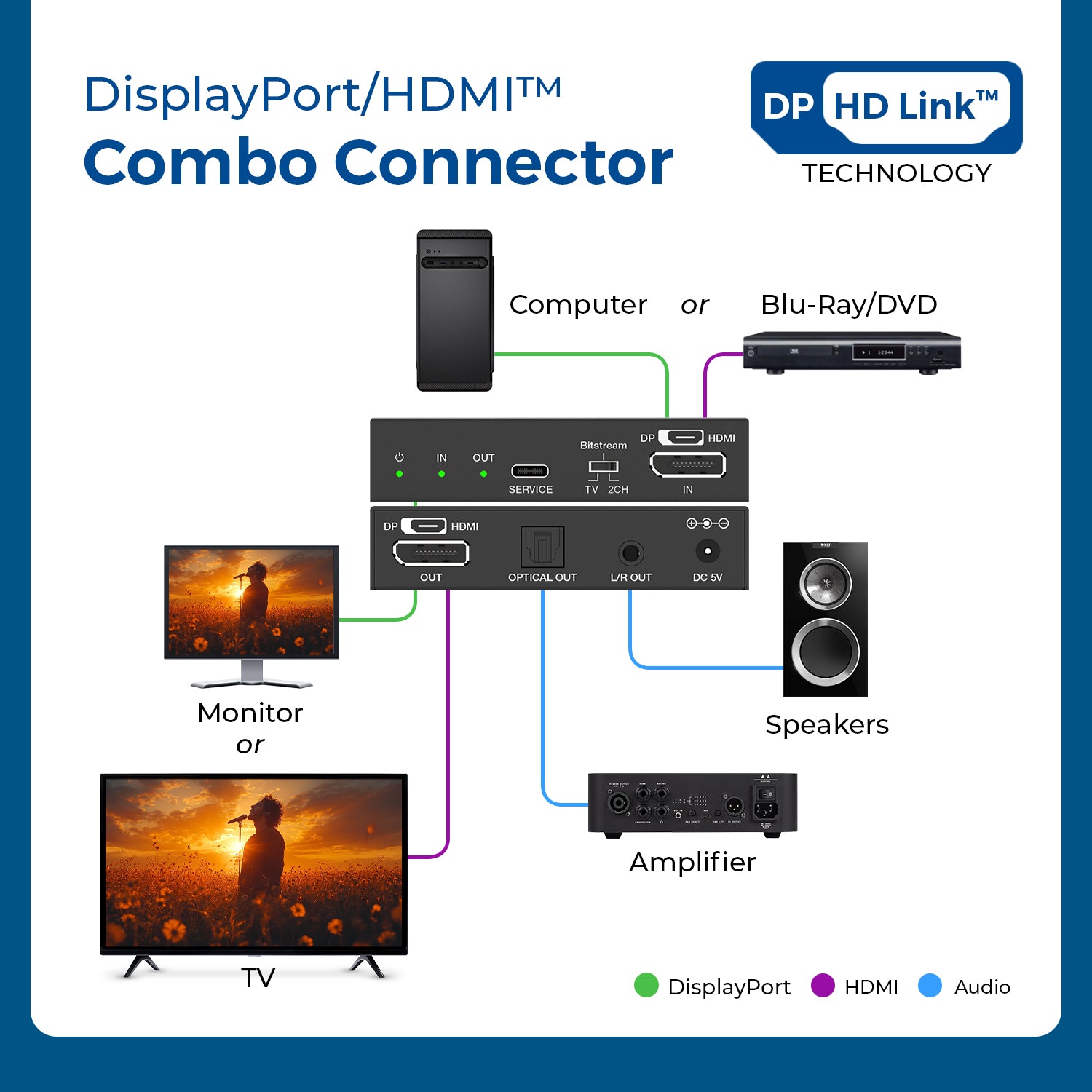

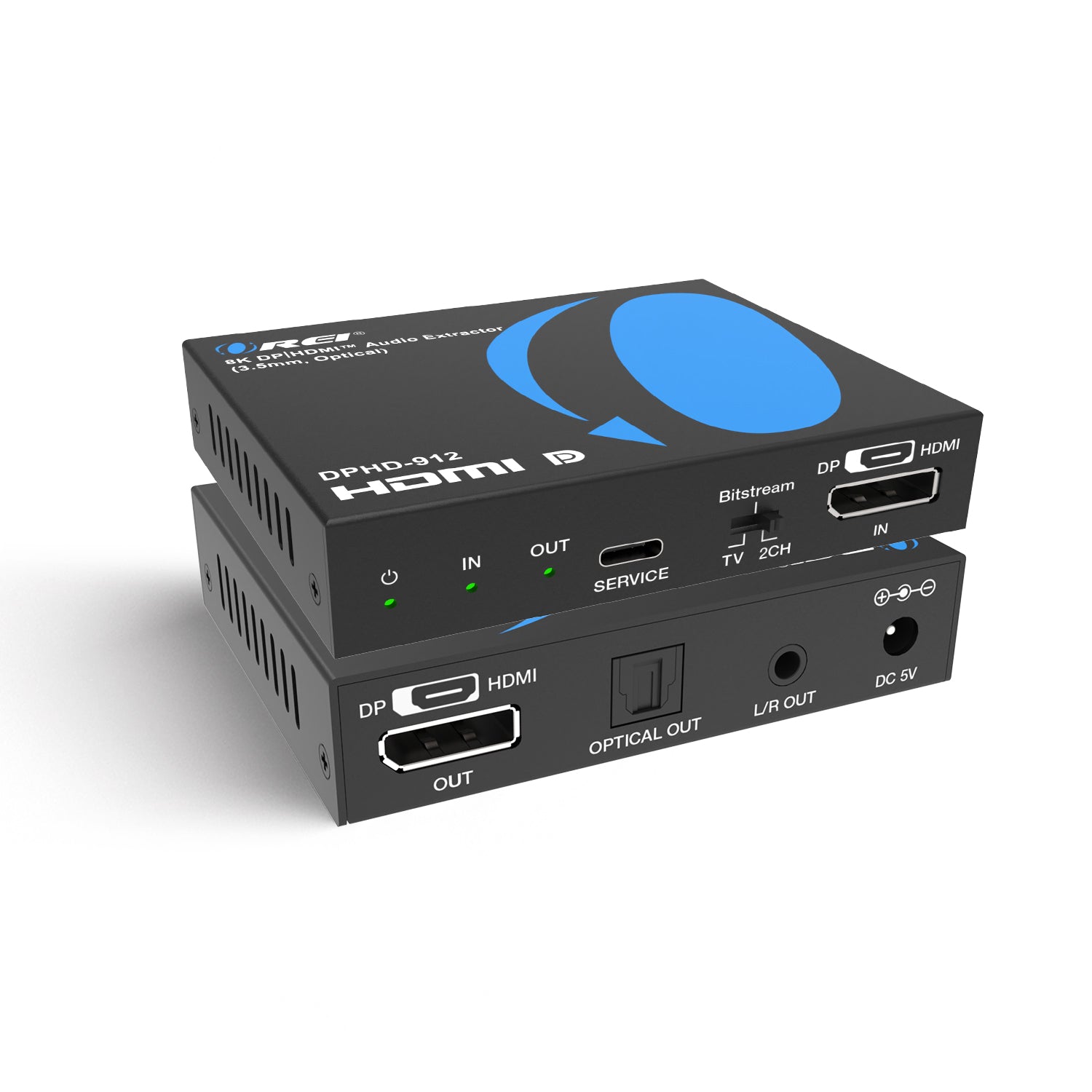

The DPHD-912 is a professional audio extractor featuring OREI’s latest DP|HD Link™ technology, designed to provide flexible DisplayPort and HDMI™ connectivity while extracting audio from compatible sources. Its DP|HDTM port supports both DisplayPort and HDMI™ signals, allowing seamless connection with computers, media players, set-top boxes, streaming devices, and other compatible AV equipment. The device outputs extracted audio simultaneously through optical (SPDIF) and 3.5mm stereo ports for flexible audio integration.

DP|HD Link™ technology enables automatic interface detection and signal conversion between DisplayPort and HDMI. It supports DP→DP, DP→HDMI, HDMI→DP, and HDMI→HDMI configurations without requiring separate converters. Compliant with HDMI 2.0b, DisplayPort 1.4 ALT Mode, and HDCP 2.3, the DPHD-912 supports video resolutions up to 8K@30Hz and 4K@120Hz via DisplayPort and up to 4K@60Hz via HDMI, with bandwidths up to 32.4Gbps for DisplayPort and 18Gbps for HDMI. It also supports advanced video formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG, along with CEC pass-through for compatible devices.

For audio extraction, the optical output supports LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH, while the 3.5mm stereo output provides analog LPCM 2.0 audio. The device also supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio through the DP|HD™ signal path. An EDID management switch helps ensure reliable compatibility between different sources, displays, and audio devices. Housed in a compact and durable enclosure, the DPHD-912 is ideal for home theaters, professional AV systems, and mixed-signal display installations requiring flexible DP/HDMI connectivity and reliable audio extraction.
