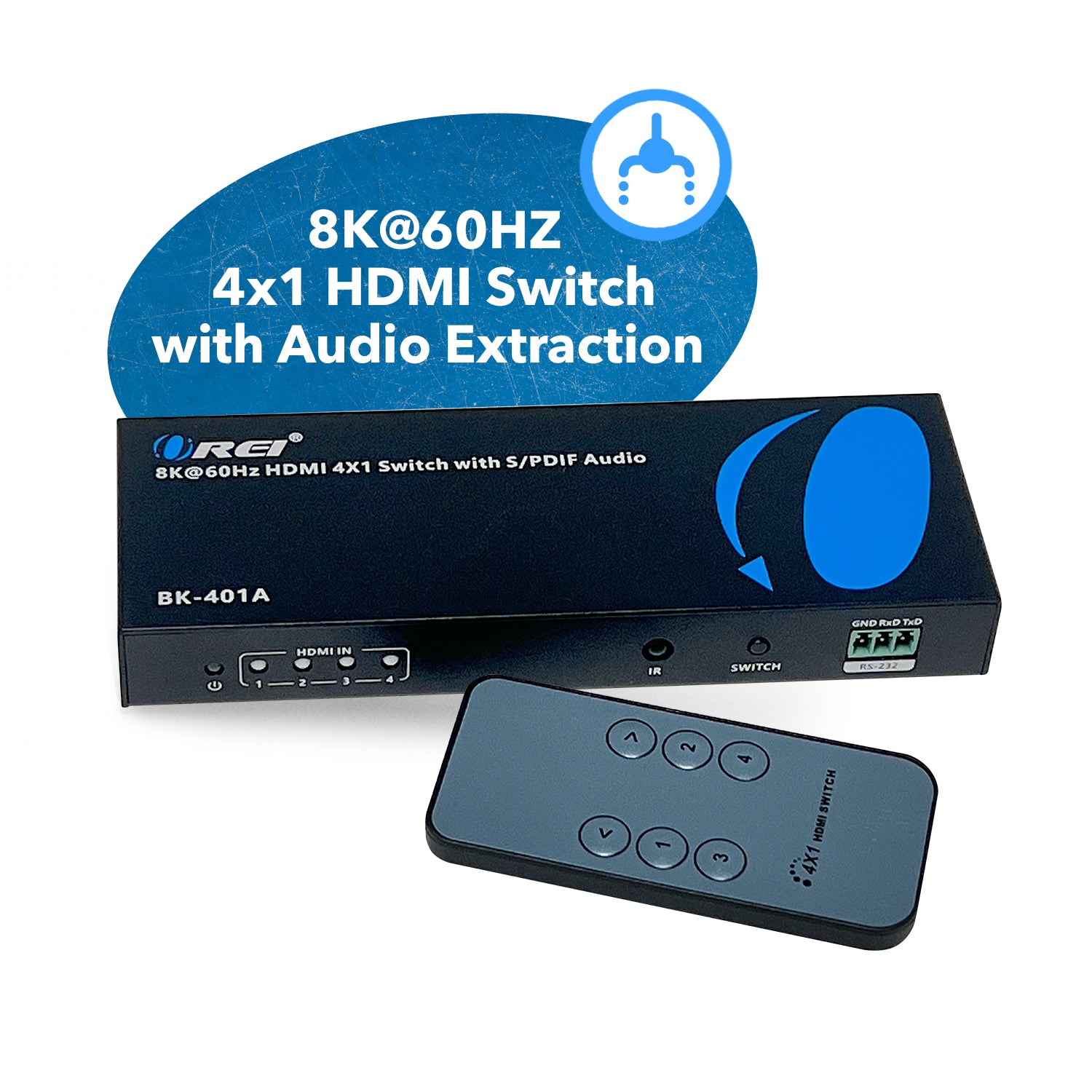

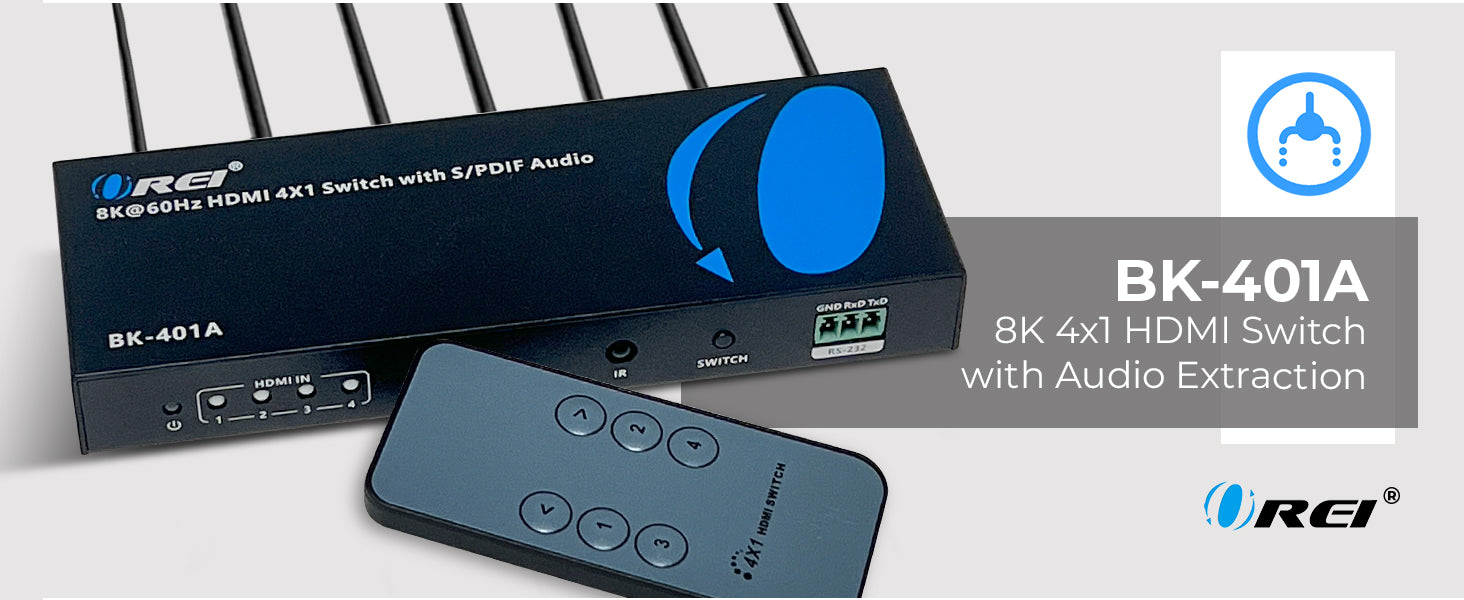

OREI BK-401A: 8K 4x1 HDMI Switcher with Audio Extraction
Key Features:
HDMI 2.1 & HDCP 2.3 Compliant
48Gbps FRL & 18Gbps TMDS video Bandwidth
Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit
HDR/10/10+, Dolby Vision and HLG pass-through
VRR, ALLM, QMS, QFT, and SBTM support
CEC: Control the soundbar and input devices through the TV remote.
Advanced EDID Management
Plug-and-play setup

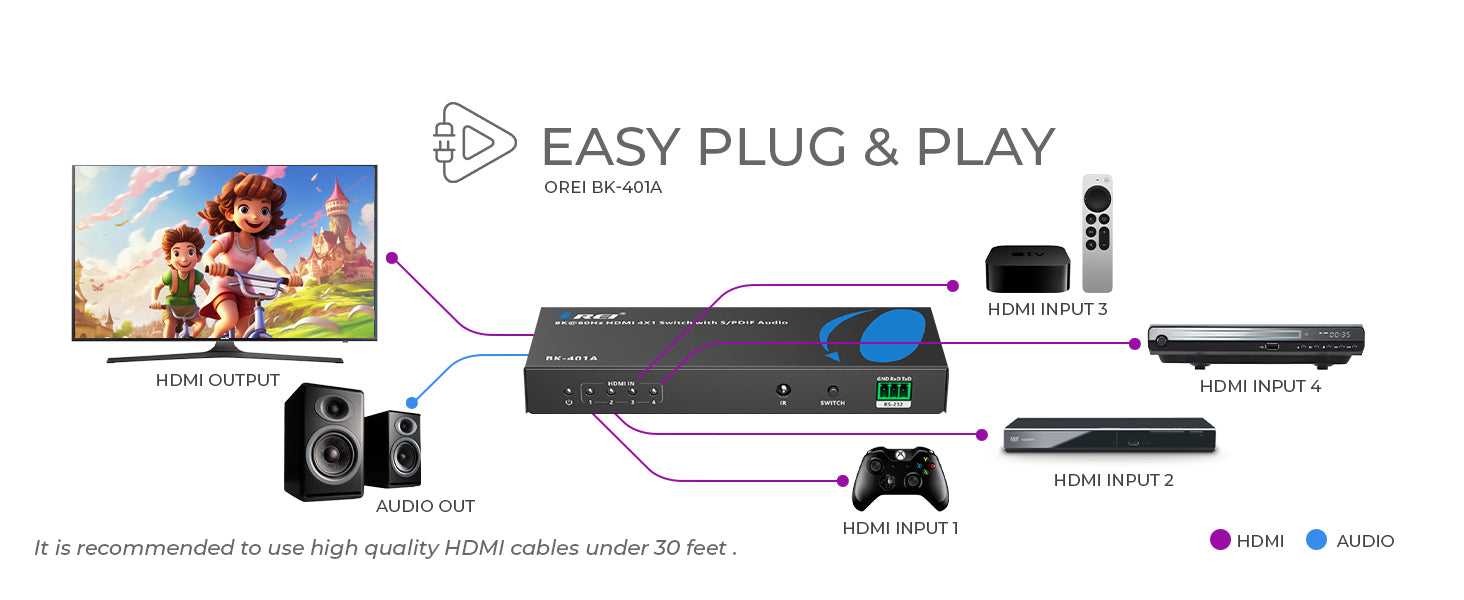

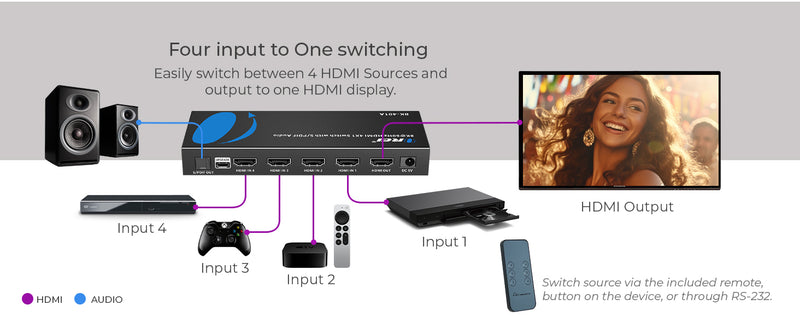

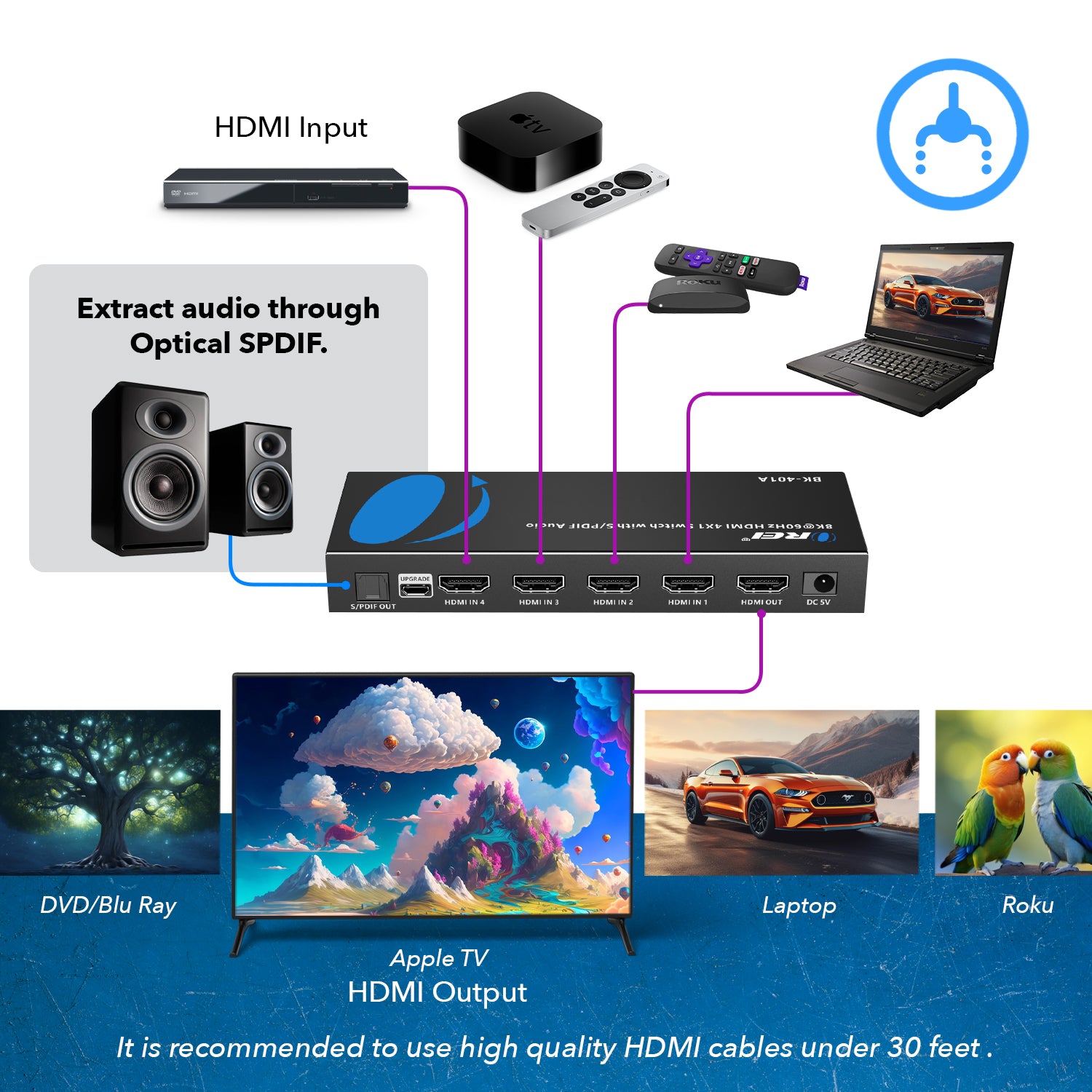

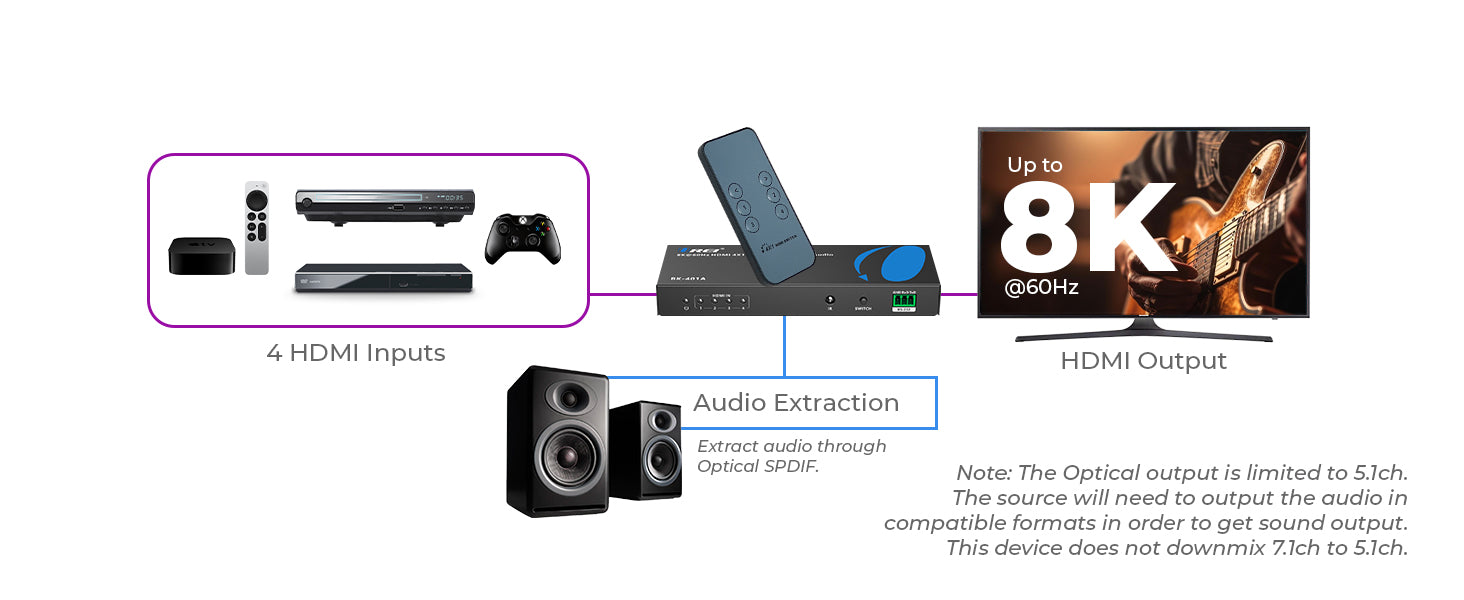

The BK-401A is an 8K HDMI switch featuring 4 HDMI inputs and 1 HDMI output, allowing you to connect multiple devices to your TV. It can also extract audio from your sources and output it via S/PDIF and L/R ports. Compliant with HDMI 2.1 and HDCP 2.3, it supports video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4. With a video bandwidth of up to 48Gbps FRL and 18Gbps TMDS, it supports HDR10+, HLG, and Dolby Vision pass-through. CEC enables control of the soundbar's volume through your TV remote. It offers advanced EDID management, a compact design, and easy plug-and-play installation, making it perfect for personal or commercial setups.

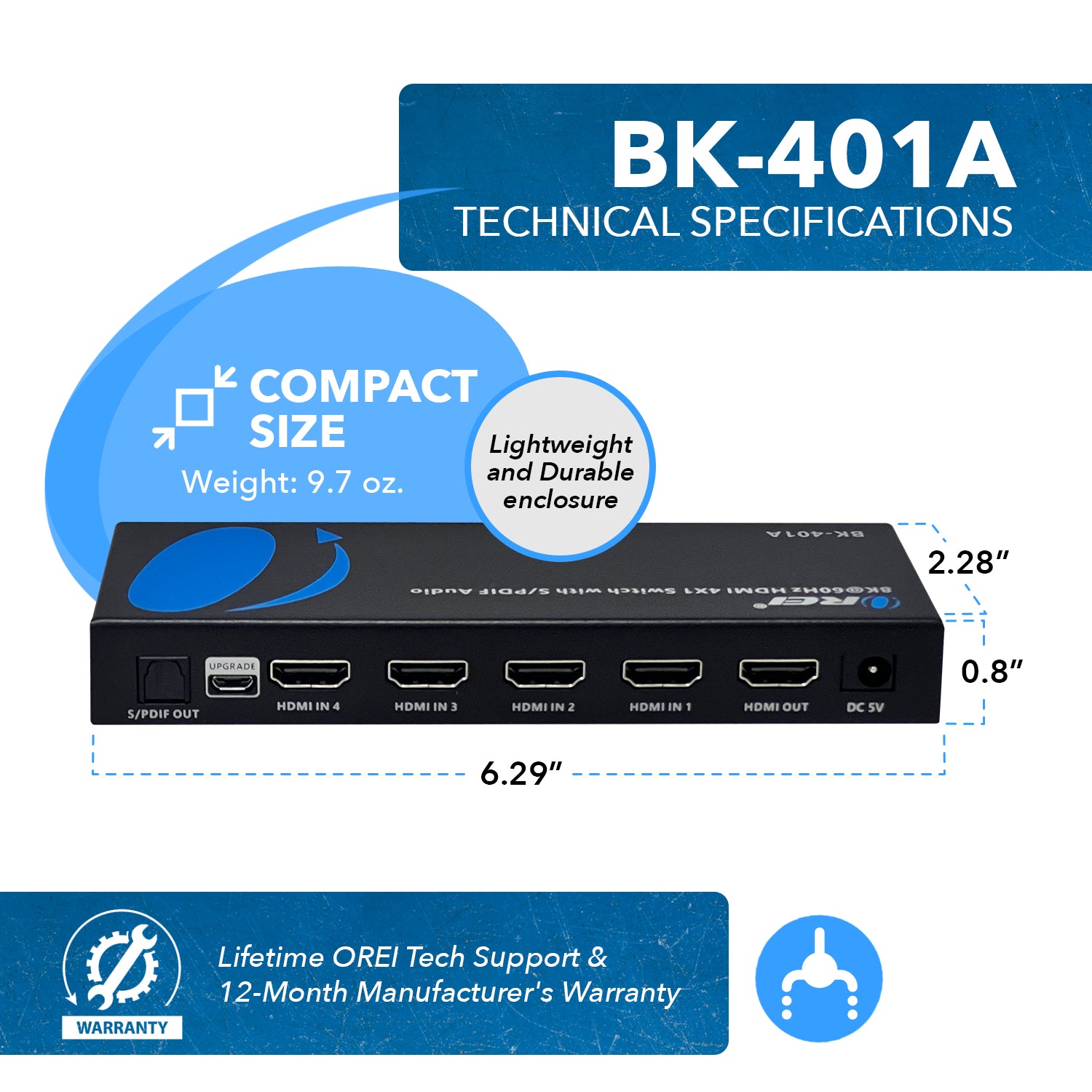

CONNECTIVITY
INPUT:
4 × HDMI IN [Type A, 19-pin female]
OUTPUT:
1 × HDMI OUT [Type A, 19-pin female]
1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:
1 × SERVICE [USB Type C, Update port]

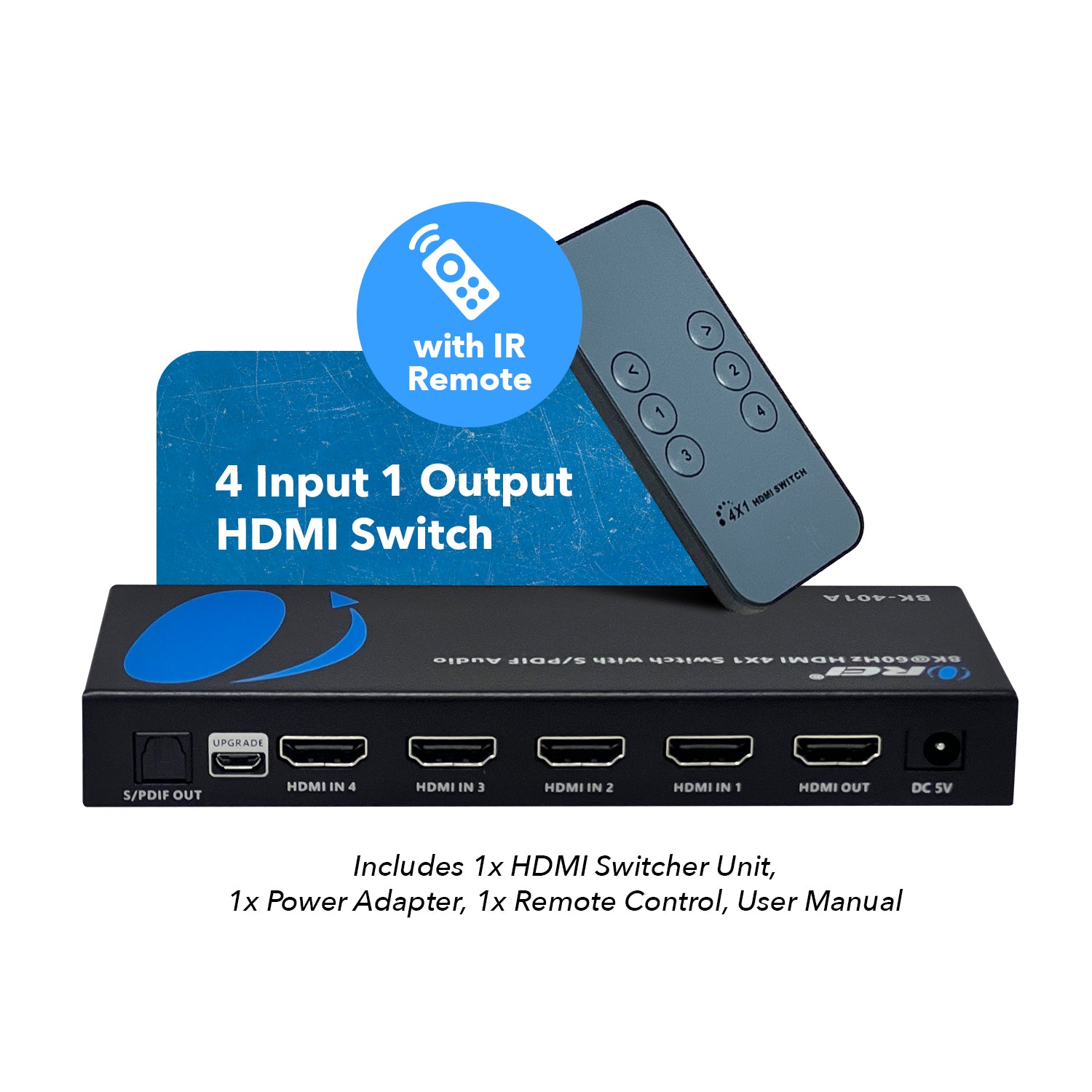

PACKAGE CONTENTS
1x BK-401A Switch

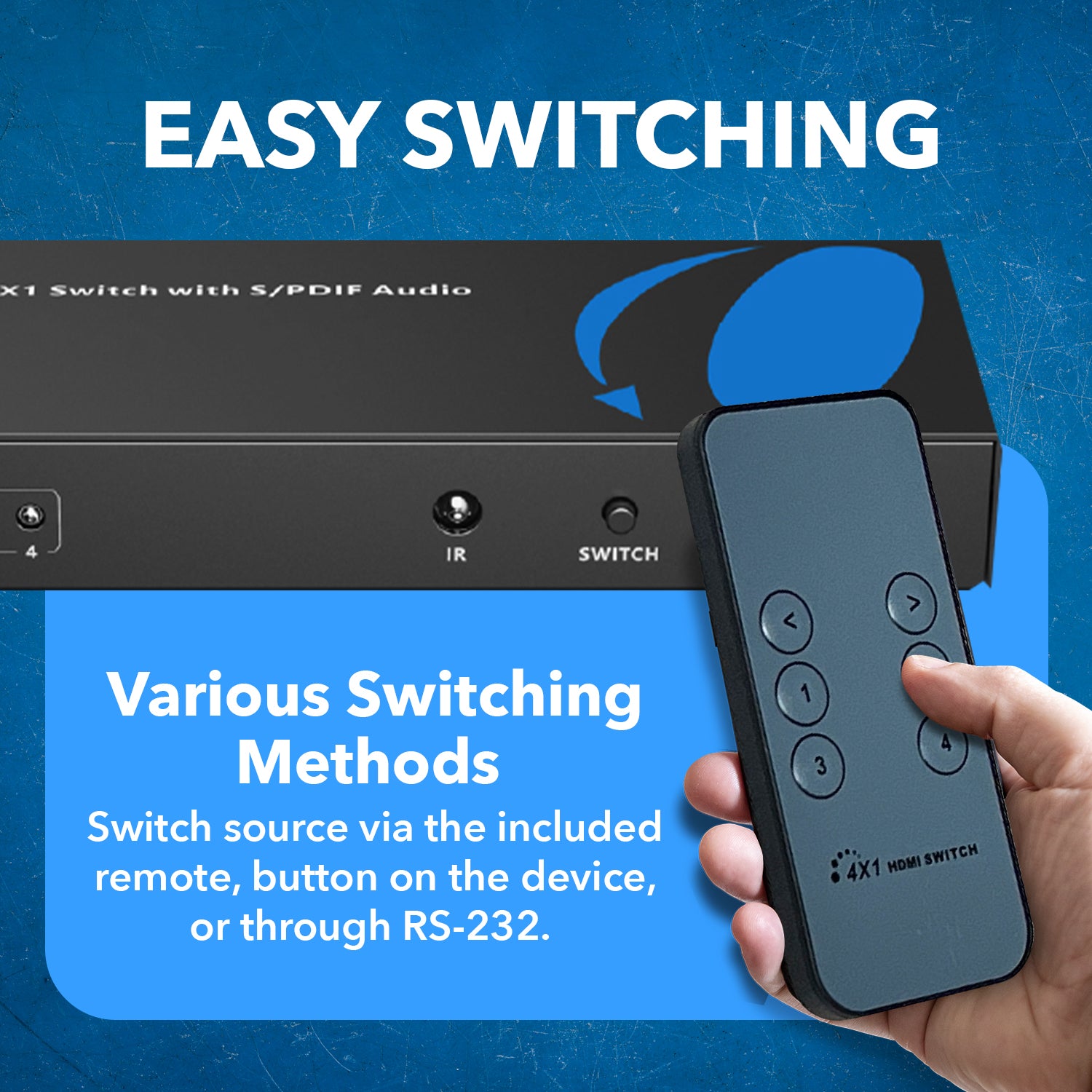

1x IR Remote
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
