4K HDMI 2.0 4x1 HDMI Switch With Audio Extractor ARC (UHDS-401A-O)

$89.99 USD $99.99

SKU: UHDS-401-A-O

4 Inputs - 1 output HDMI switch
Video resolution up to 4K@60Hz and 2K@60Hz - EDID Management
Support ARC
Compliance: HDMI 2.0b - HDCP 2.2

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

4K HDMI 2.0 4x1 HDMI Switch With Audio Extractor ARC (UHDS-401A-O)

Default Title – Change

1. Connect Four HDMI Sources with Effortless Switching

The UHDS-401A-O 4x1 HDMI switch is designed to connect up to four HDMI devices to a single display, making it ideal for setups with multiple sources like gaming consoles, Blu-ray players, and streaming devices. You can easily switch between sources using the front-panel controls or the included IR remote. With input status LEDs for at-a-glance confirmation, this switch HDMI 4 port solution brings simplicity and control to any AV environment.

2. Ultra HD Performance with HDMI 2.0a Compliance

Supporting resolutions up to 4Kx2K@60Hz and full HDMI 3D formats, this 4K HDMI switch delivers stunning video clarity with high frame rates and lifelike depth. Its compliance with HDMI 2.0a, DVI 1.0, and HDCP 2.2 ensures broad compatibility with the latest displays and content sources. Whether you're using it in a home theater or a professional setup, this HDMI output switch ensures your picture quality never takes a hit.

3. Versatile Audio Output with ARC and Extraction Support

The UHDS-401A-O features both analog and digital audio outputs, allowing you to route audio from your HDMI sources to external soundbars, amplifiers, or AV receivers. ARC functionality also enables audio return from ARC-enabled TVs, making it an efficient HDMI ARC switch for streamlined audio setups. Whether you're using optical or 3.5mm connections, this unit ensures flexible and high-quality sound distribution.

4. Smart EDID Management for Optimal Sound Configuration

With selectable EDID modes (Auto / 2CH / 5.1CH / 7.1CH), this HDMI 2.0 switch intelligently adapts to your audio system’s capabilities for optimal signal delivery. It supports all major digital formats including Dolby and DTS, ensuring immersive sound across your entertainment system. Combined with CEC pass-through and reliable switching control, this switch HDMI port solution is built for seamless integration and performance.

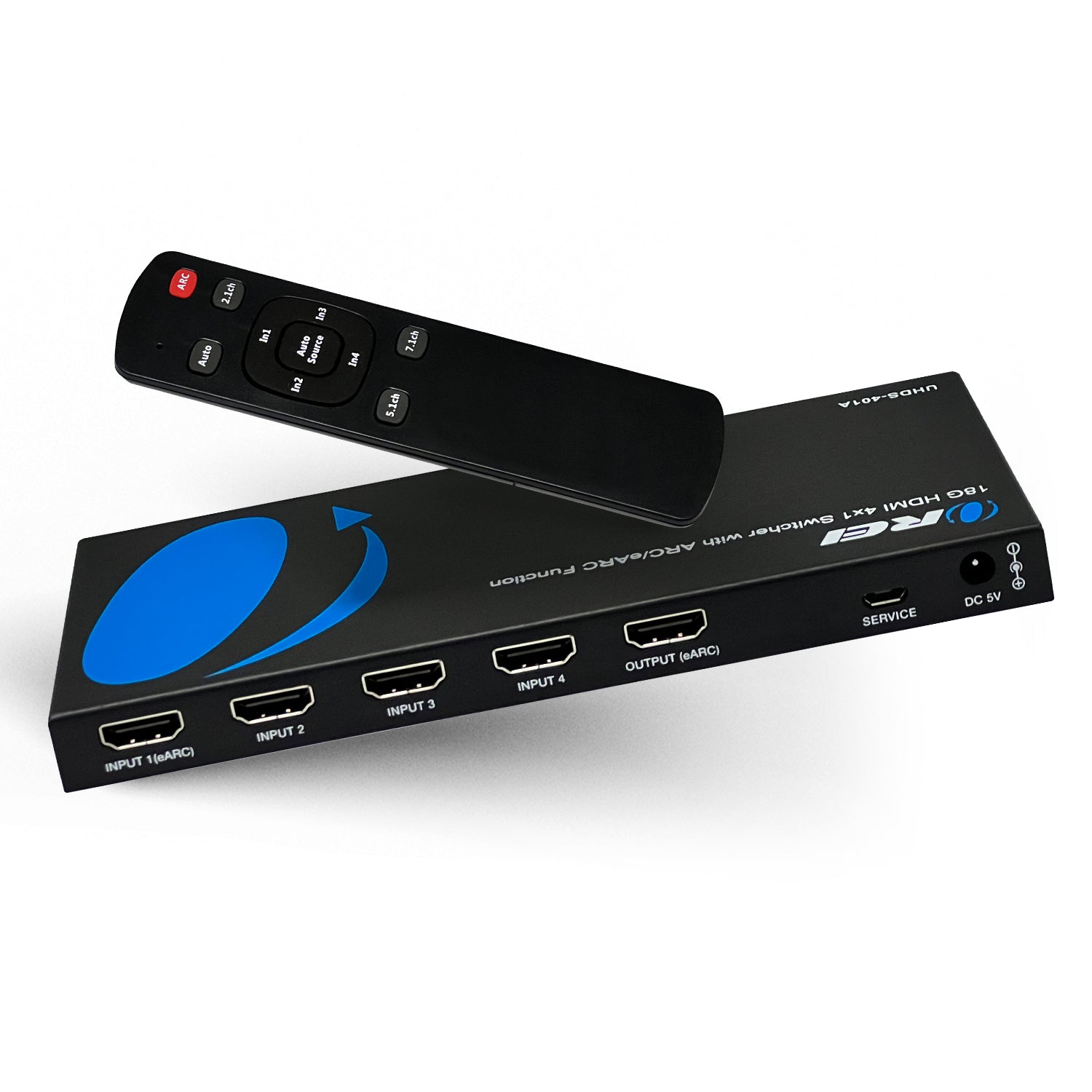

OREI UHDS-401A-O: 4x1 HDMI Switch

Key Features:

HDMI 2.0b, HDCP 2.2 / 1.x, and DVI 1.0 compliant
Video resolution up to 4K@60Hz and 2K@60Hz RGB/YCbCr 4:4:4
Support 18Gbps video bandwidth
Support 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through
Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD
Support auto/manual switching mode for input source
Support ARC - TV Must support ARC to work
Support advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH
selectable)

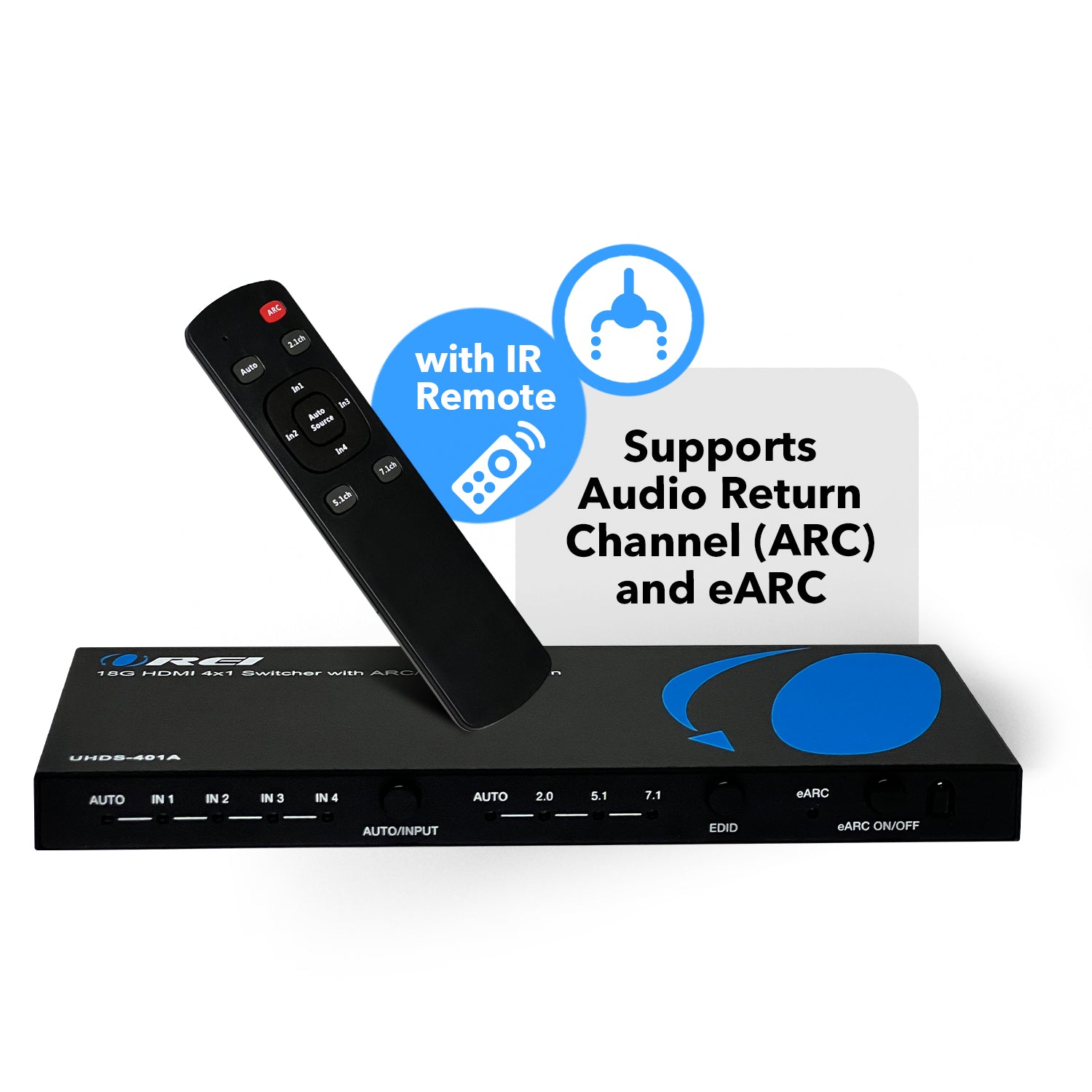

Flexible control via front panel buttons or IR remote control

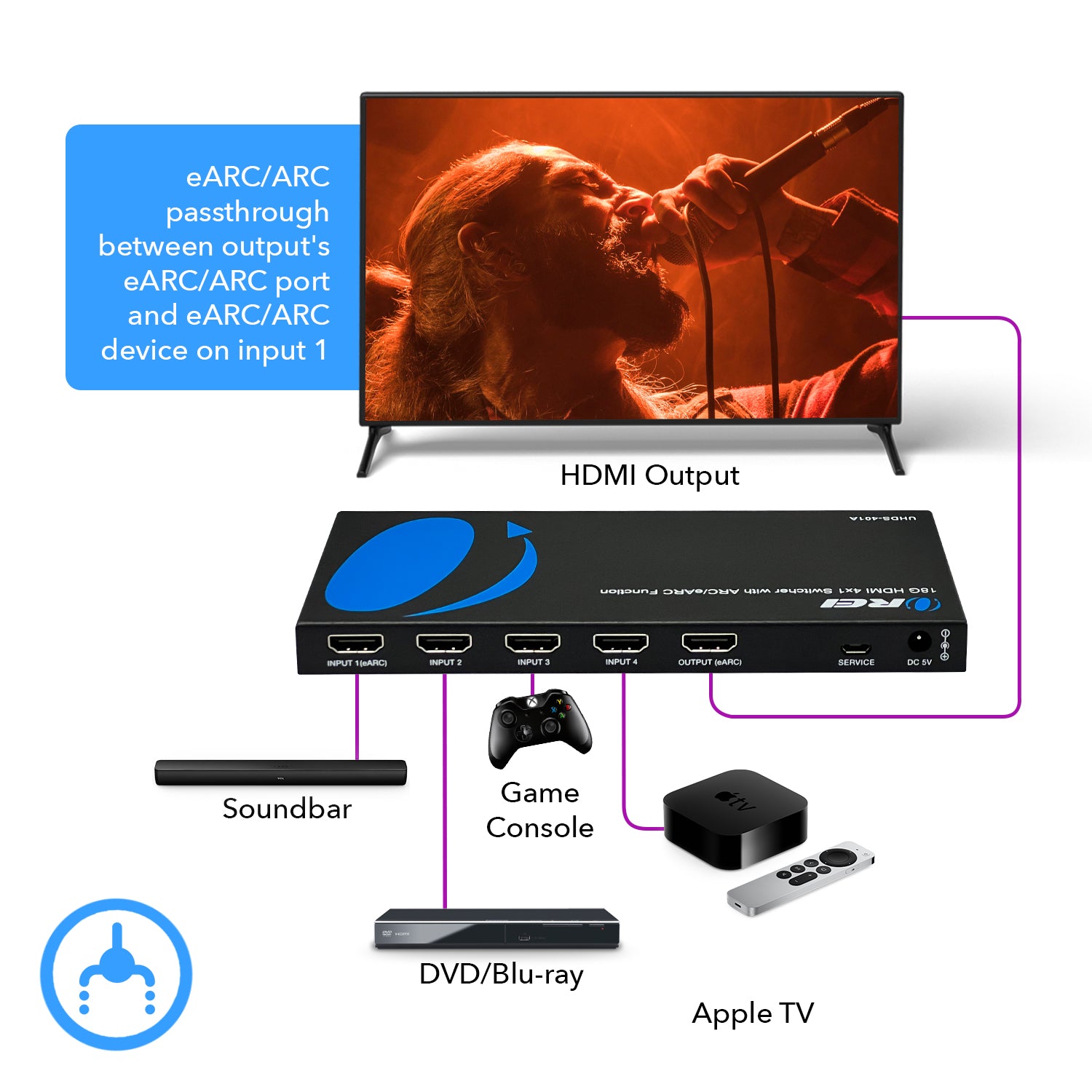

Few sample applications:

The OREI UHDS-401A 18Gbps HDMI 4x1 Switcher can switch any four HDMI sources to one HDMI display.

It supports video resolution up to 4K@60Hz and 2K@60Hz RGB/YCbCr 4:4:4. It supports ARC/eARC function (only for the “INPUT 1(eARC)” port), 10bit HDR and CEC function. It also supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable). Flexible control via front panel buttons and IR remote control.

AUDIO AND VIDEO

Inputs Ports	4×HDMI IN [Type A 19-pin female]
Output Ports	1×HDMI OUT [Type A 19-pin female]
Control	1×SERVICE [Micro USB port]
Video Bandwidth	18Gbps
Video Resolution:	4Kx2K@24/30Hz, 4K@60Hz, 2K@60Hz
Color Depth:	8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)
Color Space:	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x

POWER

Power Supply:	Input	AC100~240V 50/60Hz
	Output	DC 5V/1A
Power Consumption	Max 2 W

CONTROL

CEC

Pass through

ENVIRONMENTAL

Operating Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

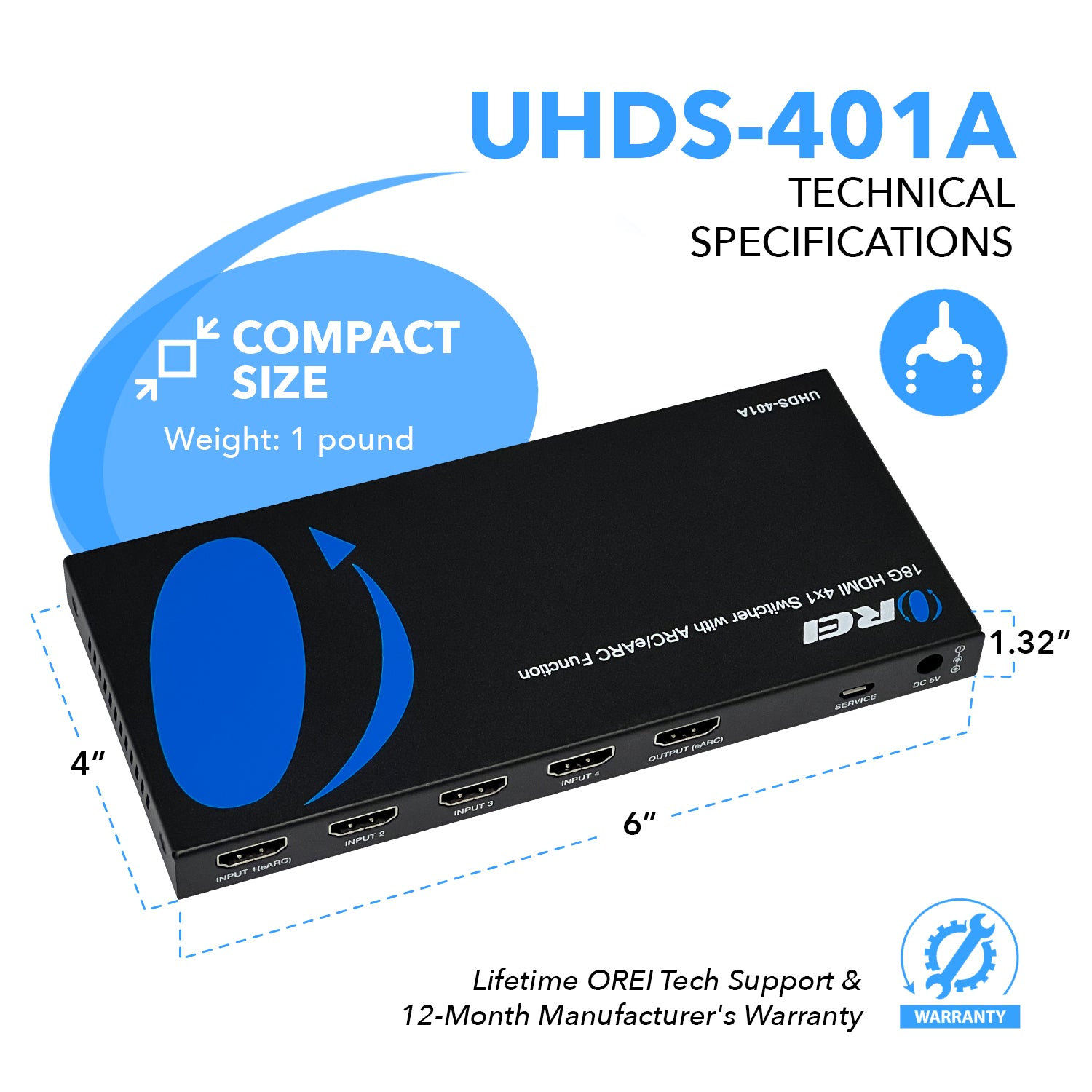

DIMENSIONS & WEIGHT

Height	15.5 mm
Width	182mm
Depth	84mm
Weight	370g

REGULATORY

Safety and Emission:

CE | FCC | RoHS

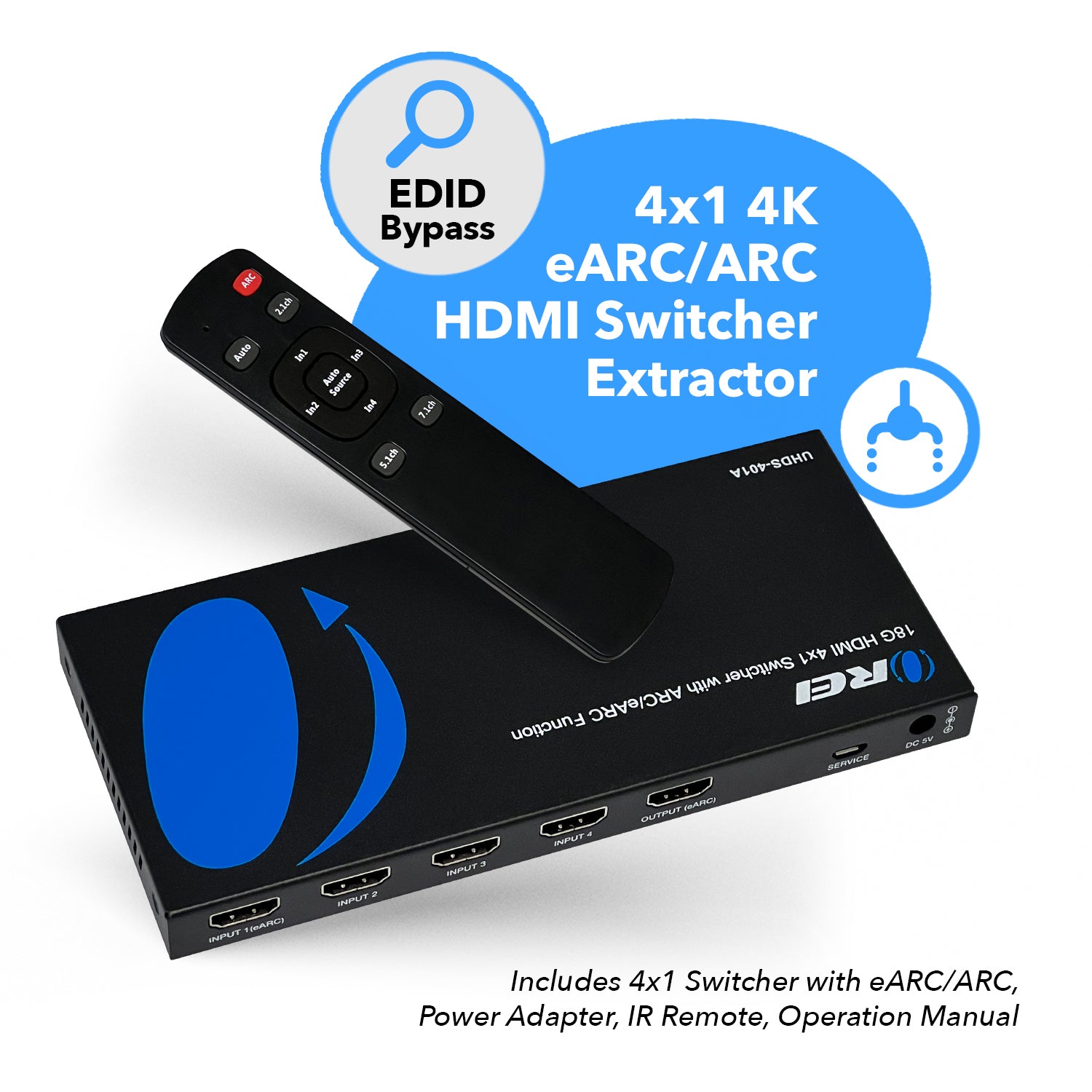

PACKAGE CONTENTS

1 × 18Gbps HDMI 4x1 Switcher

1 × 5V/1A Power Adapter (USA Standard)

1 × IR Remote

1 × User Manual

Warranty

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHDS-401-A-O User Manual Download

UHDS-401-A-O IR Codes

UHDS-401-A-O ASCII Commands

FAQs

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

No, our switchers aren't compatible with capture cards

Yes, the included power adapter does support 220V

The UHDS-402A does support 1440p and it will operate with 1440p 60hz/120hz/144hz. However, it doesn't support downscale from 1440p to 1080p so both outputs will receive 1080p@ 60hz at the same time

No, in order to extract the sound, your soundbar should have an HDMI input port.

If your soundbar doesnt have an HDMI input port then this product will not work for your requirements & it won't be able to extract the sound

Yes, it does support 4k to 1080p downscaling function

Yes, the UHDS-402A does support Dolby Atmos pass-through via HDMI output. However, the optical audio output will only support up to 5.1ch

The Beam doesn't have an HDMI input port, it has HDMI ARC port which needs to communicate directly with TV's HDMI ARC port. The UHDS-402A doesn't support HDMI ARC output. You can connect the optical audio cable to your Sonos beam with UHDS-402A.

The UHD-402 supports HDMI ARC connection between the Output B display and the HDMI input 4. If you'd like to connect your Sonos beam via HDMI ARC connection then you'll need to use the UHD-402 instead.

If your projector doesn't have an ARC HDMI port then you'll need to use a HDMI switch with audio extraction via optical output to connect it to your Beam. UHDS-401A and UHDS-402A both support optical output audio extraction.

Yes

Yes, the UHDS-402A does support 4K@60hz 4:4:4 output through both output A and B. It also supports 4K to 1080p downscale function which can be enabled if either of the outputs are only 1080p so that you can retain 4K to the other output
