1080p 1x4 HDMI™ Extender Splitter (Over IP) - 400ft (cat6)-HD-EX104

$299.00 USD

SKU: HD-EX104

Supports 1080p@60Hz up to 400 feet
Supports Over IP function
Supports IR Remote Control

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Add To Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

View details

1080p 1x4 HDMI™ Extender Splitter (Over IP) - 400ft (cat6)-HD-EX104

OREI HD-EX104-K: 1080p 1x4 HDMI Extender Splitter Upto 395 Feet

Key Features:

Supports 20 ~ 60Hz IR Pass Back
Output 1080p signal up to long-distance of 120 m / 400 feet with Cat5e/6/7 cable
It extends HDMI audio/video signals to synchronous
Supports cascade connection using a LAN switch or router
The output video display is as fluent as the direct connection
Surround sound up to 7.1-channel or stereo digital audio
Compatible with ProLNK receiver device
Compatible with HDCP compliant devices & content
Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
Lossless Transmission with Minimal Latency
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
Plug & Play Setup without any Software Installation

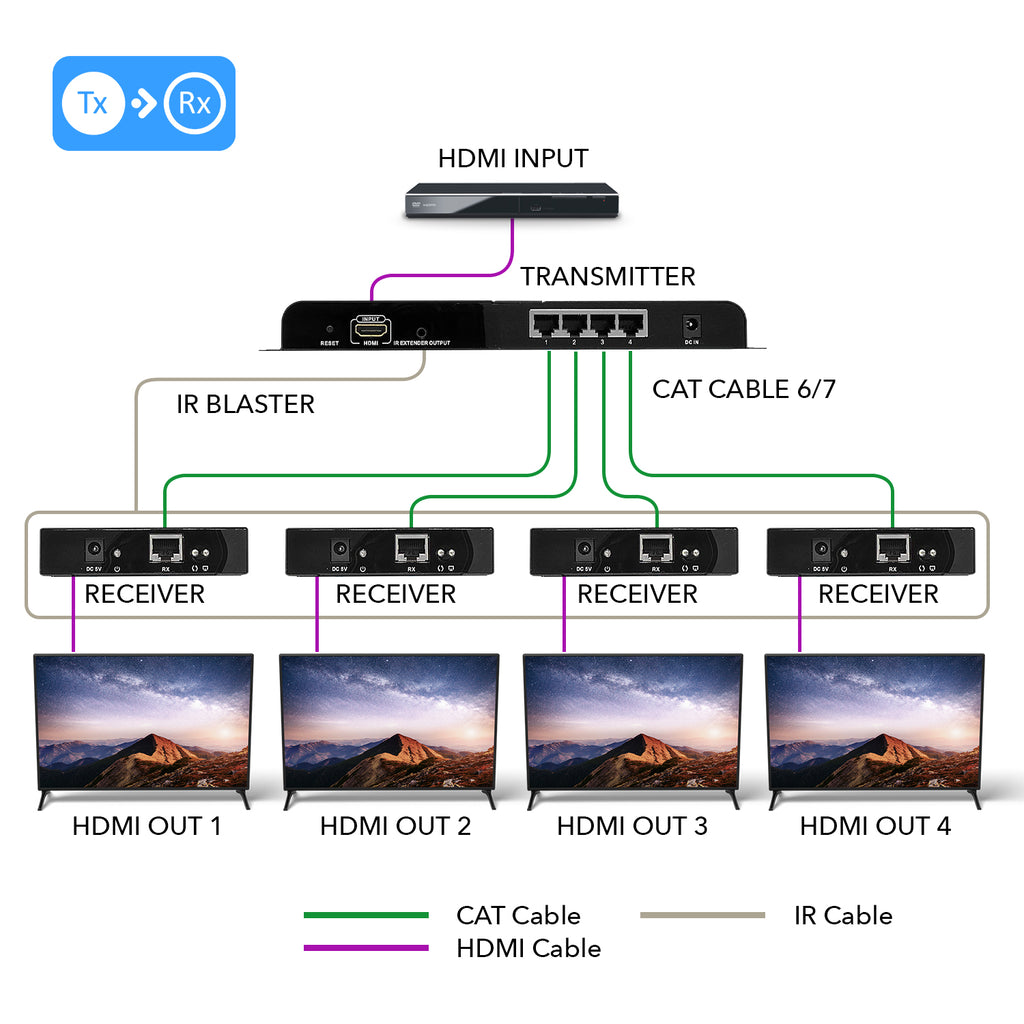

The OREI HD-EX104 is the perfect solution for splitting and extending your HDMI signal with Full HD resolution to multiple displays over long distances. It uses PermiumHD technology to split 1 HDMI source to 4 displays simultaneously over a single CAT5/5e/6 cable for each display up to 120m / 400ft, any one of four PermiumHD receiver works with the splitter individually, and the highest resolution supported is 1080p@60Hz.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1 x HDMI
	OUTPUT PORTS:	8 x RJ45
Receiver:	INPUT PORTS:	1XRJ45
	OUTPUT PORTS:	1XHDMI

COMPLIANCES

HDMI Compliance:	HDMI 1.3
HDCP Compliance:	HDCP 1.4

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080p@60Hz:

Up to 120meters transmission distance for 1080p 60Hz full HD over single CAT6

VIDEO OUTPUT

Video Bandwidth:	4.95Gbps
Video Resolutions:	1080P@60Hz
Color Space:	24bit
Color Depth:	8bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	With one way IR pass back
Downscaler Function:	No
Over Network/IP Function:	Yes
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:

No

SWITCHES

EDID Management:	No
EQ Dip Switches:	No
ARC:	No

AUDIO OUTPUT

HDMI Audio Formats:	Stereo L/R audio
SPDIF/Optical Audio Formats:	NO SPDIF/optical Audio output
L/R Audio Formats:	NO L/R audio output

SIGNALS

TMDS Signals:	3V
DDC Signals:	5V

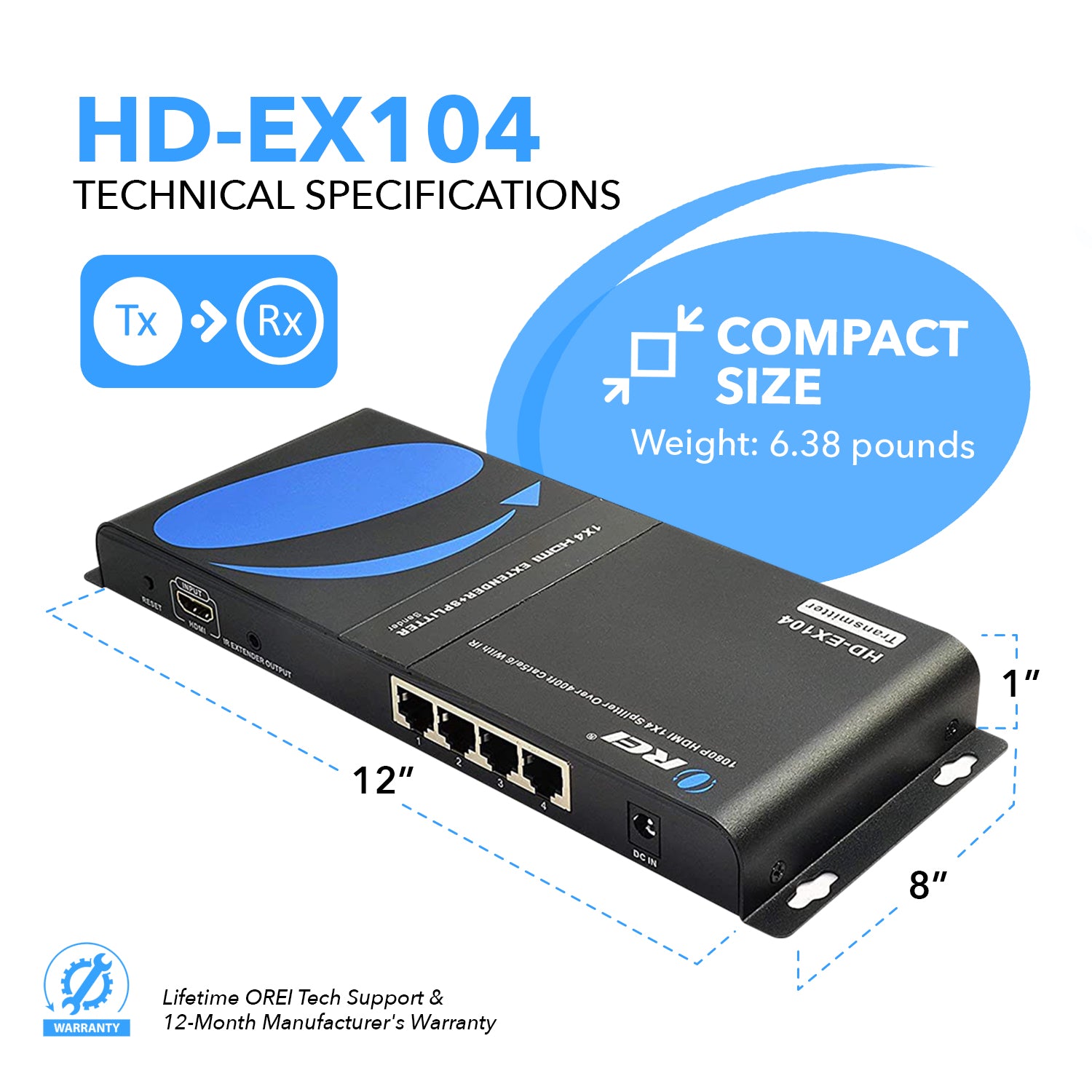

DIMENSIONS & WEIGHT

Transmitter:	Height:	29.6mm
	Width:	299mm
	Depth:	110.7mm
	Weight:	335g
Receiver:	Height:	23.2mm
	Width:	130mm
	Depth:	84mm
	Weight:	200g
Weight:	535g

PROTECTION

Operation Temperature:	0～50℃
Storage temperature:	-30～70℃
Relative Humidity:	0～90%(no condensation)
ESD Protection:	Contact discharge 4KV, Air Discharge 8KV

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	<10W
Power Supply:	5V2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal
Processing Technology:	HDbitT
Finishing:	Grit blast

PACKAGE CONTENTS

1 x HDMI Extender TX

4 x HDMI Extender RX

1 x 5V2A Power Adapter

4 x DC5V/1A

1 x IR Blaster Extension Cable

4 x IR Receiver Extension Cable

1 x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

HD-EX104 User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can connect up to 253 additional receivers with this device using a network switch as a mediator.

Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
