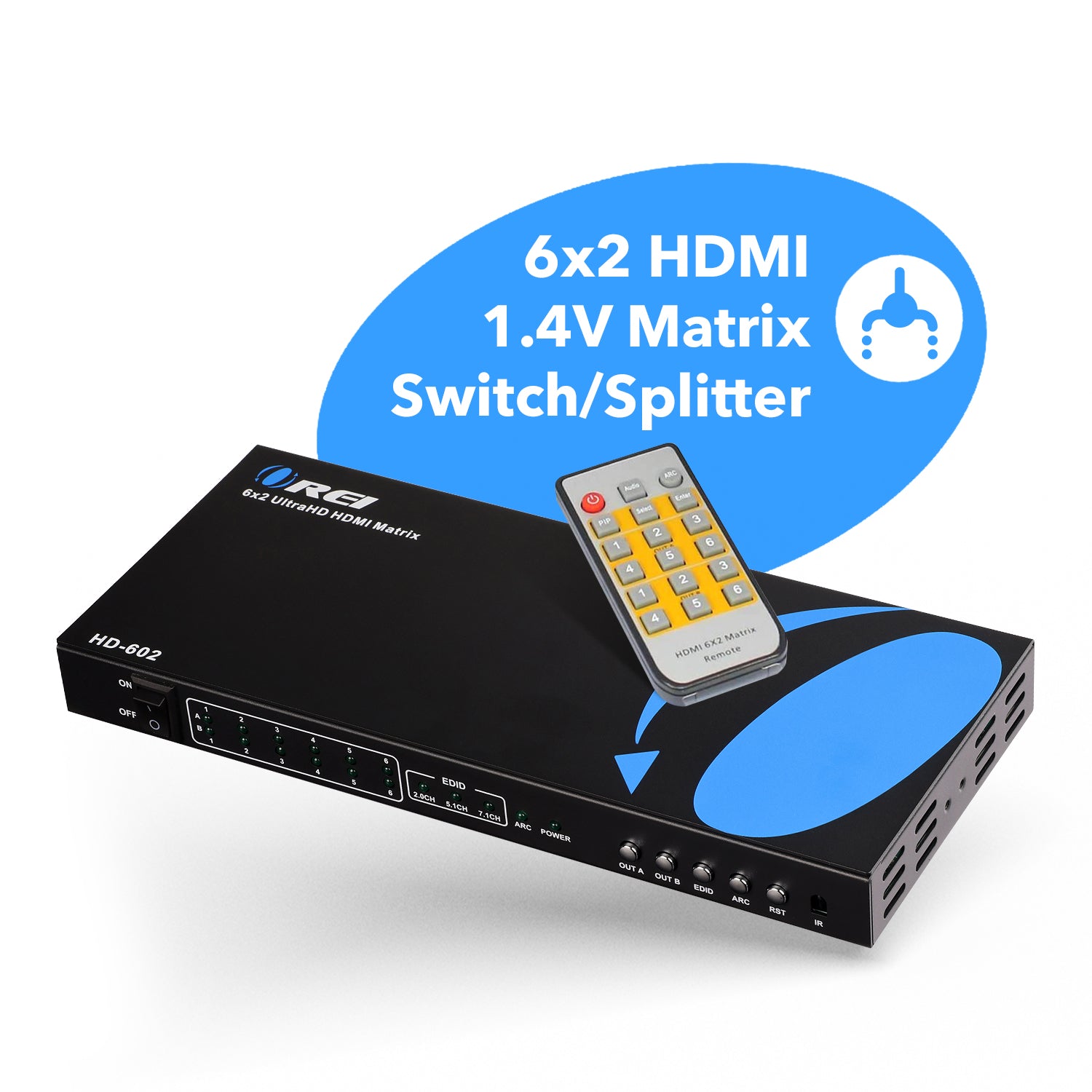

Ultra HD 6x2 HDMI Matrix Switch with ARC Support (HD-602)
- 6 Inputs - 2 outputs HDMI Matrix switch
- Video resolution up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2 - EDID Control
- Supports ARC and PIP function
- Compliance: HDMI 2.0 - HDCP 2.2

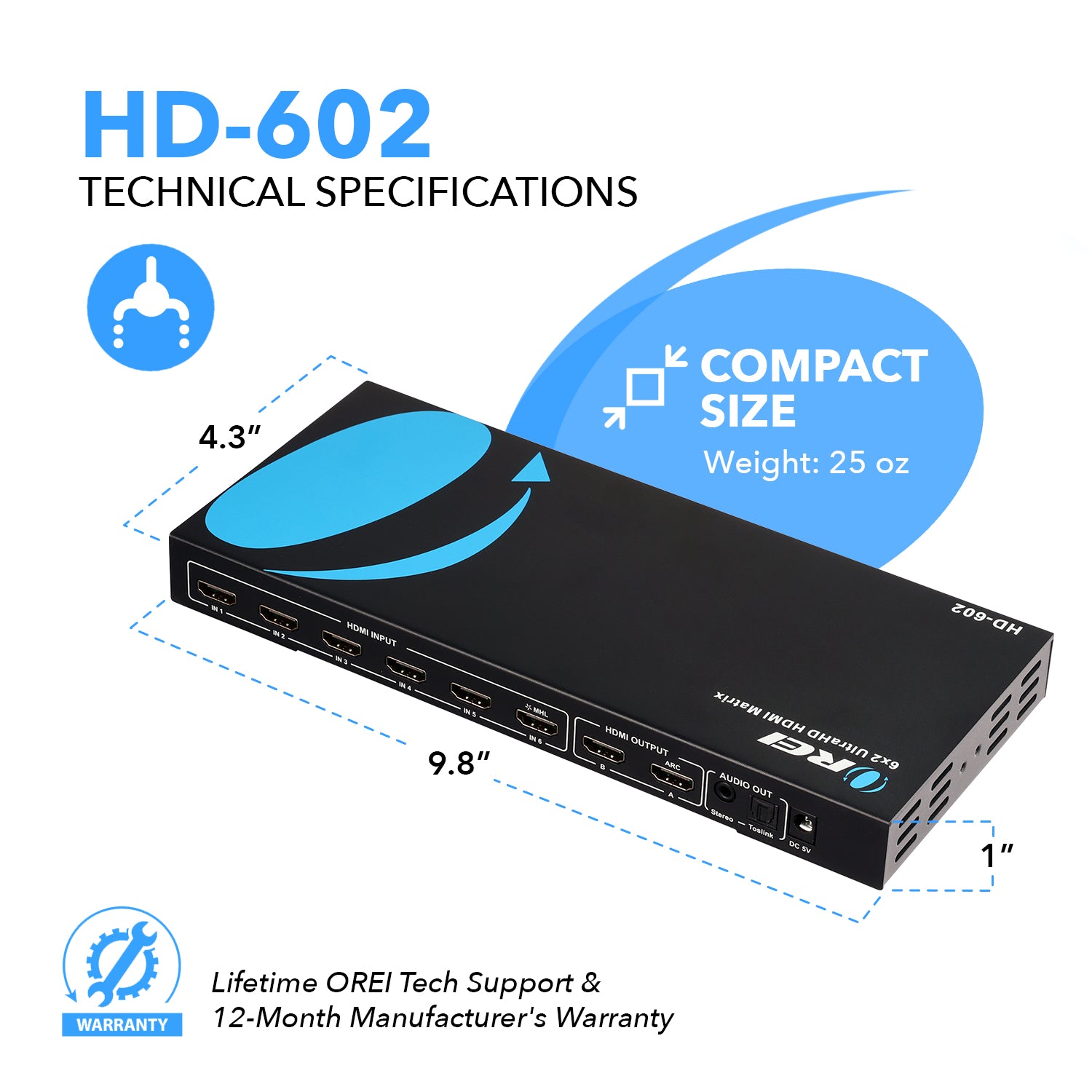

OREI HD-602: 6x2 HDMI Matrix Switch

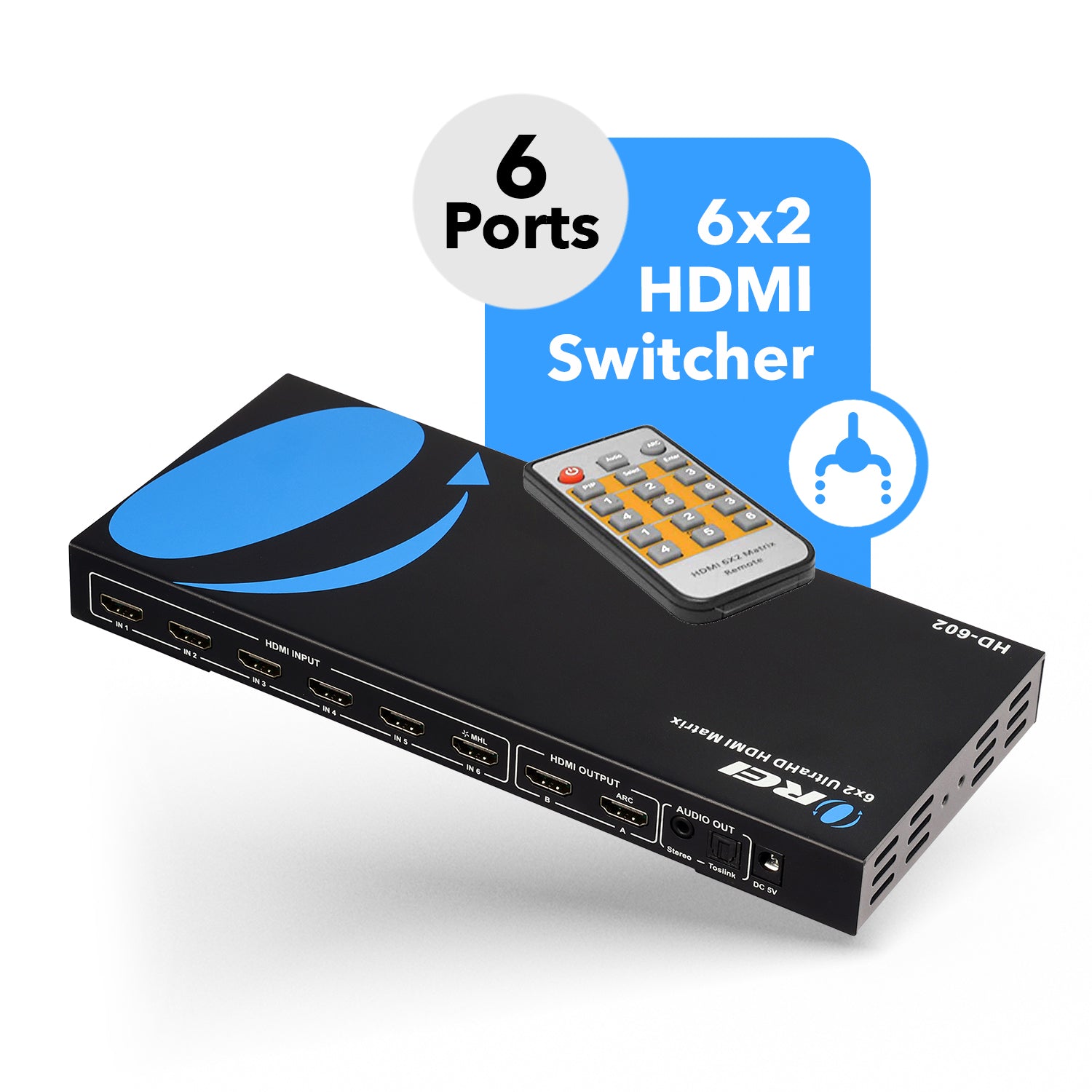

- HDMI matrix switcher 6 input 2 output
- Compliant with HDMI 2.0; HDCP 2.2.
- This is HDCP 2.2 compliant
- Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 8bit YCBCR 4:2:0, 3D frame sequential video format up to 1080p@60
- Support PIP display function and ARC function
- Audio support: HDMI 1.4 compatible audio interface Dolby TrueHD DTS-HD Master Audio 7.1CH
Few sample applications:

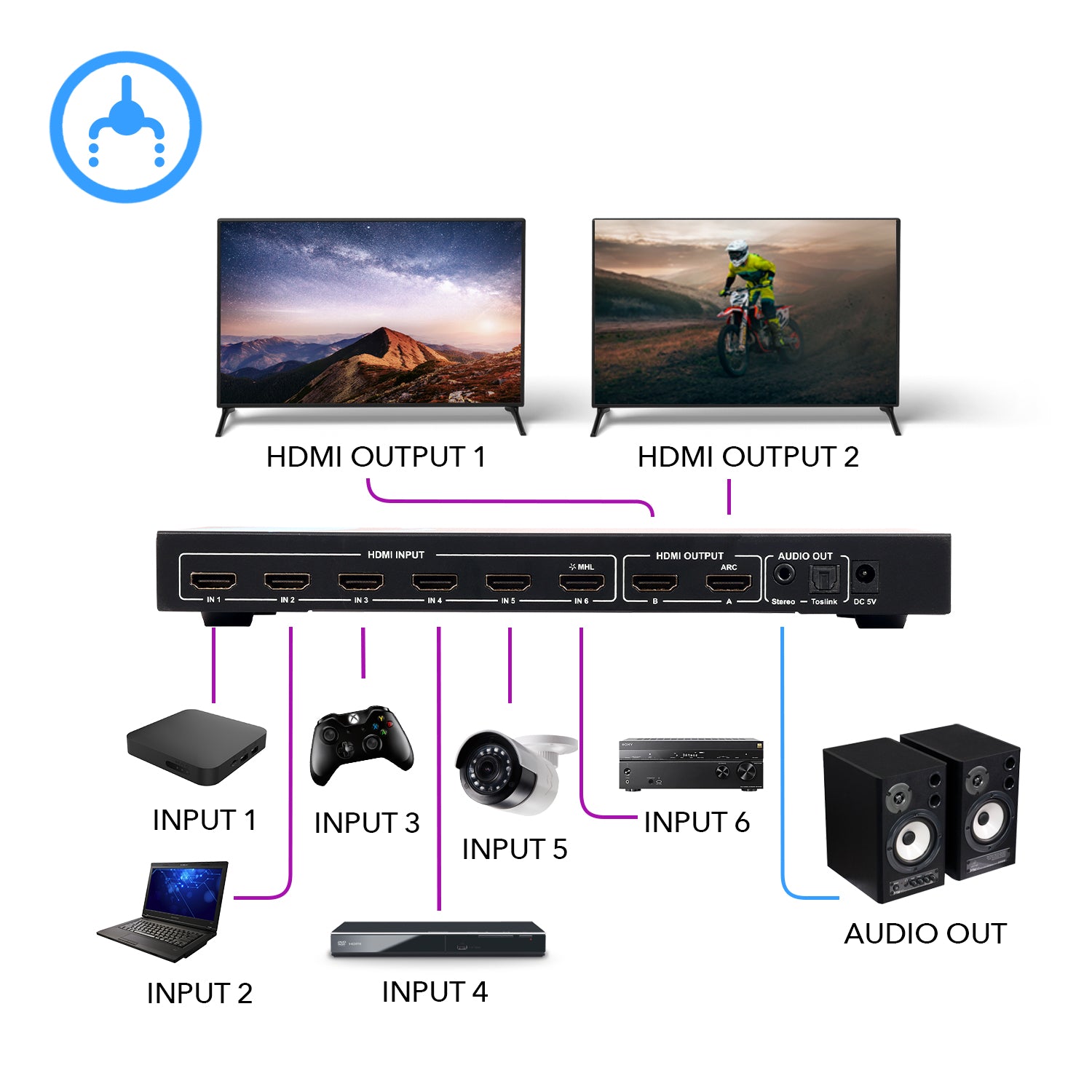

The OREI HD-602 HDMI 6x2 matrix with 4kx2k which allows HDMI signal from any of its 6 sources to be routed to and displayed on any of its 2 connected HDMI displays simultaneously.
It supports 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/ sink scenarios can be operated easily through on-panel buttons, IR remote control.
