HDMI & USB3.2 Extender (RS232, Audio Extract) - 115ft (Cat6a) (USB3-EXB130HR-K)

OREI USB3-EX2C330R-K: HDMI & USB3.2 EXTENDER (RS232, AUDIO EXTRACT) - 115FT (CAT6A)

Key Features:

• 5K HDMI™ & USB 3.2 Extension – Extends HDMI™ video and USB 3.2 data over a single CAT6a cable for streamlined AV installations.

• Supports Resolutions up to 5K – Transmits 4K video up to 130ft (40m) and 5K video up to 115ft (35m).

• HDCP 2.3 Compliant – Ensures secure compatibility with protected content and modern source devices.

• USB 3.2 Gen 1 Support – Provides data transfer speeds up to 2.5Gbps for high-performance USB peripherals.

• HDMI™ Loop-Out on Transmitter – Enables local display monitoring at the source location.

• Three USB Ports on Receiver – Supports remote connection of keyboards, mice, cameras, storage devices, and other USB peripherals.

• Audio De-Embedding – Available on both the transmitter and receiver for flexible audio integration.

• HDR & Advanced Video Format Support – Passes HDR, HDR10+, Dolby Vision LLM, and HLG content without degradation.

• RS-232 Pass-Through – Supports remote device control and integration with third-party control systems.

• Bi-Directional 24V PoC (Power over Cable) – Allows either the transmitter or receiver to power the entire extender system.

• Ideal for BYOD & Commercial AV Applications – Perfect for conference rooms, meeting spaces, classrooms, training facilities, and collaborative environments.

• Compact Design – Slim form factor enables easy installation in professional AV and IT environments.

The USB3-EXB130HR-K is a high-performance AV and USB extension solution designed to transmit HDMI™ video and USB 3.2 data over a single CAT6a cable. Supporting video resolutions up to 5K and USB 3.2 Gen 1 data transfer speeds up to 2.5Gbps, it provides a reliable and streamlined connectivity solution for modern BYOD (Bring Your Own Device) environments, conference rooms, classrooms, and commercial AV installations.

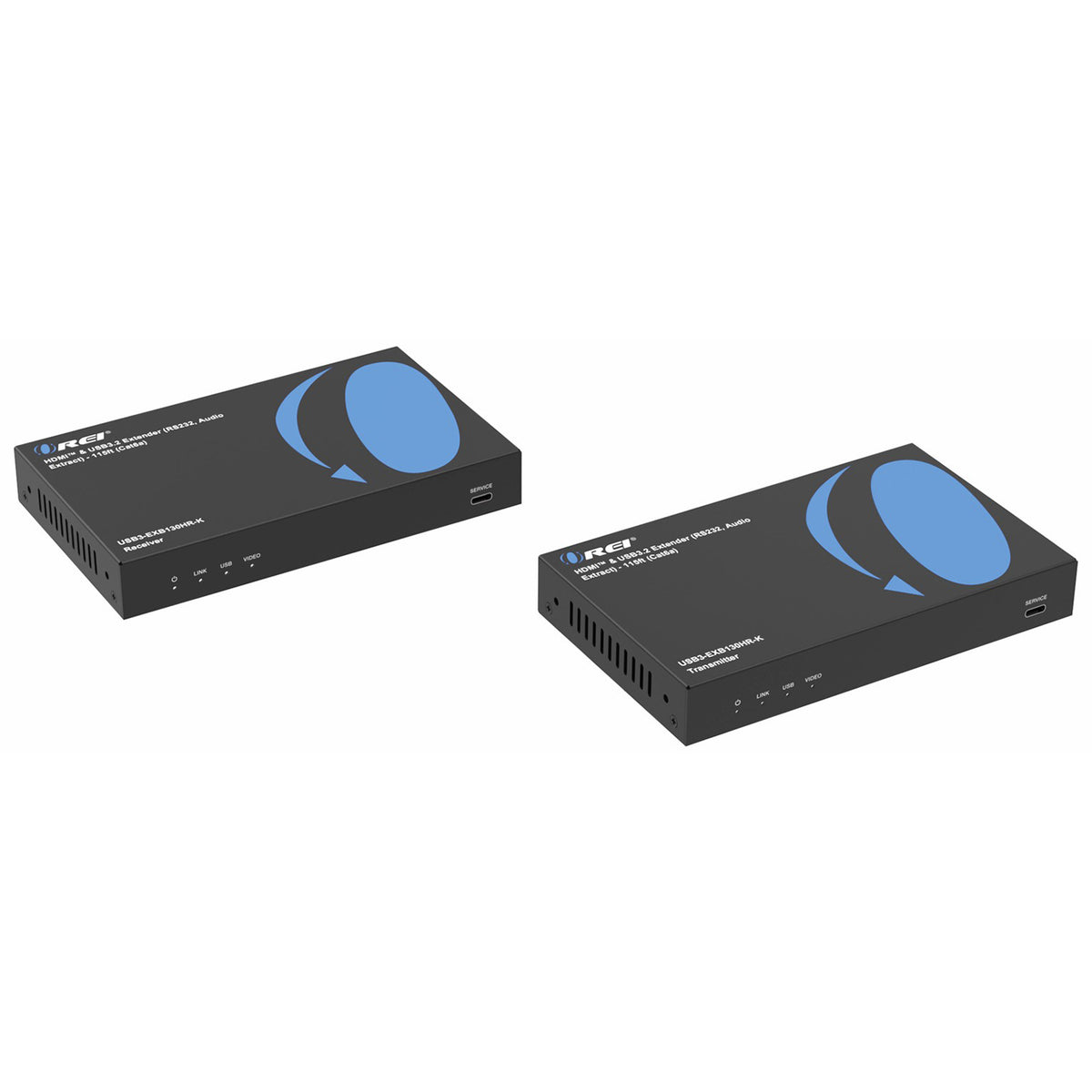

The Transmitter (TX) features one HDMI™ input, one HDMI™ loop-out for local display monitoring, and one USB 3.2 upstream port for host device connectivity. The Receiver (RX) includes one HDMI™ output and three USB 3.2 downstream ports, allowing remote connection of keyboards, mice, cameras, storage devices, and other USB peripherals. The extender supports transmission distances up to 130ft (40m) for 4K video and 115ft (35m) for 5K video over a single CAT6a cable while maintaining excellent image quality and USB performance.

Designed for professional AV environments, both the transmitter and receiver support audio de-embedding, enabling flexible audio routing to external sound systems. Additional features include RS-232 pass-through, support for advanced HDR formats such as HDR10+, Dolby Vision LLM, and HLG, and bi-directional 24V Power over Cable (PoC) technology, which allows either unit to power the entire system for simplified installation and reduced cable clutter.
