OREI 4K@60Hz HDBaseT DisplayPort Extender - 330ft (Cat6) (DP-EX330UR-K)

OREI DP-EX330UR-K: 4K@60Hz HDBaseT DisplayPort Extender - 330ft

Key Features:

• DisplayPort 1.4a Compliant – Ensures compatibility with modern DP devices and formats.
• 4K@60Hz 4:4:4 Video – Delivers ultra-high-definition video with support for resolutions up to 4K@60Hz
• 330ft Long-Distance Transmission – Extends DisplayPort signals up to 100m/330ft over a single CAT5e/6 cable using HDBaseT technology
• HDCP 2.3 Compliant – Provides compatibility with multiple HDCP 2.3/2.2/1.x versions for protected content
• USB 2.0 Extension – Provides four USB 2.0 device ports on the Receiver for peripherals such as keyboards, mice, USB cameras, and USB drives
• Bi-Directional IR Control – Transmits IR signals in both directions, allowing convenient remote control of source and display equipment
• RS-232 Pass-Through – Supports two-way RS-232 command transmission between the Transmitter and Receiver
• Bi-Directional PoC – Power over Cable allows either the Transmitter or Receiver to power the opposite unit, simplifying installation and reducing cable clutter
• Advanced EDID Management – Includes TV Copy and STD modes for improved source-to-display compatibility
• Full HDR Pass-Through – Supports HDR10, HDR10+, Dolby Vision, and HLG content
• Audio De-Embedding – Provides audio extraction from the Receiver for connection to an external audio device
• Wide Audio Format Support – Supports LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X, and other supported formats
• Compact Metal Housing – Features a compact metal enclosure for professional installations and space-constrained environments

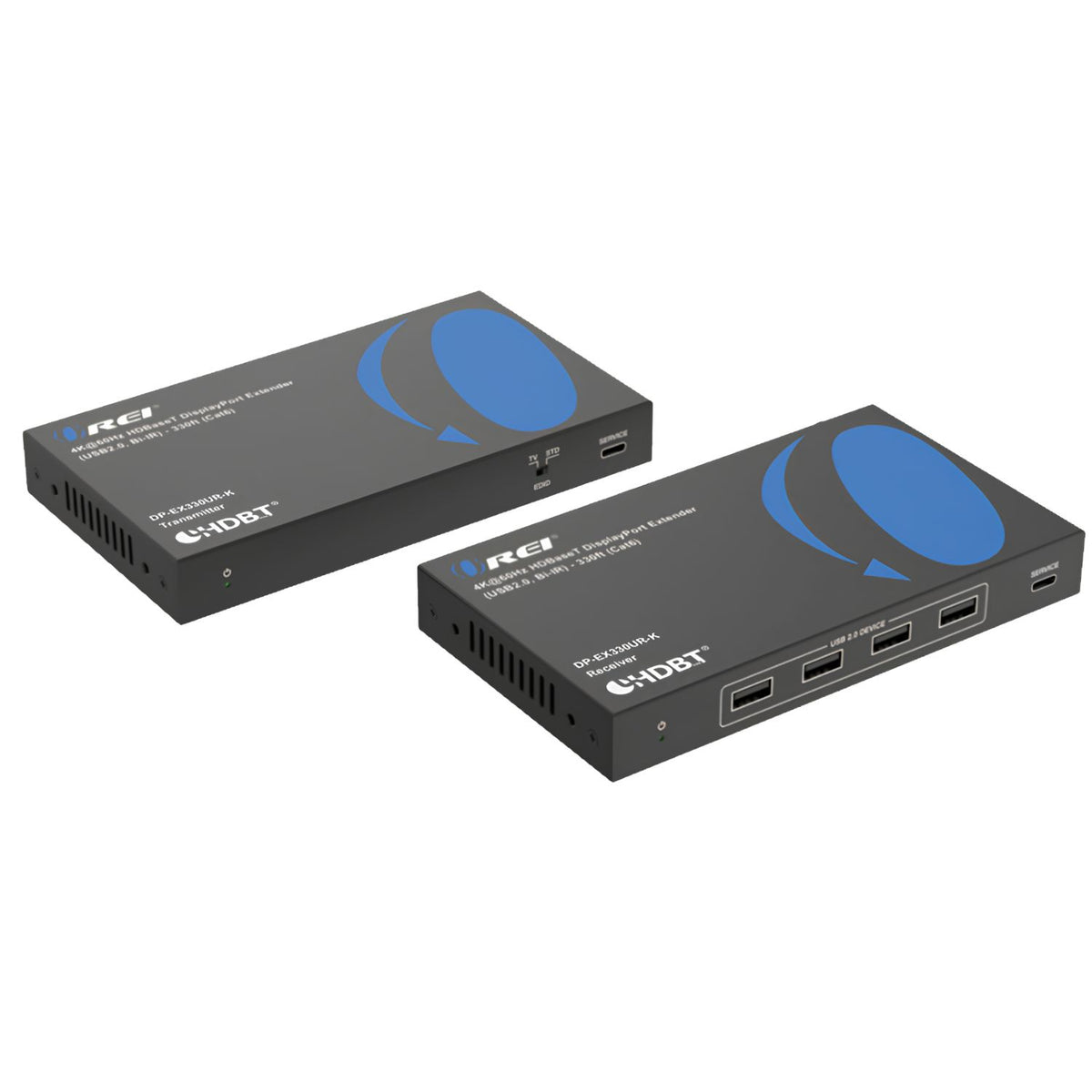

The OREI DP-EX330UR-K is a professional DisplayPort over HDBaseT extender designed to transmit high-resolution video and control signals over long distances using standard CAT5e/6 cabling. It supports DisplayPort 1.4a, HDCP 2.3/2.2/1.x, and video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, making it suitable for demanding professional AV environments.

Using a single CAT5e/6 cable, the DP-EX330UR-K extends DisplayPort, IR, RS-232, and USB 2.0 signals up to 100m/330ft. The Receiver provides four USB 2.0 ports for connecting peripherals such as a keyboard, mouse, USB camera, or USB drive, allowing convenient access to USB devices from the remote location.

The extender features bi-directional IR and RS-232 transmission, enabling remote control and command communication between the source and display sides. Its bi-directional PoC (Power over Cable) functionality allows either the Transmitter or Receiver to supply power to the opposite unit, helping simplify installation.

For compatibility management, the DP-EX330UR-K provides EDID TV Copy and STD modes, while full HDR pass-through supports HDR10, HDR10+, Dolby Vision, and HLG. The Receiver also includes audio de-embedding for routing audio to an external device.

With its compact metal enclosure and support for high-resolution video, USB 2.0, IR, RS-232, HDR, and long-distance HDBaseT transmission, the DP-EX330UR-K is designed for video conferencing systems, multimedia signal distribution, professional AV installations, and other applications requiring reliable DisplayPort extension over CAT5e/6 cable.
