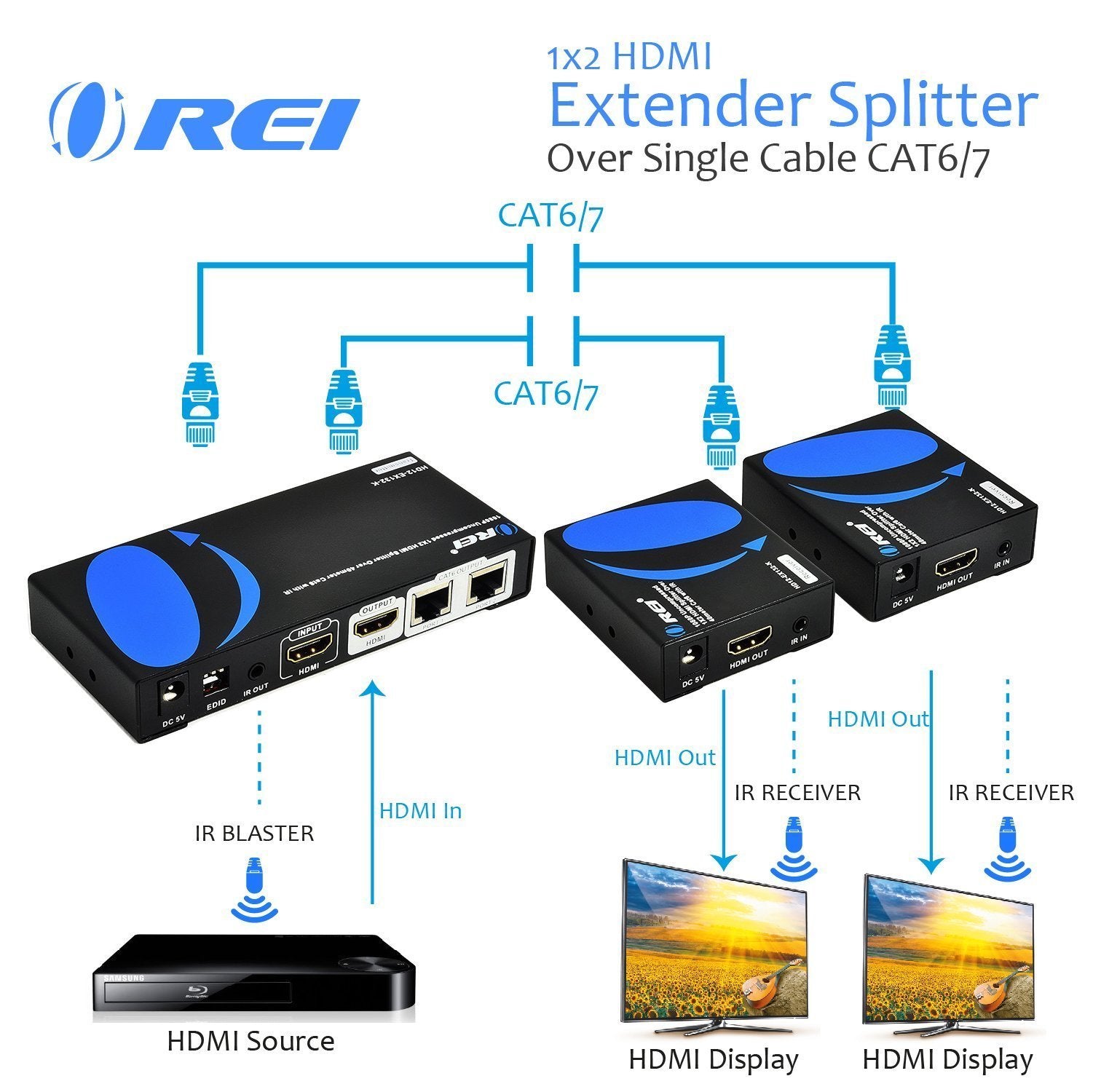

- Distribute 1 HDMI source to 2 HDMI displays over Network Cable Simultaneously

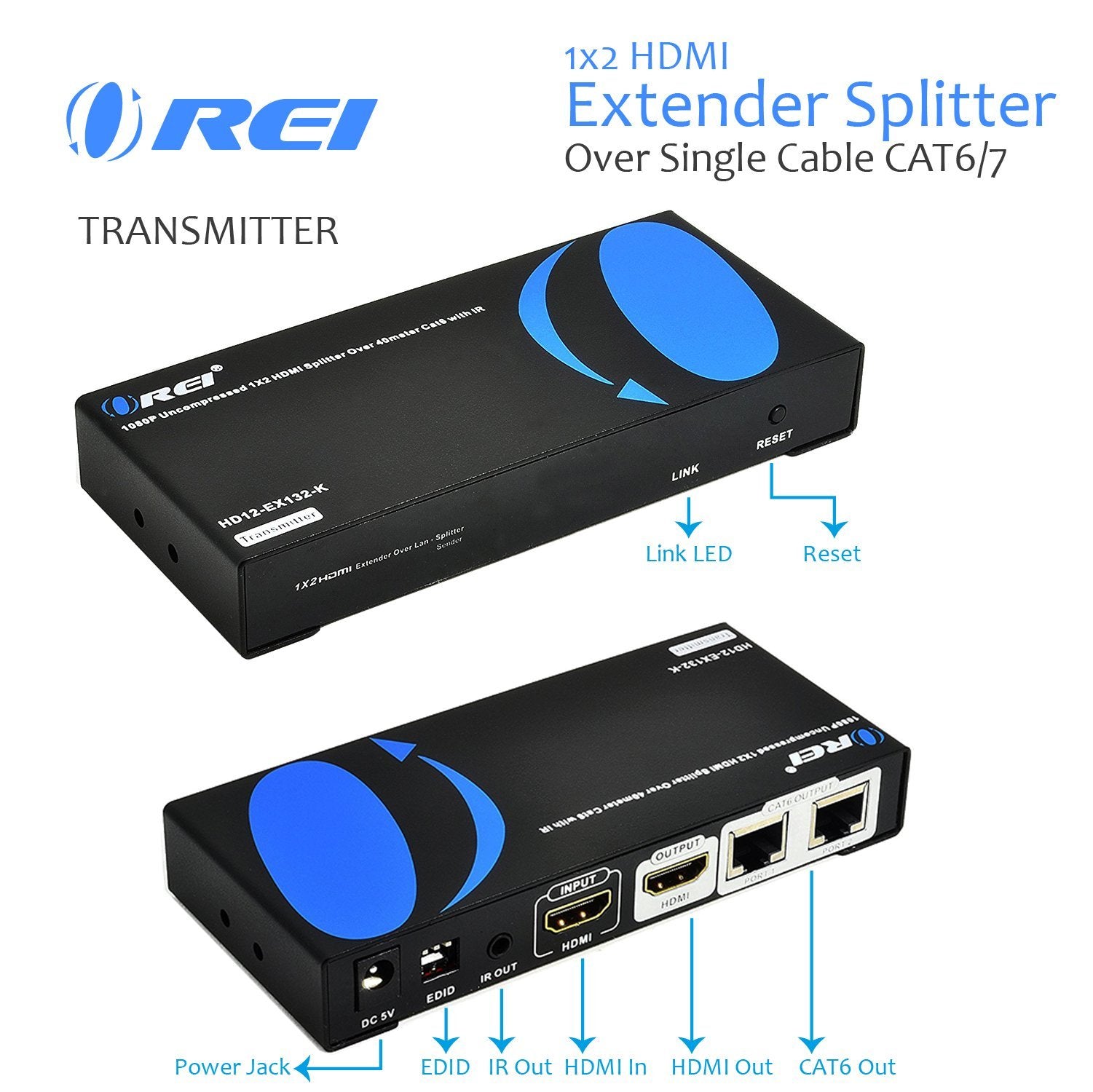

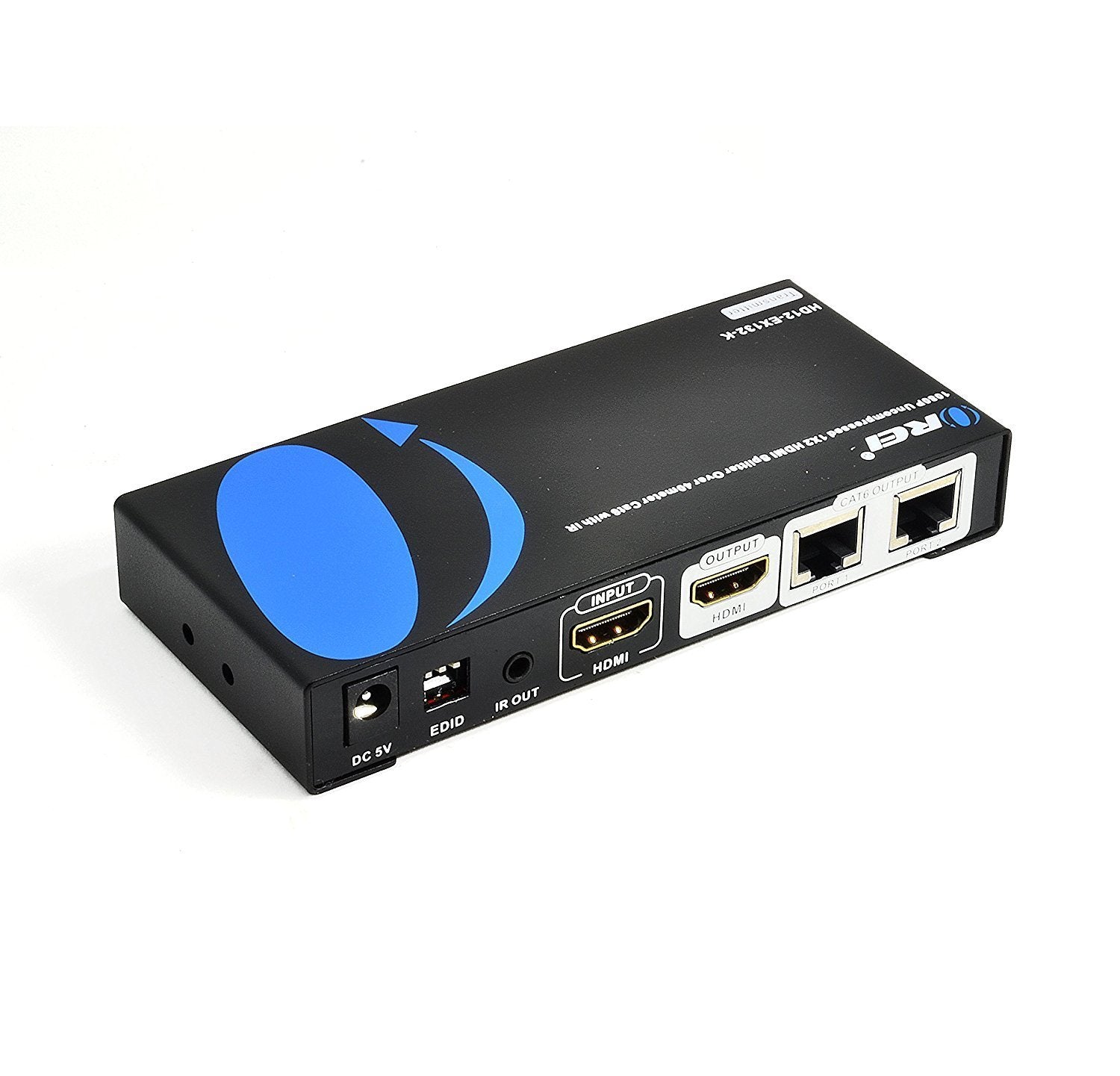

- HDMI Transmitter is equipped with 8 Port CAT6 Output
- 1 Additional HDMI Output to connect to a local display or monitor
- The highest Resolution Supported is 1920×1080@60Hz
- Supports IR Remote Control
- Supports 20~60Hz IR Pass Back
- Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel.
- Plug & Play Setup without any Software Installation
- Compatible with CAT6/6a/7 Network Cables.
- Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.

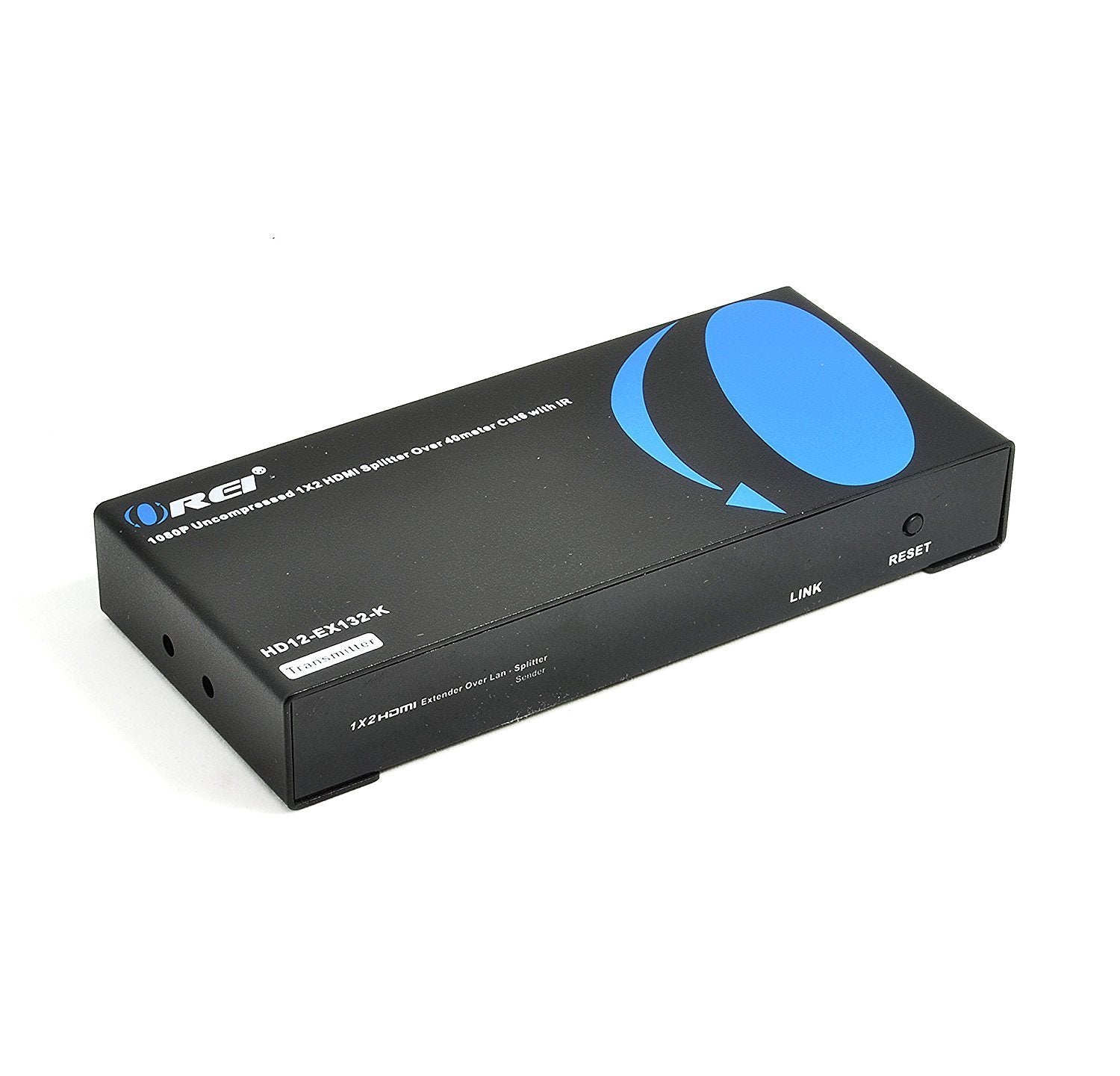

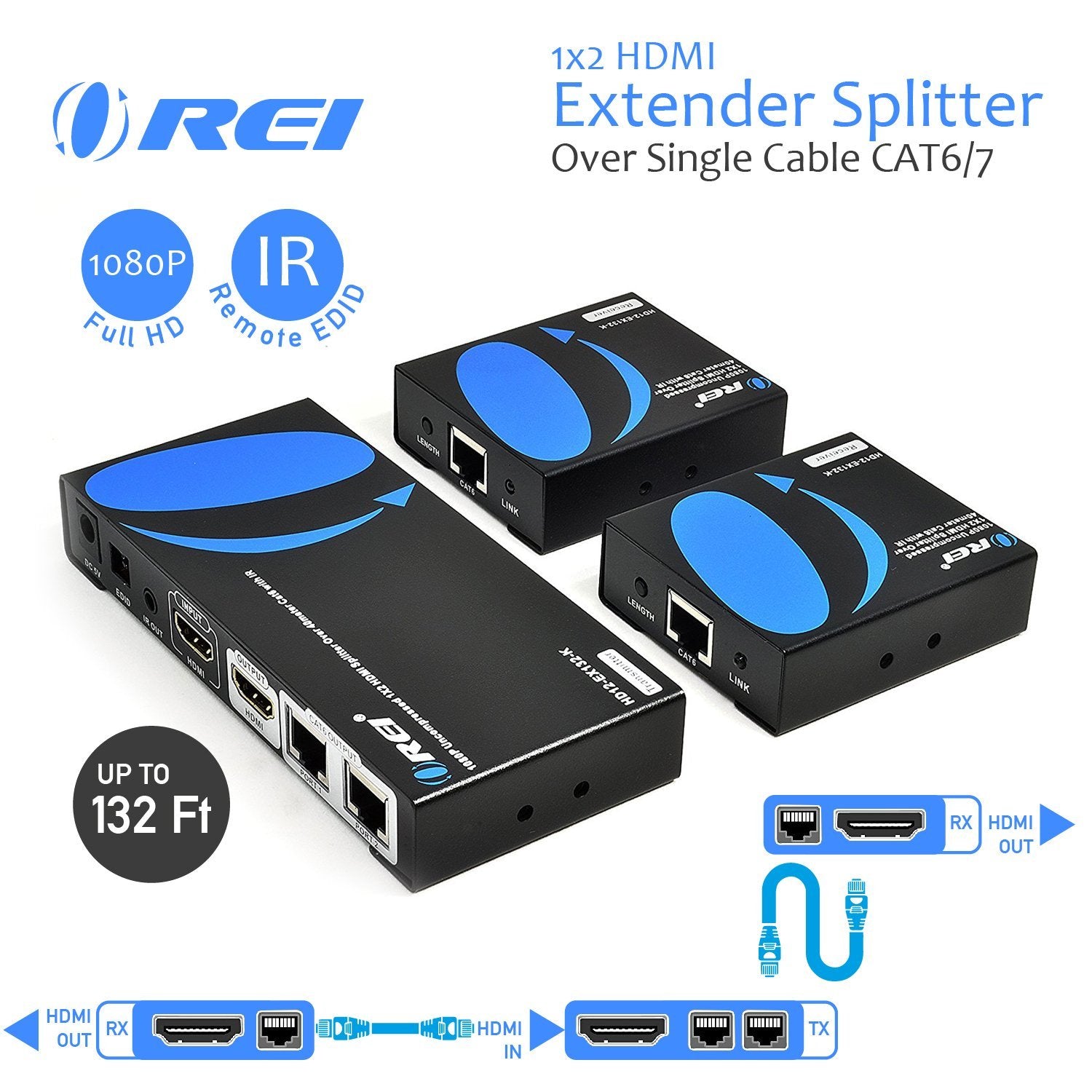

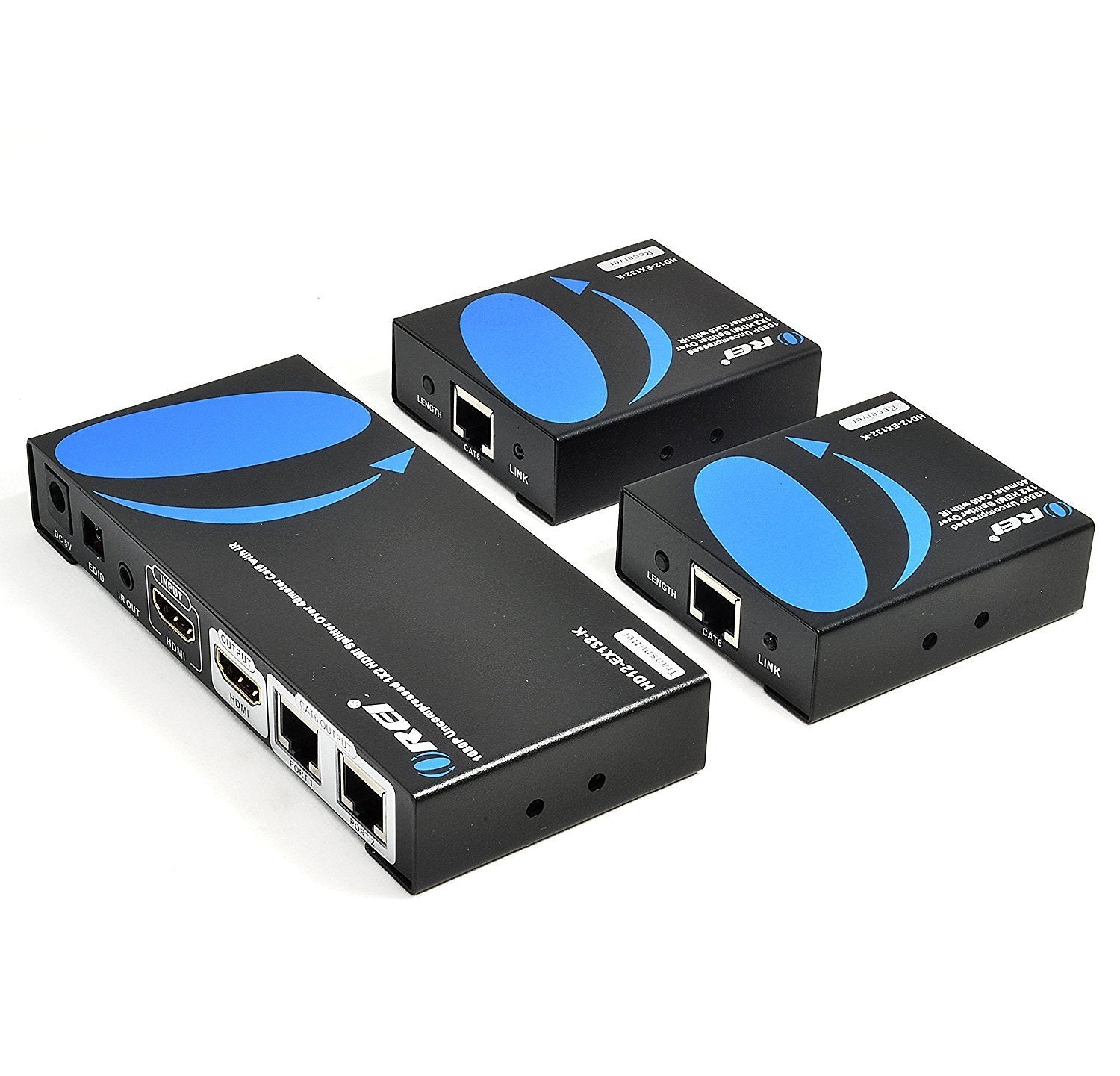

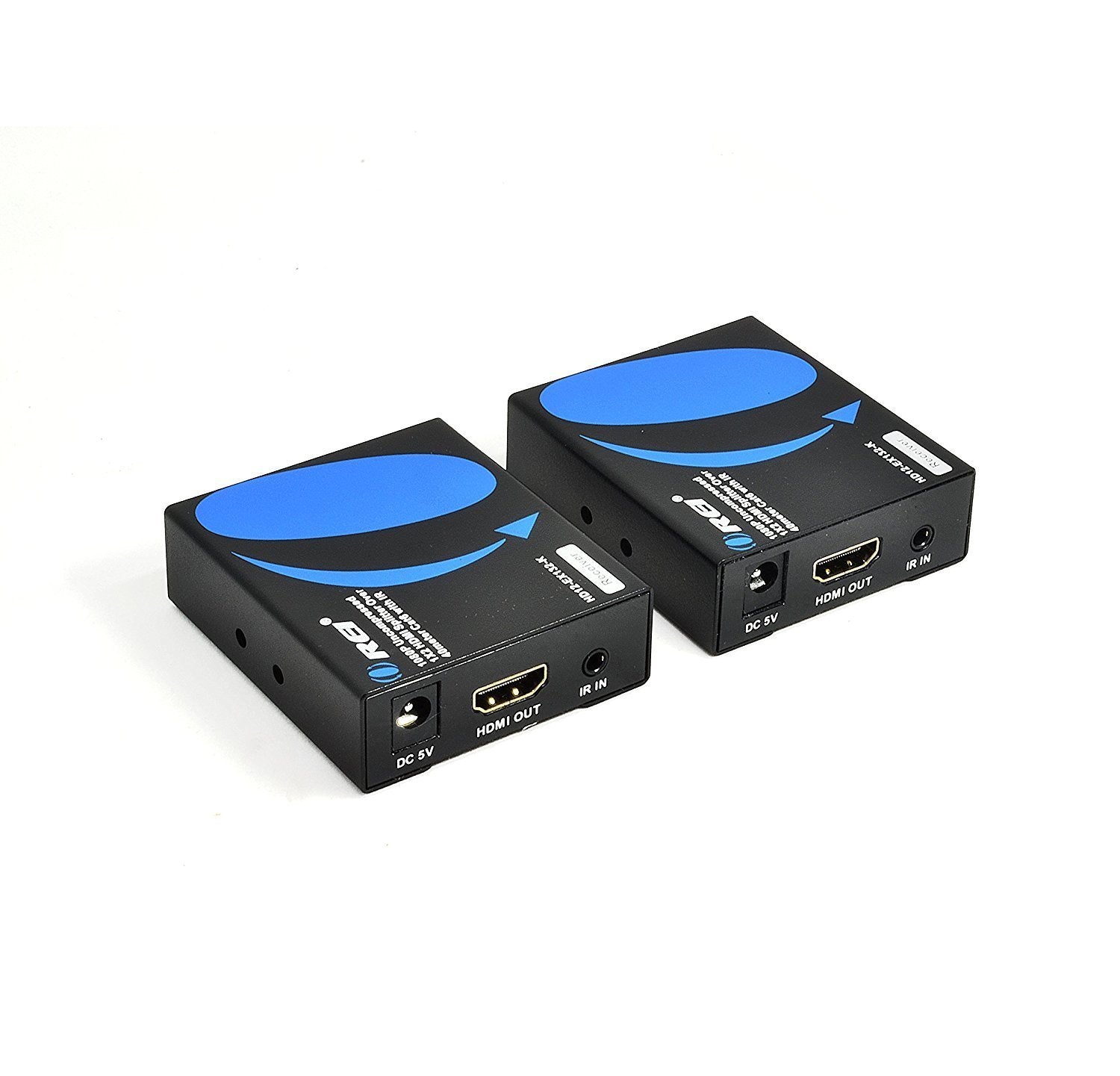

OREI 1 X 2 HDMI Extender. This HDMI extender splitter includes one transmitter and two receivers, extend 1 HDMI source to 2 HDMI displays over single CAT6/6a/7 cable up to 50m/ 164ft.
Specification: HDMI signals: HDMI 1.3, Compatible with HDCP1.2 Resolution.
Supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz CAT6/7: up to 40m (131ft) at 1080p@60Hz.
IR signals: Support 20~60KHz IR device Audio Format: PCM, LPCM
EDID: Support EDID setting function.
Network cable: UTP/STP CAT6/6a/7
