OREI EX-165C+: HDMI Extender over Ethernet (70m) with One way IR & PoC
Key Features:
HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
Ā Support video resolution up to 4k2k@30Hz YUV 4:4:4
The maximum transmission distance via a single CAT6/5EĀ cable is as follows: Ā CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 Ā CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
Support copying EDID from receiver display or loop out display
Allow for cascading via additional HDMI loop out port
Support one-way POC functionality (from transmitter to receiver)
One-way IR signal transmission
Compact design for easy and flexible installationĀ
This HDMI Extender can extend high definition video/audio signalĀ and IR control signal up to 230ft/70m for 1080p resolution, andĀ 131ft/40m for 4K30 resolution via a single CAT6 cable, which canĀ achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loopĀ output can be cascaded to the next extender, supporting resolutionĀ up to 4K@30Hz. It supports EDID copy function (you can chooseĀ local or remote EDID). It supports audio formats up to PCM7.1,Ā Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.

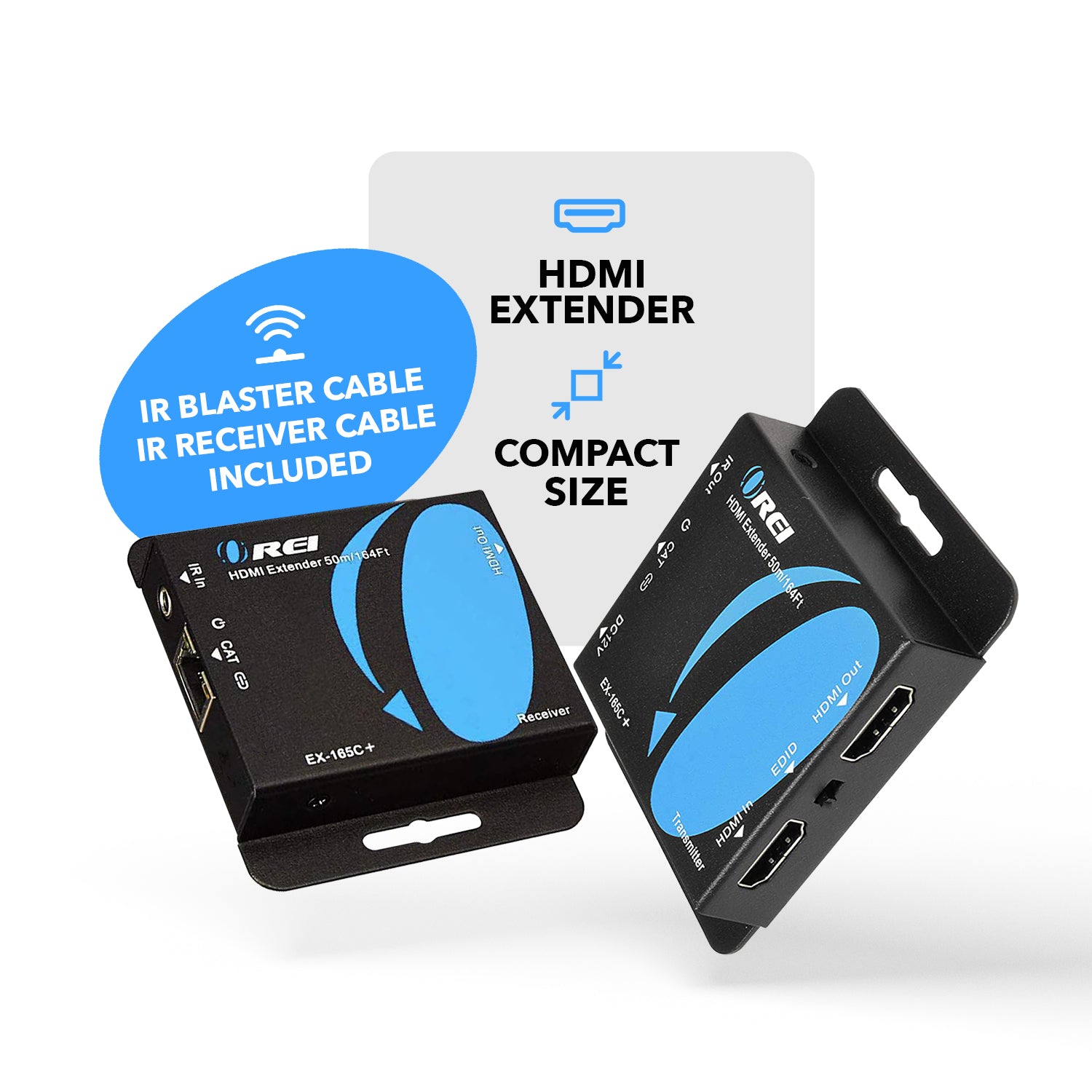

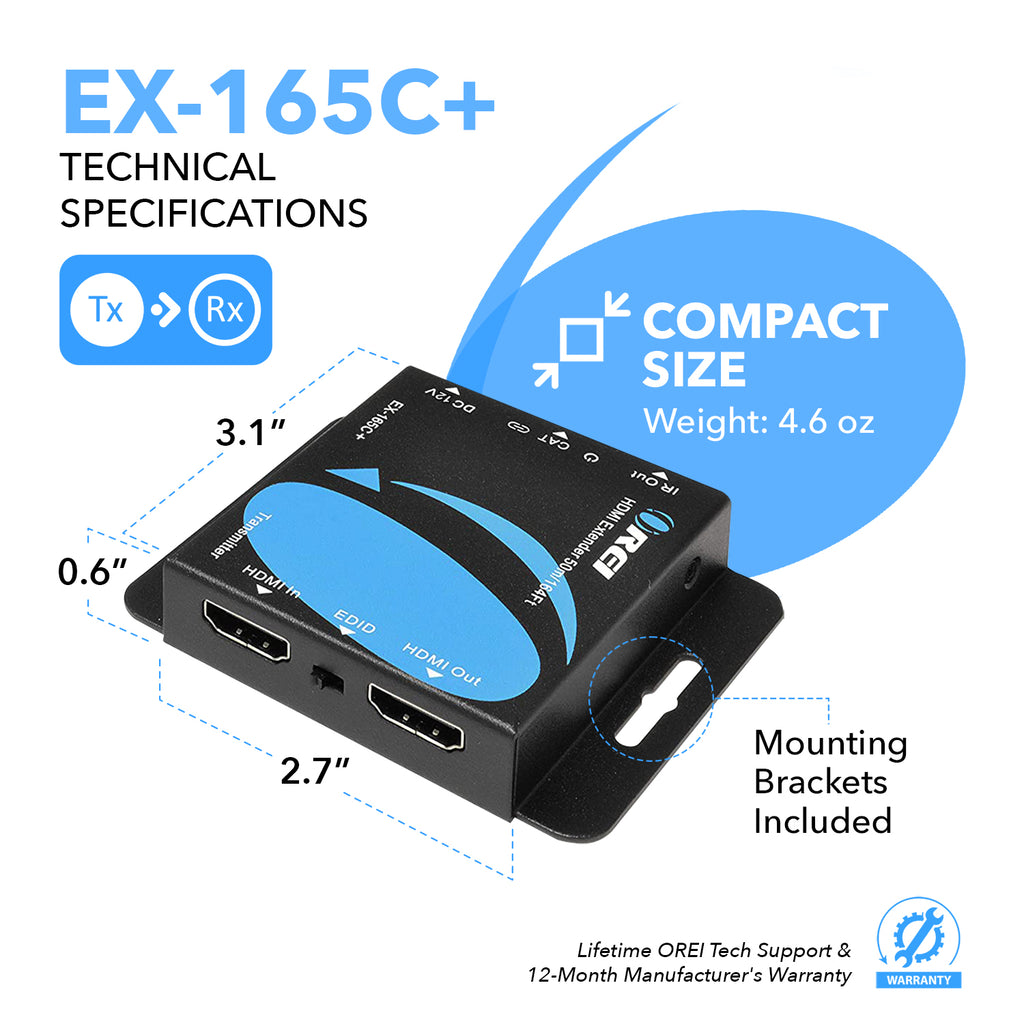

CONNECTIVITY
Transmitter:
INPUT:
1 x HDMI Type A [19-pin female]
OUTPUT:
1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver:
INPUT:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
OUTPUT:
1x HDMI Type A [19-pin female]
PACKAGE CONTENTS
1x Ā HDMI Transmitter
1x HDMI Receiver
1x Ā IR Blaster Cable (1.5 meters)
1x R Receiver Cable (1.5 meters)
1x 12V/1A DC Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
