2x4 Video Wall Controller with 180 degree rotation (UHD-204VW)

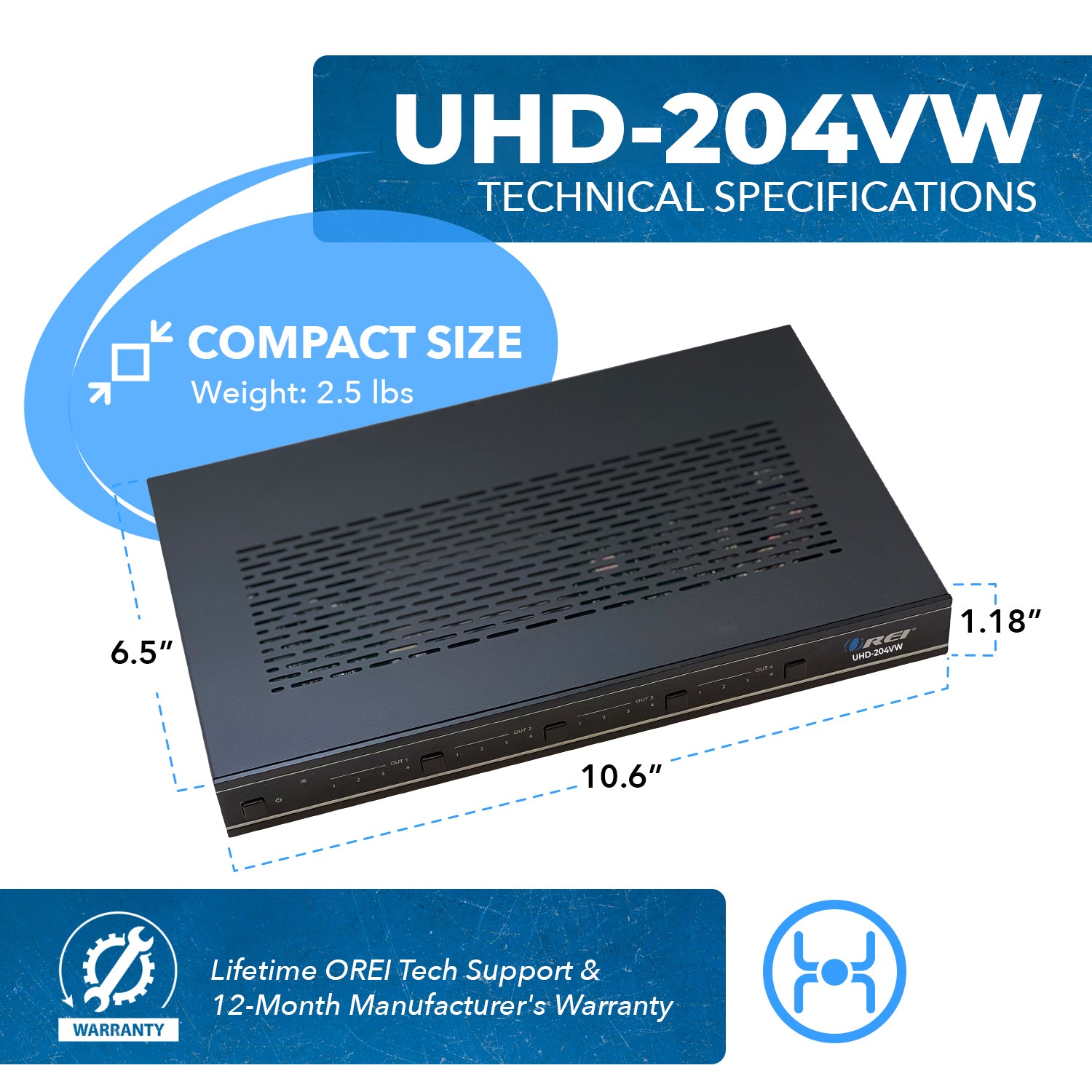

UHD-204VW: 2x4 Ultra HD Video Wall Processor

Key Features:

• HDMI 2.0 and HDCP 2.2 compliant
• 2 Inputs and 4 Outputs with 2 HDMI Loop outputs
• Video resolution up to 4K@60Hz and 2K@60Hz

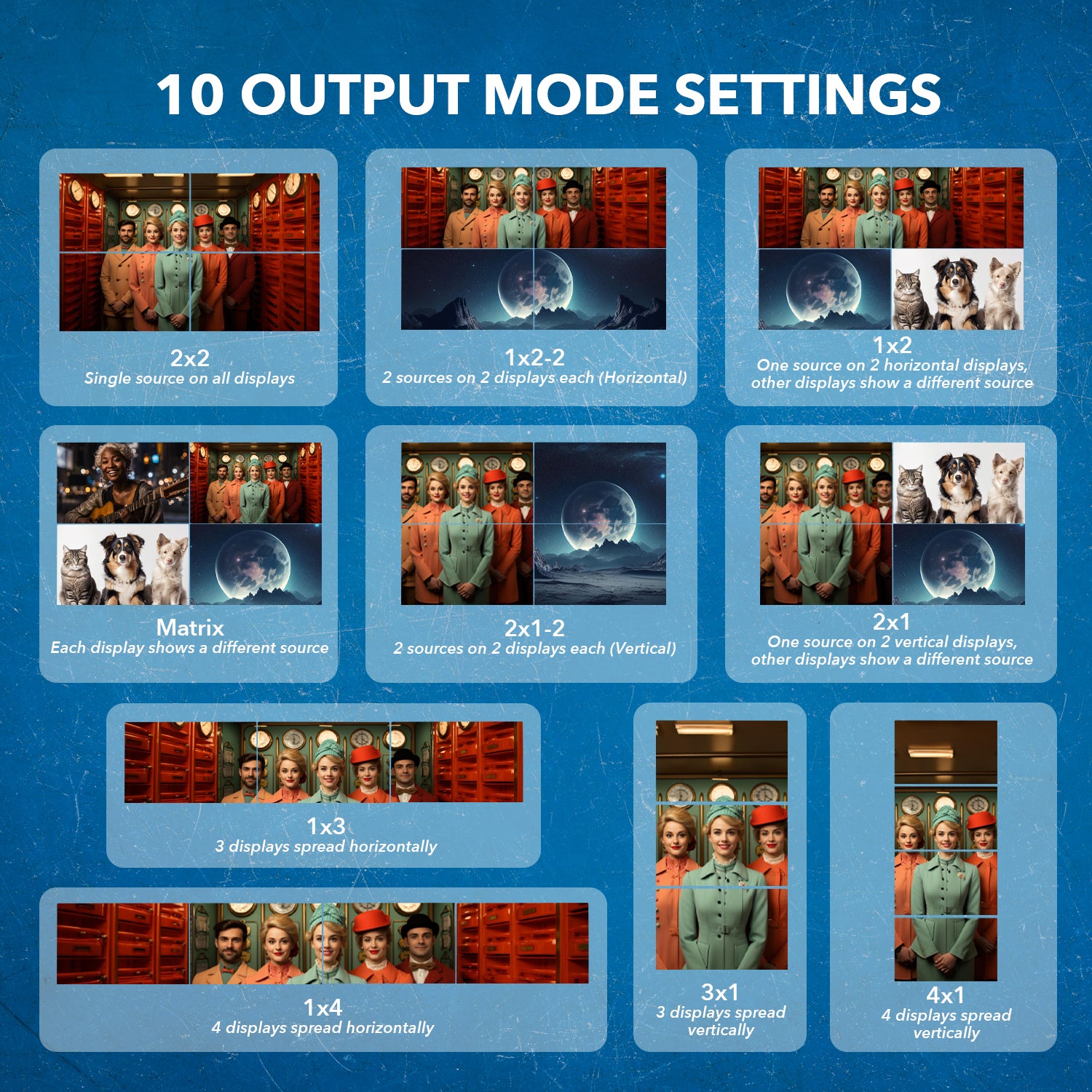

• Various video wall modes including 2x2
• Audio extraction through Analog outputs

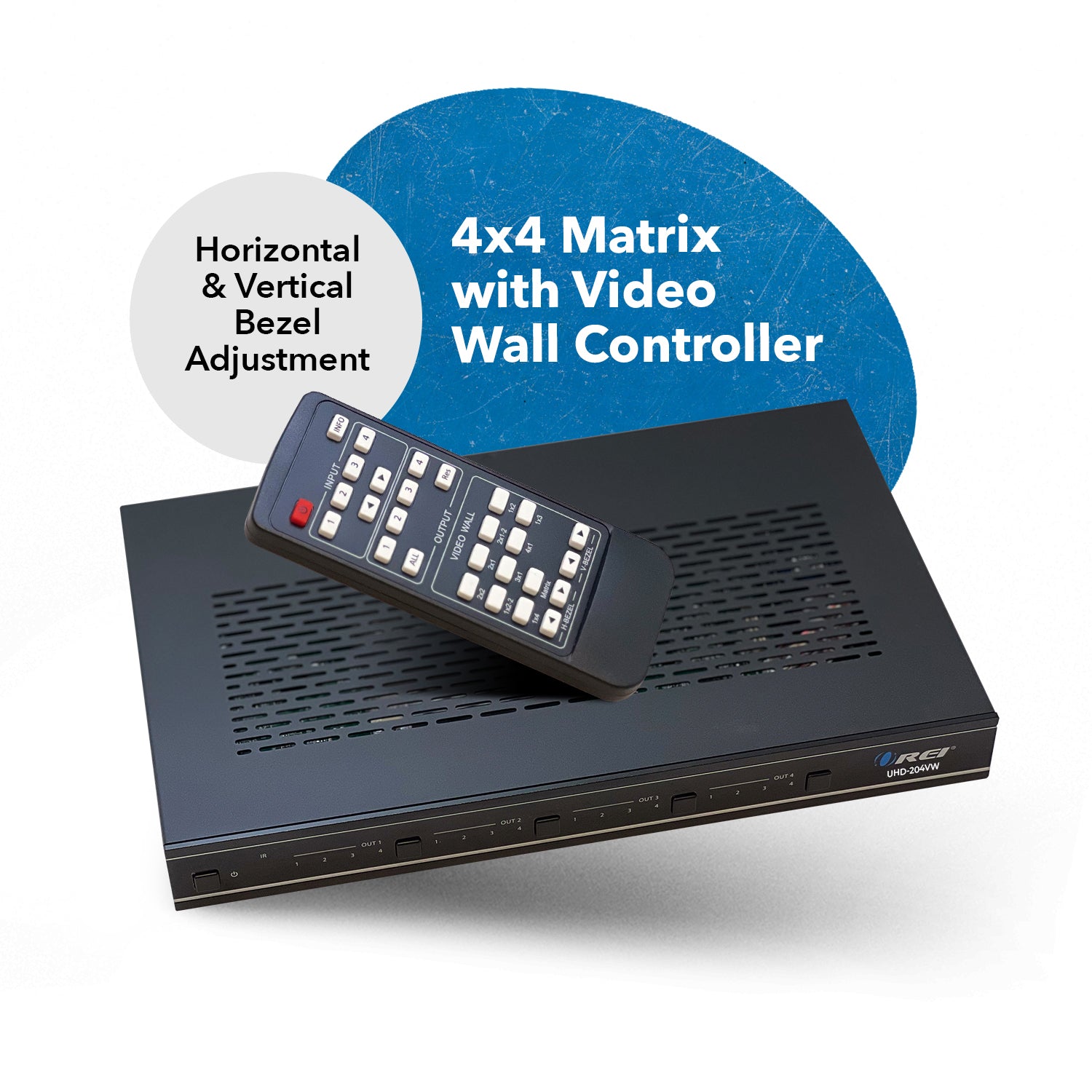

• Bezel Compensation support

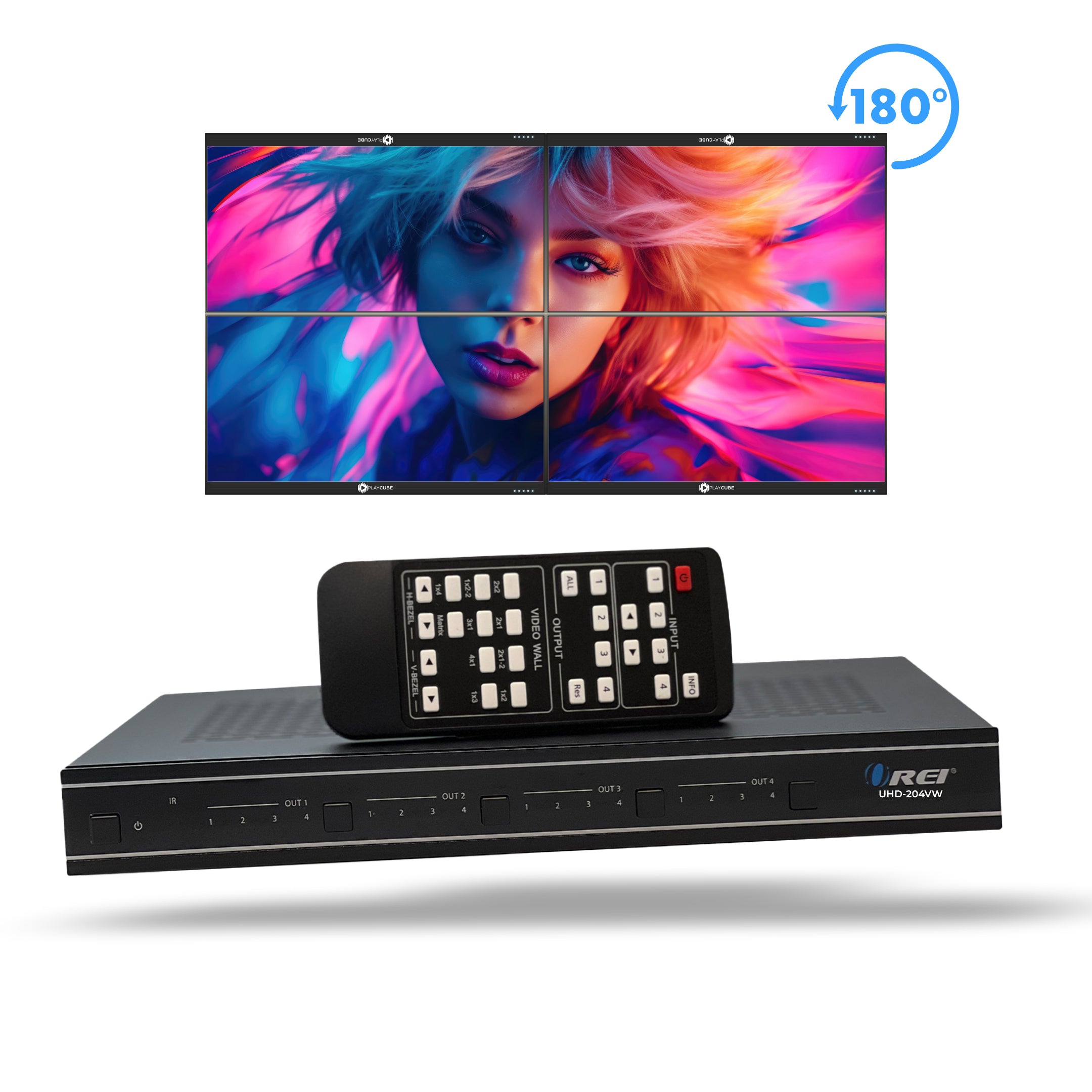

• 180-degree rotation for top 2 displays in 2x2 mode
• RS-232 and TCP/IP control

The UHD-204VW video wall controller is an awesome solution featuring 2 inputs, 4 outputs, and 2 loop outputs, catering to your media devices. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz and 2K@60Hz. Offering diverse video wall modes, including the versatile 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. For audio extraction, it's equipped with a Mini Optical jack and a 5-pin L/R balanced output. Control options are extensive, with support for both RS-232 and TCP/IP connections, ensuring convenient management of your video wall setup.

UHD-204VW User Manual Download

UHD-204VW PC Software Tool

UHD-204VW RS-232 Commands
