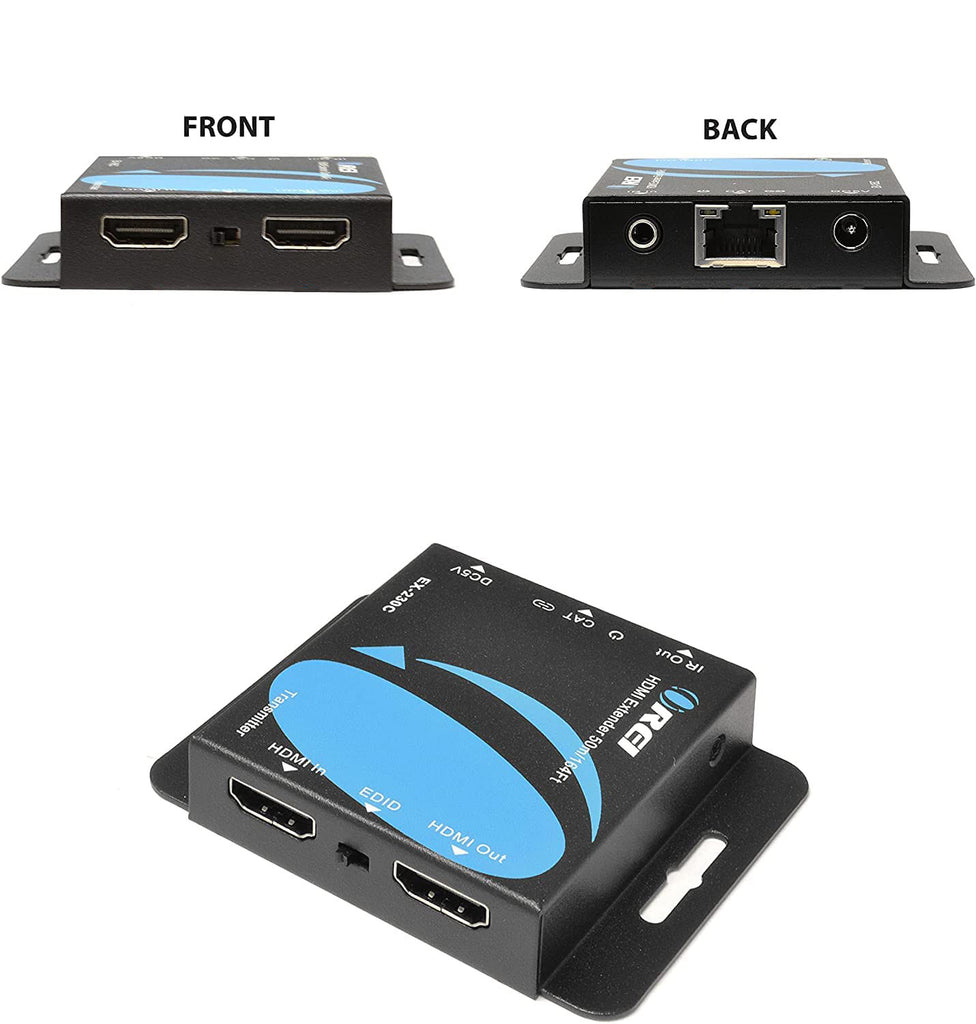

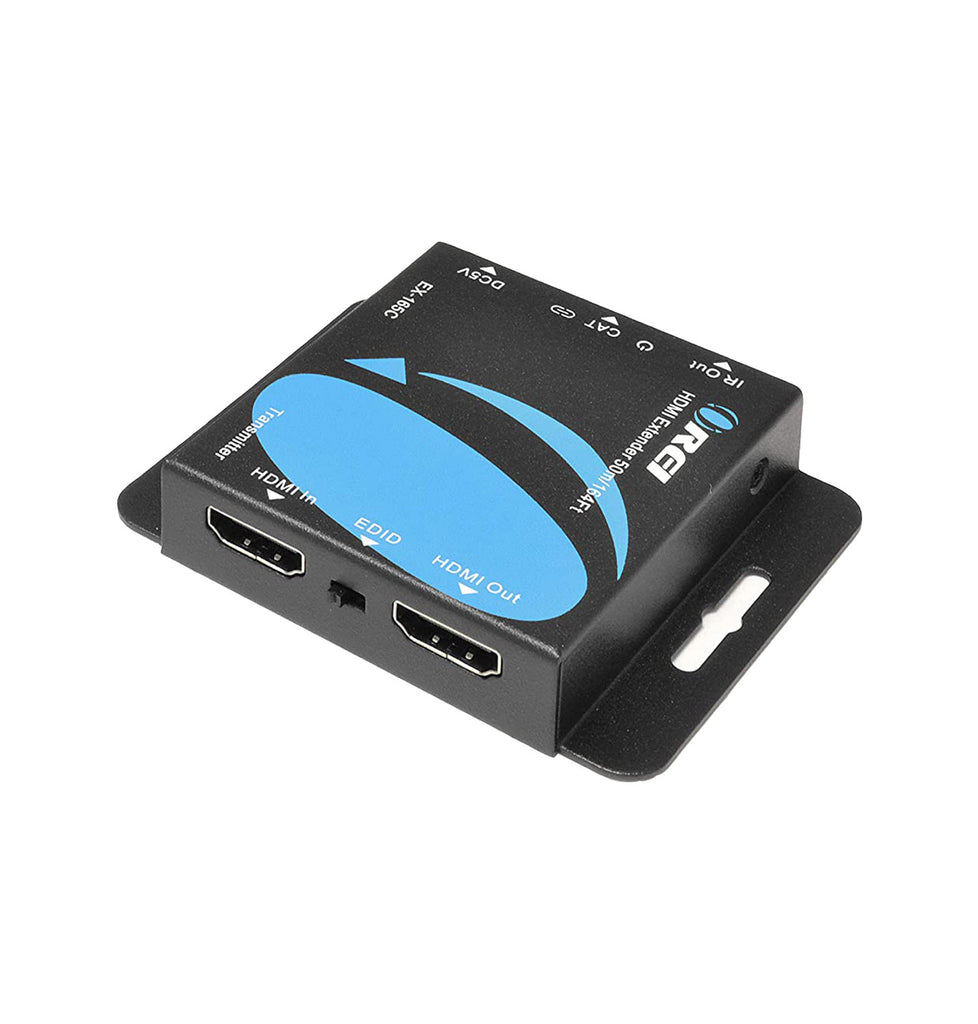

Replacement Transmitter Only for EX-165C+
OREI EX-165C+: HDMI Extender over Ethernet (70m) with One way IR & PoC
- HDMI 1.4, HDCP 1.4 & DVI 1.0 Compliant – Compatible with a wide range of HDMI and DVI devices.
- Supports 4K@30Hz (4:4:4) Resolution – Delivers crisp Ultra HD visuals with accurate color.
- Long-Distance Transmission via CAT Cable – Extend up to 230ft (1080p) or 131ft (4K30) over CAT6; 197ft/115ft over CAT5e.
- HDMI Loop-Out with Cascading Support – Connect a local display and daisy-chain to additional extenders.
- EDID Copy Function – Choose EDID from loop-out display or receiver to ensure optimal compatibility.
- One-Way Power over Cable (PoC) – Power only required at the Transmitter for clean installations.
- One-Way IR Control – Control the source device remotely from the display side.
-
Compact and Easy to Install – Ideal for residential setups, classrooms, and professional A/V environments.
The HDMI 4K30 Extender with Loop-Out and PoC offers a powerful solution for extending HDMI audio/video and control signals across long distances using a single CAT6/5e cable. Supporting up to 4K@30Hz resolution and uncompressed transmission, it delivers crystal-clear image quality with zero latency.
The unit transmits up to 230ft (70m) at 1080p or 131ft (40m) at 4K30 via CAT6 cable, with slightly shorter ranges on CAT5e. It features an HDMI loop-out port for local monitoring and supports cascading, allowing it to be used in larger AV distribution networks.
Additional highlights include EDID management, one-way PoC (requiring power only at the transmitter), and IR signal transmission from the receiver back to the source. Its compact design ensures flexibility for installations in conference rooms, classrooms, signage walls, or home theaters.
Specifications Sheet
