UHD14-EX115-K: 18Gbps HDMI 1×4 Splitter over 60m CAT
Key Features:
Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x standards
18Gbps video bandwidth
Video resolutions up to 4K2K@50/60Hz 4:4:4
HDR support, including HDR10+, HLG, and Dolby Vision
Up to 7.1 channel HD audio pass-through
Provides Audio de-embedded output options via digital and analog
Extends signal transmission up to 35 meters/115 Feet at 4K2K@60Hz, 50 meters/165Feet at 4K2K@30Hz, and 60 meters/196 Feet at 1080P@60Hz via a single CAT6/6a/7 cable
Features 1 HDMI input, 1 HDMI loop output, and 4 CAT outputs
Supports one-way IR signal pass-through

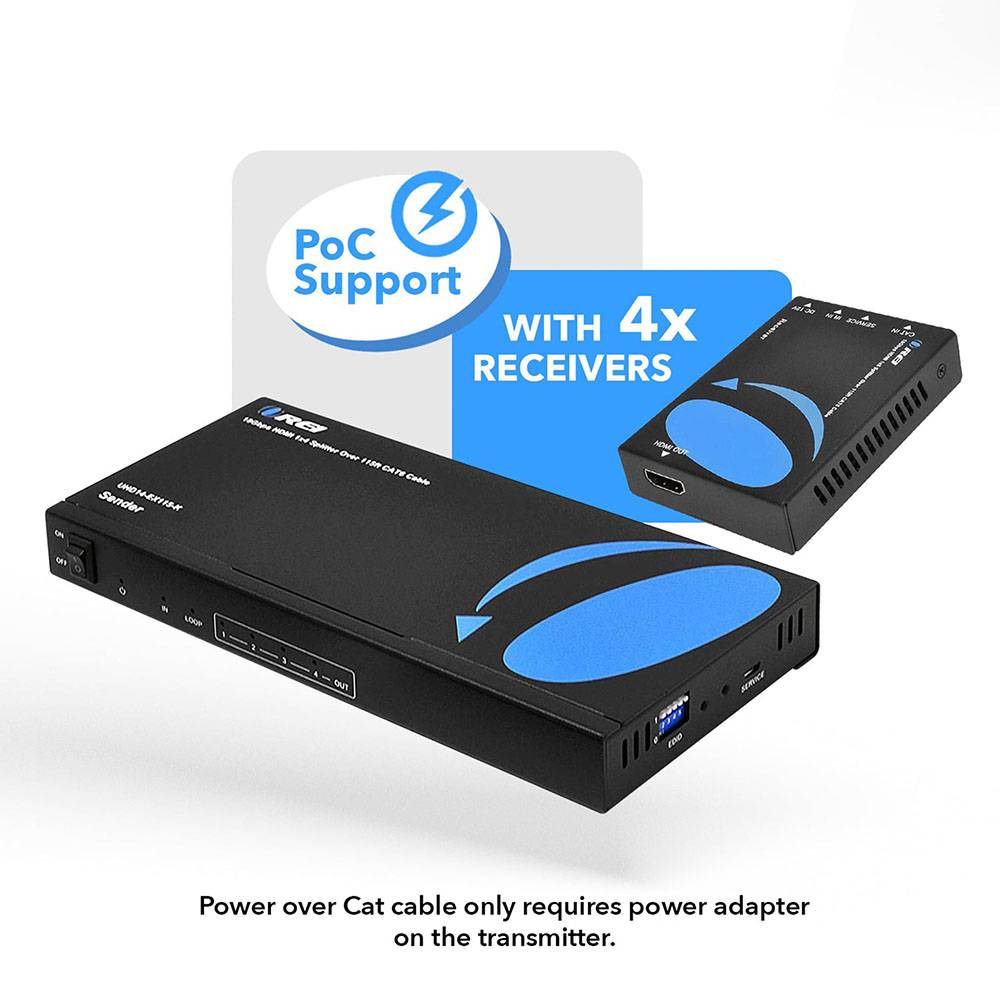

Advanced EDID management& one-way PoC function (only from transmitter to receiver)
Compact design for easy and flexible installation
The UHD14-EX165-K HDMI splitter extender over Ethernet offers unparalleled versatility for various applications. Compliant with HDMI 2.0b and HDCP 2.2 standards, it ensures seamless compatibility with modern devices. With support for 18Gbps video bandwidth and resolutions up to 4K2K@50/60Hz 4:4:4, it delivers stunning visuals. Its ability to extend signal transmission up to 35 meters / 115 feet at 4K2K@60Hz and 60 meters / 196 feet at 1080P@60Hz via a single CAT6/6a/7 cable ensures reliable connectivity across various setups. It features audio de-embedding (audio output) through analog and optical ports. HDR support, IR signal pass-through, and PoC function further enhance its utility. With its compact design and easy installation, the UHD14-EX165-K is the ideal solution for extending HDMI signals.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
4 × CAT [RJ45, 8-pin female]
1 × Coaxial [RCA]
1 × L/R [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
CONTROL:
1 × SERVICE [Micro USB, Update port]
1 × EDID [DIP SWITCH, 5-pin]
1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
4x Receiver
1x IR Blaster cable
4x IR Receiver cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30HZ:
115 Feet
1080P@60Hz:
196 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
