18Gbps video bandwidth with video resolutions up to 4K@60Hz 4:4:4.
Featuring 1 HDMI input 1 HDMI loop out and 8 CAT output ports for excellent connectivity.
HDR formats supported include HDR, HDR10+, HLG, and Dolby Vision.
Audio extraction through both digital and analog (audio de-embedded) output.
Extends signal transmission up to 120 meters / 394 feet at 4K@60Hz, and 150 meters 492 feet at 1080P@60Hz via a single CAT6/6a/7 cable.
Features 1 HDMI input, 1 HDMI loop output, and 4 HDBaseT outputs.
IR and RS-232 are routed to the HDBaseT output.

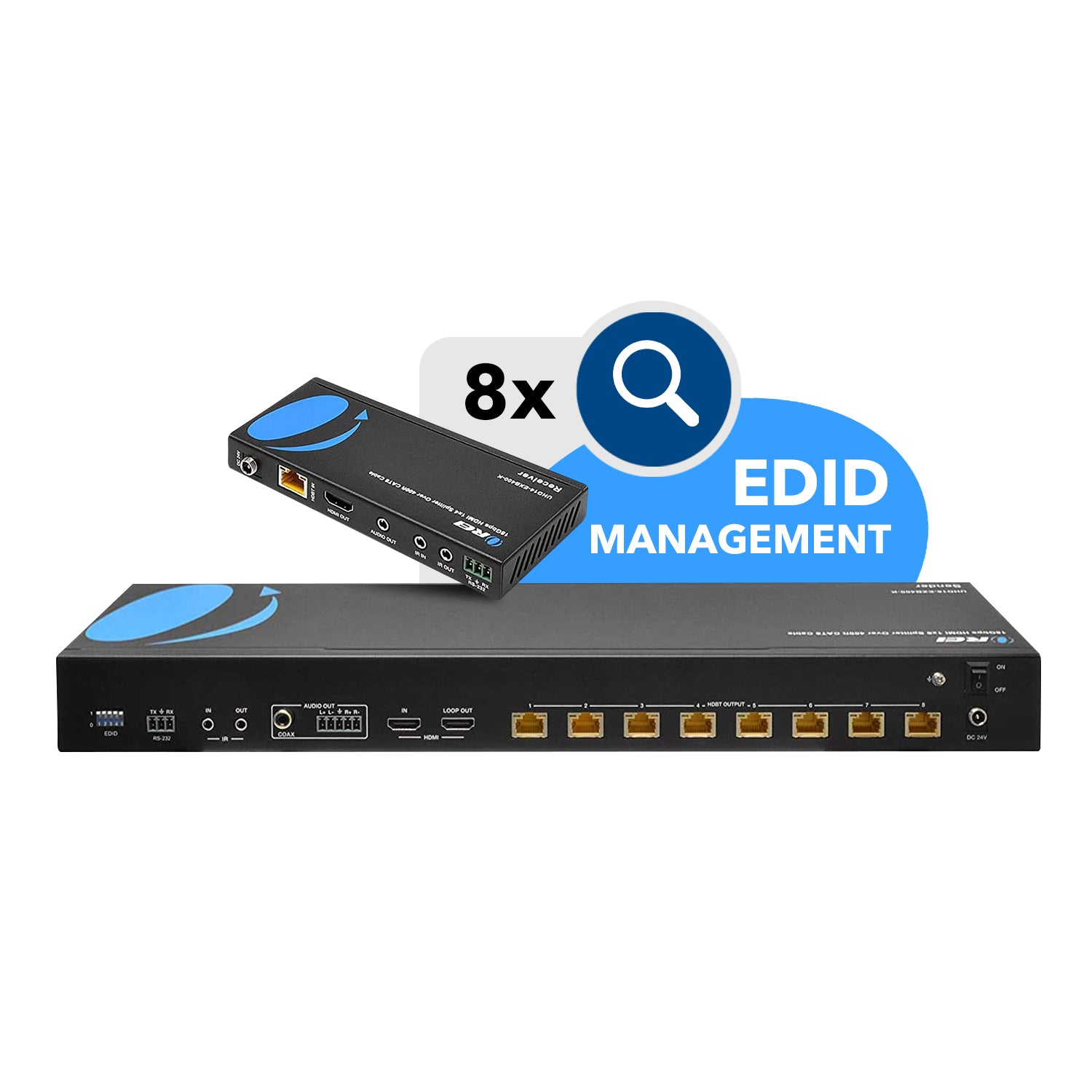

Advanced EDID management capabilities.

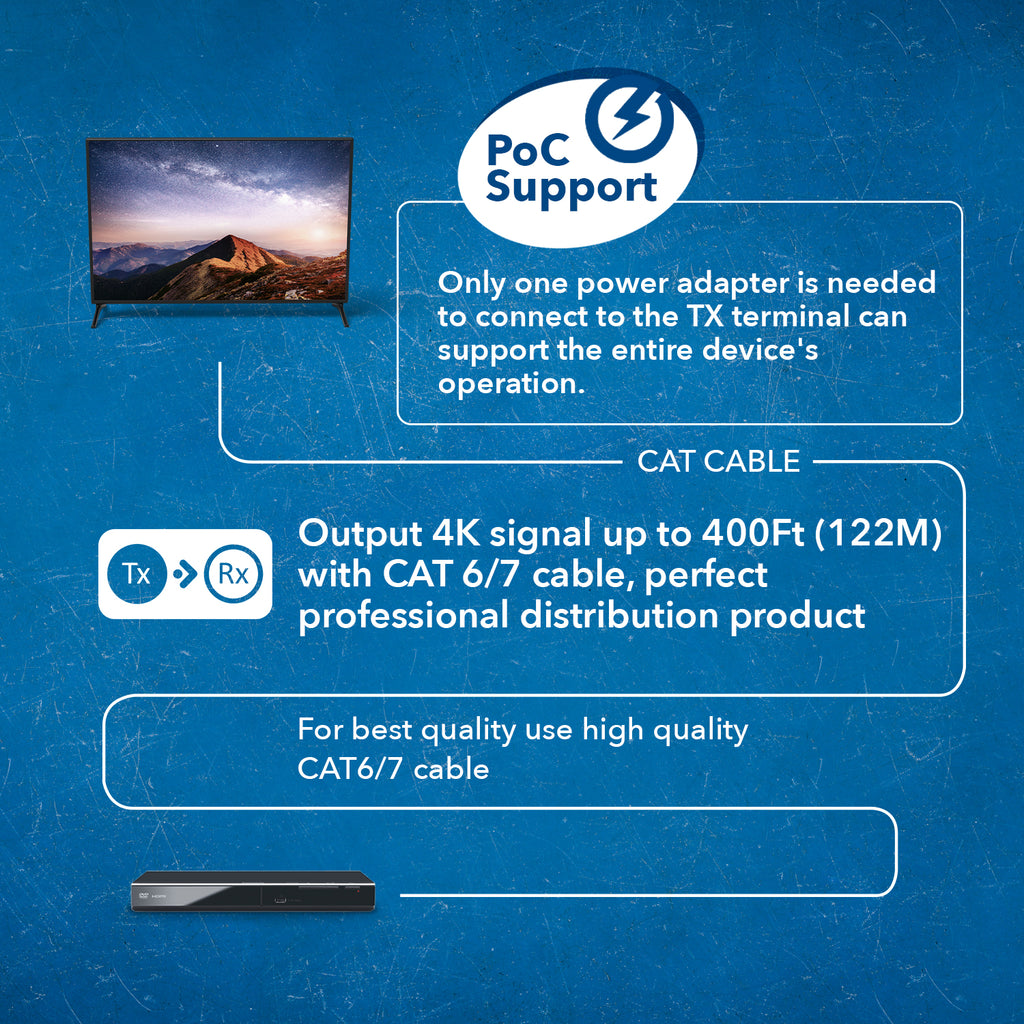

Supports one-way POC function (from transmitter to receiver).
Compact design enables easy and flexible installation

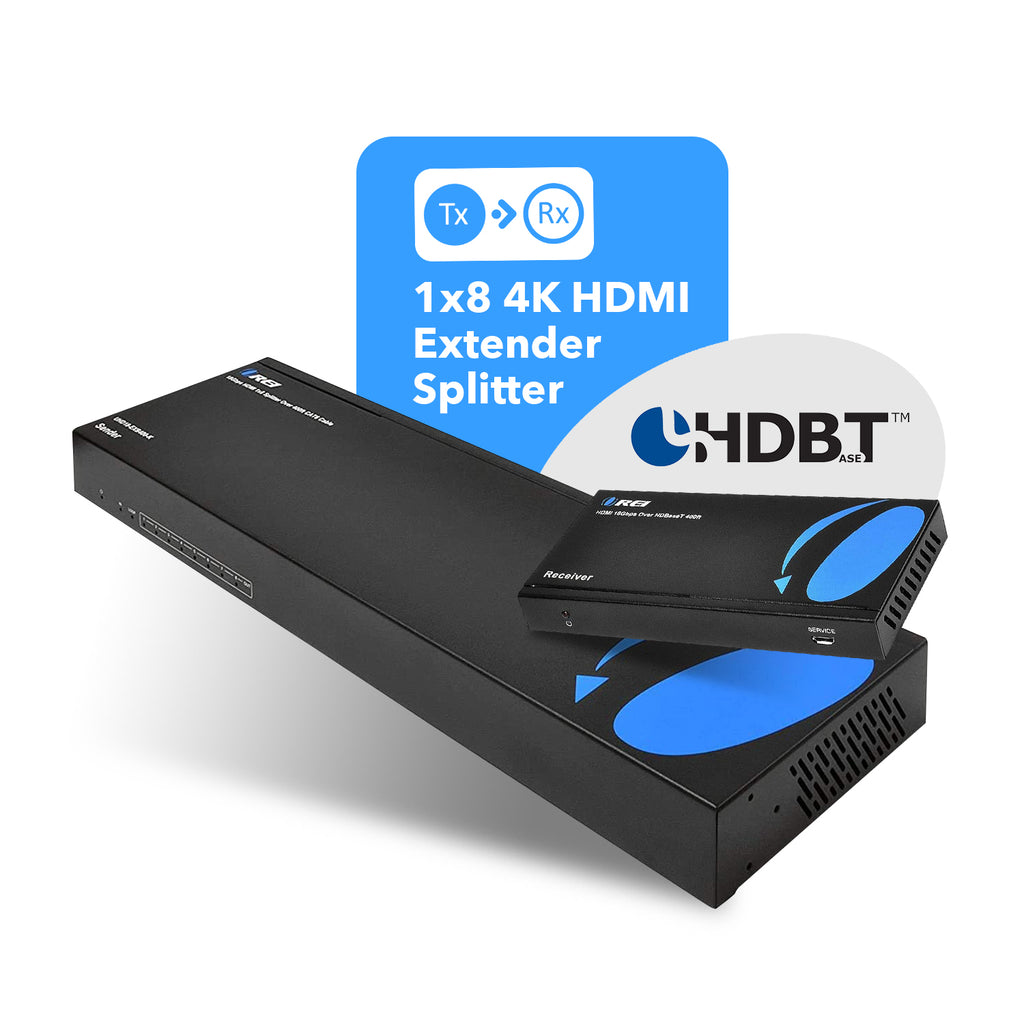

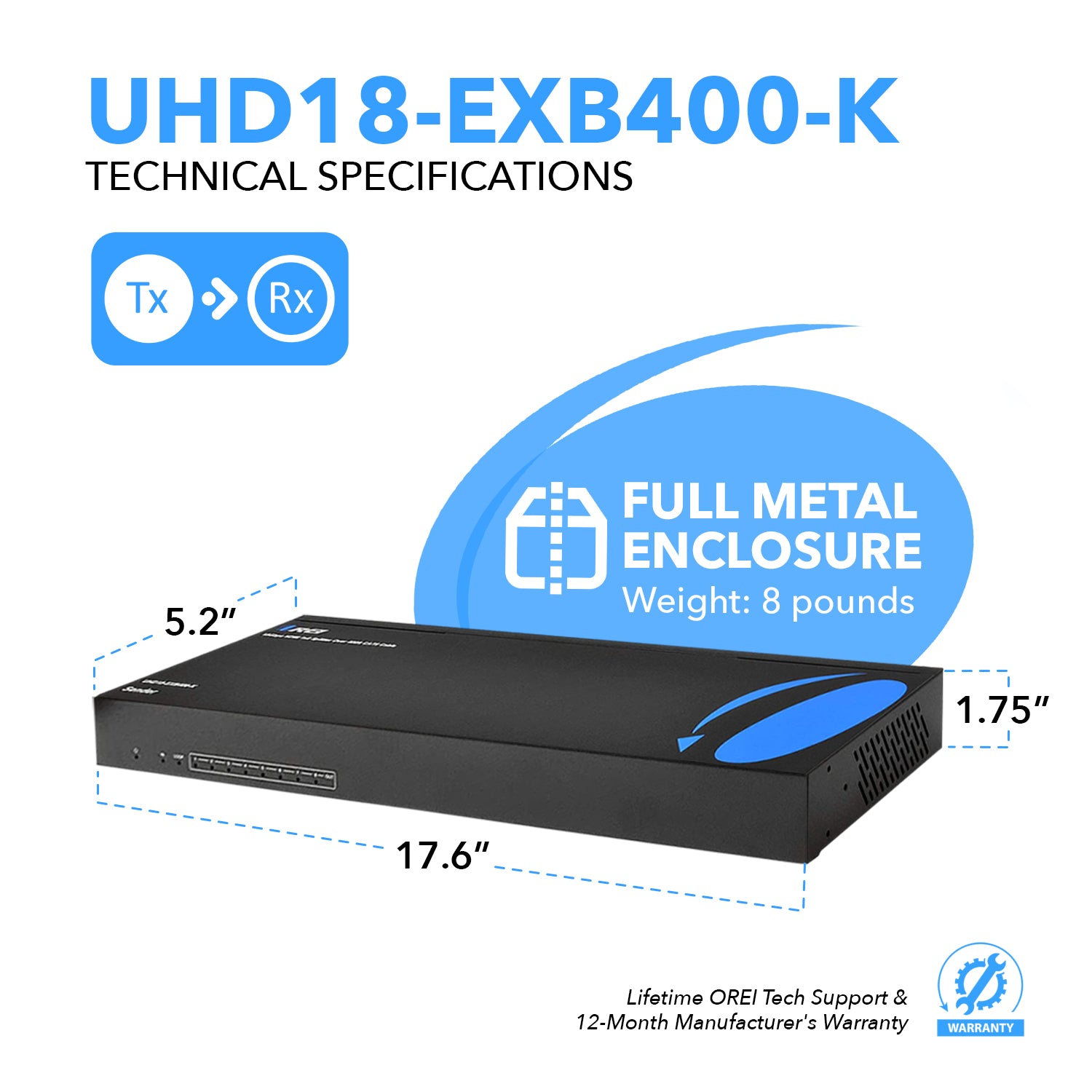

The UHD18-EXB400-K is a splitter extender over CAT6 that distributes 1 HDMI input across 8 distant display devices. Compliant with HDMI 2.0b and HDCP 2.2, it ensures seamless compatibility, 18Gbps video bandwidth, with support for resolutions up to 4K@60Hz 4:4:4 and HDR formats like HDR10+, HLG, and Dolby Vision, it delivers stunning visuals. Featuring audio extraction through optical & L/R ports, it extends signal transmission up to 120 meters / 394 feet at 4K@60Hz and 150 meters / 493 feet at 1080P@60Hz, via a single CAT6/6a/7 cable. With its compact design and features such as IR and RS-232 routing, along with a one-way POC function, the UHD18-EXB400-K is the perfect solution for your extension requirements.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
8 × HDBaseT [RJ45, 8-pin female]
1 × Coaxial [RCA]
1 × L/R [5-pin, phoenix]
CONTROL:
1×RS-232 [3-pin Phoenix connector]
1 × EDID [DIP SWITCH, 5-pin]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A , 19-pin female]
CONTROL:
1 × L/R [3.5mm Stereo Mini-jack]
1×RS-232 [3-pin Phoenix connector]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
8x Receiver
9x IR Blaster cable
9x IR Receiver cable
9x 3-Pin Phoenix Connector
1x 5-Pin Phoenix Connector
18x Mounting Ear
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30HZ:
393 Feet
1080P@60Hz:
492 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

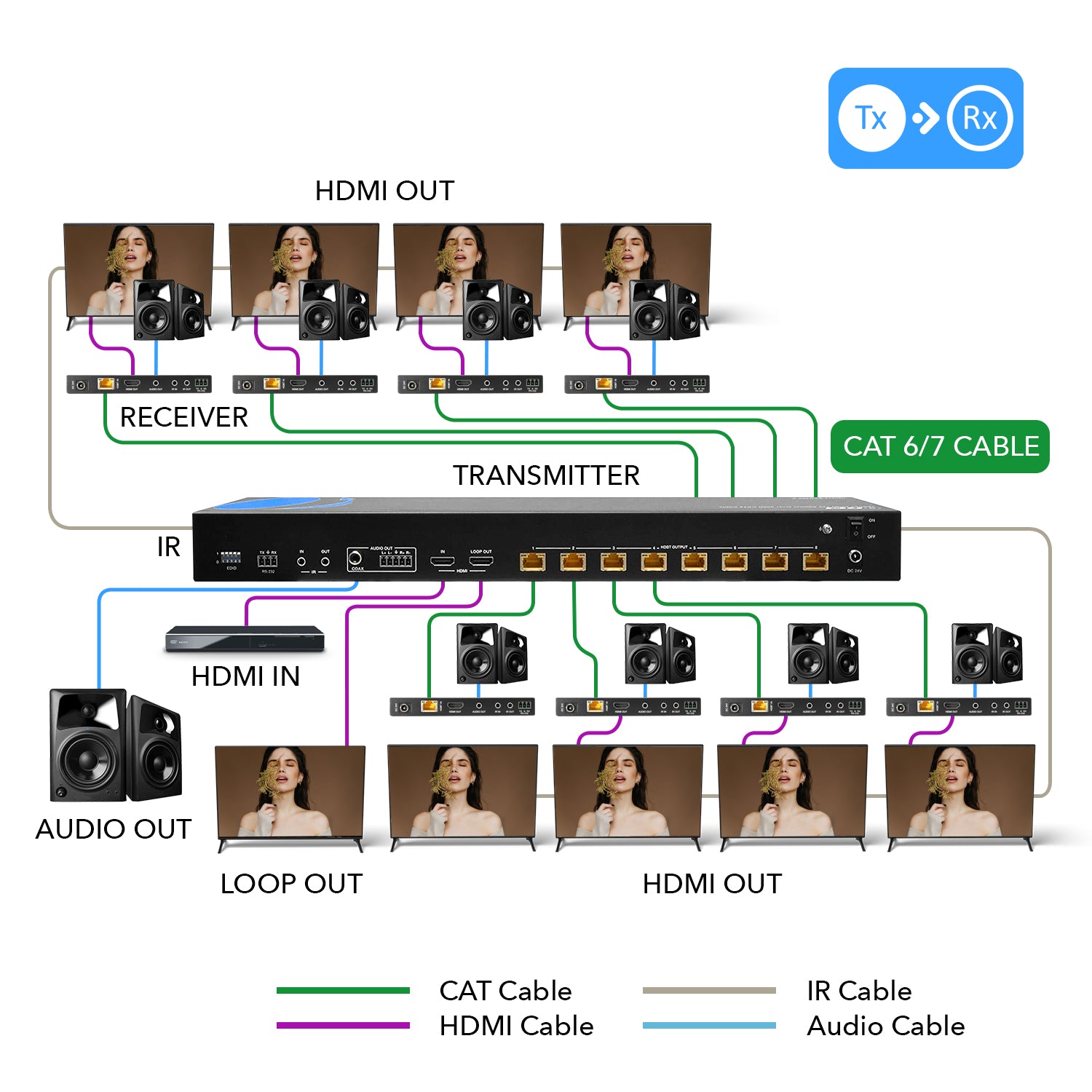

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
UHD18-EXB400-K User Manual Download
