Ultra HD 1x8 HDMI Extender Splitter Over CAT6/7 Upto 115 Ft support 4K, Loop-out, IR Remote, EDID (UHD18-EX115-K)

Name: Ultra HD 1x8 HDMI Extender Splitter Over CAT6/7 Upto 115 Ft support 4K, Loop-out, IR Remote, EDID (UHD18-EX115-K)
Brand: OREI.COM
SKU: UHD18-EX115-K
Price: 549.00 USD
Availability: InStock

$549.00

Shipping calculated at checkout.

SKU: UHD18-EX115-K

Supports 4K@60Hz YUV 4:4:4 up to 115 feet
Supports digital and analog audio de-embedded output
Supports one-way IR control signal pass-through & one-way PoC function (only from transmitter to receiver)

Overnight shipping:

Two days shipping:

Quantity

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI HD18-EX115-K:Ultra HD 1x8 HDMI Extender Splitter Upto 115 Feet

Key Features:

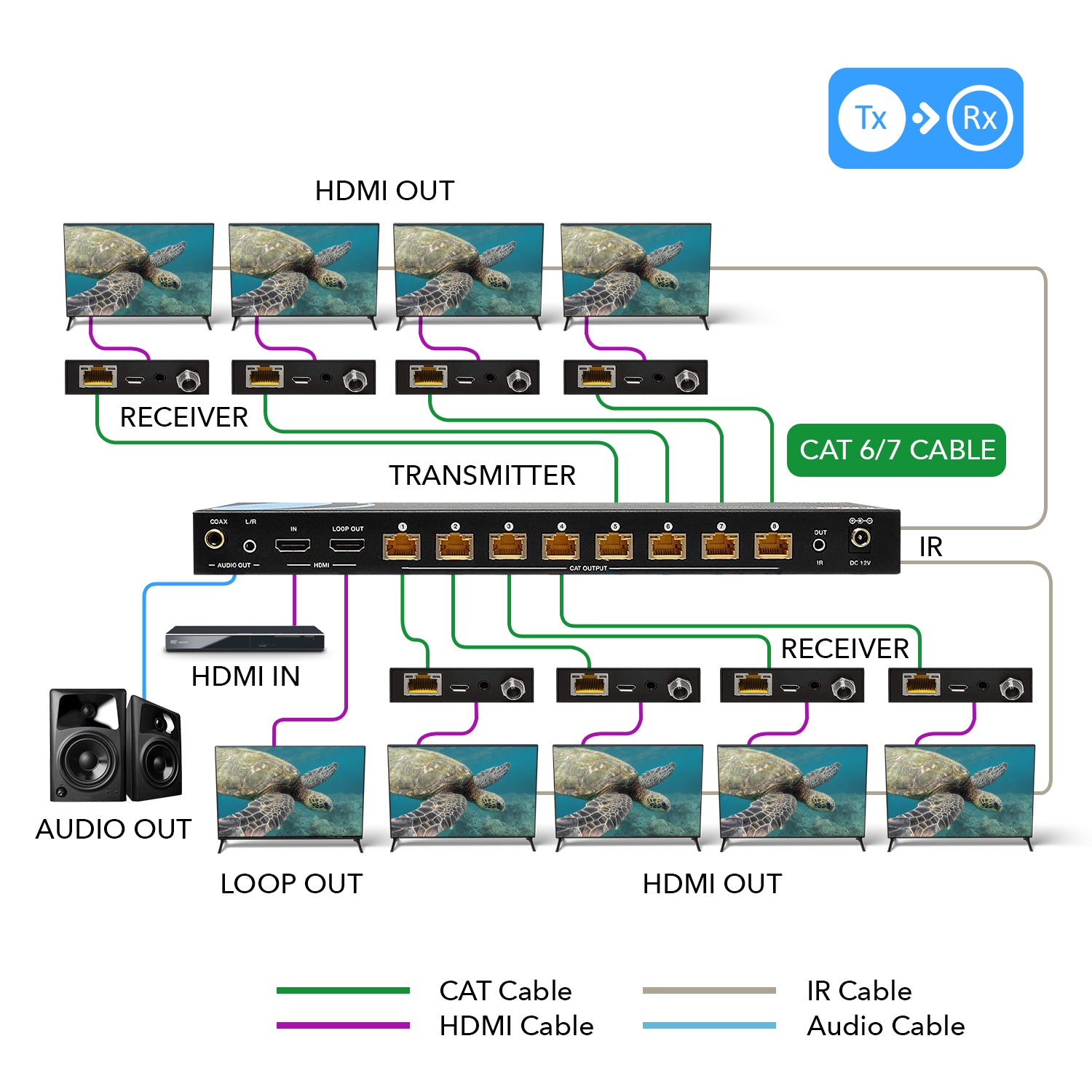

Distribute 4K 1 HDMI source to 8 HDMI displays over Cat6/7/8 Network Cable simultaneously
Splitter Included - No Switcher Needed

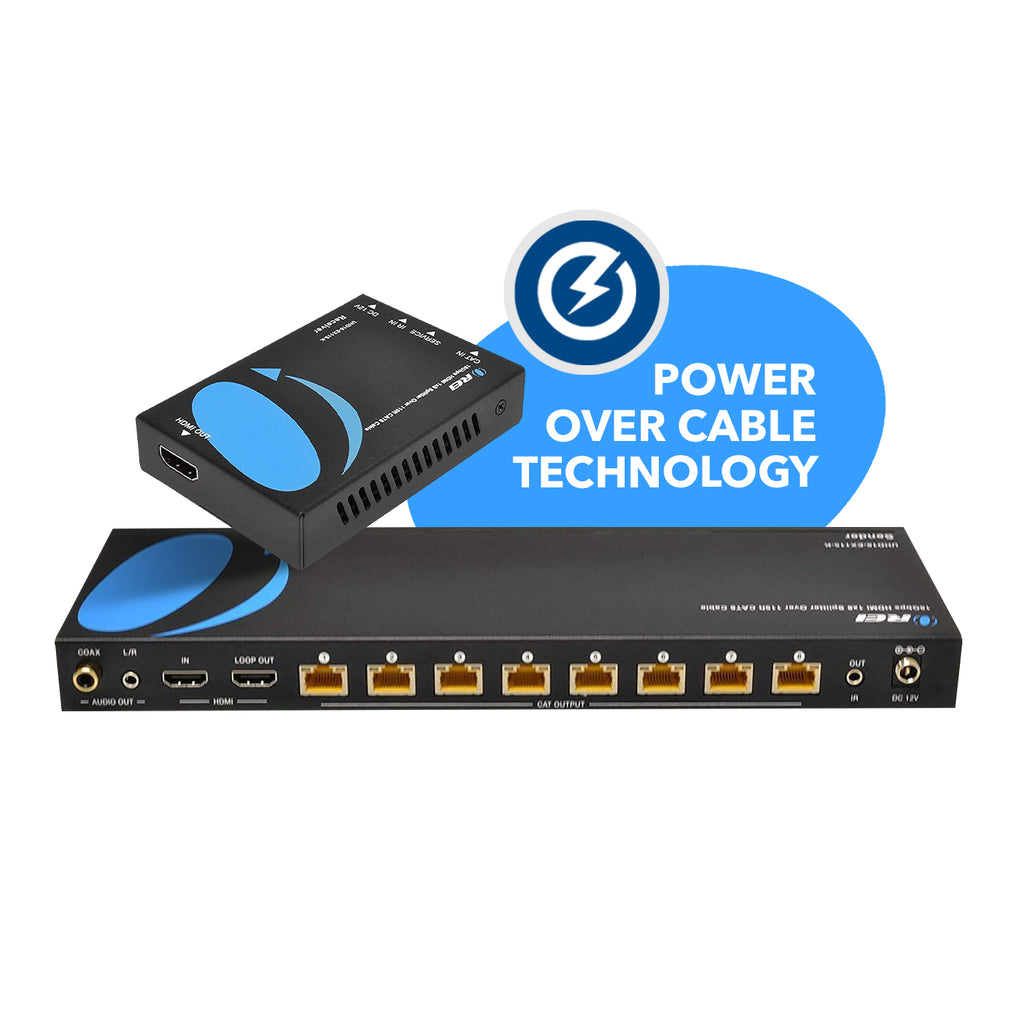

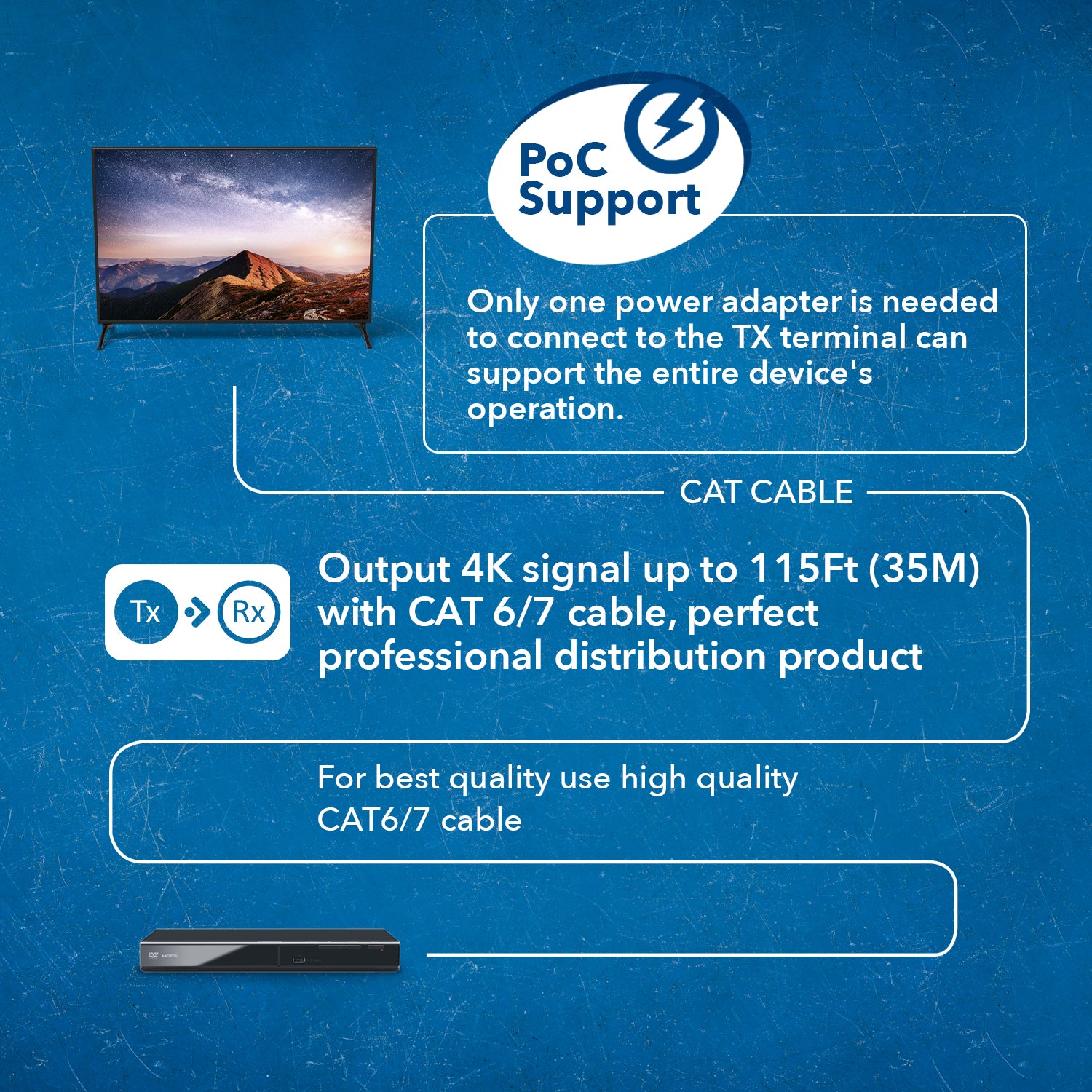

Power Over LAN - No Adapter needed on Receiver Side
Output 4K signal up to 115 Feet with Cat6/7 cable and 1080p signal up to 165 Feet
HDMI Transmitter is equipped with 8 Port CAT6 Output and 1 Additional HDMI Output to connect to a local display or monitor
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
Support up to 7.1CH HD audio pass-through
Loop Out on Sender Unit
Full IR Remote Control Input
Supports 20~60Hz IR Pass Back
Control a DVD Player, or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
Supports 18Gbps Bandwith
Compatible with CAT6/6a/7 Network Cables
The highest resolution supported is 3840x2140p@60Hz
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms, and Bars, etc.
Plug & Play Setup without any Software Installation
This unit requires only one power adapter to work

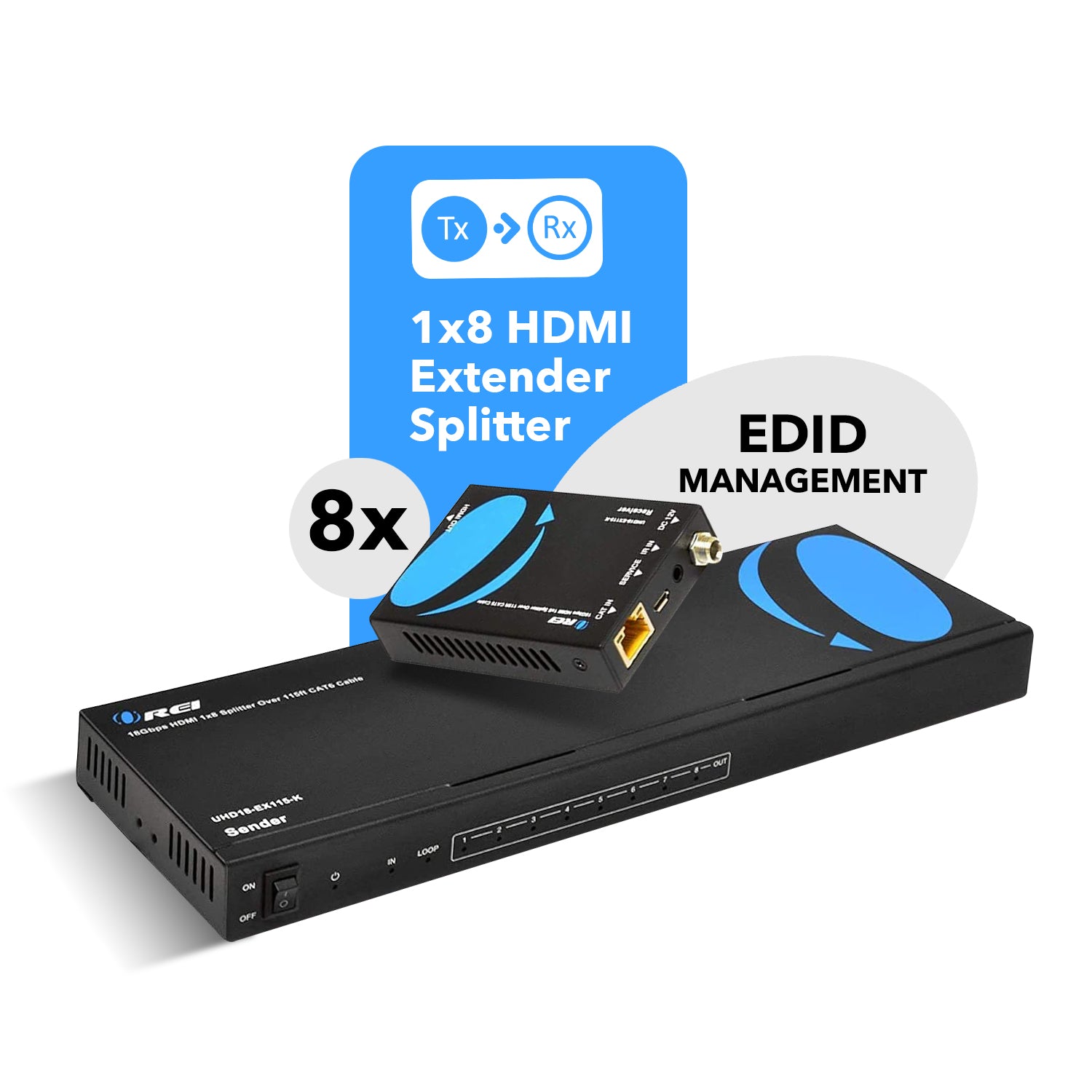

OREI UHD18-EX115-K 18Gbps HDMI 1x8 Splitter can distribute 1 HDMI source signal to 8 display. The product supports 1 HDMI input, 1 HDMI loop output, and 8 CAT
outputs. It can extend the signal transmission distance up to 35 meters at the
resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@
60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. HDMI 2.0, HDCP 2.2 / 1.x, and DVI 1.0 Complain. . It supports audio extract function and advanced EDID management.

Resolution Supported - 4K@60Hz, 4K@30Hz, 1080i@50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz.

HDMI Audio Formats - LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.

Coxial Audio Formats - LPCM2.0, LPCM5.1, Dolby Digital 2/5.1CH.

Coxial Analog Audio Formats - PCM 2.0.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI Type A (19-pin female)
Receiver:	INPUT PORTS:	1x HDMI Type A (19-pin female）
		8x CAT OUT [RJ45, 8-pin female]
	OUTPUT PORTS:	1x Coaxial Audio OUT [RCA]
		1x L/R Audio OUT [3.5mm Stereo Mini-jack]
	Control Ports:	1x SERVICE (Micro USB, Update port)
		1x EDID DIAL switch [5-pin]
		1x IR OUT [3.5mm Stereo Mini-jack]

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.x

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	115 Feet
1080p@60Hz:	196 Feet

VIDEO OUTPUT

Video Bandwidth:	594MHz/18Gbps
Video Resolutions:	Up to 4K@50/60Hz 4:4:4
Color Space:	RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
Color Depth:	8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	Support one-way PoC function (only from transmitter to receiver)
IR Controller:	Support one-way IR control signal pass-through
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO OUTPUT

HDMI Audio Formats:	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coaxial Audio Formats:	LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
L/R Audio Formats:	PCM 2.0

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

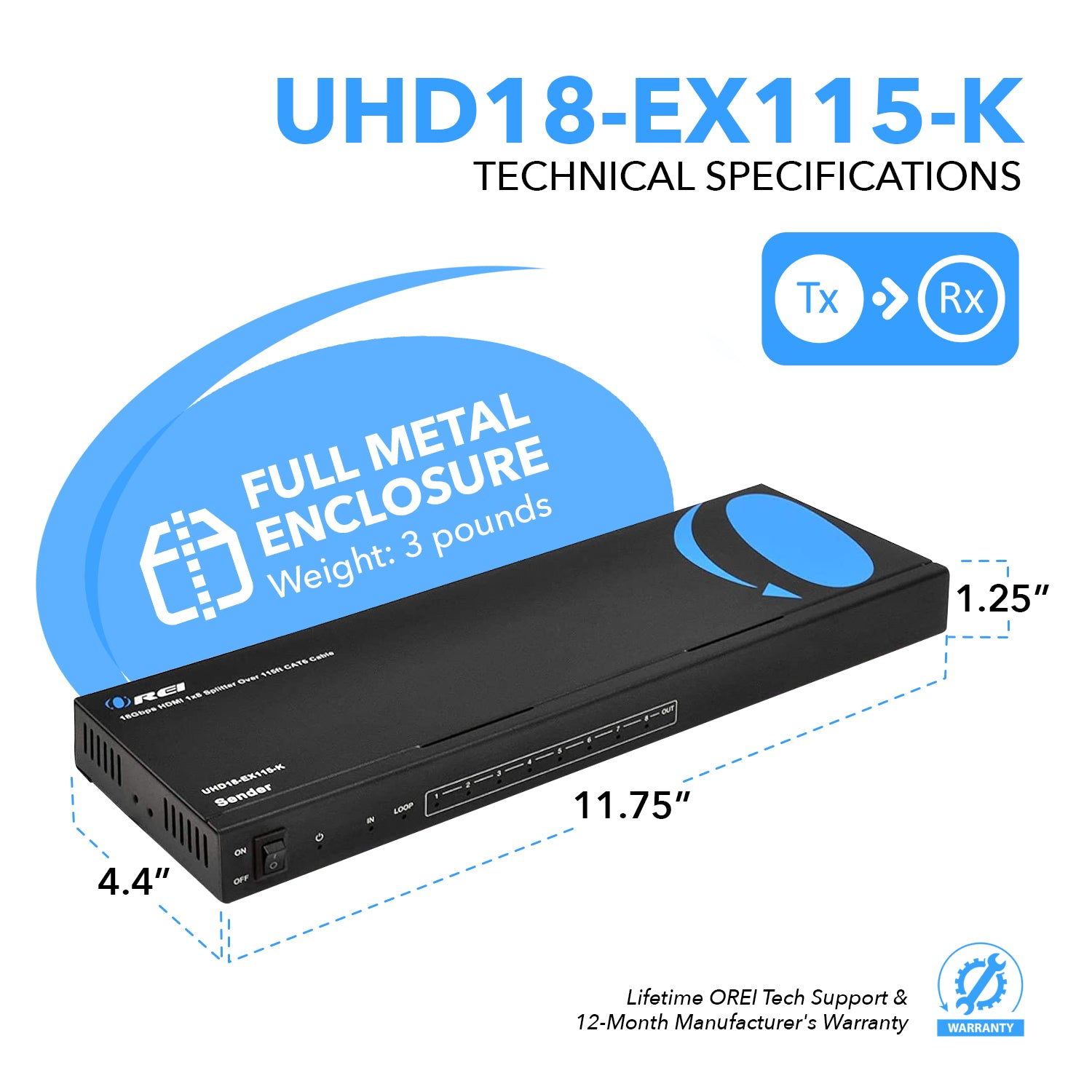

DIMENSIONS & WEIGHT

Transmitter:	Height:	28mm
	Width:	300mm
	Depth:	100mm
	Weight:	823g
Receiver:	Height:	18mm
	Width:	88mm
	Depth:	61mm
	Weight:	155g

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Electrostatic Protection of the whole Machine:	Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	25.44W

Power Supply:	Input:	AC100 - 240V 50/60Hz
	Output:	DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal
Processing Technology:	Metal plate
Finishing:	Powder Spraying Technology, Screen Printing

PACKAGE CONTENTS

1x HDMI Transmitter

8x HDMI Receivers

1x IR Blaster Cable (1.5 meters)

8x 20K~60KHz IR Receiver Cable (1.5 meters)

1x 12V/2.5A DC Locking Power Adapter

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD18-EX115-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 115 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
