Supports HDBaseT 4K@60Hz YUV 4:4:4 up to 230 feet
Digital and analog audio extractor from any one of outputs (Configurable)
Supports PoC, bi-directional IR, RS-232, LAN and Web UI

Overnight shipping:

Two days shipping:

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD88-EXB230R-K: 8x8 HDMI Matrix Switcher

Key Features:

HDMI 2.0b, HDCP 1.4/2.2 compliant
Up to 4K2K@60Hz (4:4:4) on all HDMI and HDBaseT ports
Supports pass-through audio up to 7.1 channels of High Definition audio
(LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Digital and analog audio extractor from any one of outputs (Configurable)
HDR and smart EDID management supported

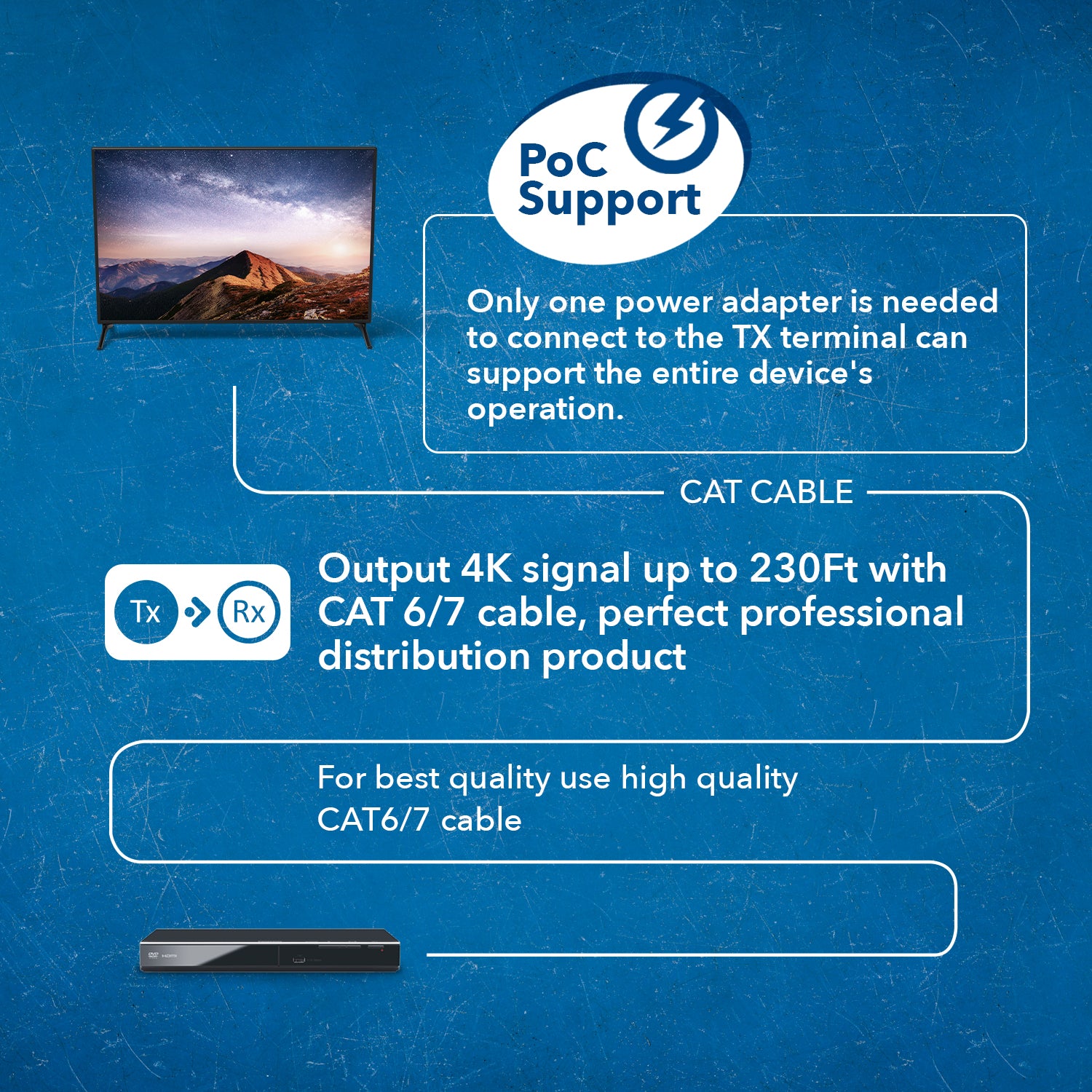

24V POC on all HDBaseT ports
Control is via on-panel Button, IR, RS-232, LAN and Web UI
1U rack mounted design size
This unit requires only one power adapter to work

Few sample applications:

8X8 - 8 Inputs & 6 Outputs Over CAT5e/6/7 LAN Cable upto 330 Feet. Plus Additional 2 HDMI Out Source at Local Location. Perfect Professional Distribution Product, ideal for 4K Blu Ray Players, Game Consoles, Media Players, Satellite Receivers, Computers, Laptops and Other Sources.

Full Ultra HD Support - 4K 60/50Hz@ 12 bit , 4K @60Hz, 4K 30Hz@24 bit, 60/50Hz@1080p/i, 60/50Hz@720p, 60/50Hz@576p/i, 60Hz@480p/i; SUPPORTS ALL DIGITAL AUDIO COMPATIBILITY: Such as LPCM, DTS HD, and Dolby trueHD. HDMI 2.0 FEATURES Supports HDMI2.0 4K@50/60Hz YUV420; LATEST HDCP 2.2/1.4 COMPLIANT: Supports RS-232 Function, 4 Channel Bypass. FULL EDID Managment.

Support wideband IR( 30-60Kh) Matrix System. IR Transport Channel Can be Forwards and Backward

HDBaseT Technology - Uncompressed Signal for Zero Latency, A good quality CAT5e/6/ STP shielded cable is essential in delivering quality content. CAT6 is recommended for better Performance. Avoid using signal converters/adapters. Supports POE Power Over Cable Function, so only power adapter is required at the Transmitter End.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	8x HDMI Type A [19-pin female]
		9x IR input [3.5mm Stereo Mini-jack]
		1x RS-232 [Phoenix connector]
		1x LAN [RJ45 connector]
	OUTPUT PORTS:	2x HDMI Type A [19-pin female]
		6x HDBaseT Out [RJ45]
		9x IR output [3.5mm Stereo Mini-jack]
		1x Optical audio [S/PDIF]
		1x Stereo audio [3.5mm Stereo Mini-jack]
Receiver:	INPUT PORTS:	1x HDBaseT In [RJ45]
		1x IR In [3.5mm Stereo Mini-jack]
	OUTPUT PORTS:	1x HDMI Type A [19-pin female]
		1x IR Out [3.5mm Stereo Mini-jack]
		1x IR OUT [3.5mm Stereo Mini-jack]
		1x RS-232 [Phoenix connector]

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:

230 Feet

VIDEO OUTPUT

Video Bandwidth:	600MHz[18Gbps]
Video Resolutions:	480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/ 50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4)
Color Space:	RGB/Ycbcr444/Ycbcr422/ycbcr420
Color Depth:	8/10/12 BIT

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	Yes
IR Controller:	Yes
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	Yes
RS-232 Function:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	2

AUDIO OUTPUT

HDMI Audio Formats:	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
SPDIF/Optical Audio Formats:	Dolby/DTS 5.1, PCM2.0
L/R Audio Formats:	PCM 2.0

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

DIMENSIONS & WEIGHT

Transmitter:	Height:	44.5mm
	Width:	440mm
	Depth:	320mm
	Weight:	3Kg
Receiver:	Height:	17mm
	Width:	115mm
	Depth:	65mm
	Weight:	206g

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	Human body model —— ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Electrostatic Protection of the whole Machine:	Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	74W

Power Supply	100~240V AC 50/60Hz

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal
Processing Technology:	Metal plate
Finishing:	Powder Spraying Technology, Screen Printing

PACKAGE CONTENTS

1x 8x8 HDBaseT Matrix

6x HDBasT Receivers

1x IR Remote Control (Matrix)

1x RS-232 serial cable

7x Phoenix connectors

1x 100~240V AC 50/60Hz Power Cable

16x Wideband IR receiver cables

15x Wideband IR blaster cables

12x Mounting Ears (Receiver)

2x Mounting Ears (Matrix)

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD88-EXB230R-K User Manual Download

UHD88-EXB230R-K PC Software Tool

UHD88-EXB230R-K RS-232 Commands

UHD88-EXB230R-K IR Codes

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.
