Ultra HD 2x2 HDMI Matrix Switch 4K with Audio Extractor (UHDS-202)
- 2 Inputs - 2 outputs HDMI Matrix switch
- Video resolution up to 4K2K@50/60Hz YCbCr 4:4:4 - EDID Control
- Supports Dolby Vision, HDR 10+
- Compliance: HDCP 2.2, 1.x

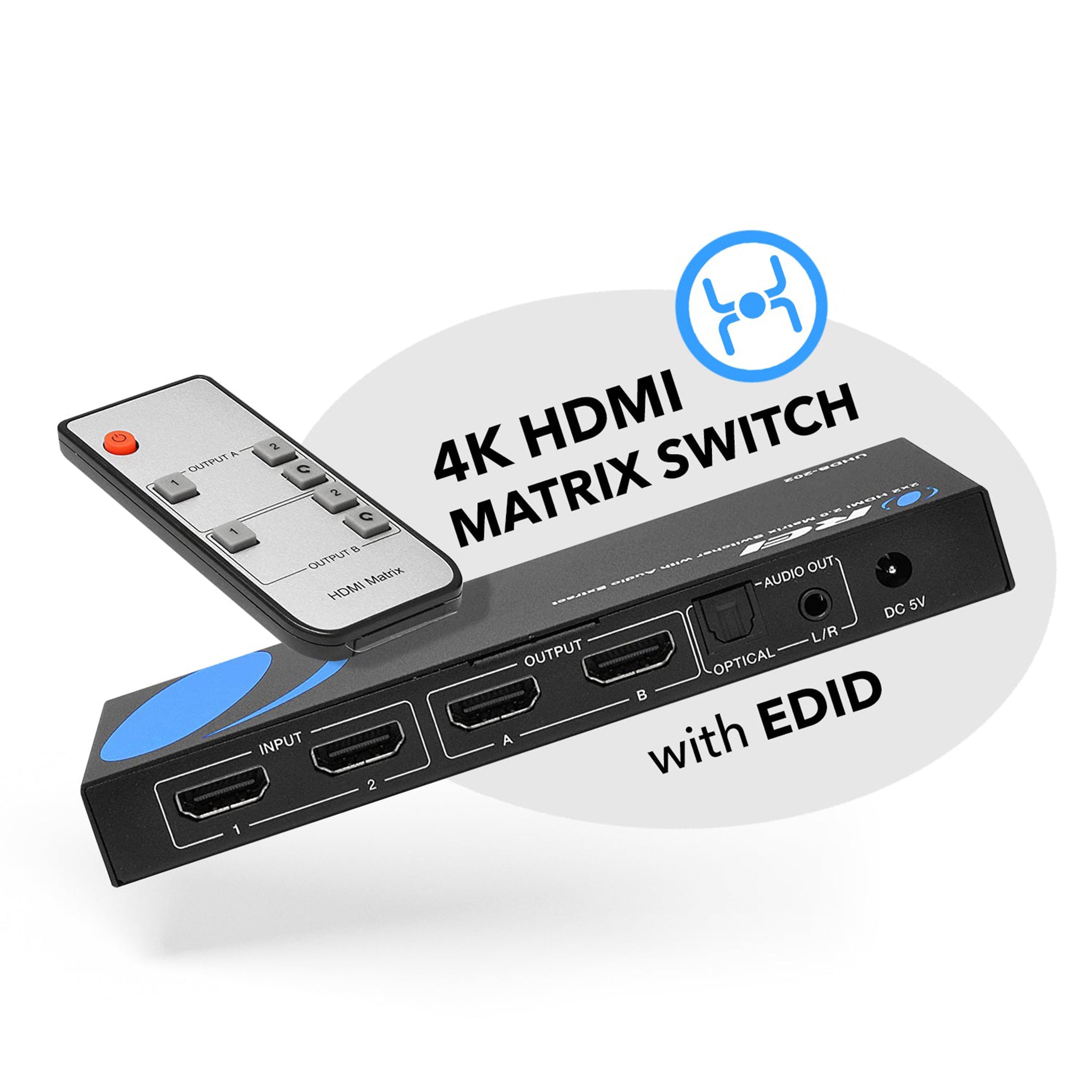

OREI UHDS-202: 2x2 HDMI Matrix Switch
- HDCP2.2 / HDCP1.x, DVI 1.0 compliant
- HDMI 2 input into 2 output Matrix Switcher
- Supports highest video resolution up to 4Kx2K@60Hz(4:4:4), EDID bypass, Full 3D
- Supports PCM, Dolby True HD, DTS-HD Master Audio up to 2 Ch. Digital and analog audio output
- Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1
- Support digital and analog audio extract output from output A
- Support 18Gbps video bandwidth
- EDID can be selected with AUTO, COPY, and STD mode via the selector on the front panel
- 2 in 2 out HDMI Switch smart EDID management, 4K/60Hz 4:4:4, 2x2 18G switcher w/ audio de-embedded, HDR, HDCP 2.2
- Support HDR function
- Flexible control via panel buttons and IR remote
This OREI UHDS-202 18Gbps 2x2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher.
Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass. 2 IN 2 OUT HDMI SWITCH - Smart EDID management, 4K/60Hz 4:4:4,4x1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access.
It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and remote, the corresponding LED indicator on the front panel will be illuminated.
