4K Ultra HD 4x2 HDMI Matrix Switch with Audio Extractor & ARC Support (UHDS-402A)

Name: 4K Ultra HD 4x2 HDMI Matrix Switch with Audio Extractor & ARC Support (UHDS-402A)
Brand: OREIMAIN
SKU: UHDS-402A
Price: 89.99 USD
Availability: OutOfStock

$89.99

Shipping calculated at checkout.

SKU: UHDS-402A

4 Inputs - 2 outputs HDMI Matrix switch
Video resolution up to 4K2K@60Hz YCbCr 4:4:4 - EDID Control
Supports Dolby Vision, HDR 10+, ARC
Compliance: HDMI 2.0 - HDCP 1.4, 2.2

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHDS-402A: 4x2 HDMI Matrix Switch

Key Features:

HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Input ports: 4 HDMI (female type); output ports: 2 HDMI (female type)
Video resolution up to 4KX2K@60Hz YCbCr 4:4:4
Supports 18Gbps uncompressed bandwidth on all HDMI
Audio Support PCM, Dolby True HD, DTS-HD Master Audio up to 7.1 Ch. Digital and analog audio output
Supports extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
OUT A and OUT B support 4K to 1080P downscale function
Supports ARC (Audio Return Channel) function
Aid advanced EDID management including AUTO, COPY and STD

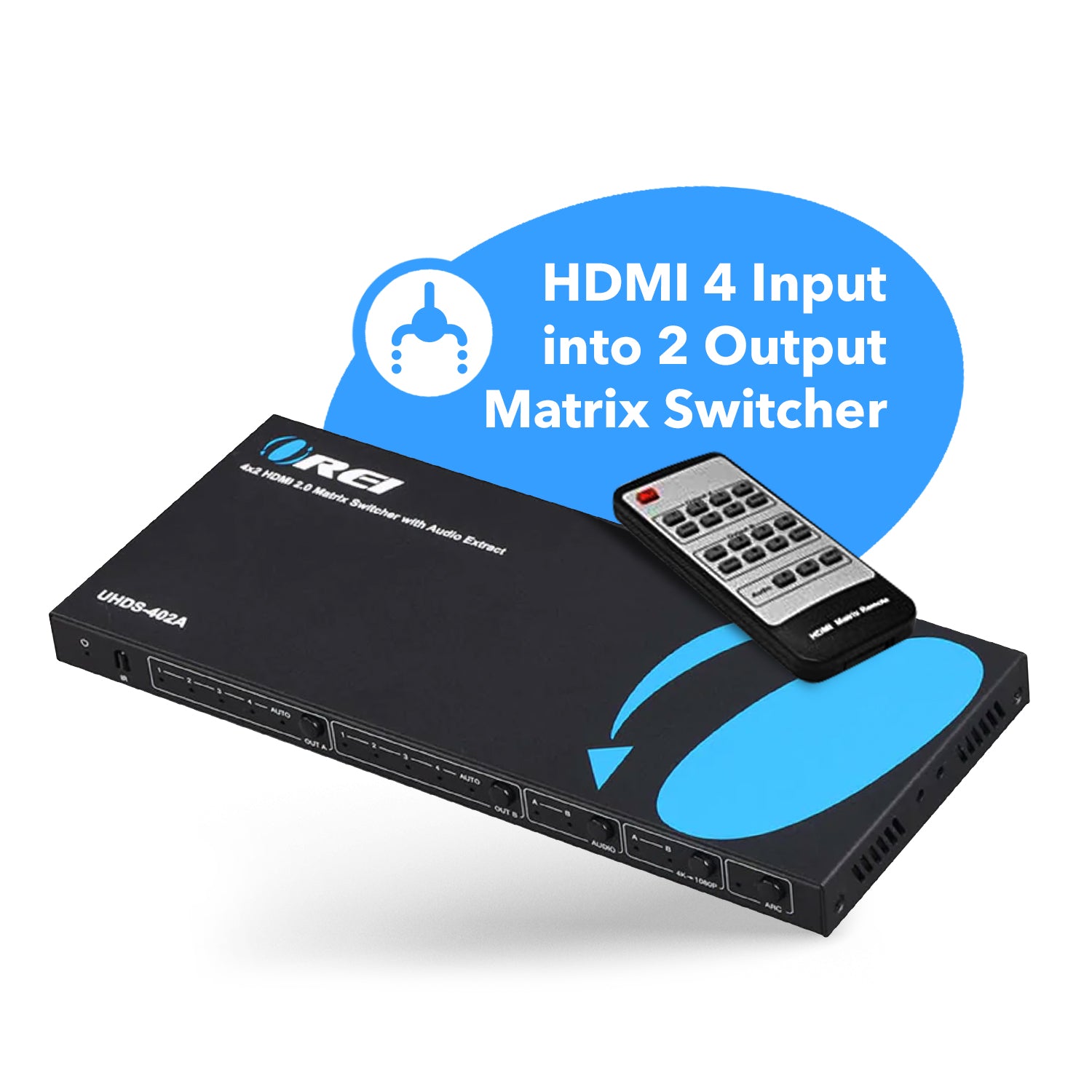

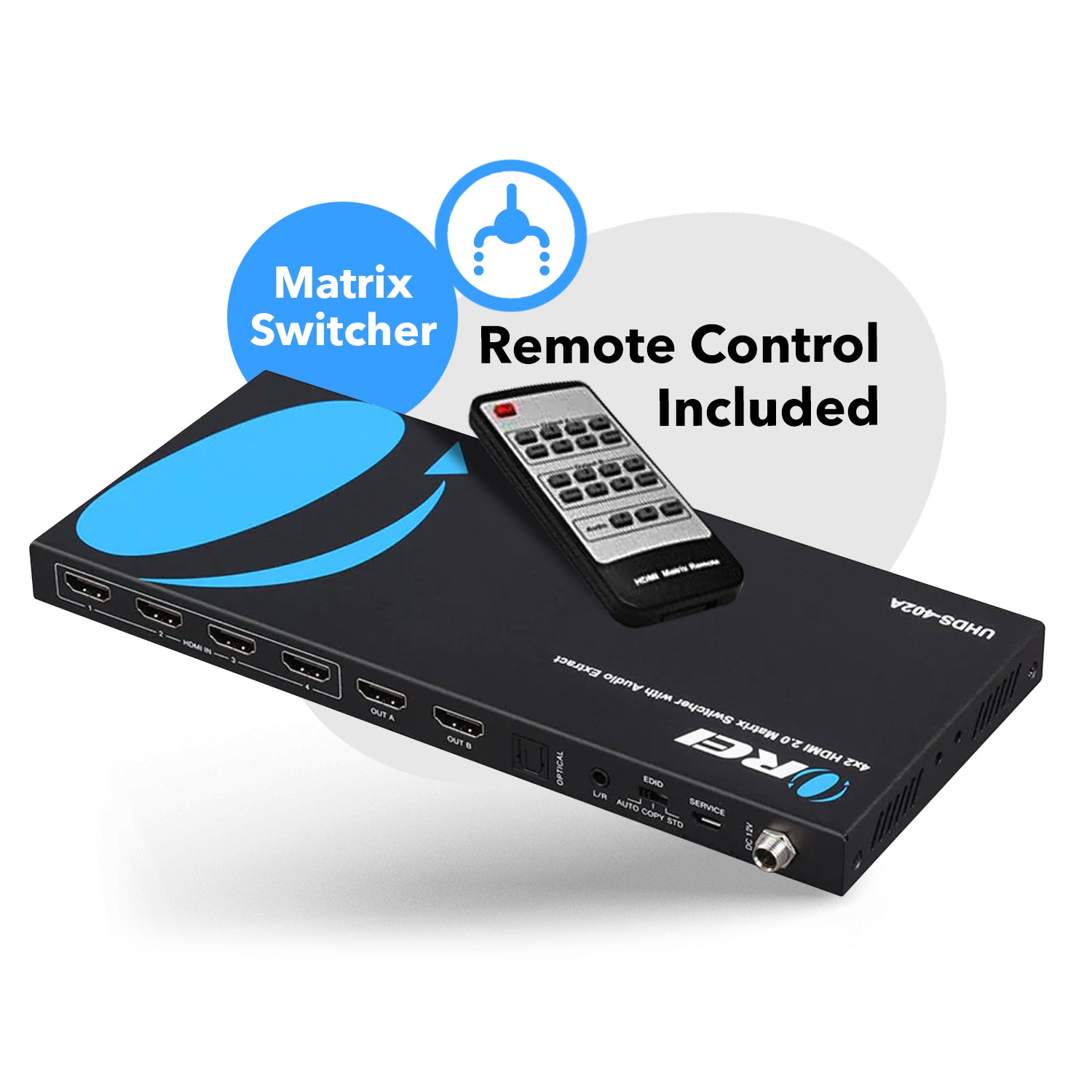

Control is via front panel buttons and IR remote

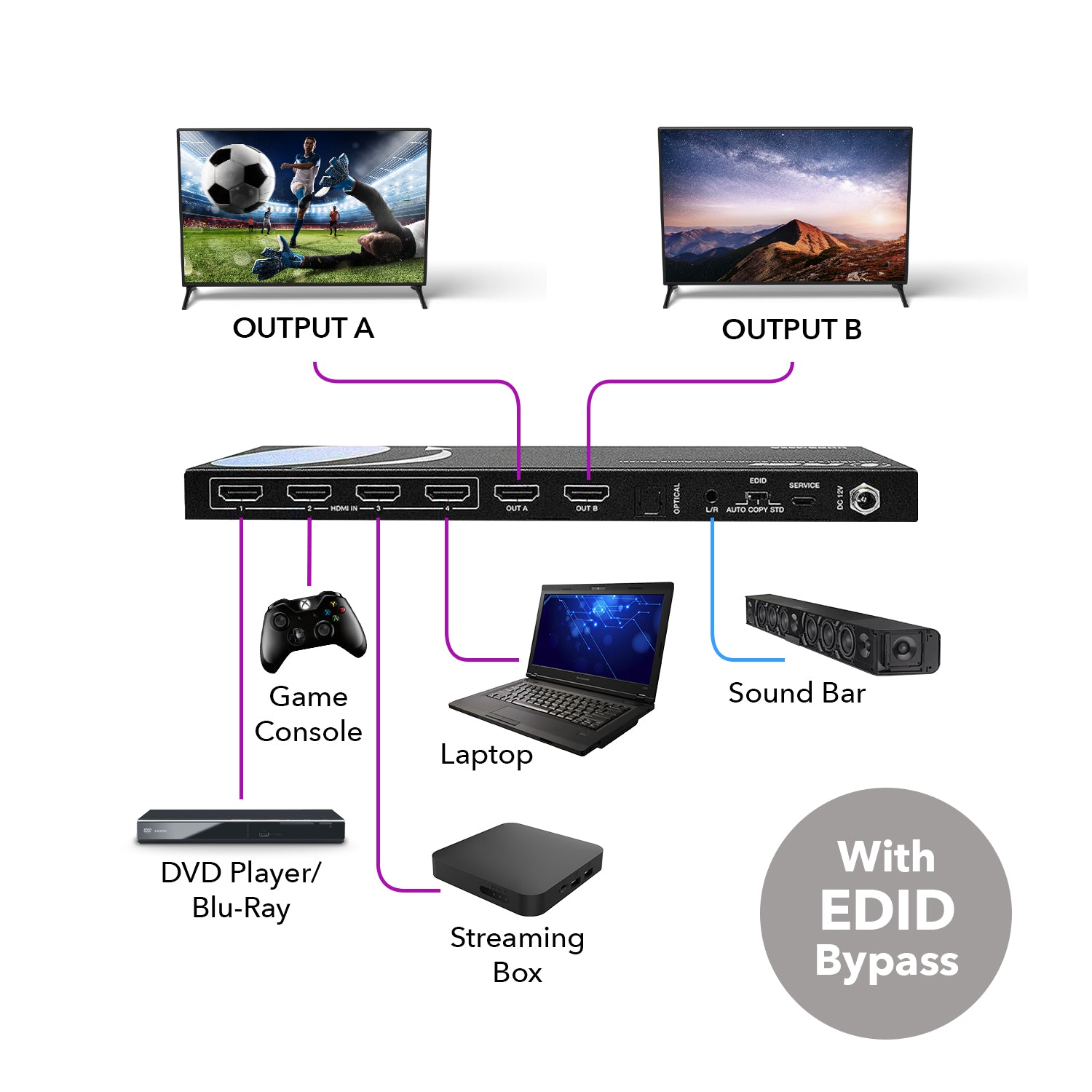

Few sample applications:

The OREI UHDS-402A high-performance HDMI Matrix Switcher can switch any of these four HDMI sources to two HDMI displays. It supports resolution up to 4KX2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output.

It supports 4K→1080P downscale function if the source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) function. With its 18Gbps bandwidth and the additional features with the latest HDMI standards. Flexible control via front panel buttons and IR remote.

AUDIO AND VIDEO

Input Ports:	4×HDMI Type A [19-pin female]
Output Ports:	2×HDMI Type A [19-pin female]
	1×L/R audio out [3.5mm Stereo Mini-jack]
	1×OPTICAL audio out [S/PDIF]
Video Bandwidth:	18 Gbps
Video Resolution:	Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz.All HDMI, 3D TV format, etc
Color Space:	RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
HDMI Audio Formats:	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats:	PCM2.0, Dolby Digital / Plus, DTS
L/R Audio Formats:	PCM2.0CH, (Note: If ARC function is turned on, the audio port will mute.)

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 1.4, 2.2

POWER

Power Supply:	Input: AC100~240V 50/60Hz, Output: DC12V/1A
Power Consumption:	3.8W (max)

ENVIRONMENTAL

Operating Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (non-condensing)

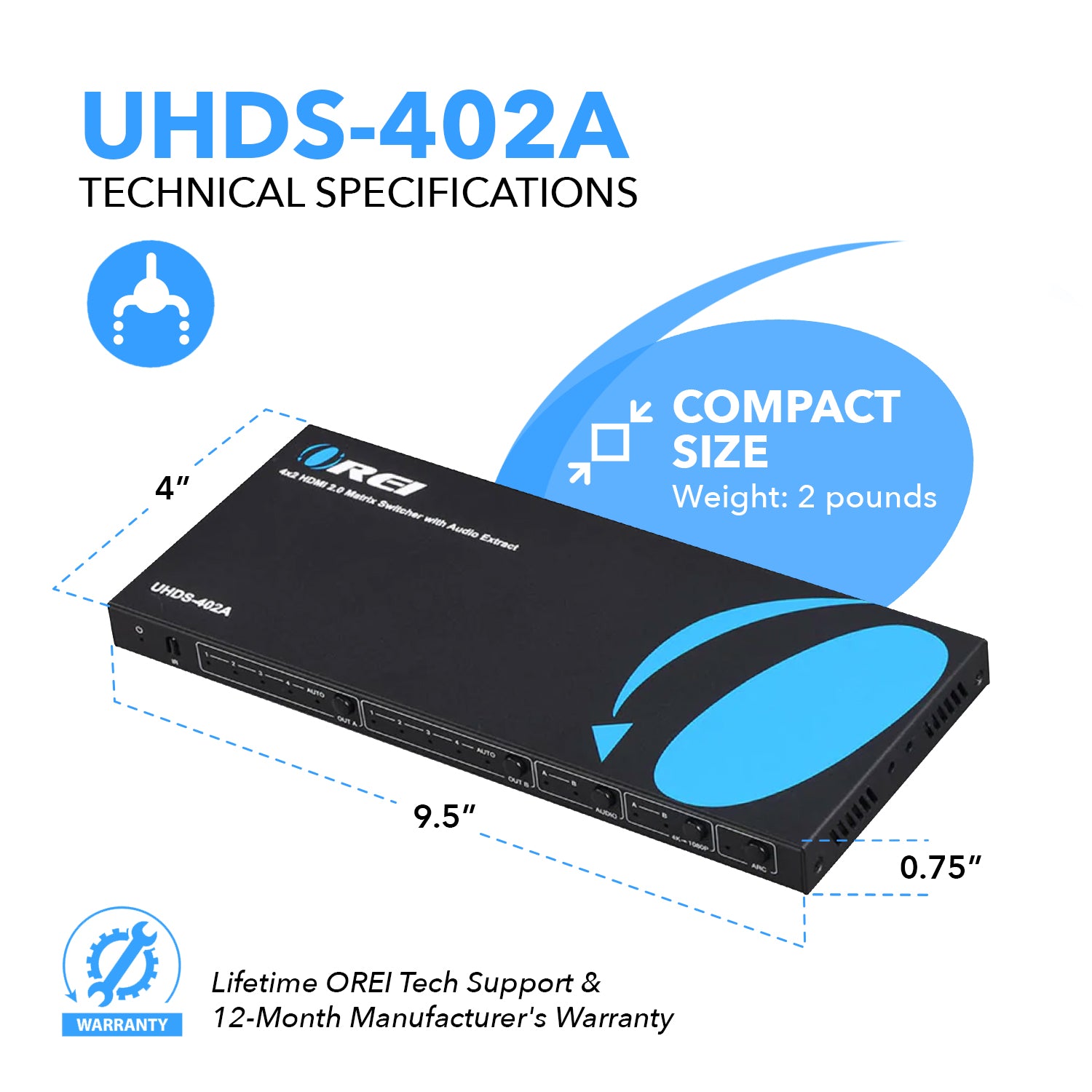

DIMENSIONS & WEIGHT

Height:	20mm
Width:	251 mm
Depth:	105 mm
Weight:	620g

REGULATORY

Safety and Emission:

CE | FCC | RoHS

PACKAGE CONTENTS

1 × UHDS-402A 4x2 HDMI Matrix switch

1 × Power Adapter

2 × Mounting Ears

1 × IR Remote

1 × User Manual

Warranty

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHDS-402A User Manual Download

UHDS-402A IR Codes

FAQs

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

No, our switchers aren't compatible with capture cards

Yes, the included power adapter does support 220V

The UHDS-402A does support 1440p and it will operate with 1440p 60hz/120hz/144hz. However, it doesn't support downscale from 1440p to 1080p so both outputs will receive 1080p@ 60hz at the same time

No, in order to extract the sound, your soundbar should have an HDMI input port.

If your soundbar doesnt have an HDMI input port then this product will not work for your requirements & it won't be able to extract the sound

Yes, it does support 4k to 1080p downscaling function

Yes, the UHDS-402A does support Dolby Atmos pass-through via HDMI output. However, the optical audio output will only support up to 5.1ch

The Beam doesn't have an HDMI input port, it has HDMI ARC port which needs to communicate directly with TV's HDMI ARC port. The UHDS-402A doesn't support HDMI ARC output. You can connect the optical audio cable to your Sonos beam with UHDS-402A.

The UHD-402 supports HDMI ARC connection between the Output B display and the HDMI input 4. If you'd like to connect your Sonos beam via HDMI ARC connection then you'll need to use the UHD-402 instead.

If your projector doesn't have an ARC HDMI port then you'll need to use a HDMI switch with audio extraction via optical output to connect it to your Beam. UHDS-401A and UHDS-402A both support optical output audio extraction.

Yes

Yes, the UHDS-402A does support 4K@60hz 4:4:4 output through both output A and B. It also supports 4K to 1080p downscale function which can be enabled if either of the outputs are only 1080p so that you can retain 4K to the other output
